​​​​​​Our foldable solar panel 100W portable solar charger is the perfect solution for charging your devices on the go. With a foldable and lightweight design, this charger can easily be transported and is perfect for camping, hiking, or travel.

• Brand Name:AHONY or OEM
• Model Number:eMobi F4x25w
• Place of Origin:Guangdong, China
• Type:IBC, 100W IBC portable solar panel foldable solar power charger
• Panel Dimensions:550*300*30mm
• Panel Efficiency:23.7%
• Certificate:CE ROHS ISO9001
• Warranty:1 year
• Product name:100 Watt solar panel suitcase monocrystalline
• Solar cell:A grade Sunpower back contact solar cell
• Application:camping rv outdoor travel hiking climbing
• Cell Type:125mm (5 Inch)
• cloth:600d waterproof inner
• surface:ETFE
• backsheet:PET
• usage:travel medical care portable power station

Product Description

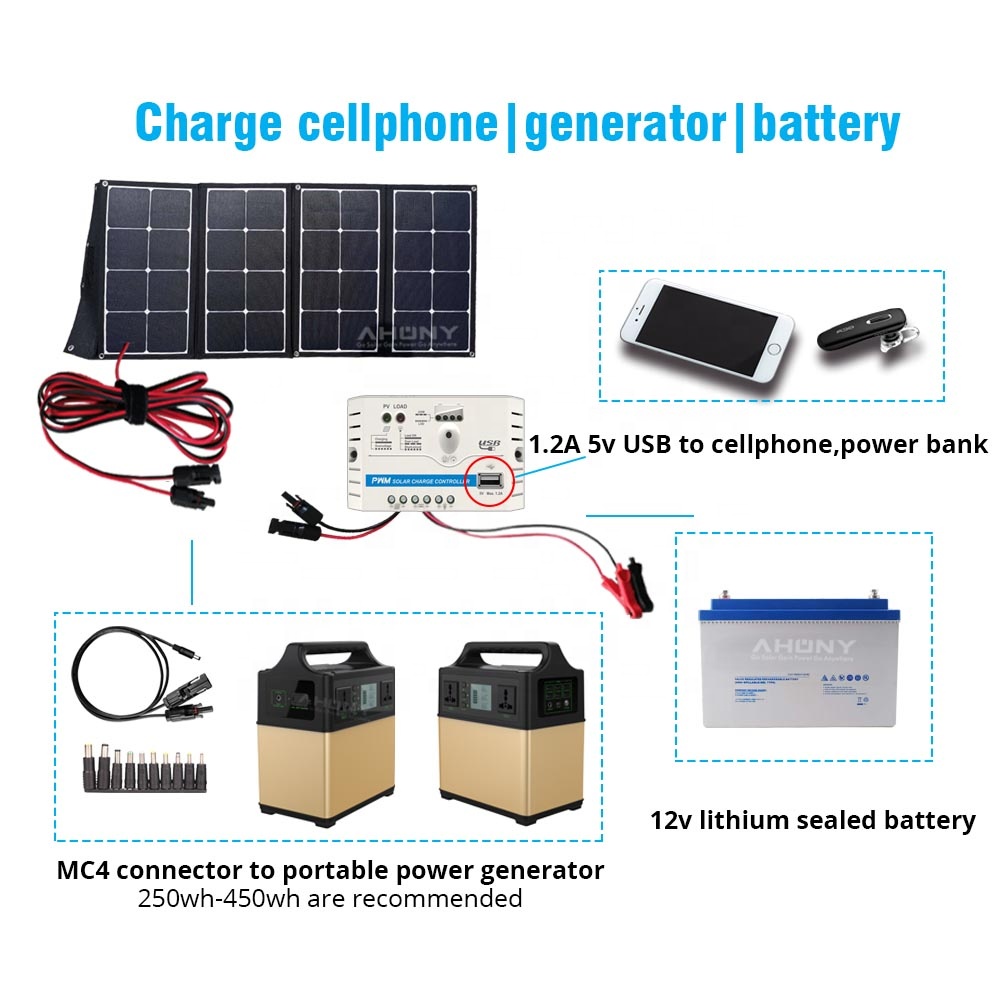

This eMobi F100w SP(eMobi F4x25w SP) foldable solar kit is with very small size to charge small portable generator 250wh to 450wh;
1.supporting leg adjustable for each panel to get the max sunshine and power;
2.Bright yellow colour stripe,colour can be custmoized to orange,red,yellow or any colour the same with your logo,more than 8 styles of designs;
3.charge controller is higher quality PWM with 1 USB port;
4.controller with smart IC.

5.USA SunPower solar cell higher cell efficiency and much better weak light,shading performance.

6.waterproof inner fabric.



Traditonal function and feature.
it has the best size that is suitable for RV,the voltage is 20V which is better for 12v battery.
A grade mono solar cells,efficienty is over 22.6%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight;
Japan ETFE surface,longer lifespan,higher quality and harsh environment resistance;
With a bag on back to fix the cable.

Folding solar panel eMobi F100w SP (eMobi F4x25w SP)uses waterproof fabric cloth and flexible solar panel to sew together,this is renew for traditional rigid folding solar panel.

The textile has a inner PU layer to prevent water come in panel and makes it waterproof.
The cell efficiency is 22.6% makes size smaller than panel with other low efficiency solar cells.

Information

Size Chart of This Design

Model No.	eMobi F4*25w SP or eMobi F100w SP
Product Name	High quality 100w perc cell foldable solar suitcase pwm charging battery portable generator 5v smartphone powerbank printer
Maximum Power[Wp]	100
Solar Cell	USA back contact SunPower Solar Cell
Cell Efficiency	22.6%
Folded Size[mm]	550*300*40
Open Size[mm]	1240*550*4
Max Power Voltage Vmp[V]	18.56
Max Power Current Imp[A]	5.39
Open Circuit Voltage Voc[V]	21.9
Short Circuit Current Isc[A]	5.82
Net.Weight[kg]	3.4
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4
Temperature Coefficient Voc[[mV/℃]	-2mV
Temperature Coefficient Isc[mA/℃]	0.037
Maximum System Voltage[V]	100 V
Certification	CE ROHS
Suface/backsheet	ETFE+FR4 fibreglass
Charge controller	PWM 10A 12/24V,1USB
Cables	5m 14AWG cable
Supporting Leg	Yes
Eyelets	Yes

Packing&Shipping

1 pcs in a bubble plastic bag,then in 1 carton box,plywood pallet.The whole package will use thin film to protect and make it waterproof.

FAQ

Q:How many years warranty for your solar panel?

A:This foldable kit 1 year warranty,semi flexible solar panel 2 years,semi rigid 3 years,glass panel 5 years.



Q:Are you a factory or trading company?

A:we own factory mainly R&D,produce,assemblyulralight solar panel,foldable solar kits,solar panels,solar parts etc.



Q:What is your biggest advantage?

A:Our biggest advantage is flexible,fast,efficient to support(technical,sales,QC)customers to make OEM,deliver fast and exact what customer want.
