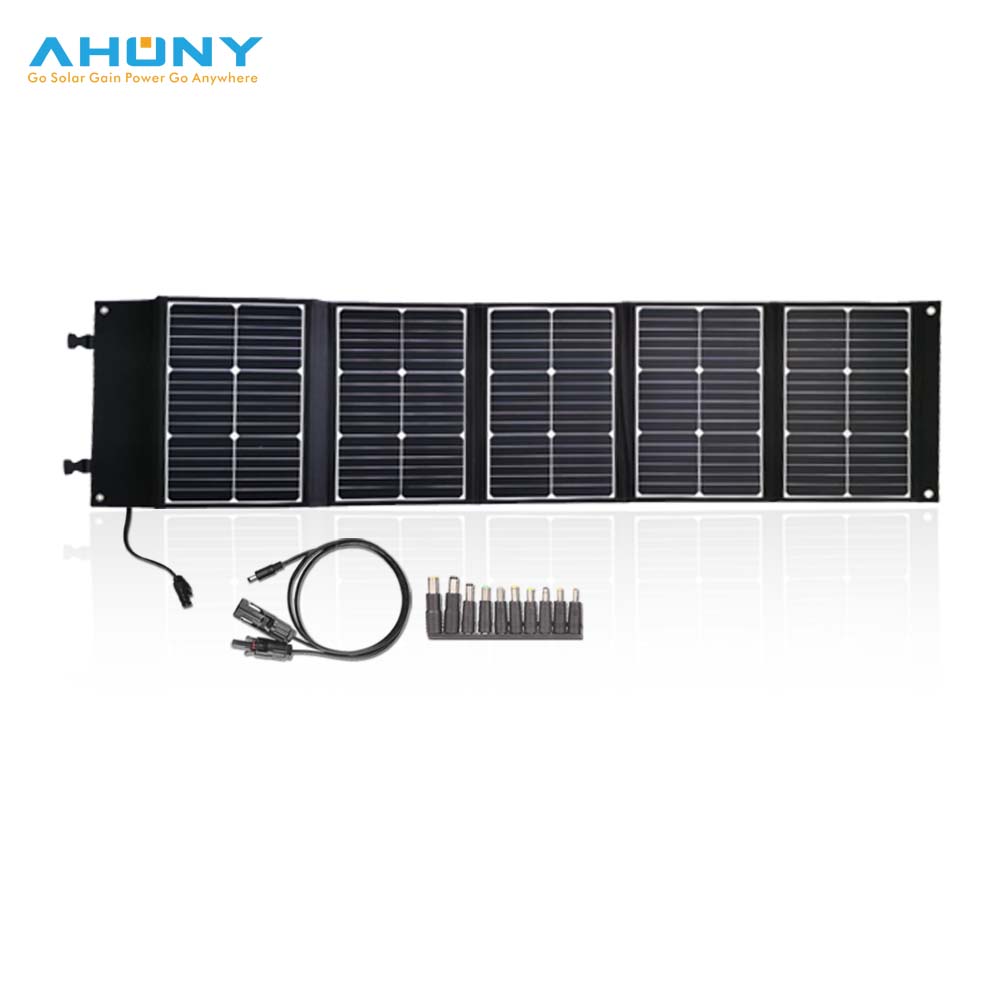

110w Portable solar kit solar blanket solar module folding solar charger for generator dual usb port china solar module
eMobi F110w
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity
Our folding solar charger solutions offer convenient and sustainable energy production for your outdoor adventures. With a compact and lightweight design, they provide reliable power for your devices and appliances while on the go.
- Brand Name:OEM
- Model Number:eMobi F110w
- Place of Origin:Guangdong, China
- Cell size:125mmx125mm
- Type:IBC, Customized Solar Panel
- Panel Dimensions:425*310*60mm
- Panel Efficiency:24.4%
- Certificate:CE ROHS ISO, CE ROHS ISO
- Warranty:1 year
- Product name:110w foldable solar kit for portable generator
- Widely used for:USB power bank generator
- style:sunpower cell quick charge
- application:Solar Power System emergency portable generator
- selling point:quick charge small size foldable ultralight
Product Description
- HIGH CONVERSION EFFICIENCY: Constructed form high-efficiency SUNPOWER monocrystalline solar cells, convert solar power into usable energy, up to 24.4% efficiency,with ahony foldable solar kit,you will get greater power generation even though the panel size is no larger than ordinary solar panels.

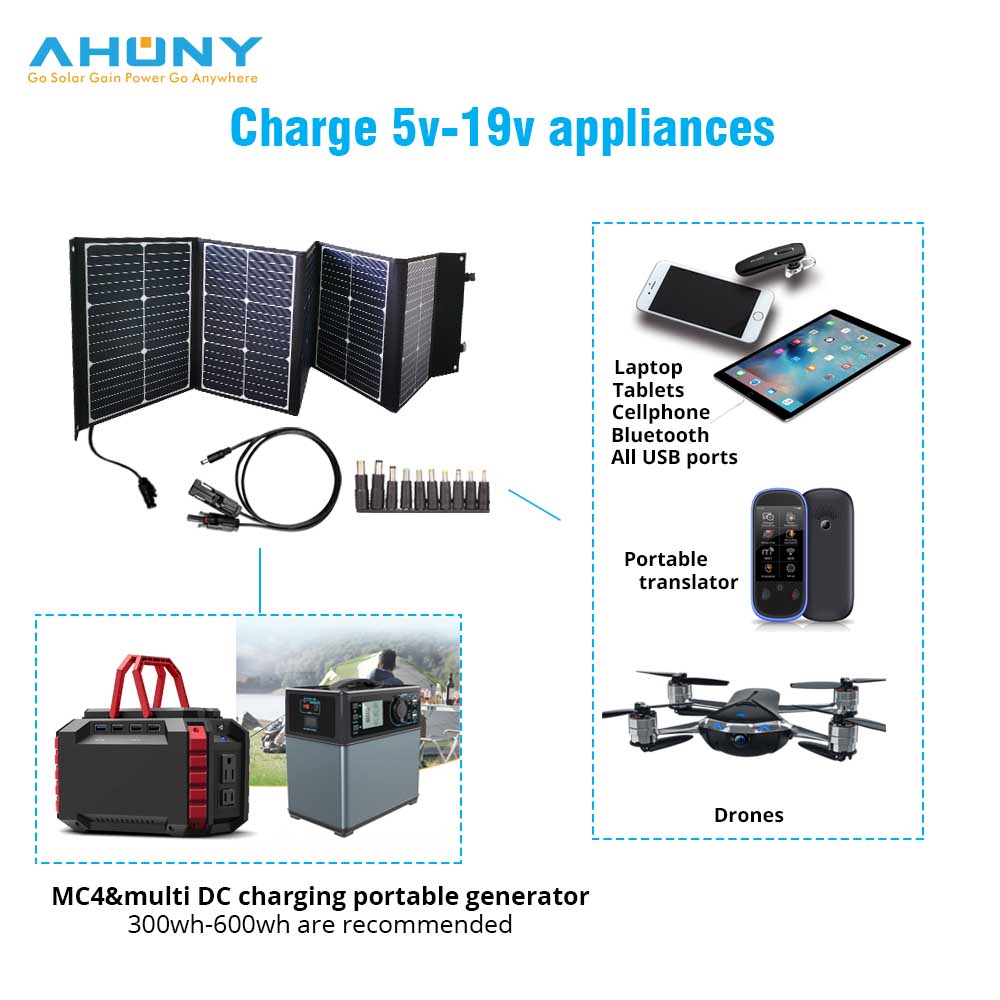

- HIGH COMPATIBILITY: Includes 10 different size of DC connectors, compatible with most portable solar generators on the market(but not for Jackery 440), 8mm DC Adapter for Jackery Explorer 240/160/500 and Goal Zero Yeti 150 / 400 Power Station, 3.5 * 1.35mm DC Adapter for Suaoki S270/ENKEEO S155/Paxcess portable generator, 5.5 * 2.1mm DC Adapter for Rockpals 250W portable generator. MC4 cable for other compatible energy storage devices. USB port for smartphones, tablets or other 5V USB devices.
- 3-PORT SMART CHARGING TECHNOLOGY: Equipped with dual USB port 5V/2.1A(max) and DC5521 port 18V/3.3A(max), can simultaneously charge your device. The smart IC chip built into the USB port intelligently identifies your device and automatically adjust current; DC port is equipped with a voltage regulator function to prevent damage to the access device caused by excessive output voltage.

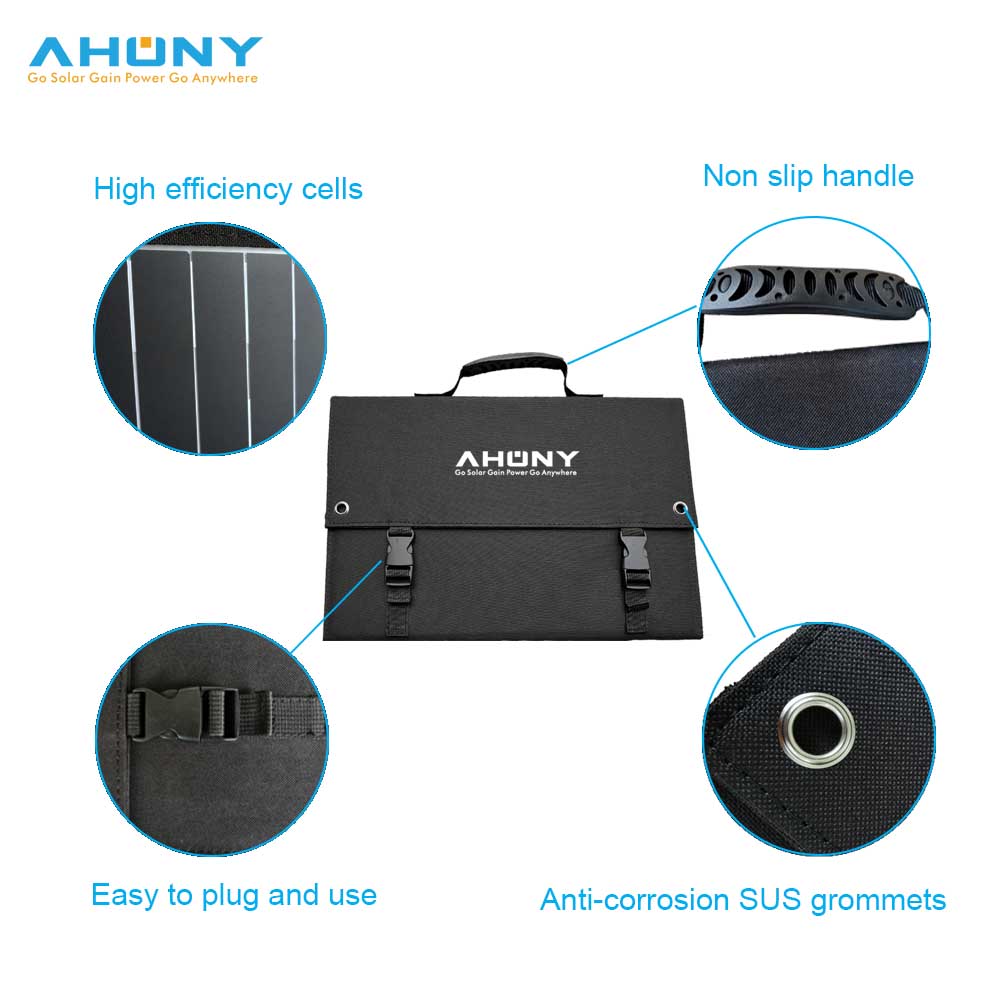

- HIGHLY DURABLE: Industrial-strength PET polymer faced solar panels sewn into a rugged polyester canvas offer weather-resistant outdoor durability, great for any outdoor activities such as camping, climbing, hiking, picnic.

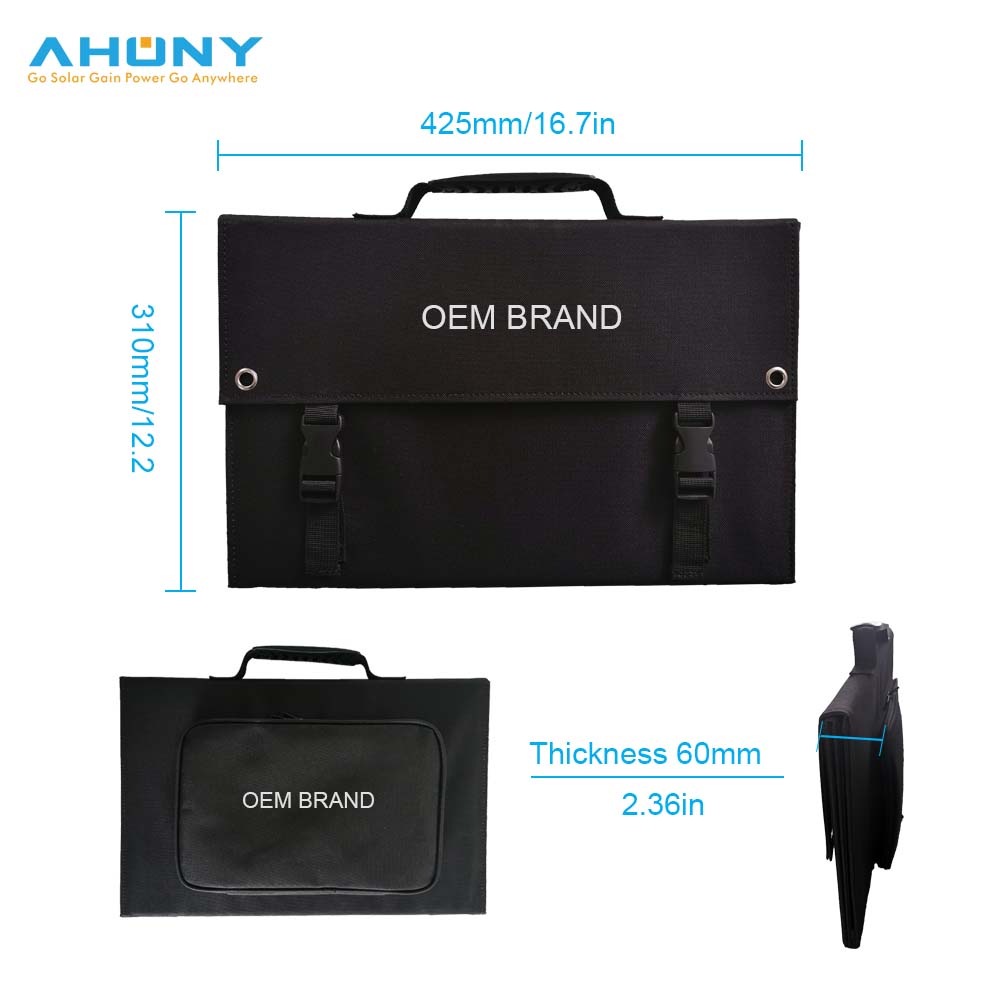

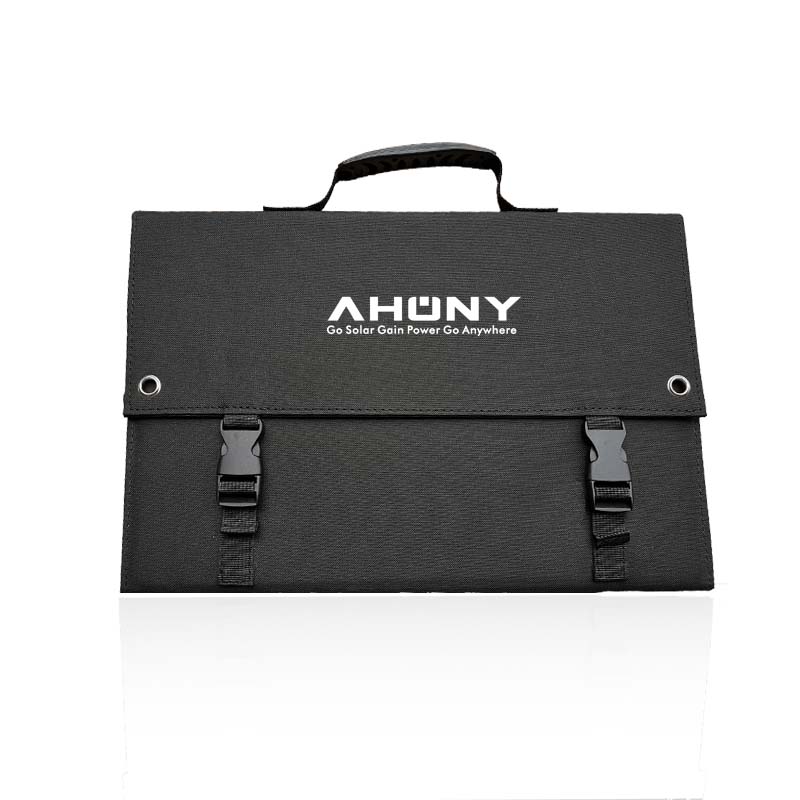

- FOLDABLE AND PORTABLE: Ultra compact of size 420*290*30mm/16.5*11.4*1.2inch(folded)/1115*420*4mm/43.9*16.5*0.16inch(opened), weighs only 4.18 lbs(1.9kg), when folded, it looks like a briefcase or foldable solar suitcase and is easy to carry. 4 metal reinforced mounting holes at each corner allow easy attachment to backpacks, trees, or tents.
| Model No. | eMobi FM5x20w |
| Product Name | 12V folding solar kits |
| Maximum Power[Wp] | 100 |
| Solar Cell | Mono PERC A Grade Solar Cell |
| Cell Efficiency | 24.4% |
| Folded Size[mm] | 425*310*60 |
| Open Size[mm] | 1730*425*4 |
| Max Power Voltage Vmp[V] | 22.03 |
| Max Power Current Imp[A] | 5.0 |
| Open Circuit Voltage Voc[V] | 26.0 |
| Short Circuit Current Isc[A] | 5.30 |
| Net.Weight[kg] | 3.1 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.4 |
| Temperature Coefficient Voc[[mV/℃] | -2mV |
| Temperature Coefficient Isc[mA/℃] | 0.037 |
| Maximum System Voltage[V] | 100 V |
| Certification | CE ROHS |
| Suface/backsheet | Waterproof textile,PET+FR4 fibreglass |
| Charge controller | PWM 10A 12/24V,2 USB,LCD display |
| Cables | 5m 14AWG cable |
| Connector | MC4+battery clips |
| Supporting Leg | Yes |
| Eyelets | Yes |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 1pcs/bubble plastic bag,then in 1 carton box |
