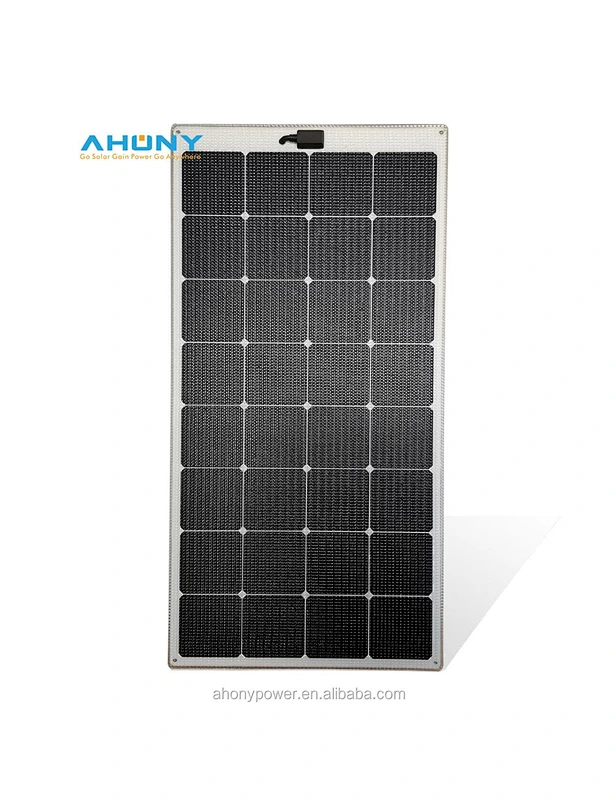

The 120w walkable solar panels can generate enough power to charge your batteries and run your devices without compromising on the aesthetic appeal of your vessel. With their sturdy construction and efficient solar cells, they can withstand the harsh marine environment and provide reliable power even on cloudy days.
- Brand Name:AHONY or customer's own brand
- Model Number:eMarvel 115w
- Place of Origin:Guangdong, China
- Type:IBC, Full Black Solar Panel
- Panel Dimensions:550*1220*4mm
- Panel Efficiency:23.7
- Certificate:CE ROHS ISO9001
- Warranty:3years
- Product name:popular bifacial solar panel
- Solar cell:SunPower or monocrystalline PERC
- Solar panel:solar panel marine use
- Backing Color:black
- Color:white or black transparent solar panel
- Cable:2m
The eMarvel light marine solar panel uses top quality material and tested in inner lab,under actual sunshine,test in our factory machine,and in the 3rd party laboratory.
Now this popular bifacial solar panel technology transparent solar panel 115w with high efficiency 23.7% can bend a slightly angle,they are approved by CE,ROHS,sg s,certified under IEC standard.
AHONY uses high efficiency cell over 21.3% monocrystalline or back contact cells Gen III over 22.6%.We offer a wide ranges of customize service,OEM,ODM,automatically producing line insures better workmanship,faster delivery and more stable quality.
*Walkable and Anti-slippery
*Longer lifespan 15years guaranteed
*High temp resistance and little power loss
*Rigid,thin,light design for widely use
Solar cells can be:
Back contact cell;
Monocrystalline solar cell
Polycrystalline solar cell
| Model No. | eMarvel 115w |
| Feature | popular bifacial solar panel technology transparent solar panel 115w with high efficiency 24.4% |
| Product Name | Semi Flexible Solar Panel,rigid flexible solar panel.marine solar panel |
| Maximum Power[Wp] | 120 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 24.40% |
| Size[mm] | 550*1090*4 |
| Max Power Voltage Vmp[V] | 19.60 |
| Max Power Current Imp[A] | 5.87 |
| Open Circuit Voltage Voc[V] | 23.13 |
| Short Circuit Current Isc[A] | 6.34 |
| Net.Weight[kg] | 4.95 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 200 V |
| Maximum Reverse Current[V] | 20A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,sg s,IEC,85°C& 85% humidity test |
We specialized in ultralight solar panel technology,producing flexible solar panel,foldable solar kits,marine solar panel etc.
