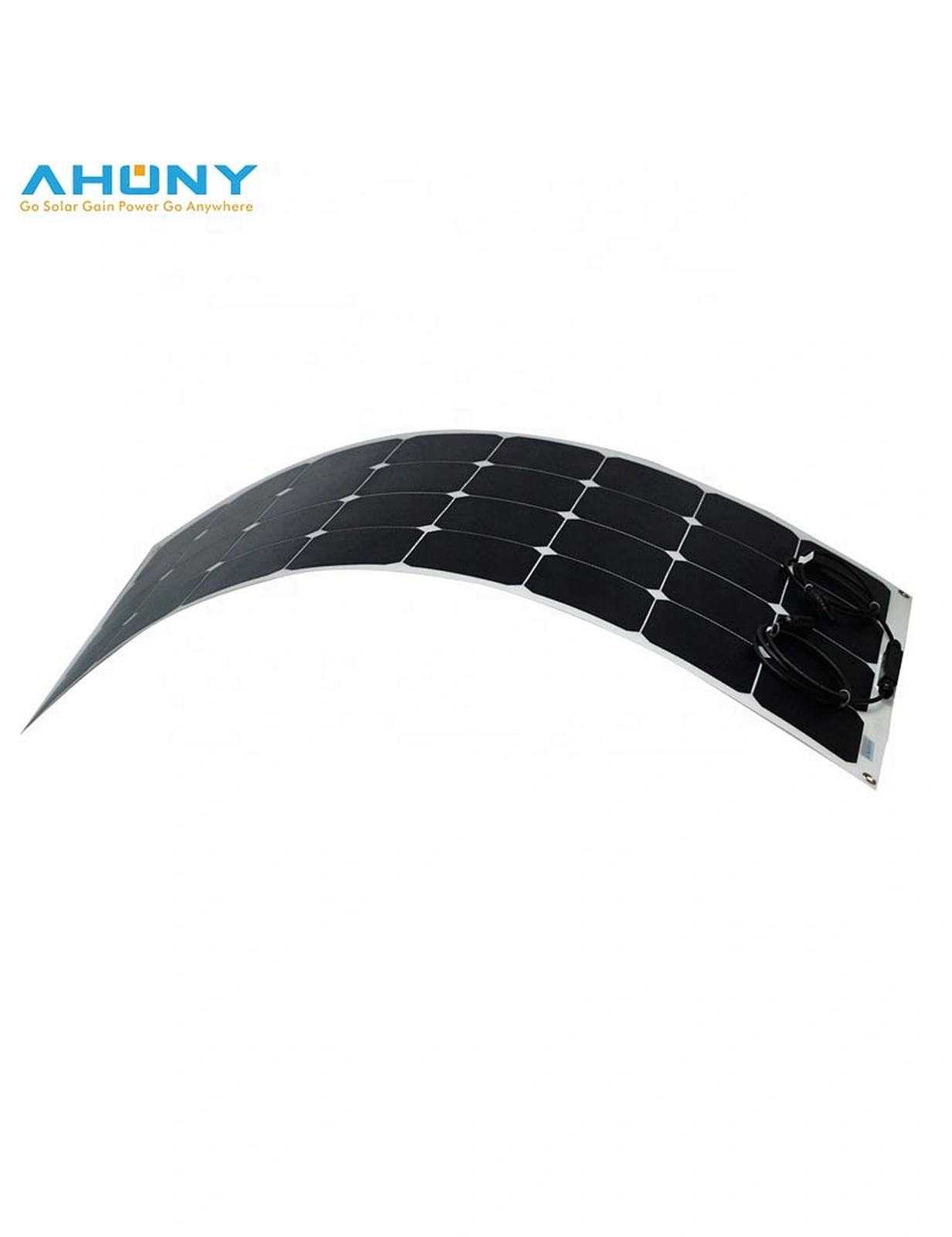

The 80W lightweight camper solar panel kit is the perfect solution for those who love camping and RVing. This solar panel kit is designed to be lightweight, making it easy to install and transport. With its high-quality solar cells, it can generate enough power to keep your batteries charged and your devices running, even when you're off the grid.
- Brand Name:customer brand
- Model Number:eGo S80W
- Place of Origin:Guangdong, China
- Type:PERC, Standard Solar Panel
- Panel Dimensions:540x840x3mm
- Panel Efficiency:22.6%
- Certificate:CER ROHS ISO
- Warranty:1 YEAR
- Product name:ETFE Flexible Solar Panel for rv roof camper trailer motor home
- Application:solar panel system for camper trailer
- Connector:battery clips
- usage:to match portable power generator
- Solar panel:ETFE flexible solar panel
- Cell Type:SunPower back contact
- Back Sheet:Double-sided Fluorine TPT
Welcome to view our 12 Volt ETFE Flexible Solar Panel 80w 100w 150w Ultra Lightweight solar for rv roof camper trailer motor home.

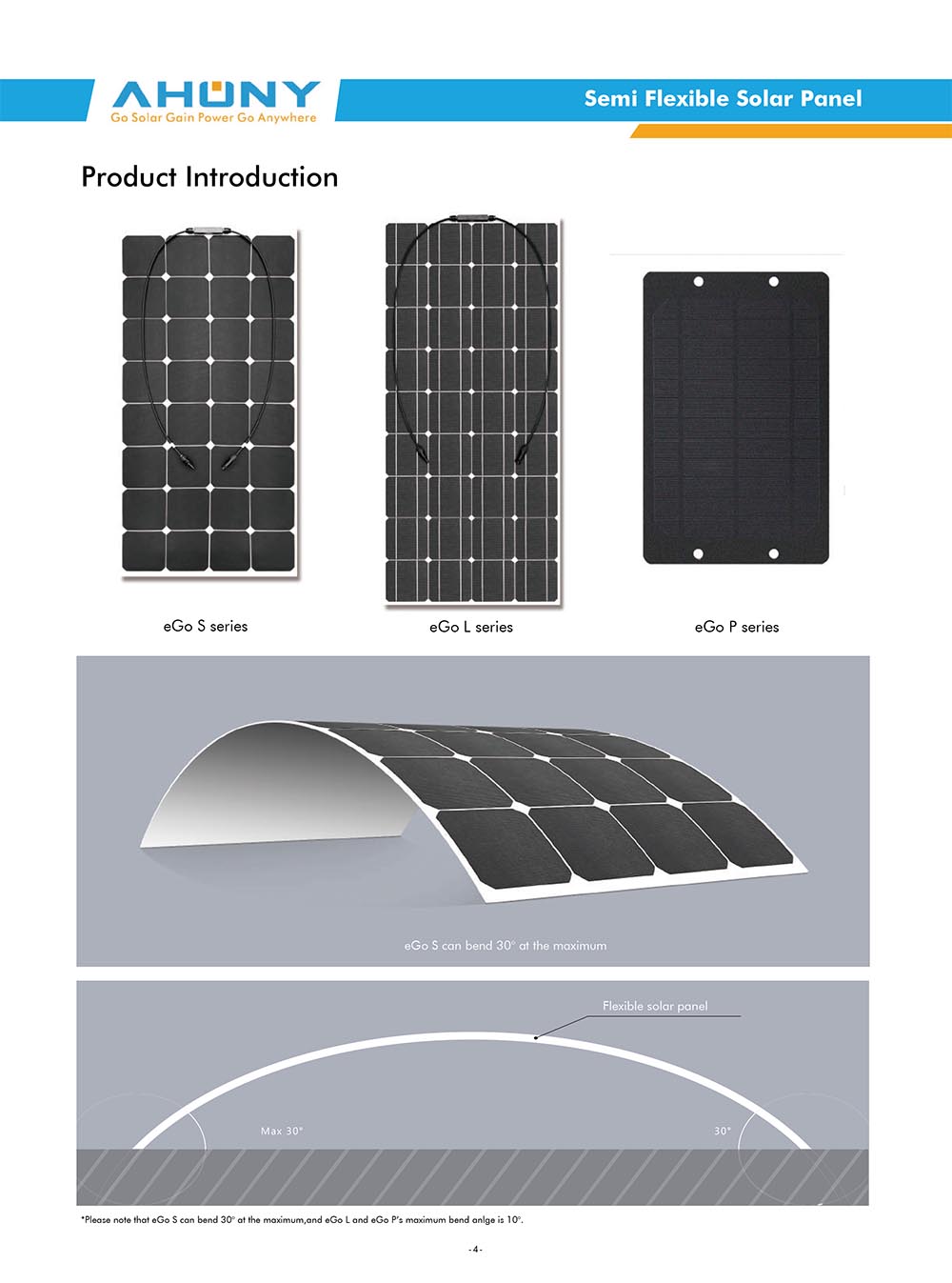

-With a flex range of up to 248 degrees, this panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.
-ETFE material has higher light transmittance, longer service life than PET material. ETFE flexible solar panel also has antifouling and self-cleaning abilities, ensure best performance day after day.
-Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze. The lightweight design also contributes to lower mpg on vehicles.
-Sleek and barely noticeable,100W flexible solar panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.
| Model No. | eGo S80w | eGo S100w | eGo S120w | eGo S150w |
| Product Name | 12 Volt ETFE Flexible Solar Panel 80w 100w 150w Ultra Lightweight solar for rv roof camper trailer motor home | |||
| Maximum Power[Wp] | 80 | 100 | 120 | 150 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell | |||
| Cell Array[Pcs] | 4*9 | 4*8 | 4*9 | 4*11 |
| Cell Efficiency | 22.60% | 22.60% | 22.60% | 22.60% |
| Size[mm] | 540x840x3 | 540x1060x3 | 540x1200x3 | 540x1460x3 |
| Max Power Voltage Vmp[V] | 18.56 | 18.56 | 20.88 | 25.52 |
| Max Power Current Imp[A] | 4.31 | 5.39 | 5.75 | 5.88 |
| Open Circuit Voltage Voc[V] | 21.90 | 21.90 | 24.64 | 30.11 |
| Short Circuit Current Isc[A] | 4.66 | 5.82 | 6.21 | 6.35 |
| Net.Weight[kg] | 1.1 | 1.5 | 1.9 | 2.8 |
| Power tolerance[%] | ±5% | ±5% | ±5% | ±5% |
| NOCT[℃] | 45±2 | 45±2 | 45±2 | 45±2 |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 | -0.3 | -0.3 | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV | -1.74mV | -1.74mV | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 | 0.05 | 0.05 | 0.05 |
| Maximum System Voltage[V] | 100 V | 100 V | 100 V | 100 V |
| Maximum Reverse Current[V] | 10A | 10A | 20A | 20A |
| Certification | CE ROHS | CE ROHS | CE ROHS | CE ROHS |
| Surface/Backsheet | Japan ETFE/white plastic | |||
| Maximum bend radius(θ) | 30° | 30° | 30° | 30° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC7 connector | |||
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C | |||
| Other notes | round corner R10,with eyelets | |||
| Package | 1pcs/EPE Foam,1 carton box | |||
