150w mono PET 18v folding solar panel Battery Systems outdoor use Solar power chargers camping RV
eMobi F3*50w
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
150w mono PET 18v folding solar panel Battery Systems outdoor use portable solar kits camping RV
Quantity

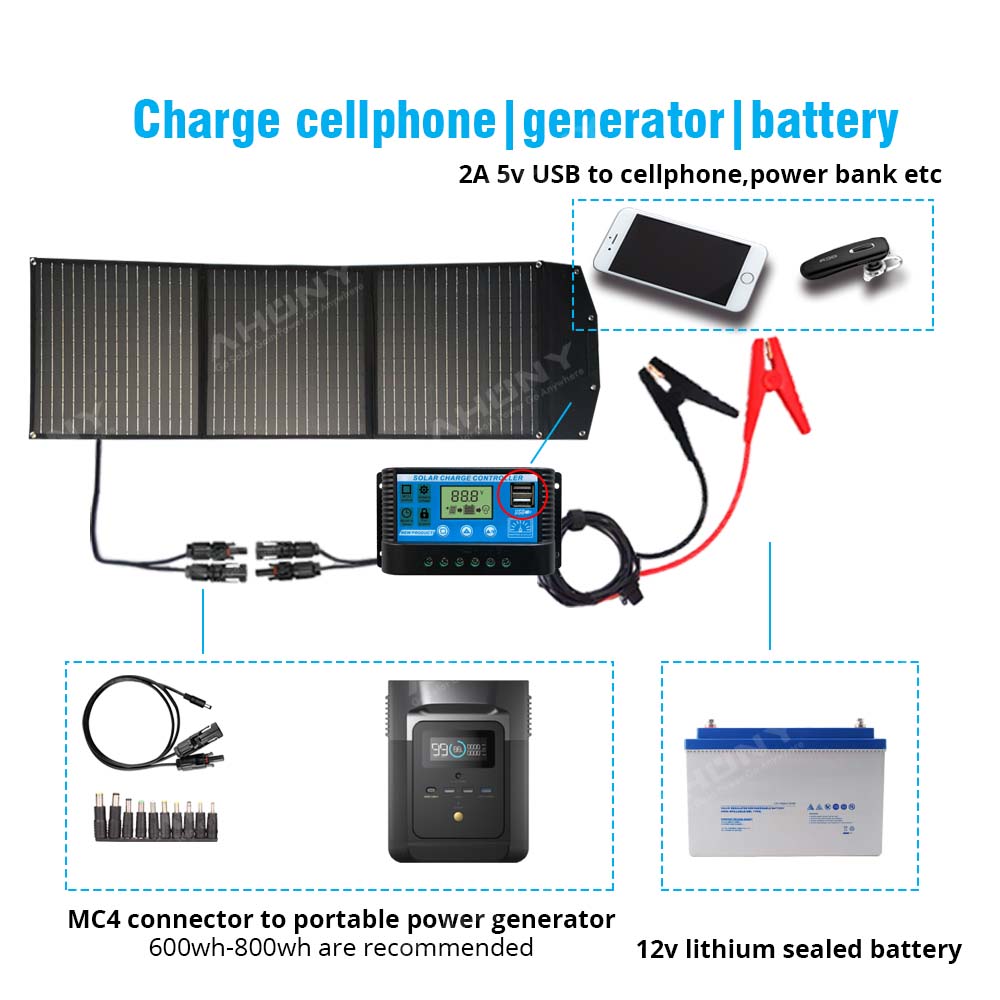

The 150W Solar power chargers is perfect for RV and camping enthusiasts who want to harness the power of the sun. With its high-quality solar cells and lightweight design.it can effectively generate enough power to charge your batteries and run your devices, making it perfect for off-grid camping trips.
- Warranty:1year
- Free installation service:NO
- Place of Origin:Gua
- Brand Name:AHONY/OEM
- Model Number:eMobi F3*50w
- Application:Home
- Solar Panel Type:Monocrystalline Silicon
- Battery Type:NONE
- Controller Type:MPPT
- Mounting Type:Ground Mounting
- Load Power (W):3KW
- Output Voltage (V):18v
- Output Frequency:150w
- Work Time (h):5h
- Certificate:CE ROHS
- Pre-sales project design:Y
- Product name:folding solar panel
| Model No. | eMobi F3x50w |
| Product Name | Folding solar kit |
| Maximum Power[Wp] | 150 |
| Solar Cell | PERC A Grade MONO cell |
| Cell Efficiency | 22.50% |
| Folded Size[mm] | 600*500*60 |
| Max Power Voltage Vmp[V] | 20.88 |
| Max Power Current Imp[A] | 7.18 |
| Open Circuit Voltage Voc[V] | 24.64 |
| Short Circuit Current Isc[A] | 7.76 |
| Net.Weight[kg] | 4.6 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.4 |
| Temperature Coefficient Voc[[mV/℃] | -2mV |
| Temperature Coefficient Isc[mA/℃] | 0.037 |
| Maximum System Voltage[V] | 100 V |
| Certification | CE ROHS |
| Suface/backsheet | PET+ PET |
| Cables | 3.5m 14AWG cable |
| Connector | MC4 |
| Supporting Leg | Yes |
| Eyelets | Yes |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 10pcs/bubble plastic bag,then in 1 carton box |
