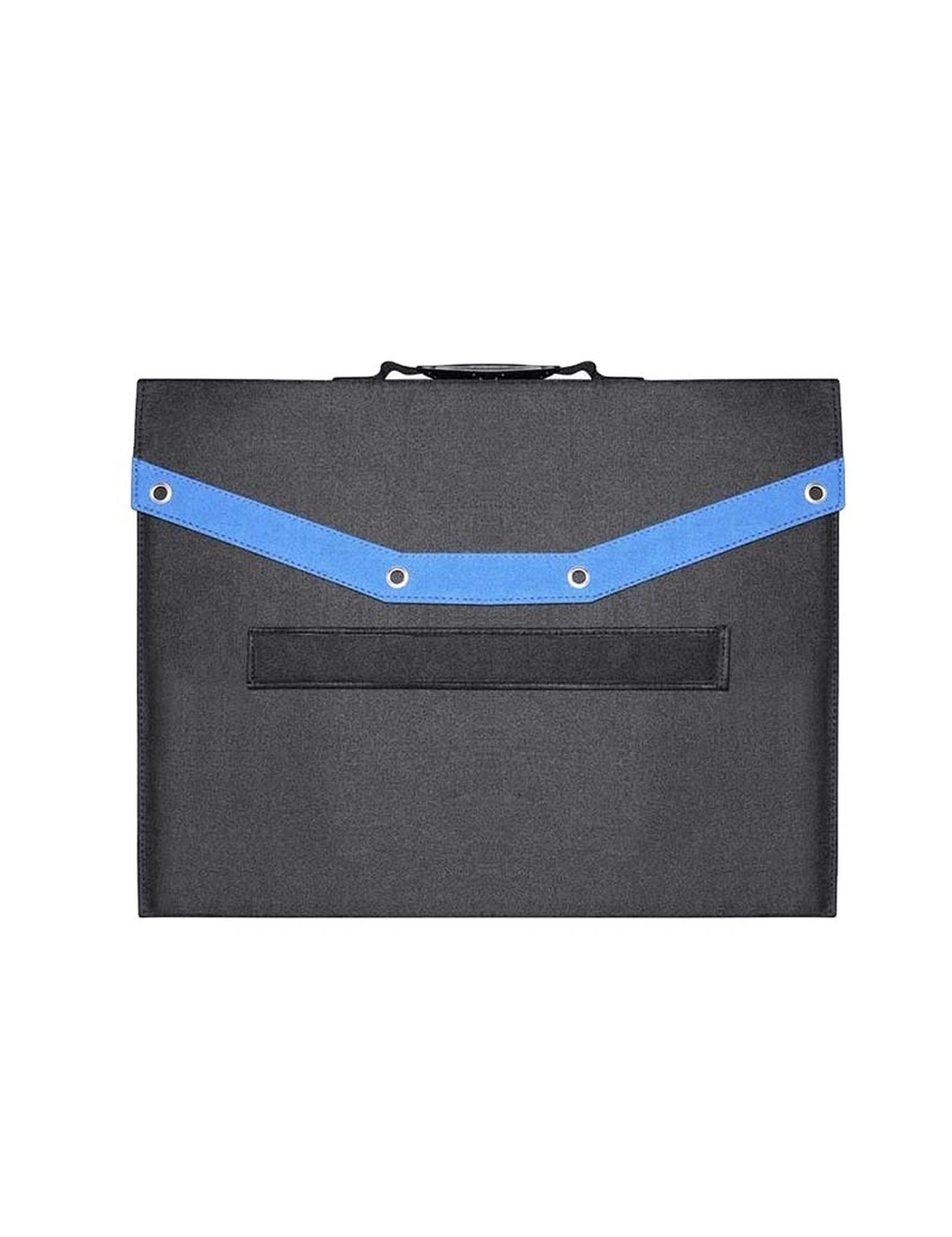

Our portable solar generator kit offers a convenient and eco-friendly energy solution for your off-grid needs. With high-quality solar panels and a reliable battery, it provides power for your devices and appliances on the go.
- Brand Name:AHONY
- Model Number:eMobi F4*40w
- Place of Origin:Guangdong, China
- Type:IBC, Customized Solar Panel
- Panel Dimensions:560*440*20
- Panel Efficiency:23.7%
- Certificate:CE ROHS ISO9001
- Warranty:1year
- Product name:foldable solar panel charger4*40ww for camping
- cable:5m Cable
- supporting legs:yes
- cusotmize service:yes
- Efficiency:22.6% high efficiency PERC solar cell
Small size more folda,ultralight,get the smallest size and biggest power;
-To charge 200wh-400wh portable solar generator;
-More than 10 years sewing workmanship and more than 5 years automatically soldering;
-Prefessional engineer to design different sizes and muti-function connection to connect different power load.
-Individual carton box with very solid package for retailing,online selling etc.
-fast delivery and stable quality supply.
| Model No. | eMobi F4x40w |
| Product Name | 12V folding solar kits plastic solar panel |
| Maximum Power[Wp] | 160 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Efficiency | 22.60% |
| Folded Size[mm] | 560*440*20 |
| Open Size[mm] | 1990*560*5 |
| Max Power Voltage Vmp[V] | 20.88 |
| Max Power Current Imp[A] | 7.66 |
| Open Circuit Voltage Voc[V] | 24.64 |
| Short Circuit Current Isc[A] | 8.28 |
| Net.Weight[kg] | 4.75 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.3 |
| Temperature Coefficient Voc[[%/℃] | -1.74mV |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Certification | CE ROHS |
| Suface/backsheet | PET |
| Charge controller | PWM 20A 12/24V,1 USB |
| Cables | 5m 12AWG cable |
| Connector | battery clips |
| Supporting Leg | Yes |
| Eyelets | Yes |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 1pcs/bubble plastic bag,then in 1 carton box |
AHONY offer a series of after sale service for Customize folding solar blanket 100w for travel 12v battery dc power to charge cellphone battery portable generator:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
