166cell 195w semi flexible solar panel high efficiency cell shelter awning roof fence car parking bendable flexible solar module
eGo S195M
EXW,FOB,CIF
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
195W high efficiency solar module from AHONY for shelter awning roof fence car parking.
Quantity

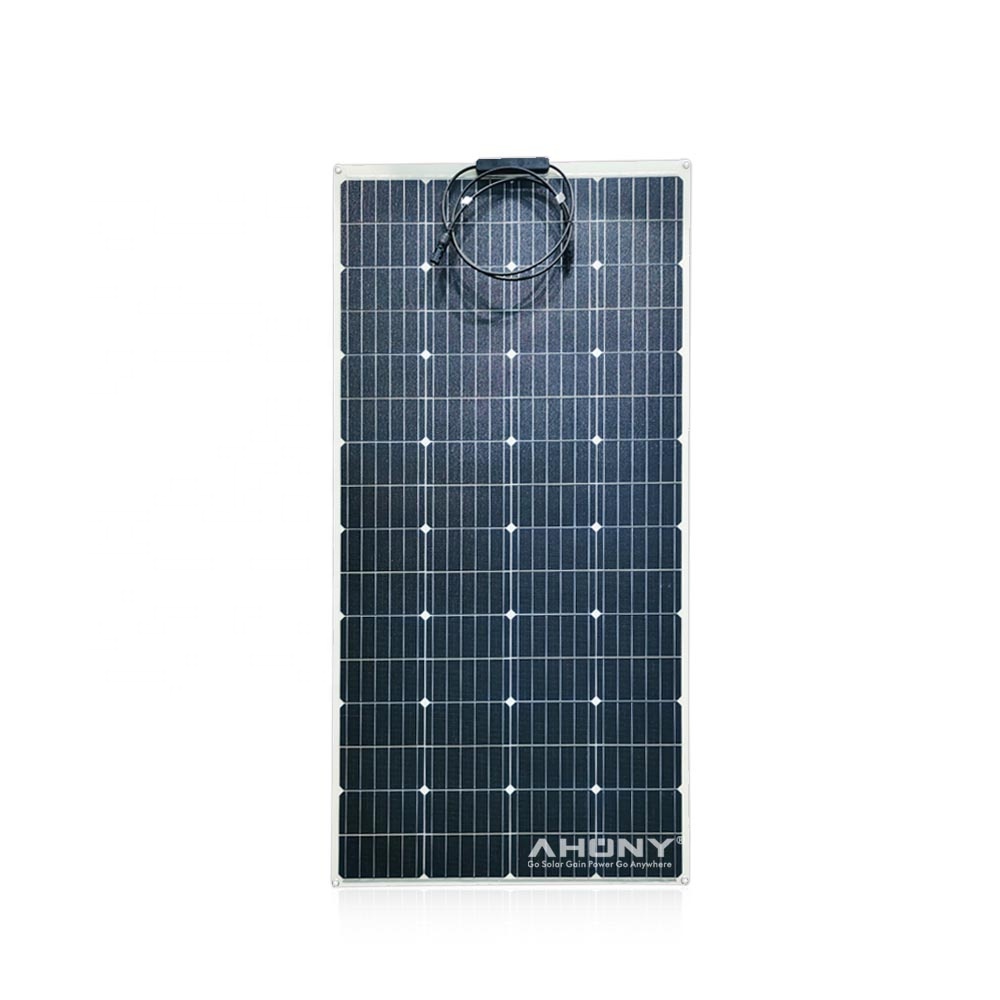

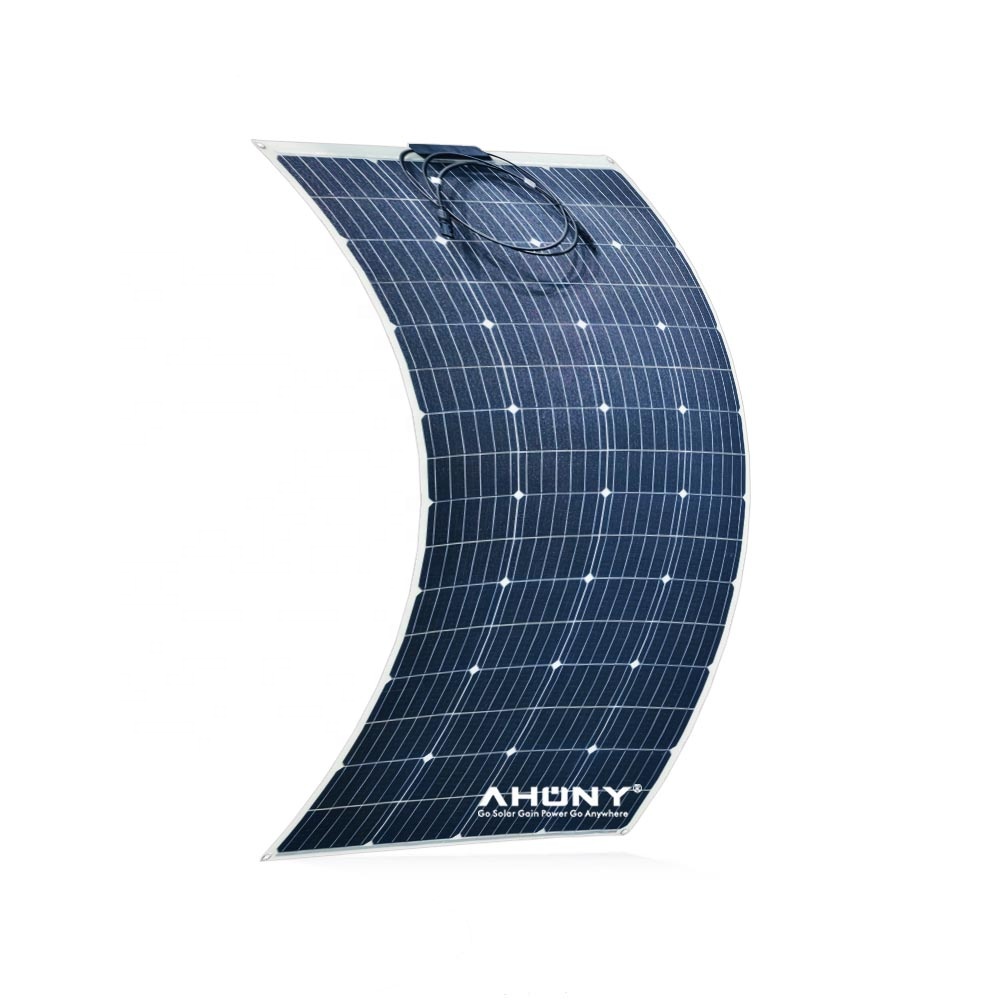

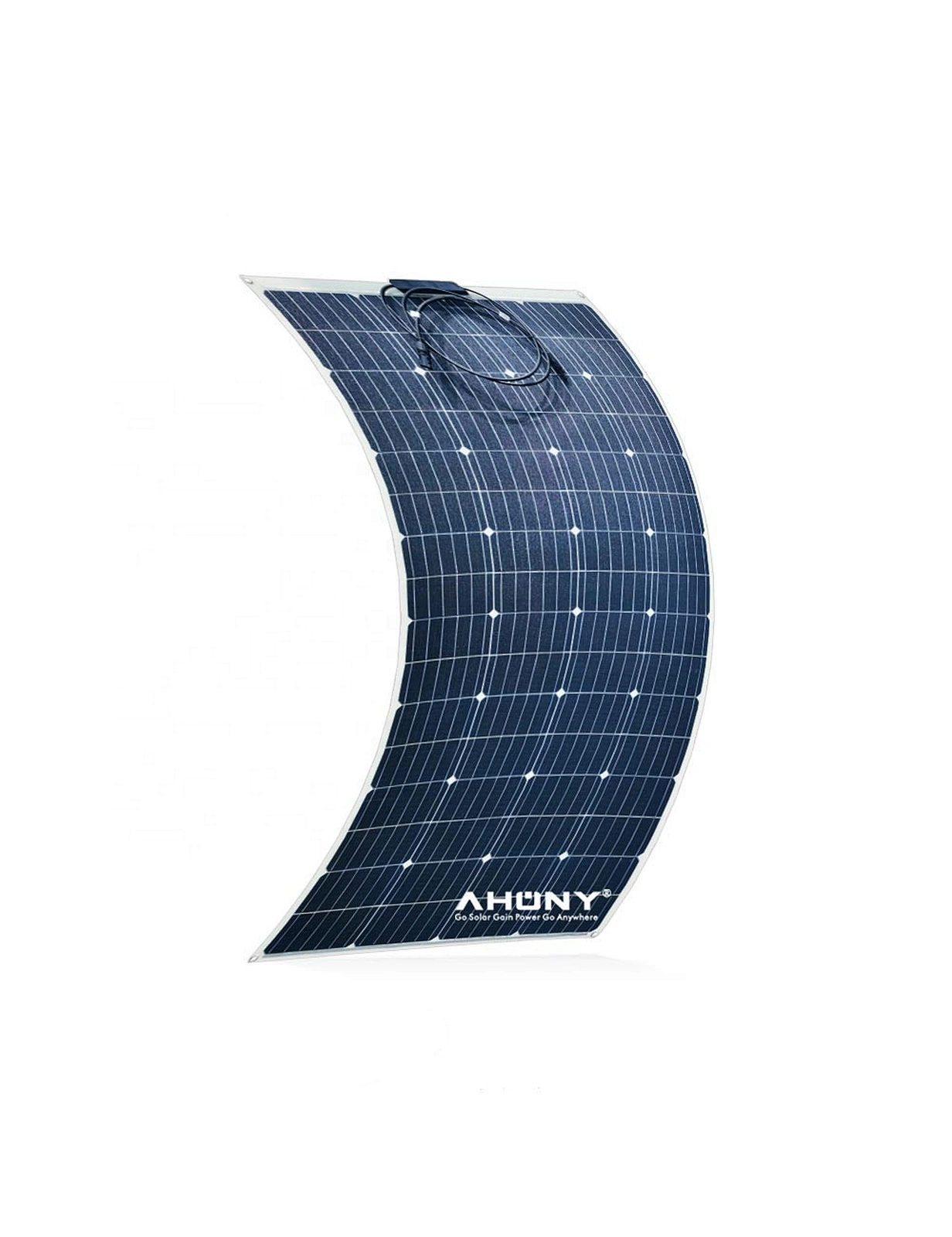

The Semi-flexible solar panel is an innovative and versatile solution for generating solar power. These bendable solar panels are designed to be lightweight and flexible, allowing them to conform to curved surfaces such as boat decks and RV roofs.
- Place of Origin:Guangdong, China
- Brand Name:AHONY or OEM
- Model Number:eGo S195M
- Cell size:166mmx166mm
- Panel Dimensions:700*1400*3mm
- Panel Efficiency:23%

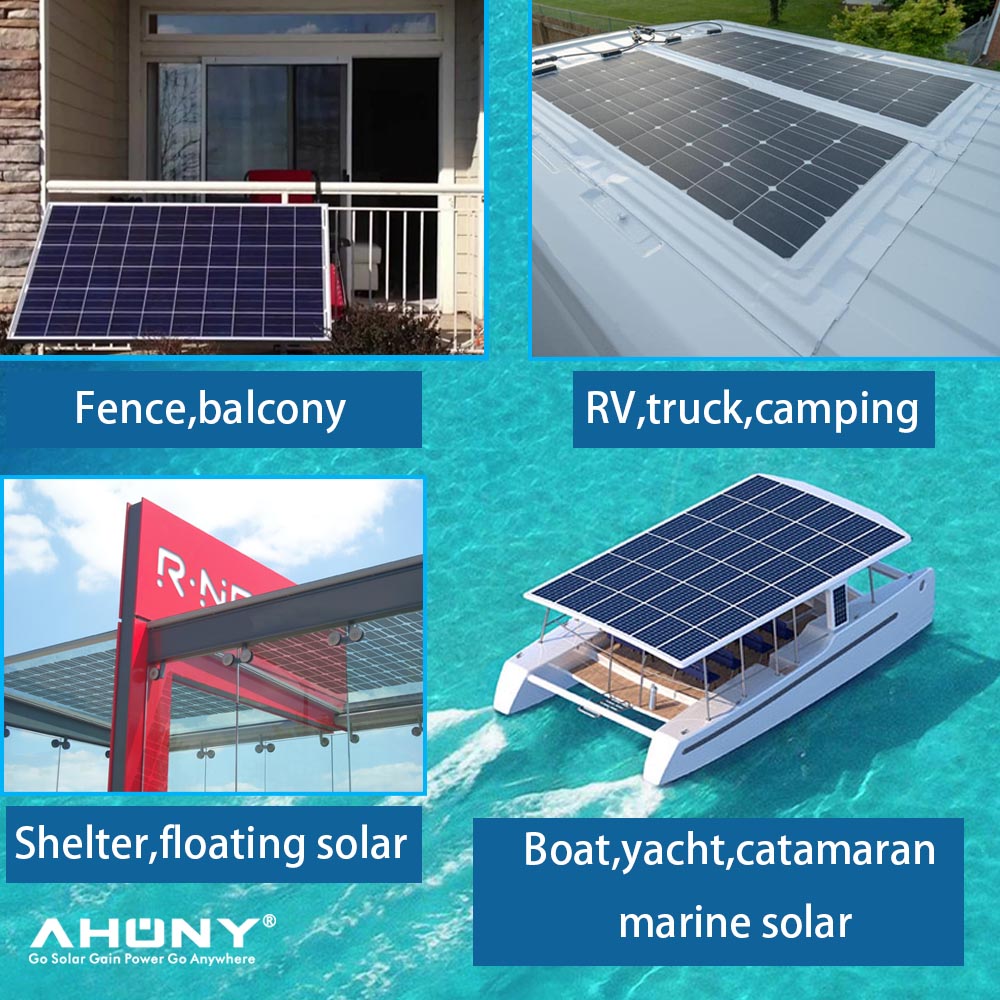

- Application:rv shelter roof
- Certificate:CE ROHS ISO
- Solar cell:166 solar cell
- Product name:semi flexible solar panel
- Warranty:1 year
- Power:195w
| Product Name | Semi-flexible solar panel |
| Maximum Power[Wp] | 195 |
| Solar Cell | A grade mono perc solar cell |
| Cell size[mm] | 166*166 |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 23.00% |
| Size[mm] | 700*1400*3 |
| Max Power Voltage Vmp[V] | 18.56 |
| Max Power Current Imp[A] | 10.51 |
| Open Circuit Voltage Voc[V] | 21.90 |
| Short Circuit Current Isc[A] | 11.14 |
| Net.Weight[kg] | 3.8 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.41 |
| Temperature Coefficient Voc[[%/℃] | -0.32 |
| Temperature Coefficient Isc[[%/℃] | 0.04 |
| Maximum System Voltage[V] | 200 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |

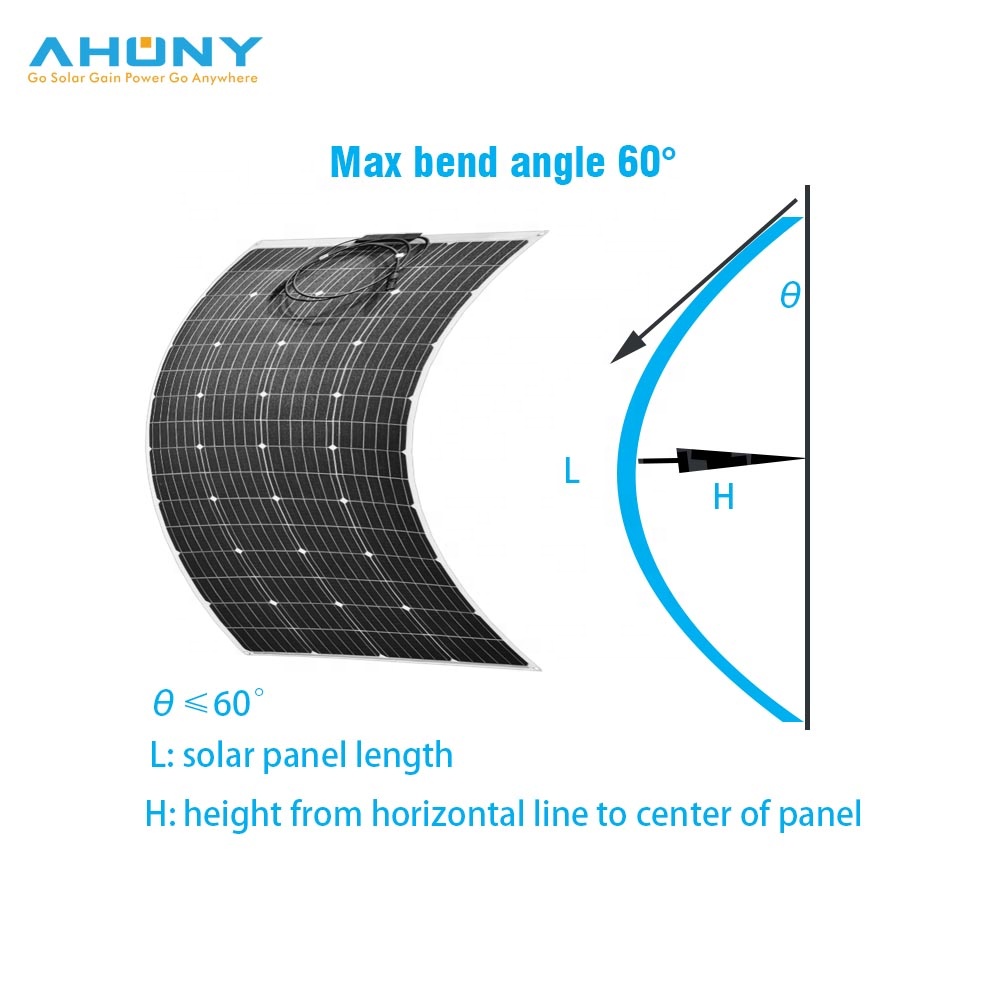

| Max Bend angle | 60degree |
| Surface/Backsheet | ETFE+AP2 |
| Warranty | 1 year |
