250w flexible solar panels Lightweight Solar Panels ETFE For Boat camp rv off grid solar system solar module
eGo S250M
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity
RV off-grid solar systems are an efficient and eco-friendly solution for powering your mobile home. With high-quality solar panels, charge controllers, and battery storage systems, they provide reliable off-grid power for your travels. Upgrade your RV experience with an off-grid solar system.
- Place of Origin:Guangdong, China
- Brand Name:OME
- Model Number:eGo S250M
- Cell size:158.75mmx158.75mm
- Panel Dimensions:half 830*15150*2
- Panel Efficiency:22.7%
- Product name:250W solar panel flexible solar panel
- Certificate:CE ROHS ISO
- Warranty:1 year
- Solar cell:Monocrystalline solar cell

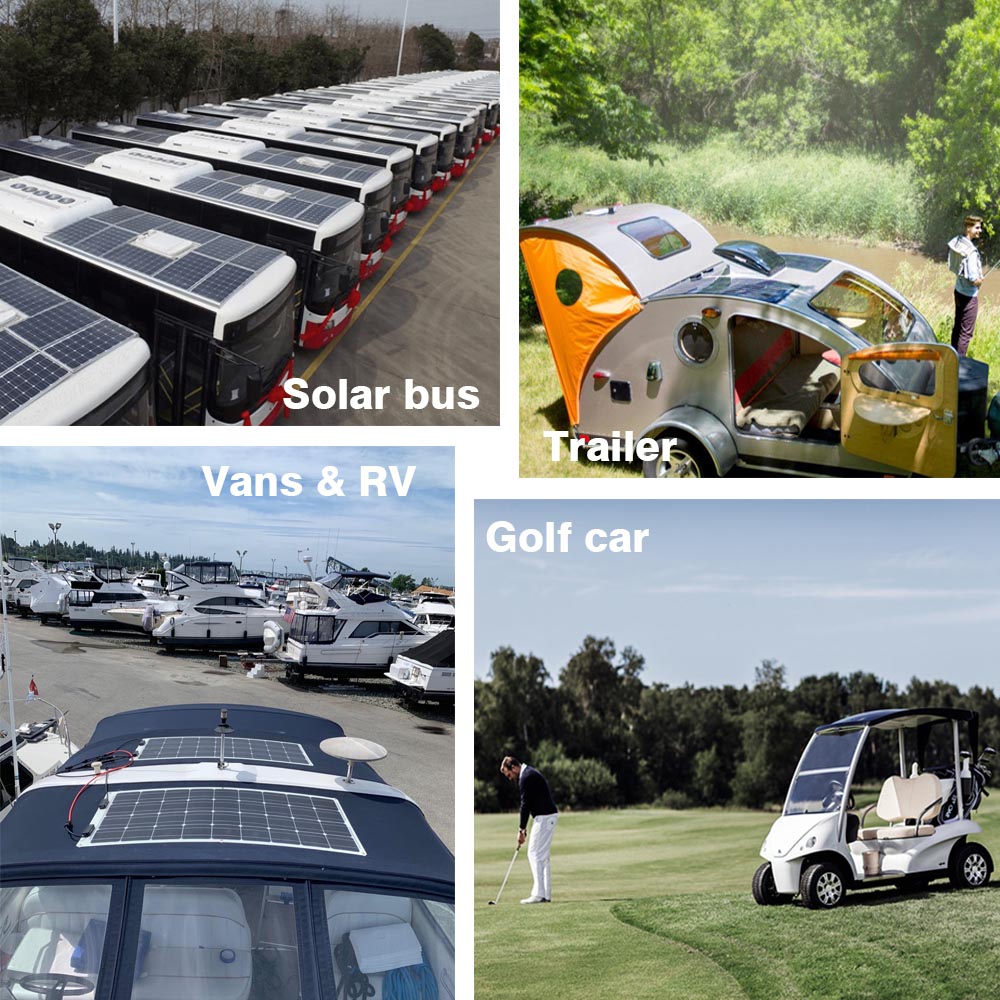

- Application:RV boat Marine

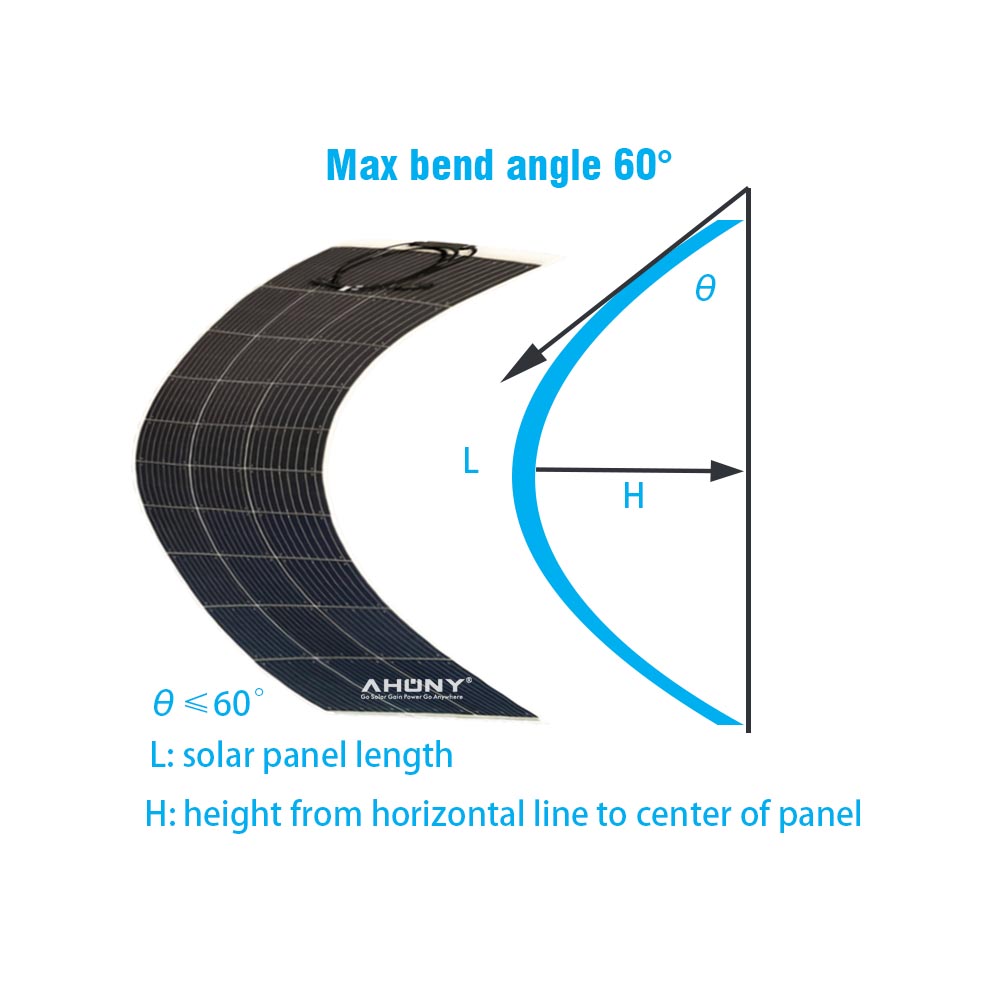

- Max bend angle:60 degree
Product Description
1,latest generation 24% Solar Cell Efficiency
Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.
2.MBB technology less power loss
9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.
3.3.22kg/m ultralight material
Ultralight,1.6kg only for 100w and 3.22kg per square meter.
| Product Name | semi flexible solar panel |
| Maximum Power[Wp] | 250 |
| Solar Cell | HJT solar cell |
| Cell Array[Pcs] | 5*9 |
| Cell Efficiency | 22.50% |
| Size[mm] | 840*1490*2 |
| Max Power Voltage Vmp[V] | 26.10 |
| Max Power Current Imp[A] | 9.58 |
| Open Circuit Voltage Voc[V] | 30.54 |
| Short Circuit Current Isc[A] | 10.34 |
| Net.Weight[kg] | 4.20 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.252 |
| Temperature Coefficient Voc[[%/℃] | -0.227 |
| Temperature Coefficient Isc[[%/℃] | 0.031 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[A] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE+AP2 |
| Maximum bend radius(θ) | 60° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
Flexible solar panel
