Our Photovoltaic glass panels offers a reliable and efficient energy solution for your residential or commercial property. With high-performance solar panels, a charge controller, and all necessary wiring and hardware, it provides efficient energy production for all your appliances and devices.
- Brand Name:ahony
- Model Number:eRigid 185w MSP
- Place of Origin:Guangdong, China
- Panel Dimensions:920*940*35
- Type:Customized Solar Panel
- Product name:back contact cell solar panel
- Solar cell:Mono 125*125 Cell
- Junction Box:IP67
- Application:RV Marine Car panel power solar
- Solar panel:mono solar panel 185w
49cell 175W solar panel back contact IBC solar cell for RV Marine Car panel power solar
| Product Name | eRigid 185w MSP |
| Maximum Power[Wp] | 175W |
| Solar Cell | Monocrystalline solar cell |
| Cell size[mm] | 125*125 |
| Cell Array[Pcs] | 7*7 |
| Cell Efficiency | 22.60% |
| Size[mm] | 920*940*35 |
| Max Power Voltage Vmp[V] | 29.4 |
| Max Power Current Imp[A] | 5.96 |
| Open Circuit Voltage Voc[V] | 34.69 |
| Short Circuit Current Isc[A] | 6.43 |
| Net.Weight[kg] | 9 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.43 |
| Temperature Coefficient Voc[[%/℃] | -0.34 |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
| Maximum System Voltage[V] | 200 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Surface/Backsheet | PET/white plastic |
| Maximum bend radius(θ) | 10°-20° |

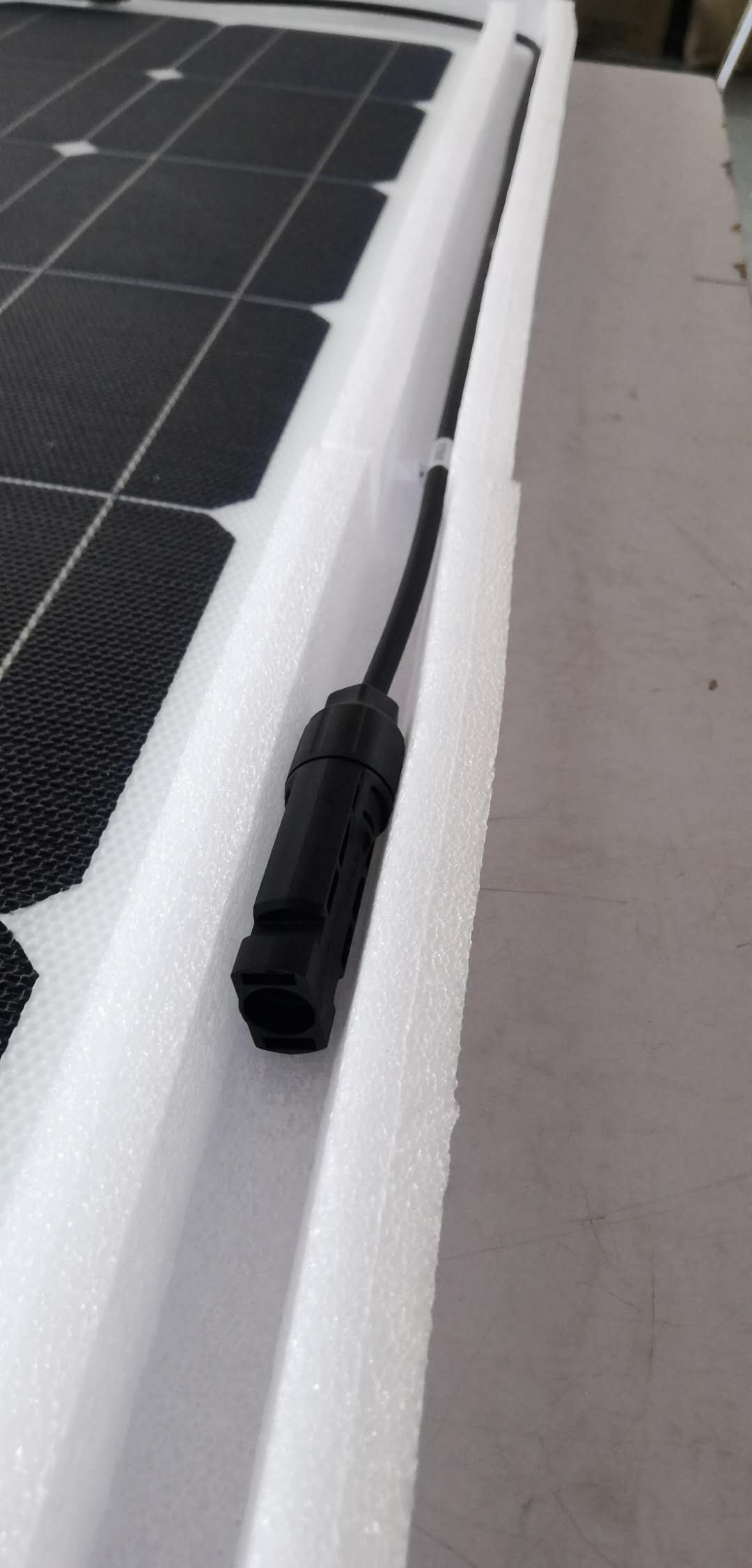

| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
AHONY offer a series of after sale service:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact solar products to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
