Stay powered on-the-go with our 100W Folding Solar Charger. The efficient and durable charger offers reliable energy supply for your outdoor adventures. Perfect for mobile devices and equipment. The folding design makes it easy to carry and store.

• Warranty:1 year
• Free installation service:NO
• Place of Origin:Guangdong, China
• Brand Name:AHONY or OEM
• Model Number:eMobi F100w M
• Application:Home,Camping,RV,Boat,Car
• Solar Panel Type:Monocrystalline Silicon
• Battery Type:Lead-Acid, Lithium Ion
• Controller Type:PWM
• Load Power (W):500wh
• Output Voltage (V):12v
• Output Frequency:50hz
• Work Time (h):4-6hours
• Certificate:CE ROHS ISO9001
• Application:charging lithium battery power station
• Suitable for:camping rv outdoor emergency disaster recovery
• Type:PWM charge controller foldable solar with supporting leg
• Load:power station 450wh
• Function:multi function charging 5v-19v
• Battery Capacity:do not include battery
• Feature:A grade cell LCD display regulator with leg

Product Description

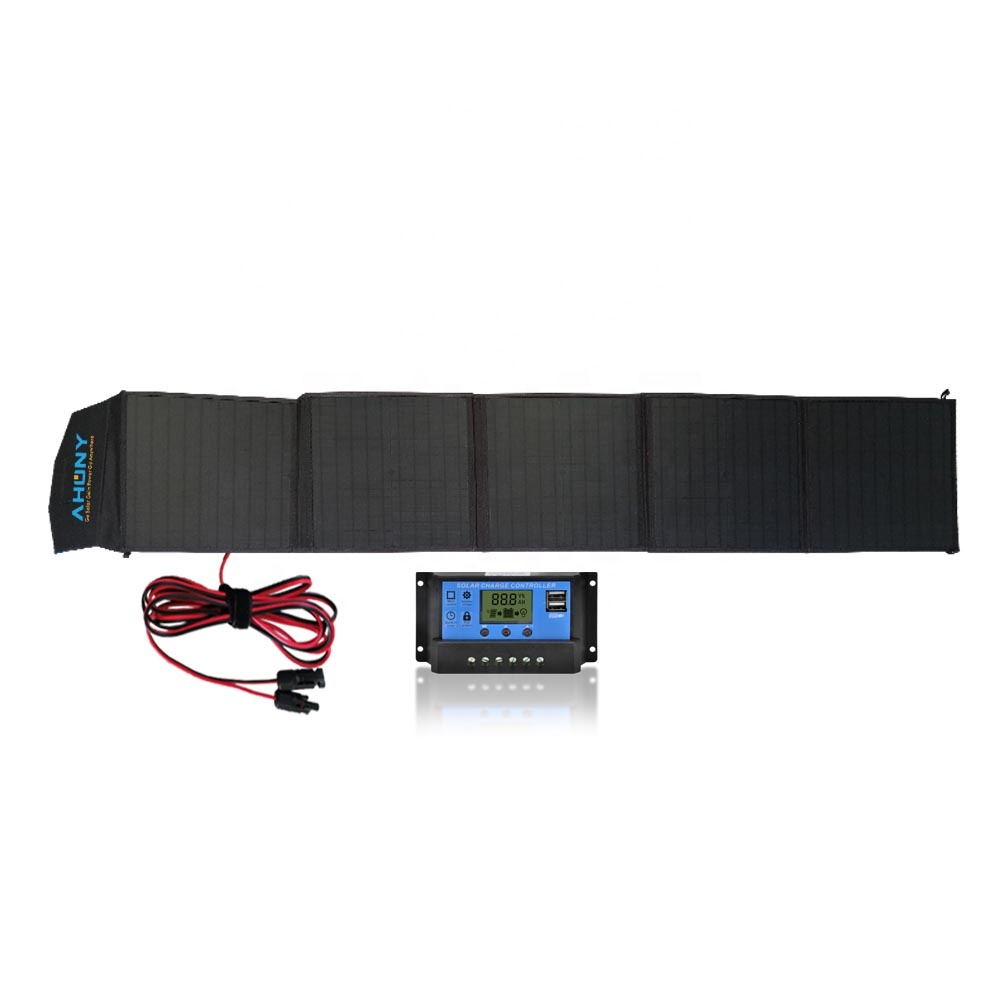

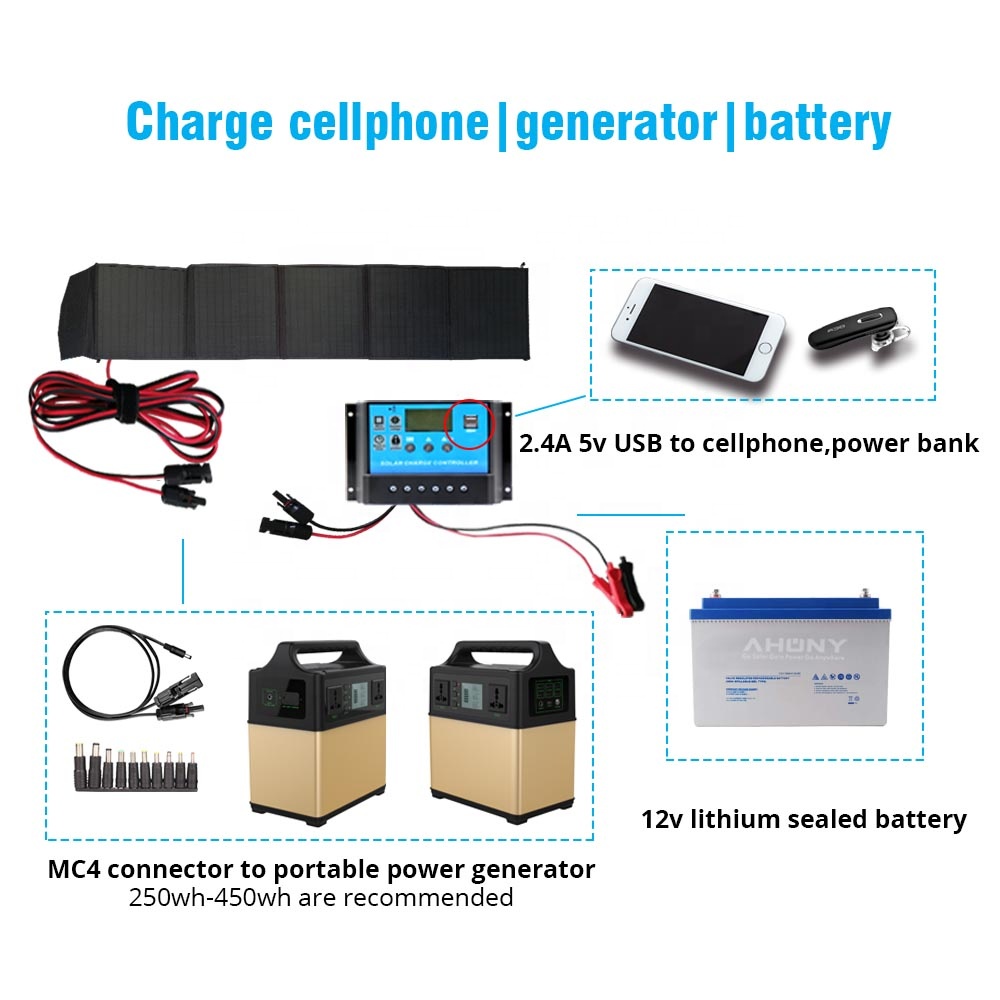

This New eMobi F100w M foldable solar kit is with very small size to charge small portable generator 250wh to 450wh;
1.supporting leg to get max angle of sunshine,get 15-20% more power than regular;
2.the front colour stripe is green,colour can be custmoized to orange,red,yellow or any colour the same with your logo,we offer different designs and colurs,can print customer's logo;
3.charge controller is PWM with LCD display;
4.controller support all kinds of battery including lithium LiFePO4, LITHIUM ION,lead acid,gel,flood batteries etc.



Traditonal function and feature.
it has the best size that is suitable for RV,the voltage is 20V which is better for 12v battery.
A grade mono solar cells,efficienty is over 21.3%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight
strong solid thick fibreglass backsheet,heat resistance;
With a bag on back to fix and fill in the cable.

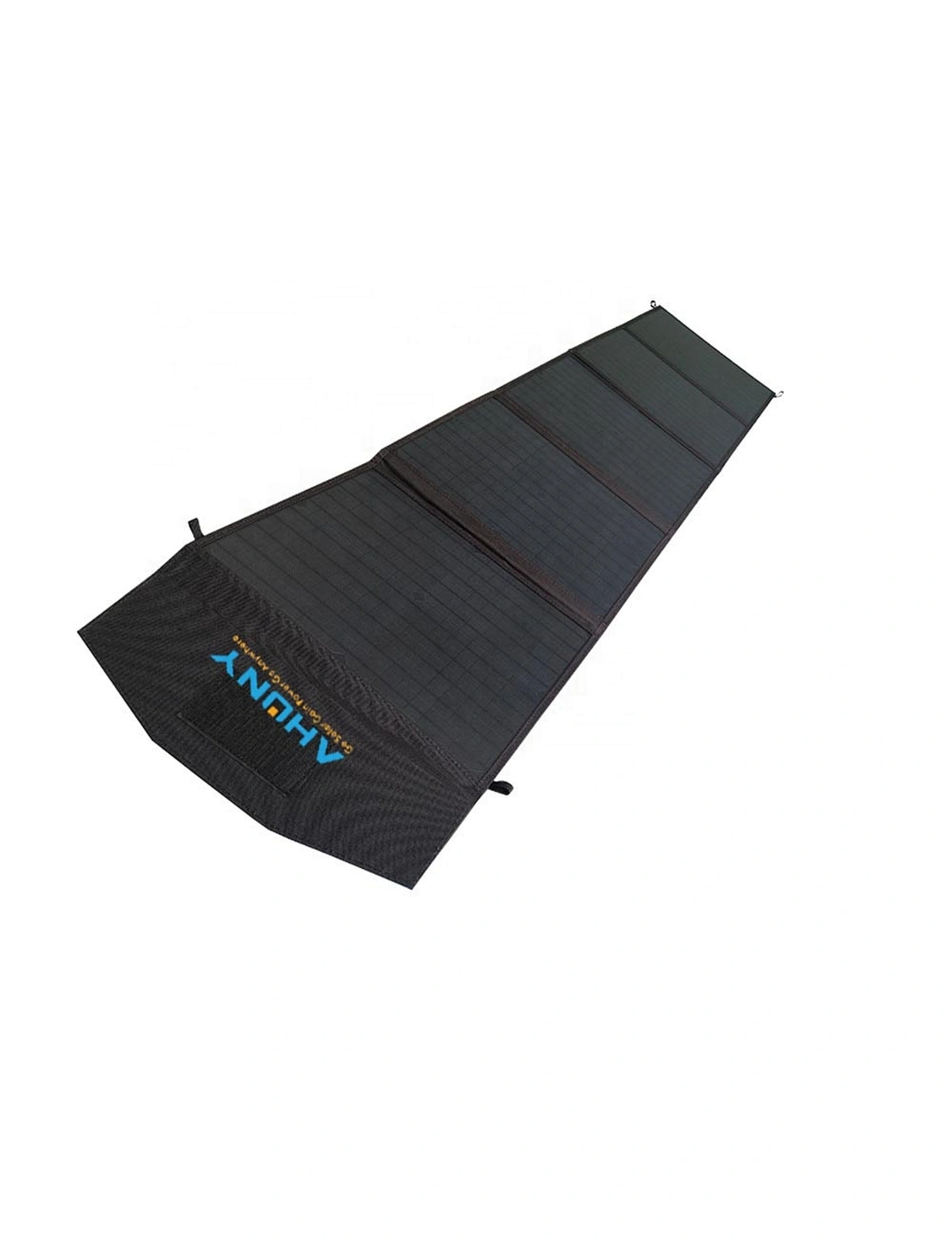

Folding solar panel eMobi F100w M uses waterproof fabric cloth and flexible solar panel to sew together,this is
renew for traditional rigid folding solar panel.

The textile has a inner PU layer to prevent water come in panel and makes it waterproof.
The cell efficiency is 21.3%-22.5% makes size smaller than panel with other low efficiency solar cells.

Size Information

Size Chart of This Design

Model No.	eMobi F5x20w or eMobi F100w M or eMobi F5*20w
Product Name	A grade cell 100w mono portable folding solar charging bag dual USB PWM controller CE for rv 5v 12v power station all batteries
Maximum Power[Wp]	100
Solar Cell	Mono PERC A Grade Solar Cell
Cell Efficiency	21.30%-21.7%
Folded Size[mm]	400*360*60
Open Size[mm]	1980*400*4
Max Power Voltage Vmp[V]	20.26
Max Power Current Imp[A]	4.94
Open Circuit Voltage Voc[V]	24.05
Short Circuit Current Isc[A]	5.34
Net.Weight[kg]	4.3
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/℃]	-0.4
Temperature Coefficient Voc[[mV/℃]	-2mV
Temperature Coefficient Isc[mA/℃]	0.037
Maximum System Voltage[V]	100 V
Certification	CE ROHS ISO9001
Suface/backsheet	PET+FR4 fibreglass
Charge controller	PWM 10A 12/24V,2 USB,LCD display
Cables	5m 14AWG cable
Supporting Leg	Yes
Hook up way	ropes
