balcony solar system 400w 600w 800w Micro Inverters For Solar PV Panels Balkonkraftwerk Solar Inverter on-Grid Micro Inverter 300W 600W 800W 1000W 1200W 1400W Solar Energy 800W Balcony Solar Systems Solar Panel Photovoltaic System Balcony Power Plant with
Balkonkraftwerk 600W 800W Smart MPPT Micro Inverter IP67 On-Grid Balcony System /WiFi Lithium Ion Battery 1-Year
price

$0.52 - $0.60 / watt

eGo S100M-BSS800W
1 watt
Quantity
  • Free installation service:NO
  • Place of Origin:Guangdong, China
  • Brand Name:AHONY or customized
  • Model Number:eGo S100M-BSS800W
  • Application:balcony
  • Solar Panel Type:Monocrystalline Silicon
  • Battery Type:Lead-Acid, Lithium Ion
  • Controller Type:MPPT
  • Mounting Type:Roof Mounting
  • Pre-sales project design:Y
  • Model:BSS800W
  • Type:DC/AC Inverters
  • MPPT Voltage Range:30-60 V DC
  • Certificate::CE/ROHS/ISO
  • Customized:OEM ODM Accept
  • Warranty:1 year
  • Certificate:CE/ROHS/ISO
  • Load Power (W):Others

Specification

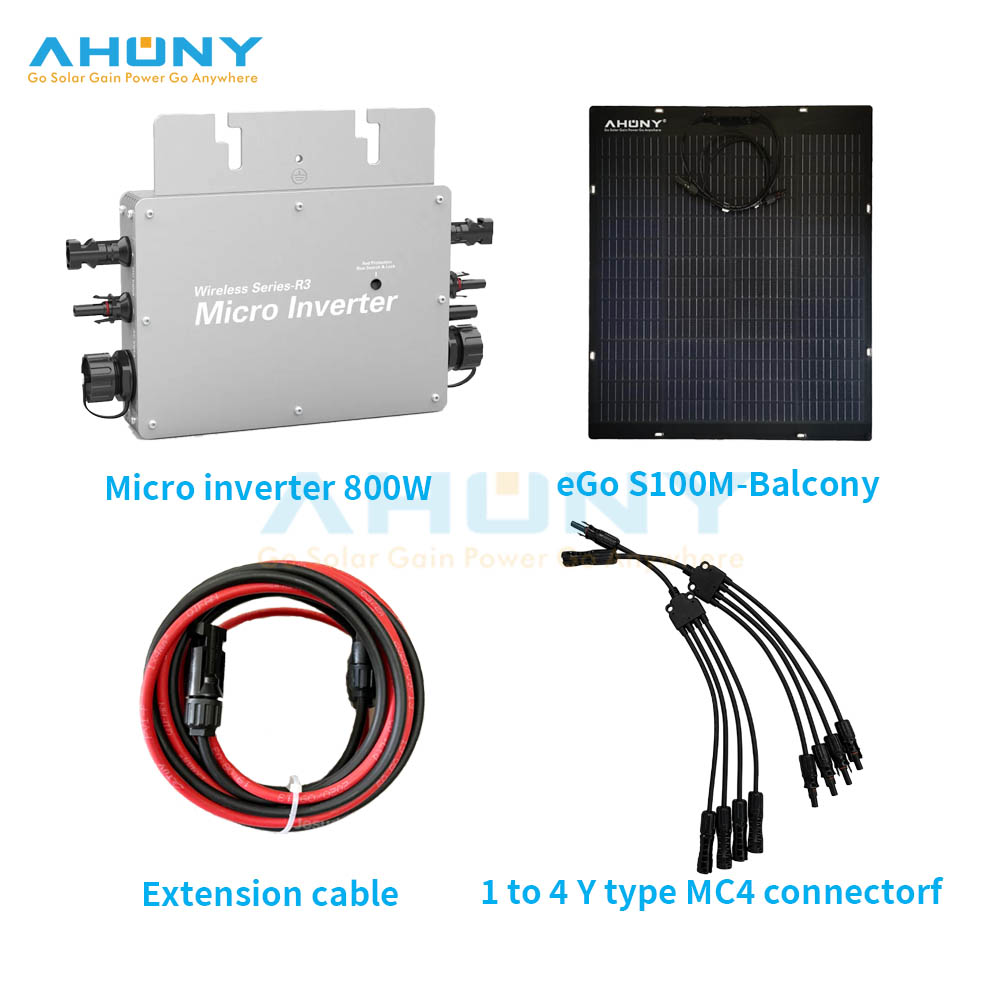

Balcony Solar System BSS800W List
NO
Model
Configuration
Qty
Unit
1
eGo S100M-Balcony
Mono solar panel  100w
size:690*900*2,                                  XC502 Jbox on front
8
pieces
2
size:690*900*2, XC502 Jbox on front
2
APMI-600
on grid solar inverter 600w Maximum input DC Voltage:60V MPPT Voltage Range 30-60V
1
set
3

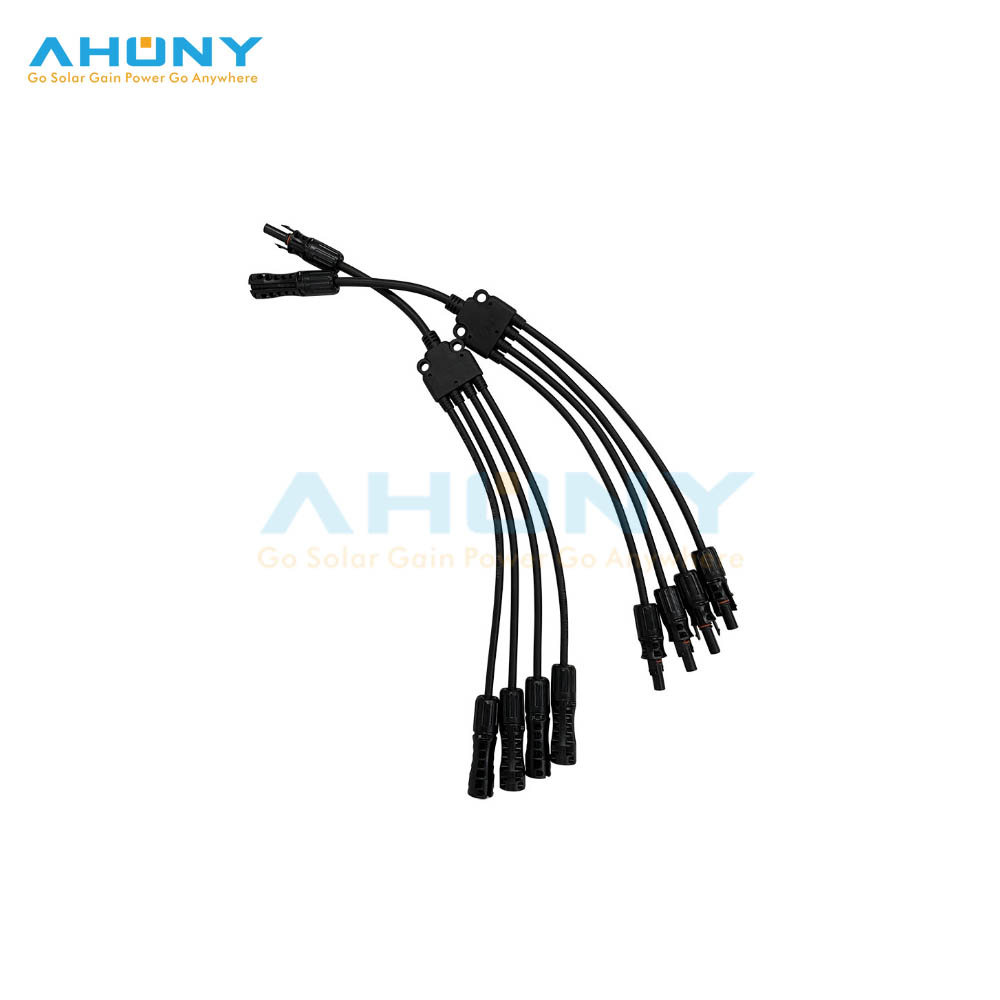

Parallel use connector
1 to 4 Y type MC4 connectorf
2
set
4

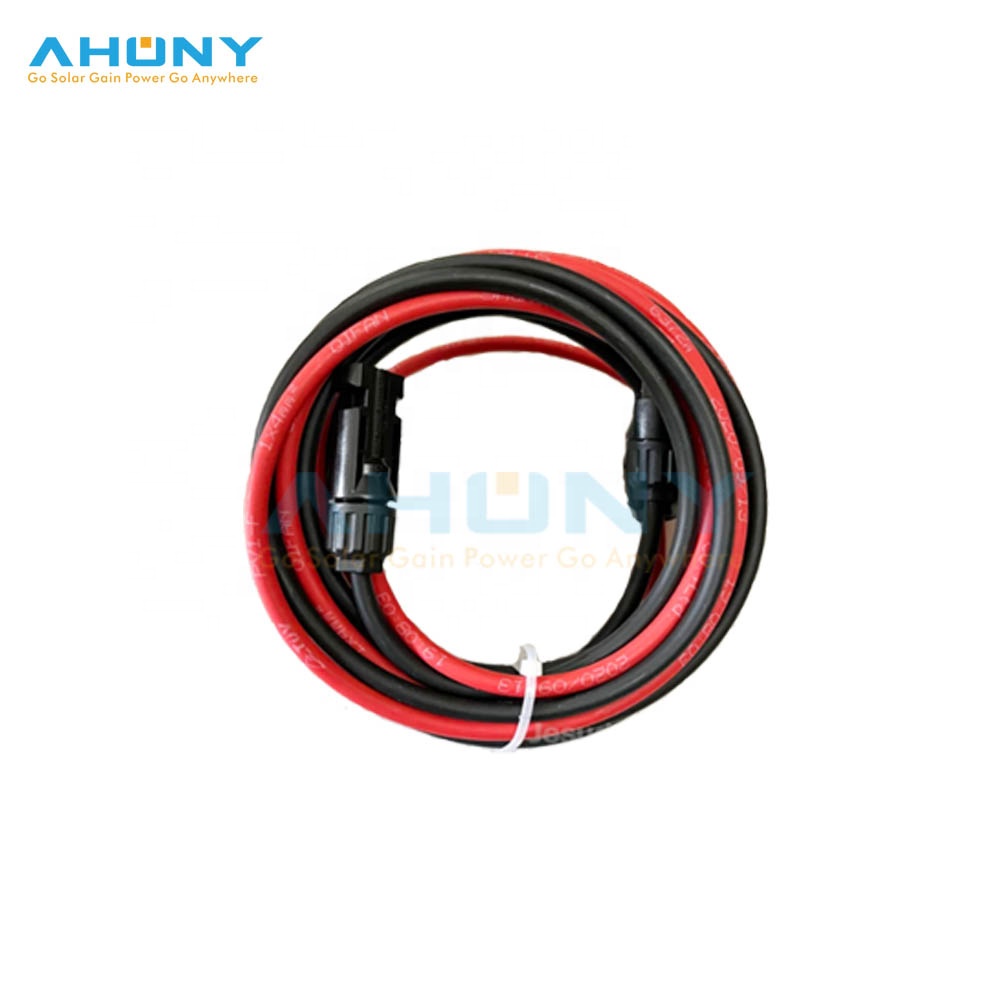

Extension cable
5m extenstion cable MC4 to MC4
1
meters

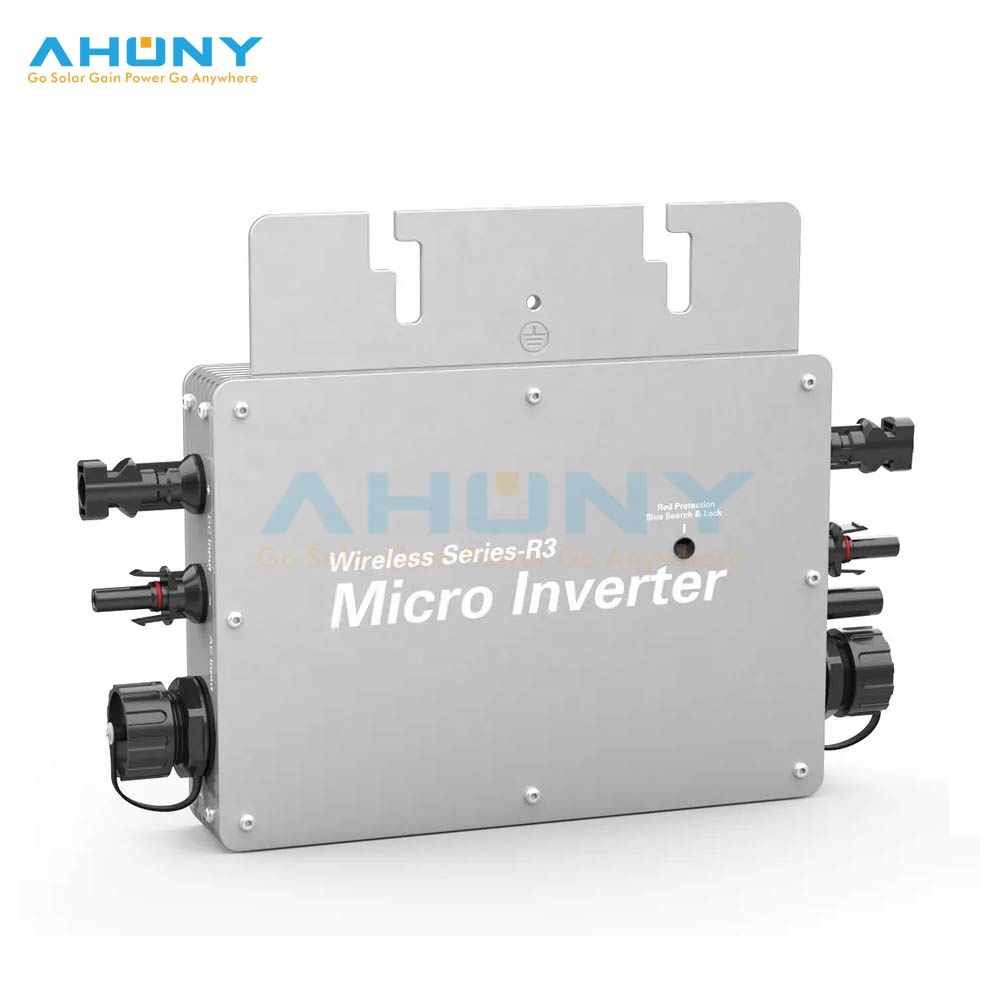

Micro Inverter
Model Number
AMPI-800
Common module power （W）
Max 2*500W
Peak Power MPPT Voltage Range（V）
30-60
Start-up voltage (V)
22
Operating Voltage Range (V)
60
Maximum input voltage (V)
2×18
Maximum input current (A)
2×20
Maximum input short-circuit current (A)
0
Rated output power (VA)
800
Rated output current (A)
@120V 6.6A
@230V 3.5A
Nominal Output Voltage/Range (V)
@120V 85-160VAC
@230V 180-265VAC
Nominal Frequency/Range (Hz)
@120V 48-51Hz/58-61Hz
@230V 48-51Hz/58-61Hz
Power Factor
>0.99 default
0.8 leading...0.8 lagging
Output current harmonic distortion
<3%
Maximum unit per branch
@120V 6 PCs
 @230V 12Pcs

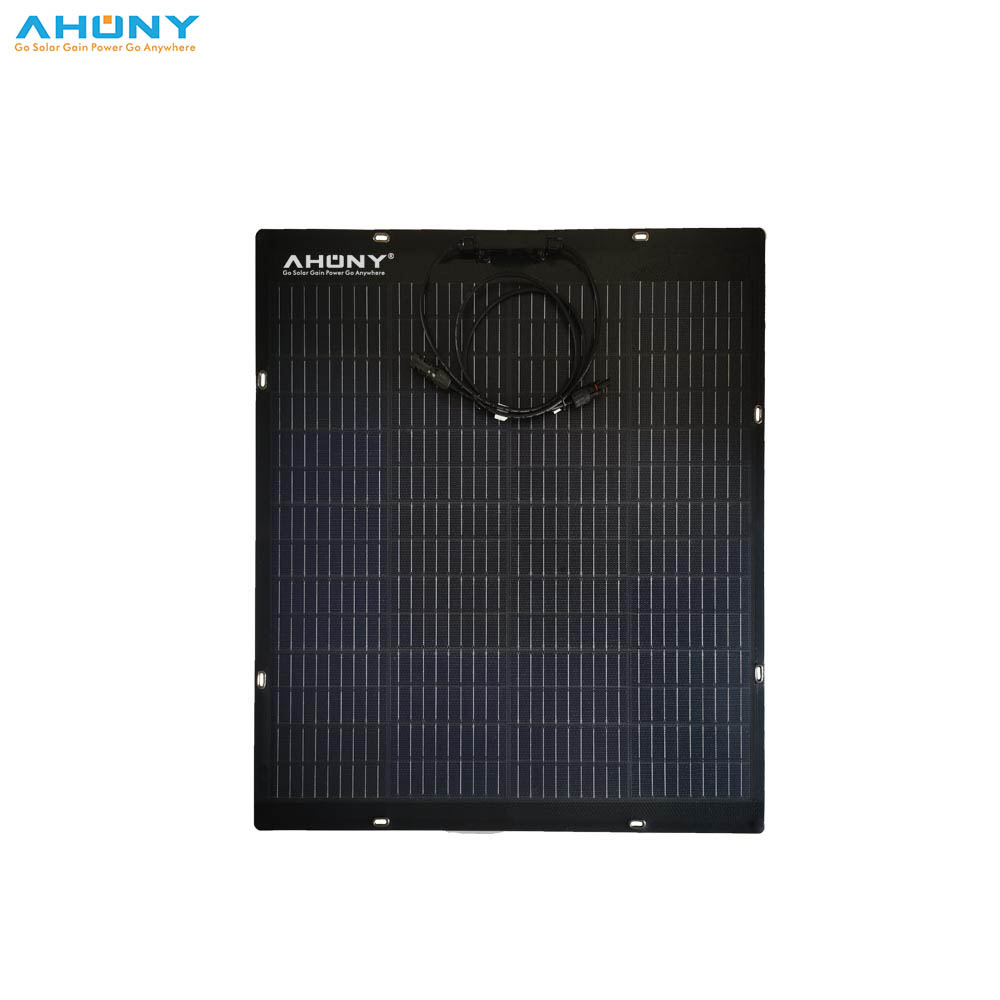

Ultralight balcony solar panel
Model Number
eGo S100M-Balcony
Maximum Power[Wp]
100
Solar Cell
HJT HCF solar cell
Cell Array[Pcs]
4*14
Cell Efficiency
22.70%
Size[mm]
690*900*2
Max Power Voltage Vmp[V]
35.16
Max Power Current Imp[A]
2.84
Open Circuit Voltage Voc[V]
41.14
Short Circuit Current Isc[A]
3.07
Net.Weight[kg]
1.7
Power tolerance[%]
±3%
NOCT[℃]
45±2
Operating Temperature[℃]
-40/+85
Temperature Coefficient Pmax[%/℃]
-0.252
Temperature Coefficient Voc[[%/℃]
-0.227
Temperature Coefficient Isc[[%/℃]
-0.227
Maximum System Voltage[V]
1000 V
Maximum Reverse Current[A]
IR<2A-0
Certification
CE ROHS
Surface/Backsheet
ETFE+AP2
Maximum bend radius(θ)
60°
Cables and Connectors
PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions
STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes

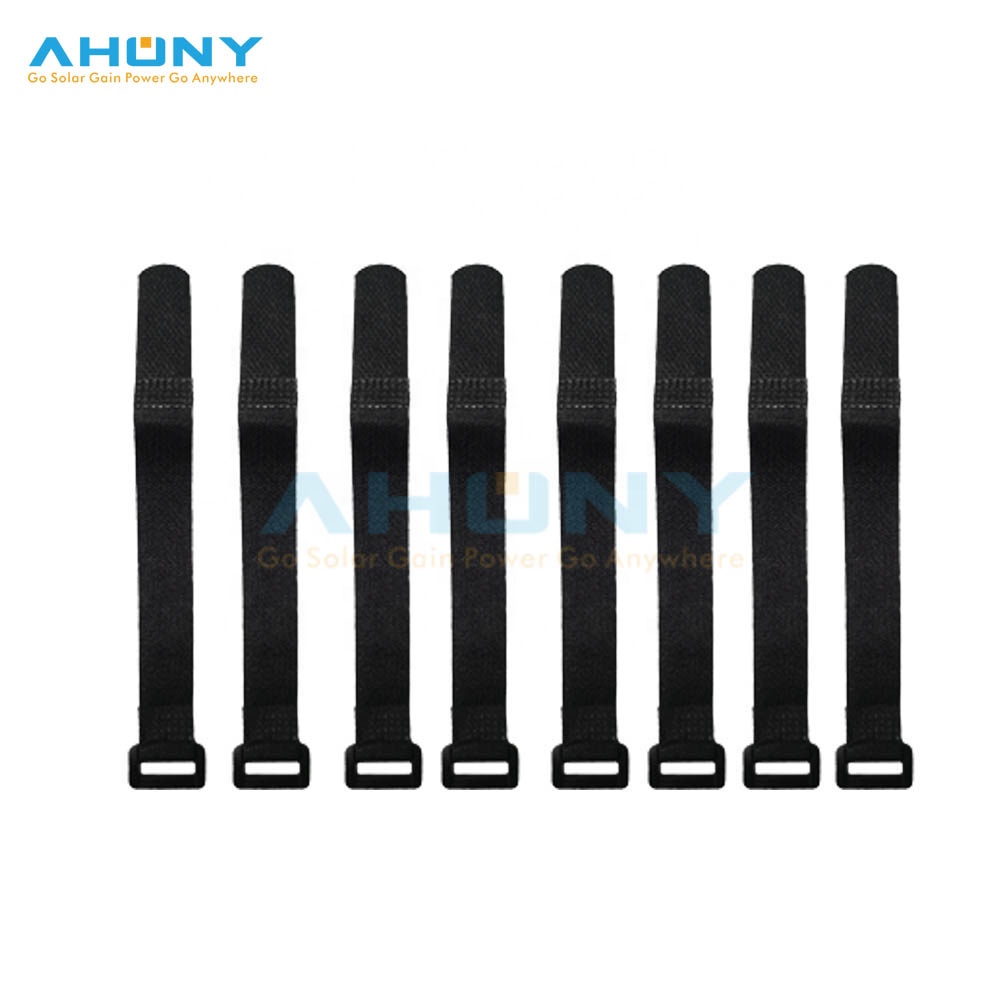

round corner R10,with eyelets and velcro
Selling point

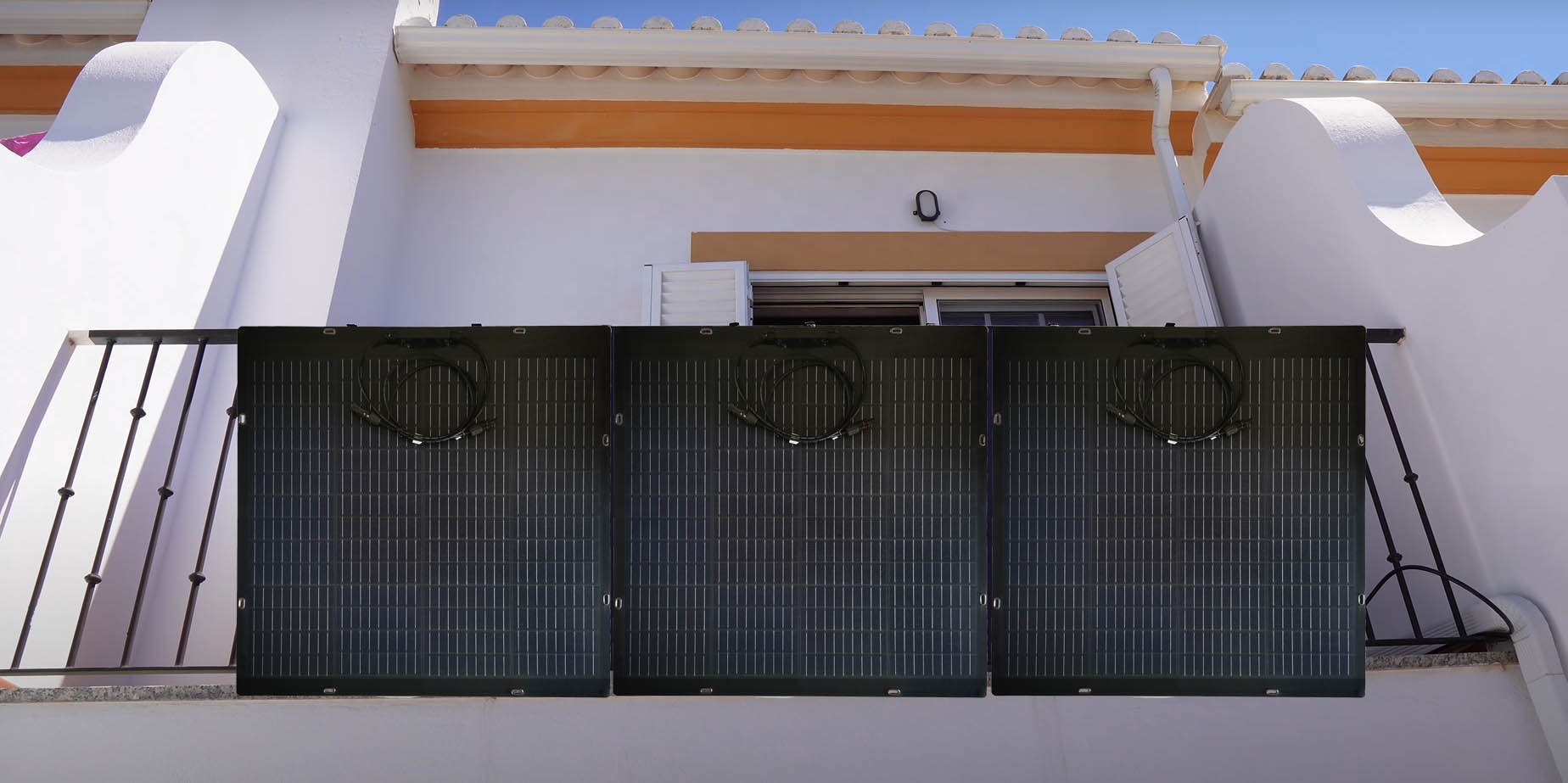

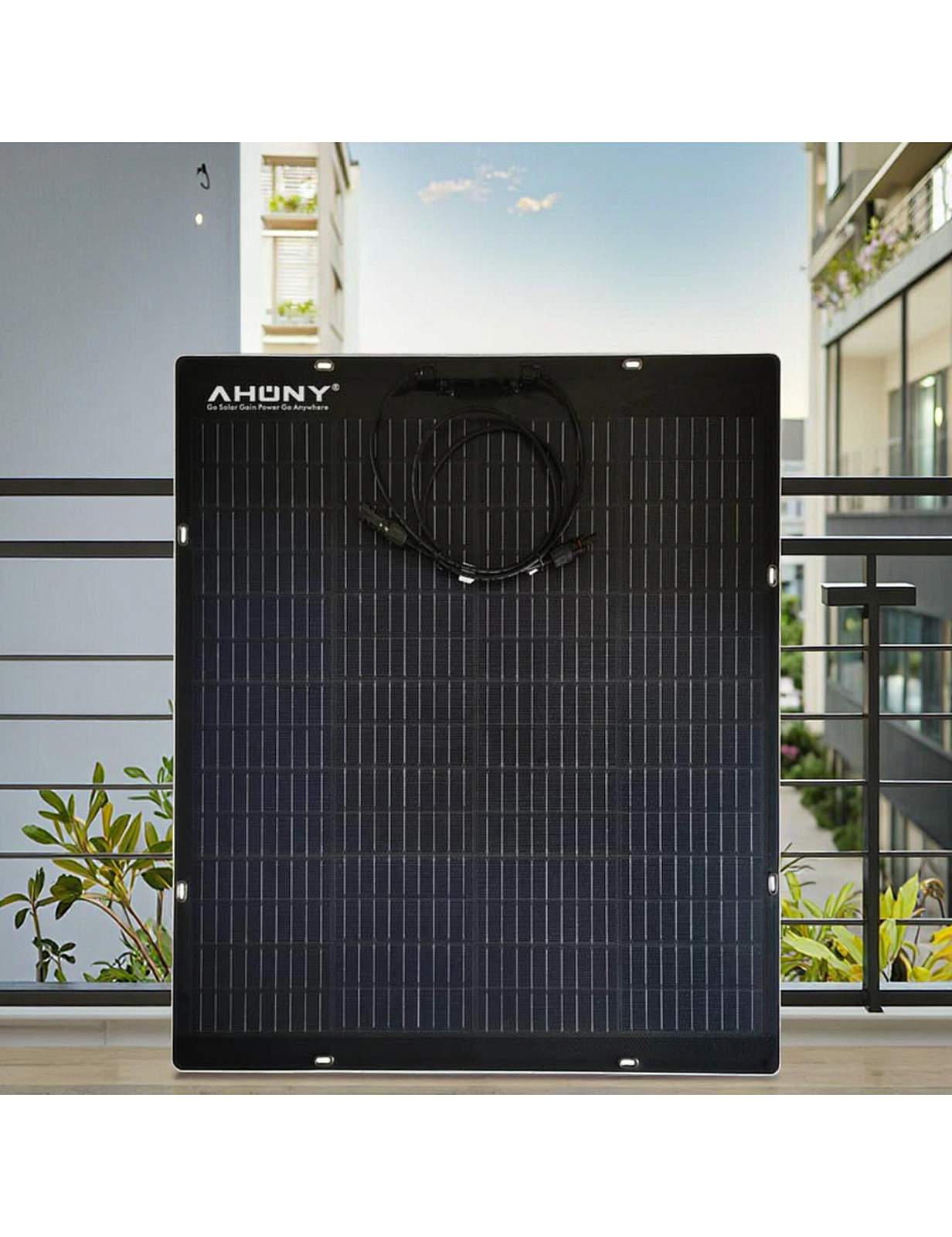

High quality HJT solar cell,superior weak light performance,produce more power when install vertically
Vibration resistant AP2 material,allow bleeze to hit panel and no inner cell crack,more durable
quick connect and easy to fix on balcony fence
Package
1pcs/Polyethylene foam(EPE Foam),then in 1 carton box


Product Description




Packing & Delivery




1pcs/Polyethylene foam(EPE Foam),then in 1 carton box


Company Profile






AHONY POWER was founded in Shenzhen,southest China nearby Hongkong,Dongguan,Huizhou.Our team have more than 11 years solar experience,including producing,marketing,R&D.Ahony owns 4 official issued solar patents,1 of which is invention patent.We've managed under ISO quality system,products are certified by CE,ROHS,SGS,IEC.
Product range is:ETFE PET fibreglass flexible solar panel,semi rigid solar module,glass solar panel,foldable solar kit.Both regular cells and USA SunPower cells.
For every product offered by Ahony,we have strict producing process,quality inspection process and testing process.Ahony is dedicated to clean energy-solar technology innovation,ultralight solar panel technology,environmental friendly solar products,lighting products,power products etc.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2017,sell to Western Europe(35.00%),North America(16.00%),Oceania(15.00%),Eastern Europe(8.00%),Northern Europe(8.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(4.00%),Southeast Asia(4.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
flexible solar panel,folding solar kit,mono solar panel,12v solar panel,folding solar blanket

4. why should you buy from us not from other suppliers?
We produce,R&D ETFE flexible,walkable,foldable solar panel,the team has more than 12 years solar experience,all panels produce under laser cutting,automatically welding,with very strict test IV,EL and QA management.CE,ROHS,EN61215 61730,ISO,IEC,patents.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
