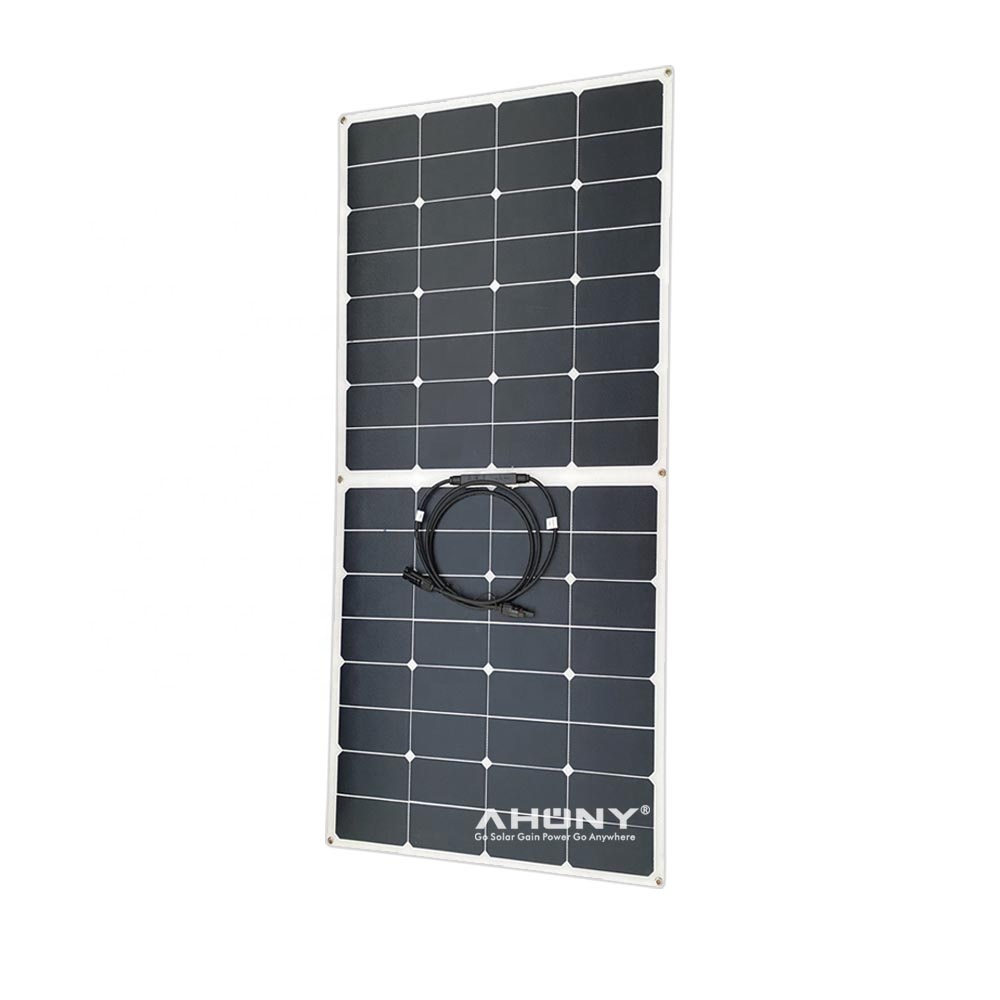

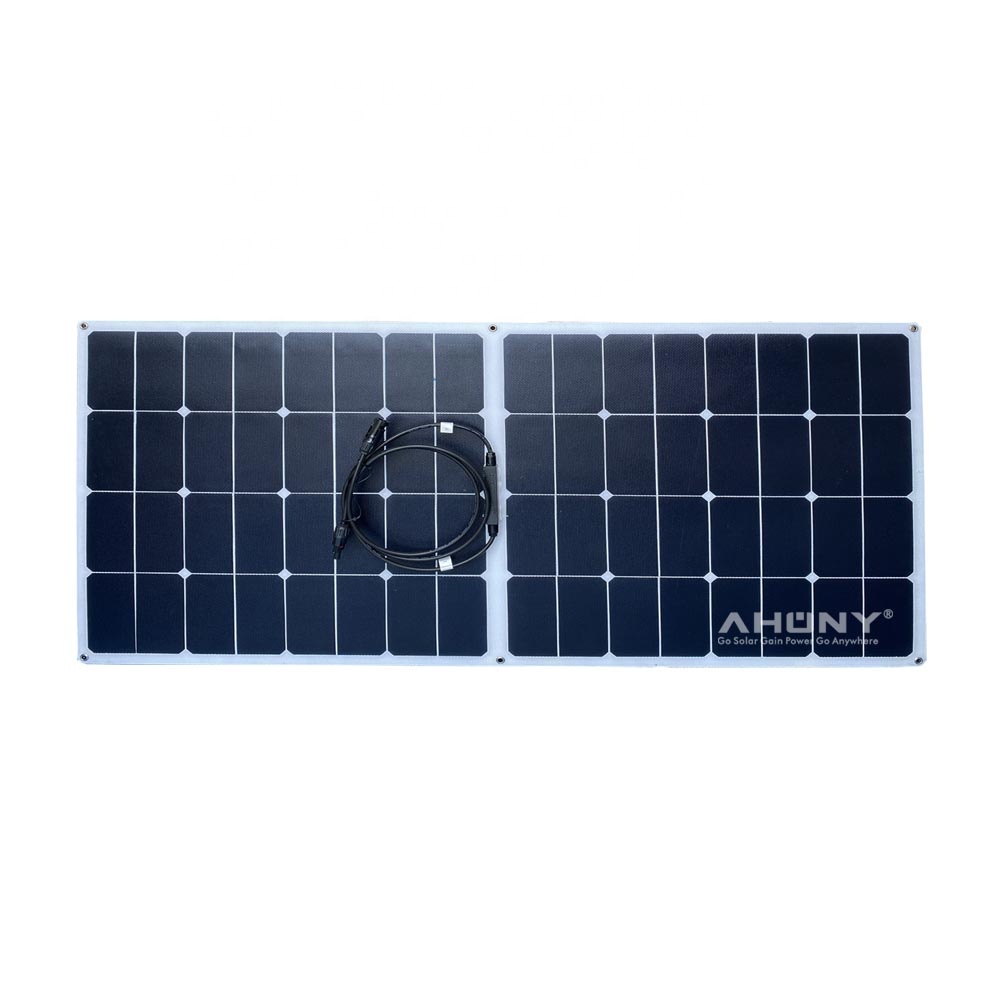

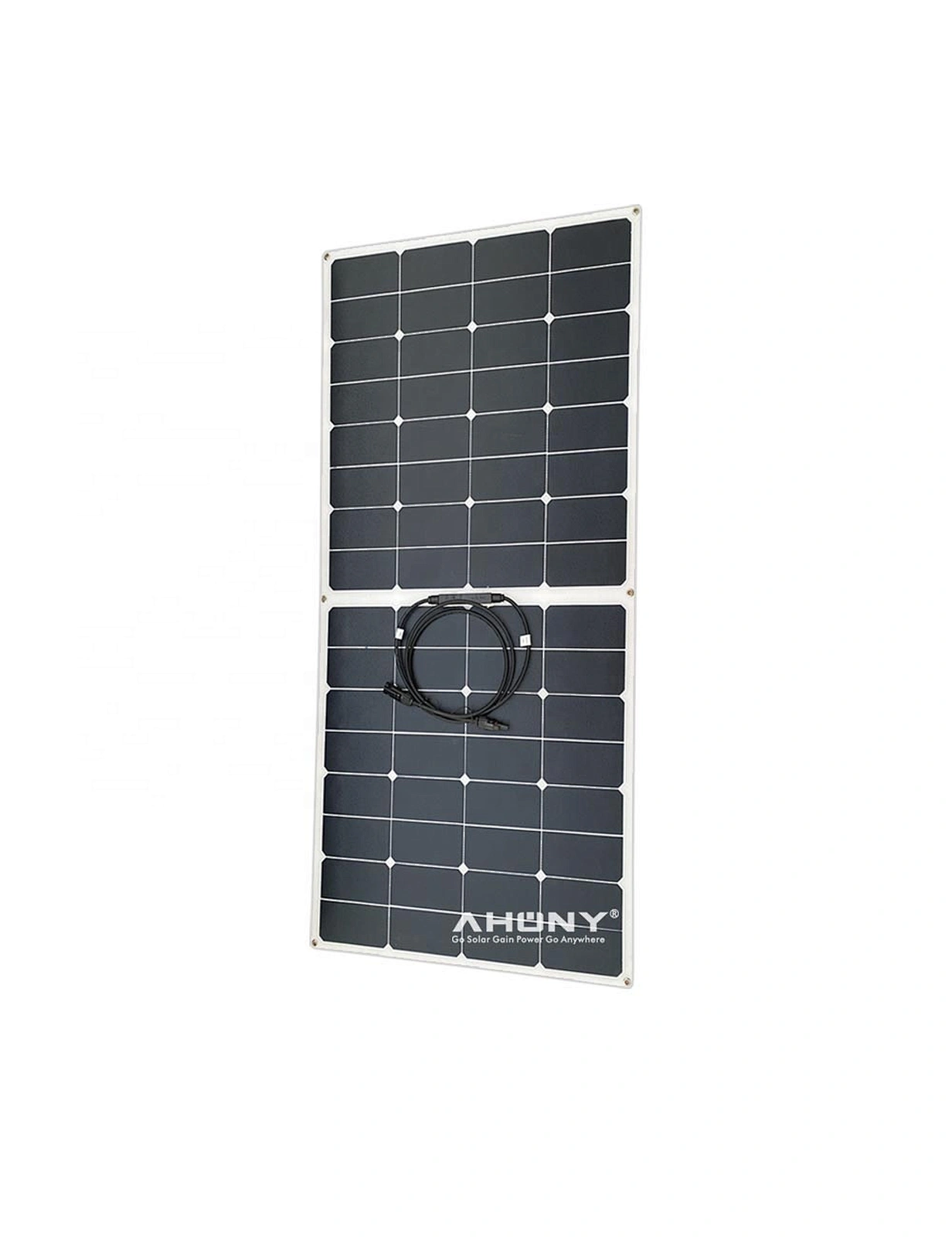

Best shade perfomance semi flexible solar module 120w for sailboat parallel bypass higher power half cut flexible solar panel
eGo S120w HF
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
The half cut semi flexible solar panel series reduce the current of each panel.It has much more advantage over traditional semi flexible solar panel.
1.Less current more Power
The half cut reduce the current each cell and avoid heating problem,reduce the risk of hot dot ,heating etc,in this way,the panel power output is 2-3wattages over regular panels;
2.Inner parallel design,voltage drop less when shade,produce more power

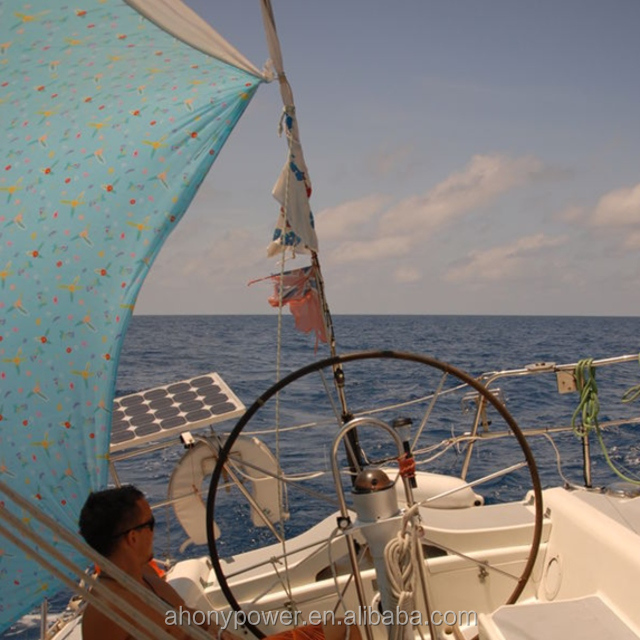

It has more obvious performance on sailboat,which has half shade most of time.
The inner parallel design.
1.Less current more Power
The half cut reduce the current each cell and avoid heating problem,reduce the risk of hot dot ,heating etc,in this way,the panel power output is 2-3wattages over regular panels;
2.Inner parallel design,voltage drop less when shade,produce more power
It has more obvious performance on sailboat,which has half shade most of time.
The inner parallel design.
Quantity
Maximize energy output with our Half Cut Flexible Solar Modules. The innovative design of our panels increases efficiency while maintaining flexibility and durability. Perfect for RVs, camping trailers and boats, our half cut flexible solar modules deliver reliable and sustainable energy on-the-go.
- Brand Name:AHONY or OEM
- Model Number:eGo S120w HF
- Cell size:125mmx125mm
- Panel Dimensions:540x1085x3mm
- Panel Efficiency:19.62%
- Feature:high performance shade power produce max
- Type:semi flexible solar panel
- Certificate:CE ROHS ISO9001
- Warranty:1 year
- Application:sailboat
- style:luxury
- OEM:YES
The half cut semi flexible solar panel series reduce the current of each panel.It has much more advantage over traditional semi flexible solar panel.
1.Less current more Power
The half cut reduce the current each cell and avoid heating problem,reduce the risk of hot dot ,heating etc,in this way,the panel power output is 2-3wattages over regular panels;
2.Inner parallel design,voltage drop less when shade,produce more power
It has more obvious performance on sailboat,which has half shade most of time.
The inner parallel design.
| Model No. | eGo S120w |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 120 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 25.40% |
| Size[mm] | 540x1085x3 |
| Max Power Voltage Vmp[V] | 20.1 |
| Max Power Current Imp[A] | 5.97 |
| Open Circuit Voltage Voc[V] | 23.12 |
| Short Circuit Current Isc[A] | 6.33 |
| Net.Weight[kg] | 4.7 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white PET |
| Maximum bend radius(θ) | 30° |
