Big power station use 290w portable solar panel foldable module solar 36v charging power bank portable generator lithium battery
eMobi FM290w
EXW,FOB,CIF
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity

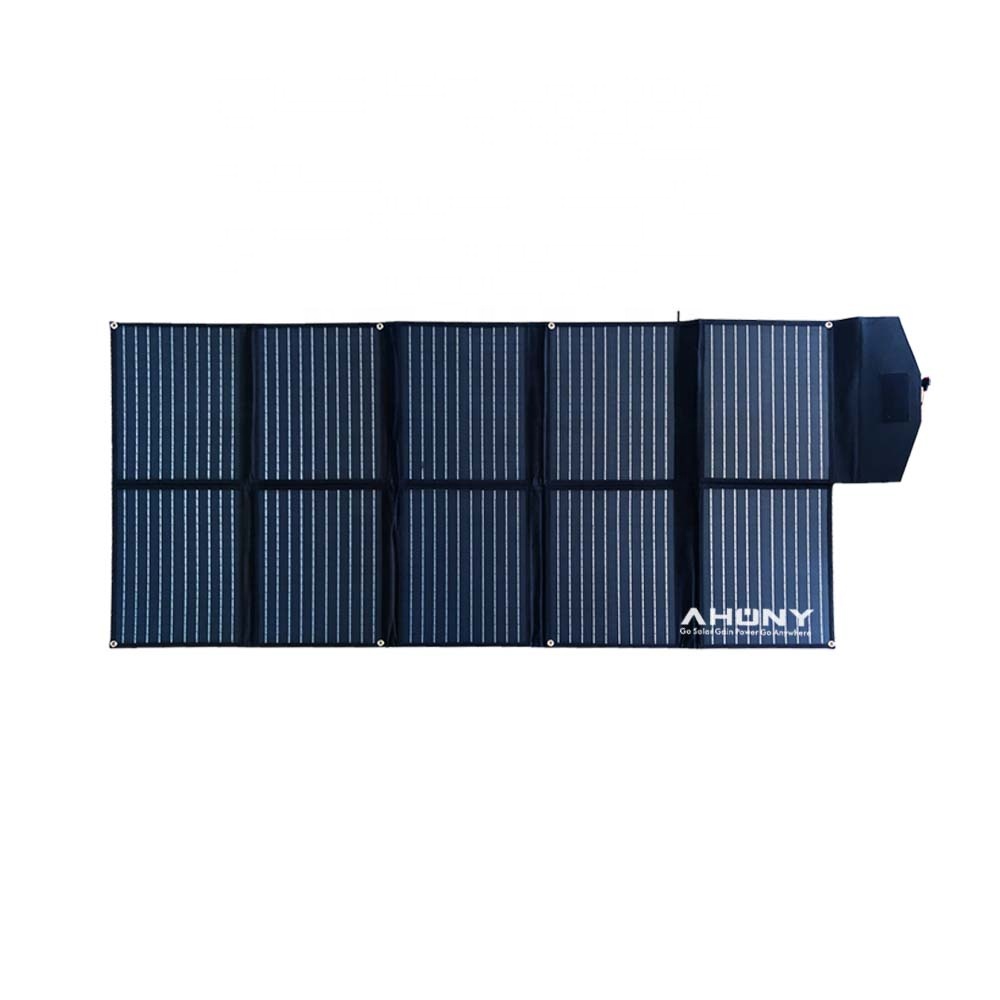

Power up your camping adventures with our 290W 36V solar panels. Perfect for off-grid trips, these high-efficiency panels offer reliable energy generation for your portable devices and appliances.
- Brand Name:AHONY or OEM
- Model Number:eMobi FM290w
- Place of Origin:Guangdong, China
- Cell size:158.75mmx158.75mm
- Type:PERC
- Panel Dimensions:540*360*80mm
- Panel Efficiency:22.5%
- Certificate:CE ROHS ISO9001
- Warranty:3months-1year
- Application:camping charging portable solar generator
- OEM Order:MOQ 100sets
- Solar cell:high efficiency 5BB cells
- feature:more folds smaller size,less delivery costs
Product Description
| Product Name | 12V folding solar blanket |
| Maximum Power[Wp] | 290 |
| Solar Cell | Mono A grade solar cell PERC |
| Cell Efficiency | 22.50% |
| Folded Size[mm] | 540*360*80 |
| Open Size[mm] | 1960*1100*8 |
| Max Power Voltage Vmp[V] | 36.90 |
| Max Power Current Imp[A] | 7.86 |
| Open Circuit Voltage Voc[V] | 43.54 |
| Short Circuit Current Isc[A] | 8.49 |
| Net.Weight[kg] | 9.5 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.4 |
| Temperature Coefficient Voc[[%/℃] | -2mV |
| Temperature Coefficient Isc[[%/℃] | 3.7 |
| Maximum System Voltage[V] | 100 V |
| Certification | CE ROHS |
| Suface/backsheet | PET+fibreglass back |

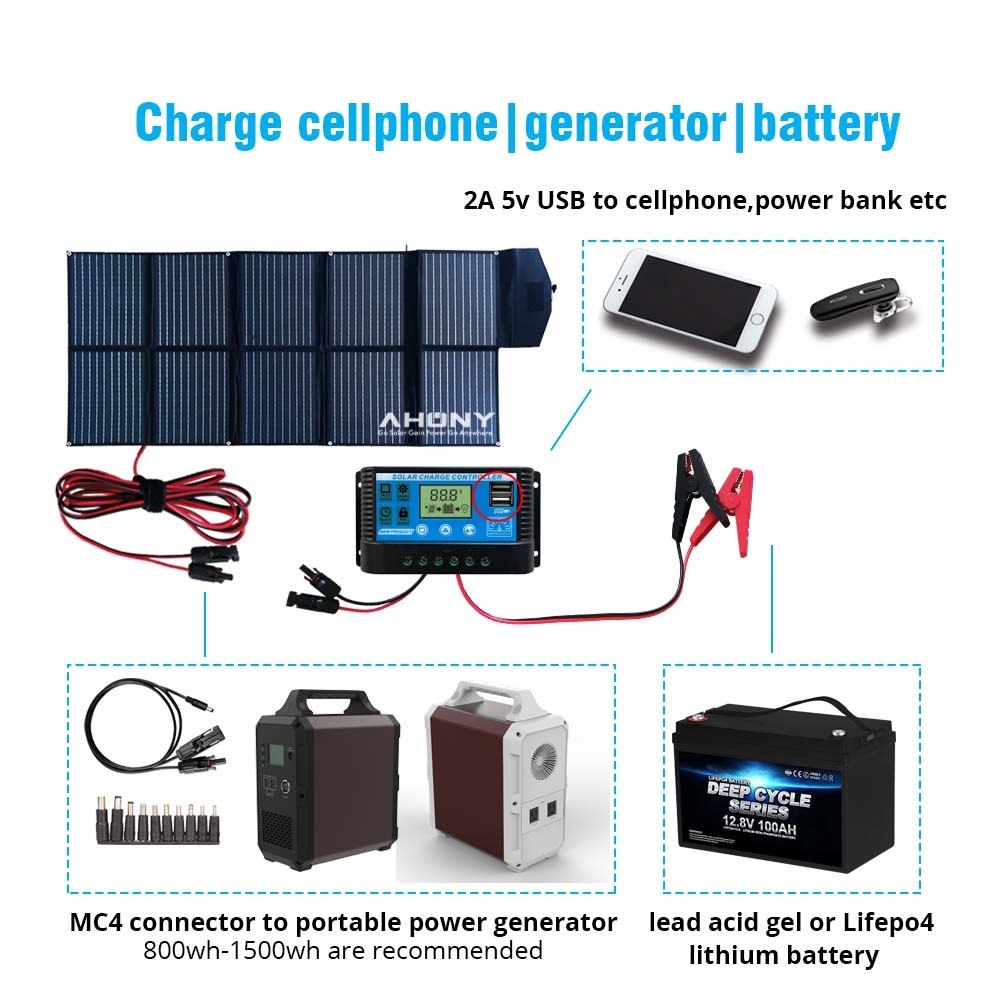

- MADE FOR SOLAR GENERATORS AND LITHIUM BATTERIES - Compatible with most solar generator if use the MC4 only,if customer want to charge lithium batteries as well,should use the charge controller which is included in the whole kit.
- If only charge generator,can remove the charge controller which will have lower costs.
- HIGH CONVERSION EFFICIENCY - Constructed of high-efficiency solar arrays,convert up to 21.5-23.5% of solar power into free energy.
- WATER-RESISTANT & DURABLE - Made from durable Oxford cloth. The solar panel is water resistant to endure all weather conditions, ideal for outdoor activities such as camping, climbing, hiking, picnic. Please NOTE: The junction box is not waterproof and please keep it dry.
- FORDABLE & PORTABLE - Foldable design, convenient to carry it wherever you go. Folded dimensions: 20.5 * 14.2 * 2.6 inches.
