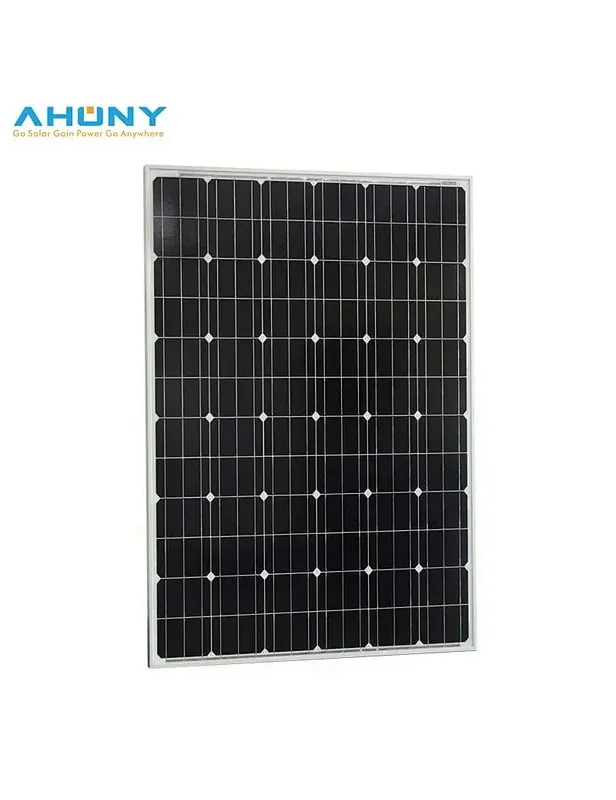

Unser Campervan-Solarset ist die perfekte Möglichkeit, Ihr Wohnmobil mit Strom zu versorgen. Mit hocheffizienten Solarmodulen und einem kompakten Batteriespeichersystem können Sie ein netzunabhängiges Leben genießen, ohne auf Komfort zu verzichten.

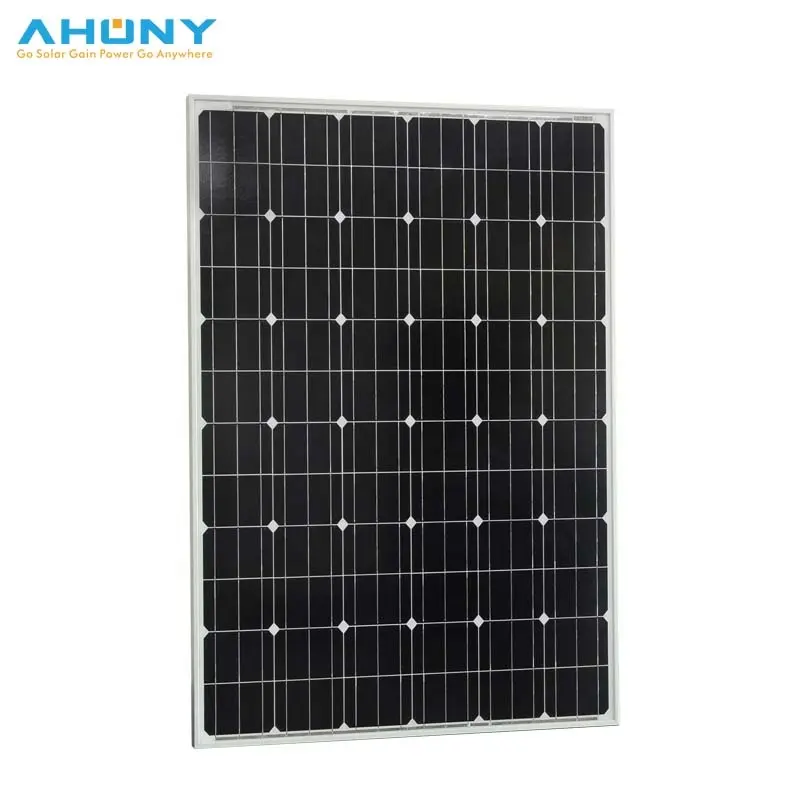

| Model No. | eRigid M150w |
| Product Name | solar module 150w monocrystalline a grade high efficiency bifacial mono solar cell |
| Maximum Power[Wp] | 150 |
| Solar Cell | A grade solar cell solar module |
| Cell Array[Pcs] | 4x9 |
| Cell Efficiency | 22.70% |
| Size[mm] | 680*1170*35 |
| Max Power Voltage Vmp[V] | 20.52 |
| Max Power Current Imp[A] | 7.31 |
| Open Circuit Voltage Voc[V] | 24.15 |
| Short Circuit Current Isc[A] | 7.71 |
| Net.Weight[kg] | 9 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
Our aluminium solar panel service
Before sale:
1.Our sales representative and engineer work together to answer your questions and offer solution for free;
2.Sales person choose the best solar product for you to make sure it worth its real value;
3.We design the best solution with good perfomance for you,manwhile save every cent of your money.
4.Strict quality control,strict test for all solar products produce,insure the best quality produced.
5.Fast delivery and communication with customer,to let customer know goods status at the earliest.
After sale:
We provide 5 years Warranty for this solar module 50w 100w 150w monocrystalline a grade high efficiency bifacial mono solar cell for 12v 24v solar system.
Gather feedback from customers,listen to customers and make new and better products.
