Unser 50-W-Solarpanel-Set für Wohnmobile ist eine umweltfreundliche und hocheffiziente Lösung für netzunabhängige Stromversorgung. Durch die einfache Installation und den minimalen Wartungsaufwand kann unser Kit Ihr Wohnmobil nachhaltig mit Strom versorgen, um die Energiekosten zu senken und gleichzeitig Ihren CO2-Fußabdruck zu reduzieren. Unser RV-Kit ist wetterbeständig und langlebig und auf Langlebigkeit und zuverlässige Ergebnisse ausgelegt.
- Warranty:1 year
- Free installation service:NO
- Place of Origin:Guangdong, China
- Brand Name:AHONY or OEM
- Model Number:eMobi F50w,F4*12.5w
- Application:Home, 12v solar battery usb power bank or cellphone
- Solar Panel Type:Monocrystalline Silicon
- Battery Type:Lithium Ion, Lithium
- Controller Type:PWM or MPPT
- Mounting Type:Ground Mounting
- Load Power (W):50w
- Output Voltage (V):12v, 12v
- Output Frequency:50hz
- Work Time (h):4-5
- Certificate:CE ROHS
- Pre-sales project design:Y
- Specification:Normal
- Product name:folding solar kit 50w small size solar blanket
- feature:foldable and lightweight
- size:275*355*70mm
- advantage:small size light weight bigger power
- Controller:PWM 10A

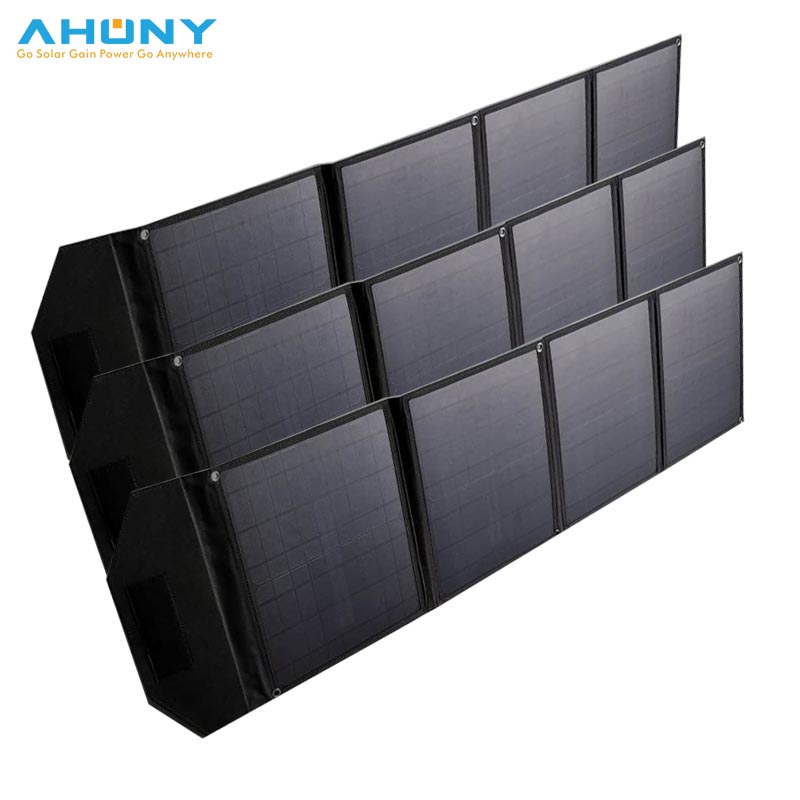

AHONY eMobi F50w foldable solar kit solar blanket design is one of our best seller;
it has the best size that is suitable for RV,the voltage is 18V which is better for 12v battery.
A grade PERC solar cells,efficienty is over 21.3%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight
PETsurface and fibreglass material;
With Jbox to fix the cable.
Folding solar panel eMobi F50w uses waterproof fabric cloth and flexible solar panel to sew together,this is
renew for traditional rigid folding solar panel.
SunPower cell makes is possible as the cell is back contact,with copper in it,bendable,it has least power loss
after long time use.
The cell efficiency is 21.3% makes size smaller than solar panel with other conventional solar cells.
Folding solar kits
Portable solar generator
Lead acid battery
Marine use battery
Electrical motocycle
Gel battery
Car battery
etc all 12v solar batteries and powerload.
Application scene
Self-driving travel
cycling
mountain climbing
yacht,boat,marine
Desert
snow mountain
disaster area
camping picnic
Portable refrigerator
For all outdoor to meet the 12v or customized power requirements.welcome to send enquiry or order online for foldable solar panel blanket 50w 4fold small portable light for charging 12v battery camp powerbank portable solar generator.
| Model No. | eMobi F4x12.5w |
| Product Name | 12V folding solar kits |
| Maximum Power[Wp] | 50 |
| Solar Cell | Mono PERC A Grade Solar Cell |
| Cell Efficiency | 21.30% |
| Folded Size[mm] | 355*275*70 |
| Open Size[mm] | 1321*355*4 |
| Max Power Voltage Vmp[V] | 20.26 |
| Max Power Current Imp[A] | 2.47 |
| Open Circuit Voltage Voc[V] | 23.91 |
| Short Circuit Current Isc[A] | 2.67 |
| Net.Weight[kg] | 3.1 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.4 |
| Temperature Coefficient Voc[[mV/℃] | -2mV |
| Temperature Coefficient Isc[mA/℃] | 0.037 |
| Maximum System Voltage[V] | 100 V |
| Certification | CE ROHS |
| Suface/backsheet | Waterproof textile,PET+FR4 fibreglass |
| Charge controller | PWM 10A 12/24V,1 USB |
| Cables | 5m 14AWG cable |
| Connector | SAE or MC4+battery clips |
| Supporting Leg | Yes |
| Eyelets | Yes |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 1pcs/bubble plastic bag,then in 1 carton box |
Our service
Before sale:
1.Our sales representative and engineer work together to answer your questions and offer solution for free;
2.Sales person choose the best solar product for you to make sure it worth its real value;
3.We design the best solution with good perfomance for you,manwhile save every cent of your money.
4.Strict quality control,strict test for all solar products produce,insure the best quality produced.
5.Fast delivery and communication with customer,to let customer know goods status at the earliest.
After sale:
We provide 12month Warranty for the product, 10 years warranty for 90% power production ,25 years warranty for 80% power production.
Gather feedback from customers,listen to customers and make new and better products.
