$51.30 - $64.80 / stück

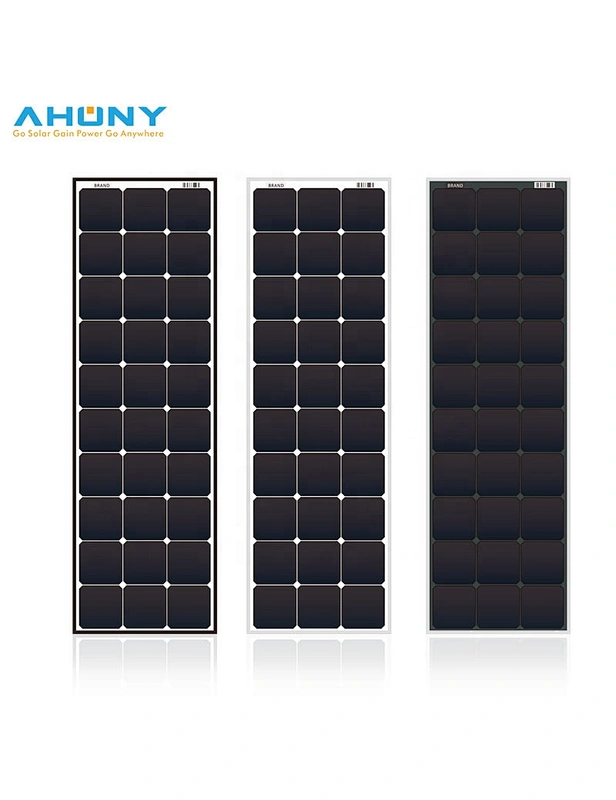

Wohnmobil-Solar-Kits sind eine Stromquelle für ein netzunabhängiges Leben in Ihrem Wohnmobil oder Wohnmobil. Unsere hochwertigen Solarmodule, Laderegler und Batteriespeichersysteme bieten eine zuverlässige und nachhaltige Energiequelle für Ihr zweites Zuhause. Rüsten Sie Ihr Wohnmobil auf und genießen Sie die Freiheit der offenen Straße mit unseren Wohnmobil-Solar-Kits.
- Brand Name:AHONY or OEM
- Model Number:eRigid M135w
- Place of Origin:Guangdong, China
- Type:PERC, Customized Solar Panel
- Panel Dimensions:680*1060*35mm
- Panel Efficiency:22.6%
- Certificate:CE ROHS ISO9001
- Warranty:1year
- Product:light 135W solar panel to use for electric bike
- Application:home use off grid marine solar panel
- Voltage:22v
- Module:rigid mono solar cell for home solar system
- solar cell:SunPower Maxeon Gen III Back Contact Cell
Thank you for reading solar panel for home system,here are details.
| Model No. | eRigid M135w |
| Product Name | light 135W solar panel to use for home solar system for electric bike |
| Maximum Power[Wp] | 135 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 5*8 |
| Cell Efficiency | 22.60% |
| Size[mm] | 680*1060*35 |
| Size[inch] | 26.8*41.7 |
| Max Power Voltage Vmp[V] | 24.00 |
| Max Power Current Imp[A] | 5.63 |
| Open Circuit Voltage Voc[V] | 28.32 |
| Short Circuit Current Isc[A] | 6.08 |
| Net.Weight[kg] | 7.2 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 20A |
| Certification | CE ROHS |
| Surface/Backsheet | Glass/silver frame/white backsheet |
| Cables and Connectors | Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
Before sale:
1.Our sales representative and engineer work together to answer your questions and offer solution for free;
2.Sales person choose the best solar product for you to make sure it worth its real value;
3.We design the best solution with good perfomance for you,manwhile save every cent of your money.
4.Strict quality control,strict test for all solar products produce,insure the best quality produced.
5.Fast delivery and communication with customer,to let customer know goods status at the earliest.
After sale:
We provide 5 years Warranty for the product, 10 years warranty for 90% power production ,25 years warranty for 80% power production.
Gather feedback from customers,listen to customers and make new and better products light 100w 110w 120w 135W 150w solar panel to use for home solar system for electric bike .
