The Camper solar battery charger is the ultimate outdoor companion for campers and hikers. Its powerful solar panels generate enough energy to keep your phone charged and ready for use at all times.The foldable design of the solar panels makes it easy to carry around, while the built-in charging ports make it easy to use.
- Warranty:3months-1year
- Free installation service:NO
- Place of Origin:Guangdong, China
- Brand Name:AHONY
- Model Number:eMobi 3x40w
- Application:Home
- Solar Panel Type:Monocrystalline Silicon
- Battery Type:Lithium Ion, Lead Acid
- Controller Type:PMW or MPPT
- Load Power (W):Others, 400w
- Output Voltage (V):12, 12v
- Output Frequency:50hz
- Certificate:CE RoHS
- Pre-sales project design:Y
- Specification:Normal
- Product name:folding solar blanket
- Controller:yes
- Protection:bypass
- solar panel material:ETFE surface from Japan material company

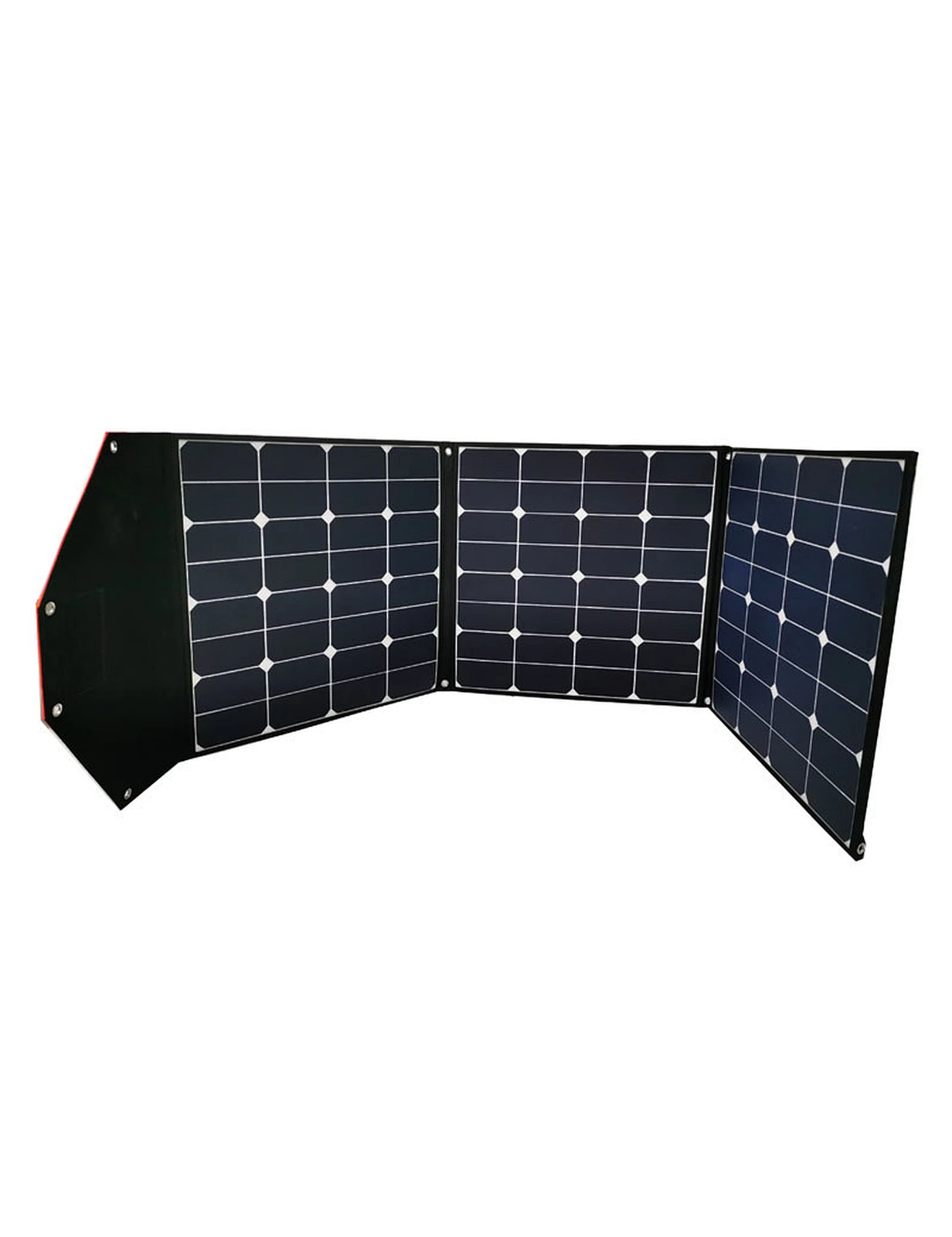

| Model No. | eMobi F3x40w ETFE Foldable solar charger blanket like 120w |
| Product Name | ETFE surface foldable solar blanket portable charger 120w for solar generator 12v battery charger marine boat rv |
| Maximum Power[Wp] | 120 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Efficiency | 22.60% |
| Folded Size[mm] | 550*425*20 |
| Open Size[mm] | 1480*550*5 |
| Max Power Voltage Vmp[V] | 20.88 |
| Max Power Current Imp[A] | 5.75 |
| Open Circuit Voltage Voc[V] | 24.64 |
| Short Circuit Current Isc[A] | 6.21 |
| Net.Weight[kg] | 3.6 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.3 |
| Temperature Coefficient Voc[[%/℃] | -1.74mV |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
AHONY eMobi F3x40w is one of our best seller;
it has the best size that is suitable for RV,the voltage is 18V which is better for 12v battery.
Back contact solar cells,efficienty is over 22%;
All parts cables,connectors,charge controller in 1 suitcase,portable and light weight
ETFE surface,more weather resistance;
With Jbox to fix the cable.
Folding solar panel eMobi F3x40w ETFE Foldable solar charger blanket like 120w uses fabric cloth and flexible solar panel to sew together,this is
renew for traditional rigid folding solar panel.
SunPower cell makes is possible as the cell is back contact,with copper in it,bendable,it has least power loss
after long time use.
The cell efficiency is 22.6% makes size smaller than panel with conventional solar cells.
Folding solar kits ETFE durable foldable solar blanket portable charger 120w for solar generator
Portable solar generator
Lead acid battery
Marine use battery
Electrical motocycle
Gel battery
Car battery
etc all 12v solar batteries and powerload.
Application scene
Self-driving travel
cycling
mountain climbing
yacht,boat,marine
Desert
snow mountain
disaster area
camping picnic
Portable refrigerator
ETFE durable foldable solar blanket portable charger 120w for solar generator for all outdoor to meet the 12v or customized power requirements.
