Our Balcony solar system offers a space-saving and eco-friendly energy solution for your urban dwelling. With a compact and efficient design, it provides reliable power for your household appliances and devices.
Eu Solar Kit Balcony solar system Germany home Solar Power System Micro Inverter Balkonkraftwerk 400w 600w 800W
eGo S100M-BSS400W
Quantity

Our Balcony solar system offers a space-saving and eco-friendly energy solution for your urban dwelling. With a compact and efficient design, it provides reliable power for your household appliances and devices. Upgrade to our Balcony solar system for convenient and sustainable energy production on your balcony!


Balcony Solar System BSS400W List
NOMODELConfigurationQtyUnit
1eGo S100M-Balcony
Mono solar panel  100w
Size:690*900*2,
XC502 Jbox on front
4pieces
2APMI-600on grid solar inverter 600w Maximum input DC Voltage:60V MPPT Voltage Range 30-60V1set
3Parallel use connector1 to 4 Y type MC4 connectorf1set
4Extension cable5m extenstion cable MC4 to MC41meters

Micro Inverter
Model Number
AMPI-400
Common module power （W）
Max 500W
Peak Power MPPT Voltage Range（V）
30-60
Start-up voltage (V)
22
Operating Voltage Range (V)
60
Maximum input voltage (V)
18
Maximum input current (A)
20
Maximum input short-circuit current (A)
0
Rated output power (VA)
400
Rated output current (A)
@120V 3.3A
@230V 1.7A
Nominal Output Voltage/Range (V)
@120V 85-160VAC
@230V 180-265VAC
Nominal Frequency/Range (Hz)
@120V 48-51Hz/58-61Hz
@230V 48-51Hz/58-61Hz
Power Factor
>0.99 default
0.8 leading...0.8 lagging
Output current harmonic distortion
<3%
Maximum unit per branch
@120V 6 PCs
 @230V 12Pcs

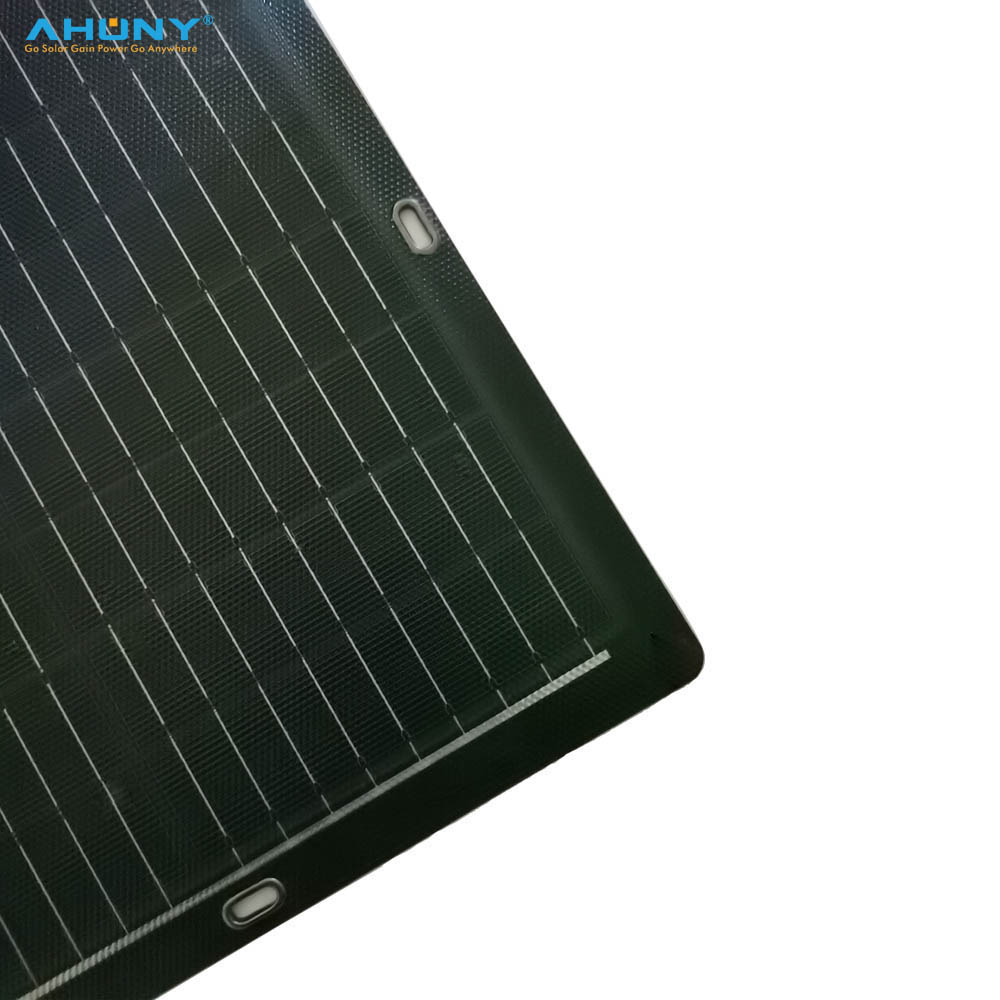

Ultralight balcony solar panel
Model Number
eGo S100M-Balcony
Maximum Power[Wp]
100
Solar Cell
HJT HCF solar cell
Cell Array[Pcs]
4*14
Cell Efficiency
22.70%
Size[mm]
690*900*2
Max Power Voltage Vmp[V]
35.16
Max Power Current Imp[A]
2.84
Open Circuit Voltage Voc[V]
41.14
Short Circuit Current Isc[A]
3.07
Net.Weight[kg]
1.7
Power tolerance[%]
±3%
NOCT[℃]
45±2
Operating Temperature[℃]
-40/+85
Temperature Coefficient Pmax[%/℃]
-0.252
Temperature Coefficient Voc[[%/℃]
-0.227
Temperature Coefficient Isc[[%/℃]
-0.227
Maximum System Voltage[V]
1000 V
Maximum Reverse Current[A]
IR<2A-0
Certification
CE ROHS
Surface/Backsheet
ETFE+AP2
Maximum bend radius(θ)
60°
Cables and Connectors
PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions
STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes
round corner R10,with eyelets and velcro
Selling point
High quality HJT solar cell,superior weak light performance,produce more power when install vertically
Vibration resistant AP2 material,allow bleeze to hit panel and no inner cell crack,more durable
quick connect and easy to fix on balcony fence
Package
1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
