Factory 90w portable solar kit light weight foldable solar panel charger for charging 12v battery camp powerbank
eMobi FM3*30W
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity
Our foldable solar panel charger is a convenient and eco-friendly solution for charging your devices on-the-go. With efficient energy production, it charges all your devices using solar power. Upgrade to our solar powered phone charger and enjoy the benefits of renewable energy!
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Model Number:eMobi FM3*30W
- Cell size:156.75mmx156.75mm
- Type:PERC
- Panel Dimensions:500*440*40
- Panel Efficiency:22.5%
- Certificate:CE ROHS ISO
- Warranty:1 year
- solar sell:mono PERC Grade solar cell
- Efficiency:22.5%
Product Description
| Model No. | eMobi FM3x30w | |||||
| Product Name | 12V folding solar kits | |||||
| Maximum Power[Wp] | 90 | |||||
| Solar Cell | Mono PERC A Grade Solar Cell | |||||
| Cell Efficiency | 21.30% | |||||
| Folded Size[mm] | 500*440*40 | |||||
| Open Size[mm] | 1580*500*4 | |||||
| Max Power Voltage Vmp[V] | 20.16 | |||||
| Max Power Current Imp[A] | 4.46 | |||||
| Open Circuit Voltage Voc[V] | 23.79 | |||||
| Short Circuit Current Isc[A] | 4.82 | |||||
| Net.Weight[kg] | 3.4 | |||||
| NOCT[℃] | 45±2 | |||||
| Operating Temperature[℃] | -40/+85 | |||||
| Temperature Coefficient Pmax[%/℃] | -0.4 | |||||
| Temperature Coefficient Voc[[mV/℃] | -2mV | |||||
| Temperature Coefficient Isc[mA/℃] | 0.037 | |||||
| Maximum System Voltage[V] | 100 V | |||||
| Certification | CE ROHS | |||||
| Suface/backsheet | Waterproof textile,PET+FR4 fibreglass | |||||
| Charge controller | PWM 10A 12/24V,2 USB,LCD display | |||||
| Cables | 5m 14AWG cable | |||||
| Connector | SAE or MC4+battery clips | |||||

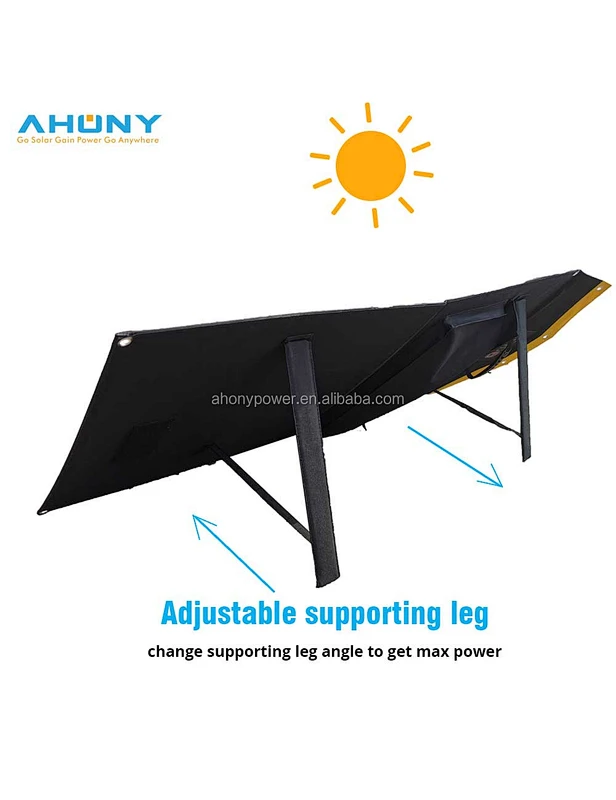

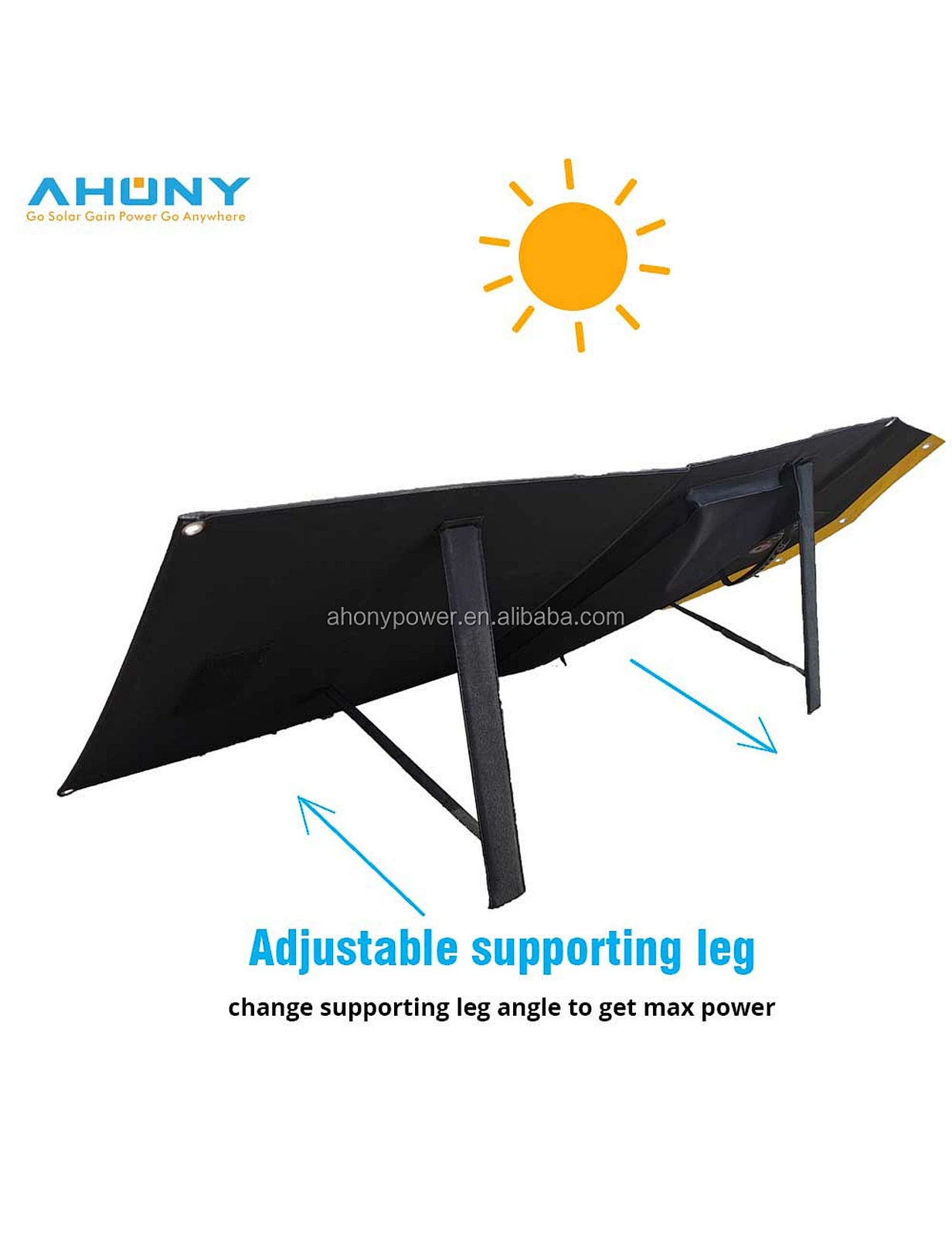

| Supporting Leg | Yes | |||||
| Eyelets | Yes | |||||
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C | |||||
| Package | 1pcs/bubble plastic bag,then in 1 carton box | |||||
