Panneau solaire photovoltaïque monocristallin 60 W 80 W sur toit 100 W en bardeaux 180 W 200 W Panneau solaire monocristallin 300 W

Modèle eRigid M80w SP

Quantité

Le kit solaire photovoltaïque pour caravane en verre est une solution fiable et rentable pour l’alimentation hors réseau. Avec des panneaux solaires en verre avancés et un système de montage durable, il fournit une énergie à haut rendement pour votre maison mobile.

glass solar panel sunpower.png

1.high efficiency

The efficiency of back conact cell efficiency 80w solar panel is up to 22%

2.Easy Installation

*Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations
*Can be affixed by adhesive, grommets or Velcro (with which you can easily attach or detach the panels)
*Can be installed without costly structural roof reinforcements
3.Widely Compatibility

Boats/Sailboats, Yachts, Marine applications,Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication sites and more

4.Durable

*high quality black solar panel frame anodized high density,more than 25 years lifespan;

*5 years warranty.

5.Reliable

SunPower cell,more than 5 years producing experience and leading brand raw material.

6.Productivity

Bypass diodes minimizes performance drop due to partial shade and prevent battery discharge at night

Product Description

Model No.	eRigid M80w SP
Product Name	80W solar panel back contact cell black or silver frame for off grid application with good performance under low light
Maximum Power[Wp]	80
Solar Cell	SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]	4*12
Cell Efficiency	22.60%
Size[mm]	54083030
Max Power Voltage Vmp[V]	27.84
Max Power Current Imp[A]	2.87
Open Circuit Voltage Voc[V]	32.85
Short Circuit Current Isc[A]	3.03
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.3
Temperature Coefficient Voc[[%/K]	-1.74mV
Temperature Coefficient Isc[[%/K]	0.05
Maximum System Voltage[V]	1000 V
Maximum Reverse Current[V]	20A
Certification	CE ROHS
Surface/Backsheet	Glass/silver frame/white PETbacksheet

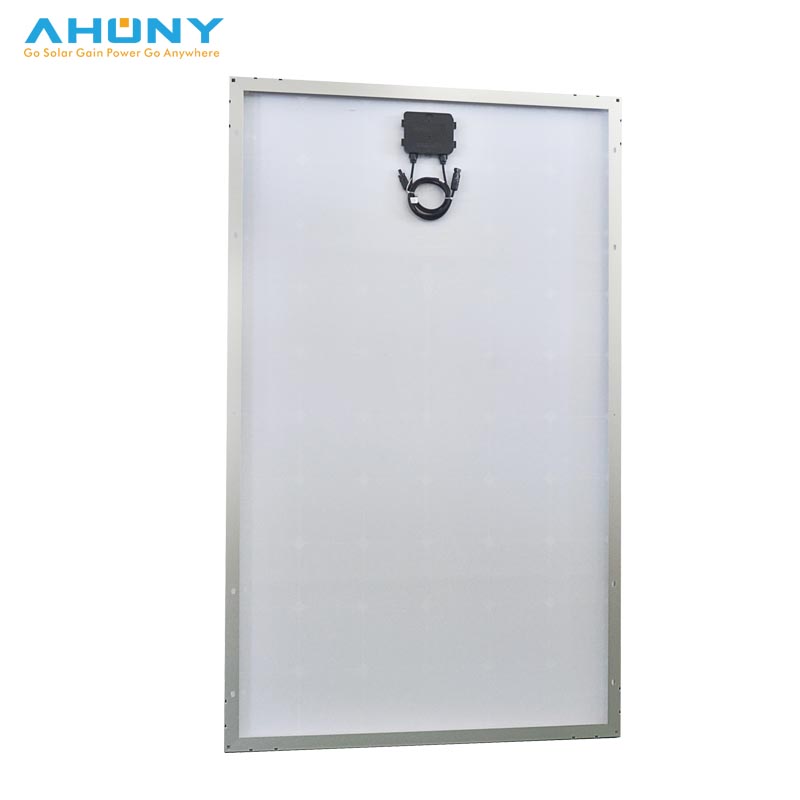

Cables and Connectors	Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector
Standard Test Conditions	STC: 1000W/m², AM 1.5 and cell temp 25°C
Package	1pcs/carton box and plywood pallet

Our Services

Our service
Before sale:
1.Our sales representative and engineer work together to answer your questions and offer solution for free;
2.Sales person choose the best solar product for you to make sure it worth its real value;
3.We design the best solution with good perfomance for you,manwhile save every cent of your money.
4.Strict quality control,strict test for all12v 110W solar panel back contact cell black or silver frame for off grid application with good performance under low light,insure the best quality produced.
5.Fast delivery and communication with customer,to let customer know goods status at the earliest.
After sale:
We provide 5 years Warranty for the product, 10 years warranty for 90% power production ,25 years warranty for 80% power production.
Gather feedback from customers,listen to customers and make new and better products.
