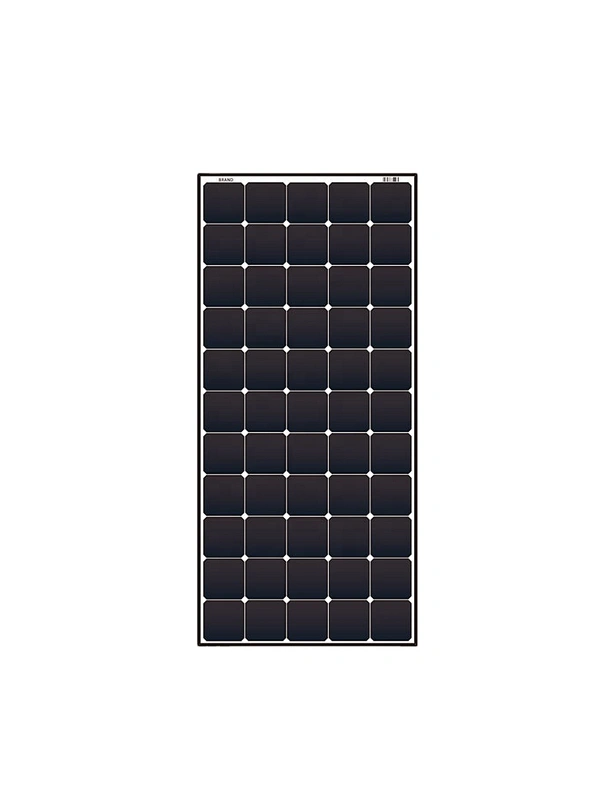

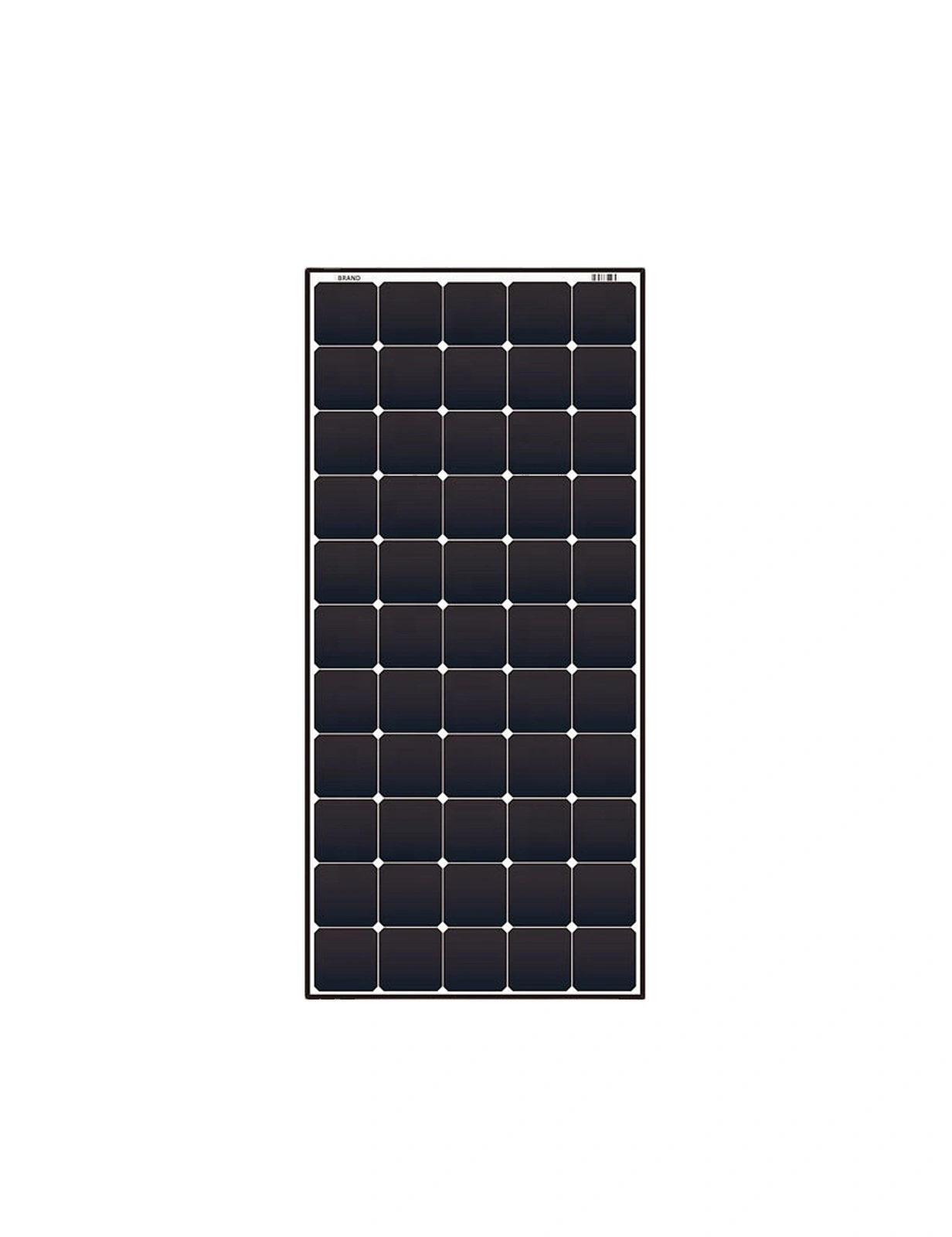

Full black solar panel 160w for home use with sunpower maxeon gen III high efficiency solar cells
eRigid M160SP
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity
Our 160 watt solar panels are the perfect solution for those looking to power their homes or businesses with clean, renewable energy. With high-efficiency cells and a durable design, these panels can withstand all types of weather conditions. They are easy to install and require minimal maintenance, making them a cost-effective option for energy savings.
- Place of Origin:Guangdong, China
- Brand Name:solar customer's brand
- Model Number:eRigid M160SP
- Cell size:125mmx125mm
- Type:IBC, Standard Solar Panel
- Panel Dimensions:540*1445*35mm
- Panel Efficiency:24.4%
- Certificate:ce rohs, CE ROHS
- Warranty:5years
- Product name:black solar panel 160w for home use
- Solar panel:Gen III high efficiency sunpower solar module 150w
- Frame Color:black or silver frame or customize other frame colour
- OEM Order:accepted
- Power:160w
- Efficiency:23.7%
- Cable:0.9m TUV certified
- name:black frame solar module 150w
Product Description
| Model No. | eRigid M160SP |
| Product Name | Full black solar panel 160w for home use with sunpower maxeon gen III high efficiency solar cells |
| Maximum Power[Wp] | 160 |
| Solar Cell | SunPower Maxeon gen III |
| Cell Array[Pcs] | 4*11 |
| Cell Efficiency | 24.4% |
| Size[mm] | 540*1445*35 |
| Size[inch] | 21.3*56.9 |
| Max Power Voltage Vmp[V] | 26.9 |
| Max Power Current Imp[A] | 5.95 |
| Open Circuit Voltage Voc[V] | 31.74 |
| Short Circuit Current Isc[A] | 6.31 |
| Net.Weight[kg] | 11 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 20A |
| Certification | CE ROHS |
| Surface/Backsheet | Glass/silver frame/white backsheet |
| Cables and Connectors | Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 1pcs/carton box and plywood pallet |
We offer a wide range of Full black solar panel 160w for home use with sunpower maxeon gen III high efficiency solar cells,with white or black colour frame,customize cables,connectors,package,welcome to ask our sales!
