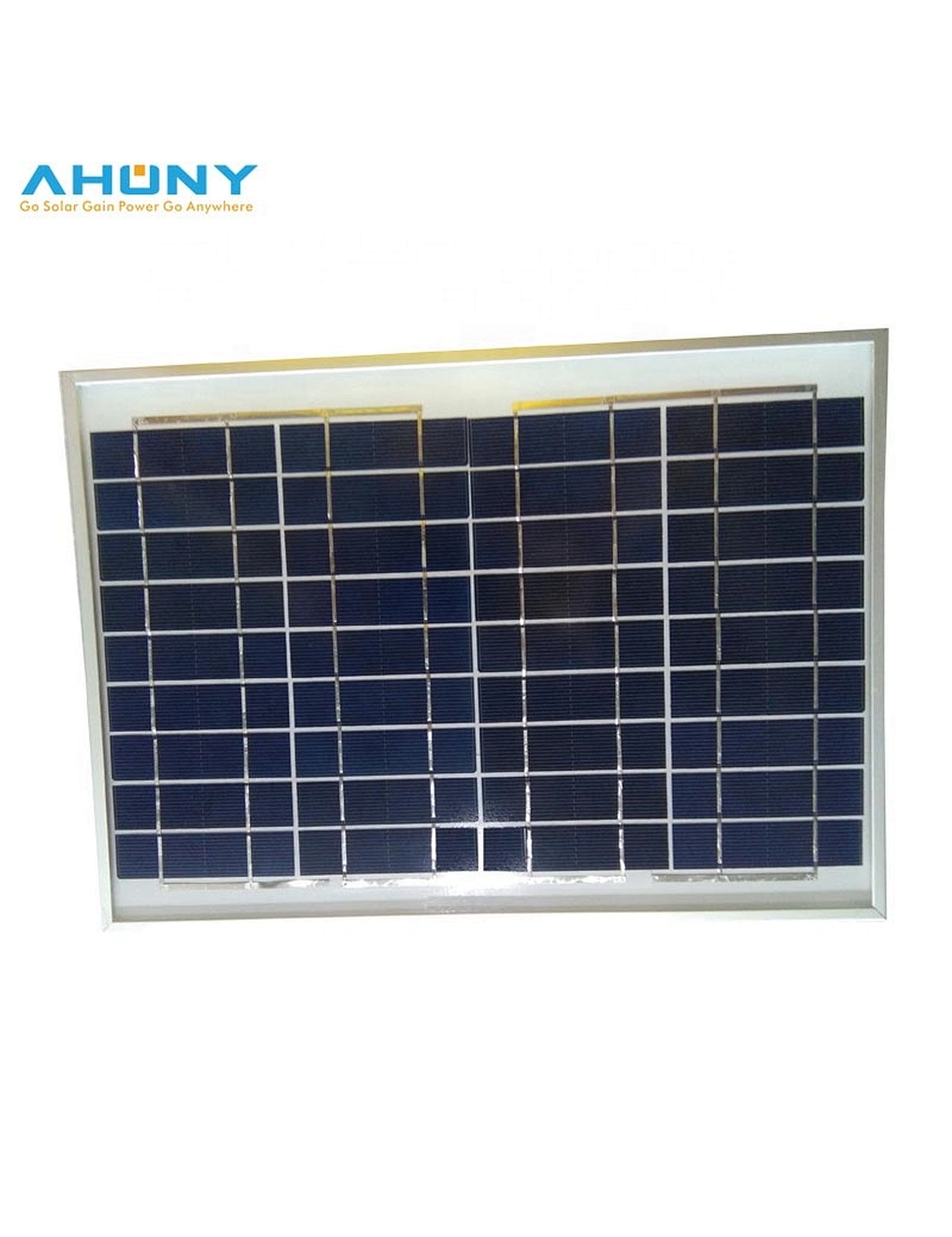

Glass Solar module a grade cell small 50 watt solar panel kit for electric fence industrial application use
eRigid P50w
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity
Our small 50 watt solar panel kit is the perfect solution for your off-grid energy needs. With a compact design and efficient energy production, this solar panel kit is easy to install and ideal for small-scale applications.
- Place of Origin:Guangdong, China
- Brand Name:AHONY or OEM
- Model Number:eRigid P50w
- Cell size:156mmx49mm
- Type:poly, Standard Solar Panel
- Panel Dimensions:650*510*25mm
- Panel Efficiency:19%
- Certificate:CE ROHS ISO9001, CE ROHS ISO
- Warranty:5 years, 5years
- Product name:small poly solar panel 50w for electric fence
- Solar cell:A grade poly solar cell
- Feature:durable customize high quality cells for electric fence
- Wattage:50w poly solar panel
- Backsheet Color:white backsheet
- Front Cover:glass
- OEM Order:accepted
Here is our small solar panel poly solar panel 50w a grade cell for electric fence industrial application use.
A grade solar cell PERC;
Automatically soldering machine;
Durable and long term use;
OEM and customize service.
Product Description
| Model No. | eRigid P50W |
| Feature for electric fence | small solar panel poly solar panel 50w a grade cell for electric fence industrial application use |
| Product Name | Rigid Polycrystalline solar panel |
| Maximum Power[Wp] | 50 |
| Solar Cell | Poly A grade solar cell |
| Cell size[mm] | 156*49 |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 18.24% |
| Size[mm] | 650*510*25 |
| Max Power Voltage Vmp[V] | 19.08 |
| Max Power Current Imp[A] | 2.62 |
| Open Circuit Voltage Voc[V] | 22.51 |
| Short Circuit Current Isc[A] | 2.83 |
| Net.Weight[kg] | 4.00 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.41 |
| Temperature Coefficient Voc[[%/℃] | -0.32 |
| Temperature Coefficient Isc[[%/℃] | 0.04 |
| Maximum System Voltage[V] | 1000 V |
| Certification | CE ROHS |
| Surface/Backsheet | Glass+Aluminum/white |
| Jbox,Cables | with Jbox IP65,0.9m+MC4 |
| Diode | yes,1-3pcs bypass diode |
| Connection | MC4 |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |

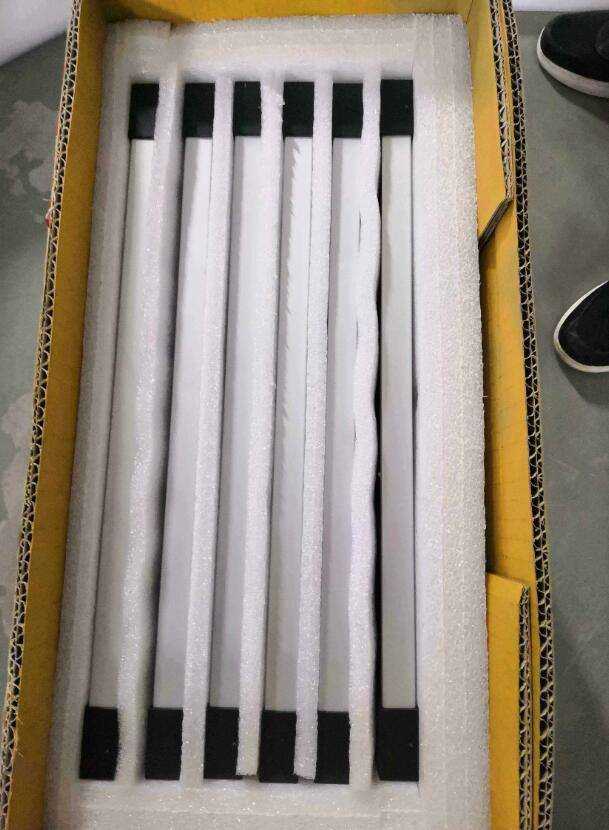

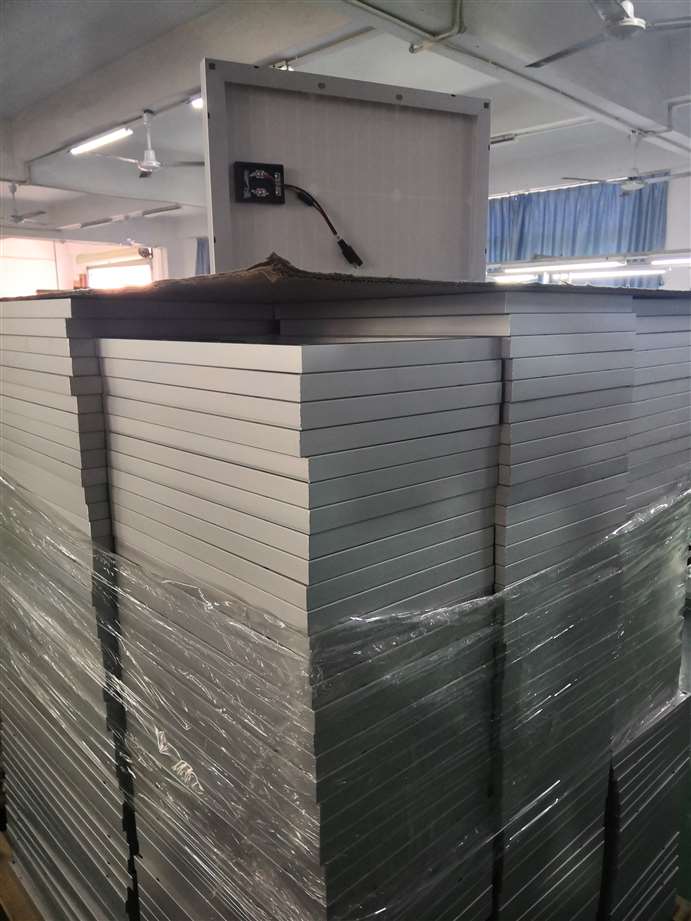

Packaging & Shipping
