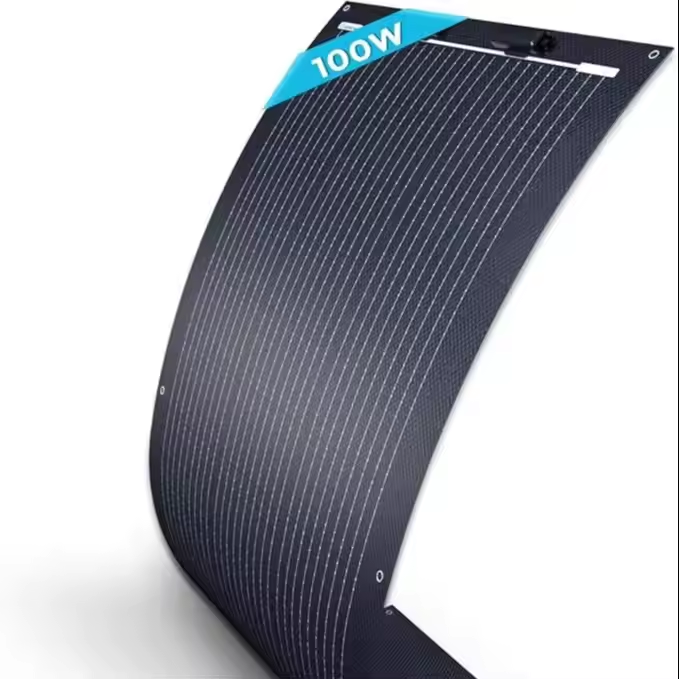

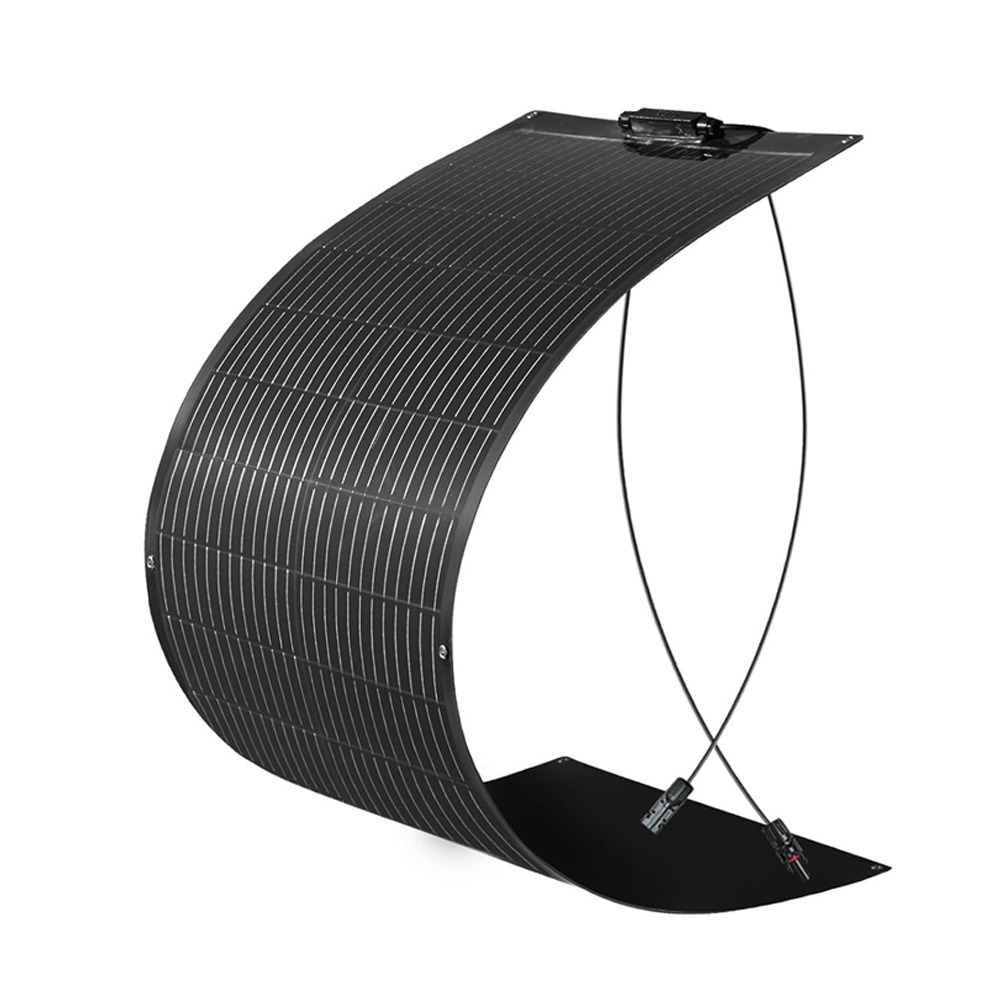

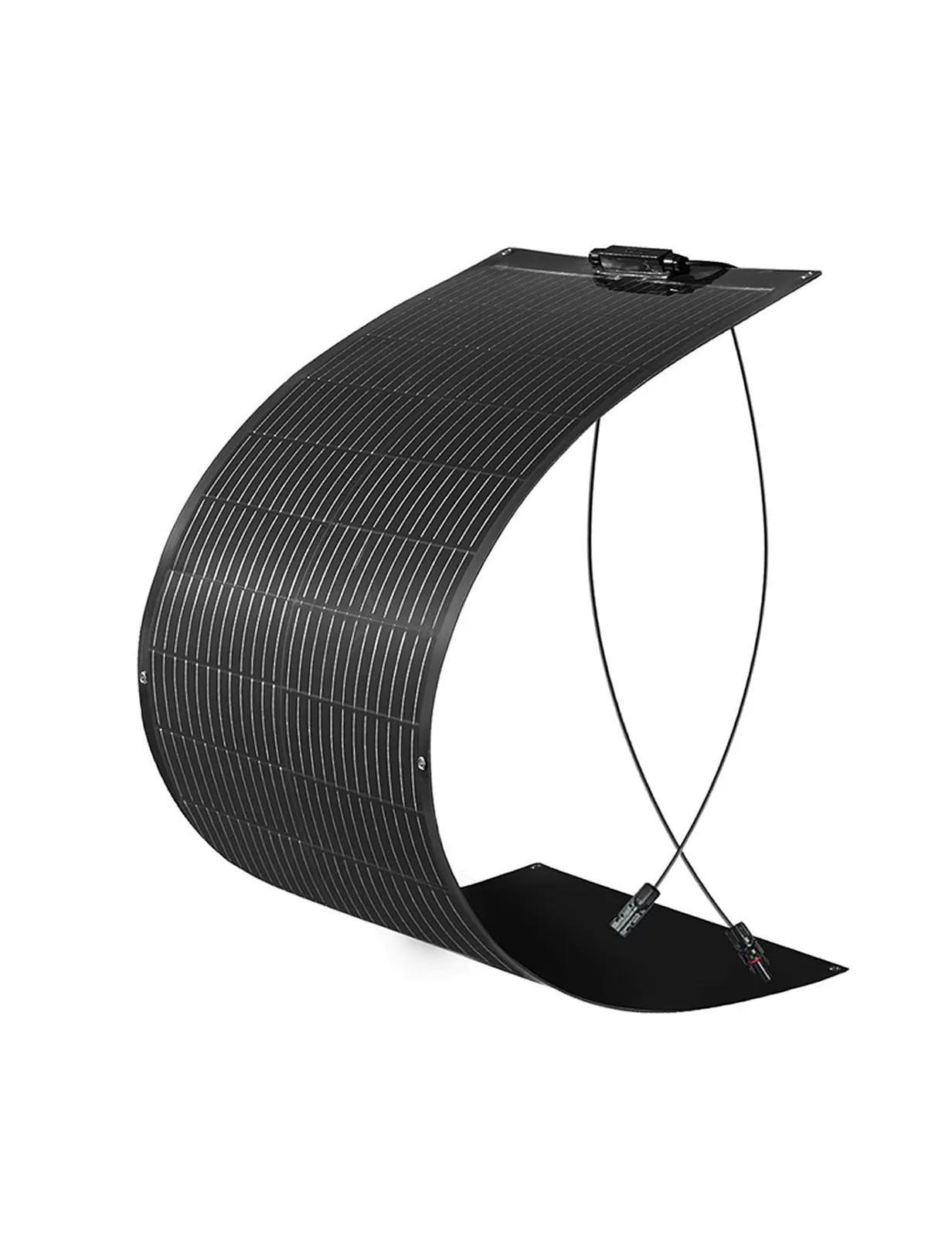

Slim Thin Narrow 100W Monocrystalline Flexible Solar Panel for Off-Grid Solar System Homes Garden Balcony Flat Roof Tile Fence
price
$28.00 - $38.00 / piece
eGo S100M
1 piece
Quantity
- Brand Name:AHONY Power, AHONY/OEM
- Model Number:eGo S100M
- Place of Origin:Dongguan
- Cell size:158.75mmx158.75mm
- Panel Dimensions:460*1140*2
- Panel Efficiency:25.4%, 25.4%
- Product name:Flexible Solar Panel
- Application:Marine
- Type:Topcon
- Solar cell:Topcon Cellls
- Certificate:CE ROHS
- Junction Box:IP68
- Warranty:1 Year
- Weight:3.2KG
Product Overview
No | Model No. | eGo S100M |
1 | Number of Cells | 33pcs |
2 | Maximum Power[Wp] | 100 |
3 | Solar Cell | Topcon Solar Cell |
4 | Cell Efficiency | 25.4% |
5 | OEM Order | Acceptable |

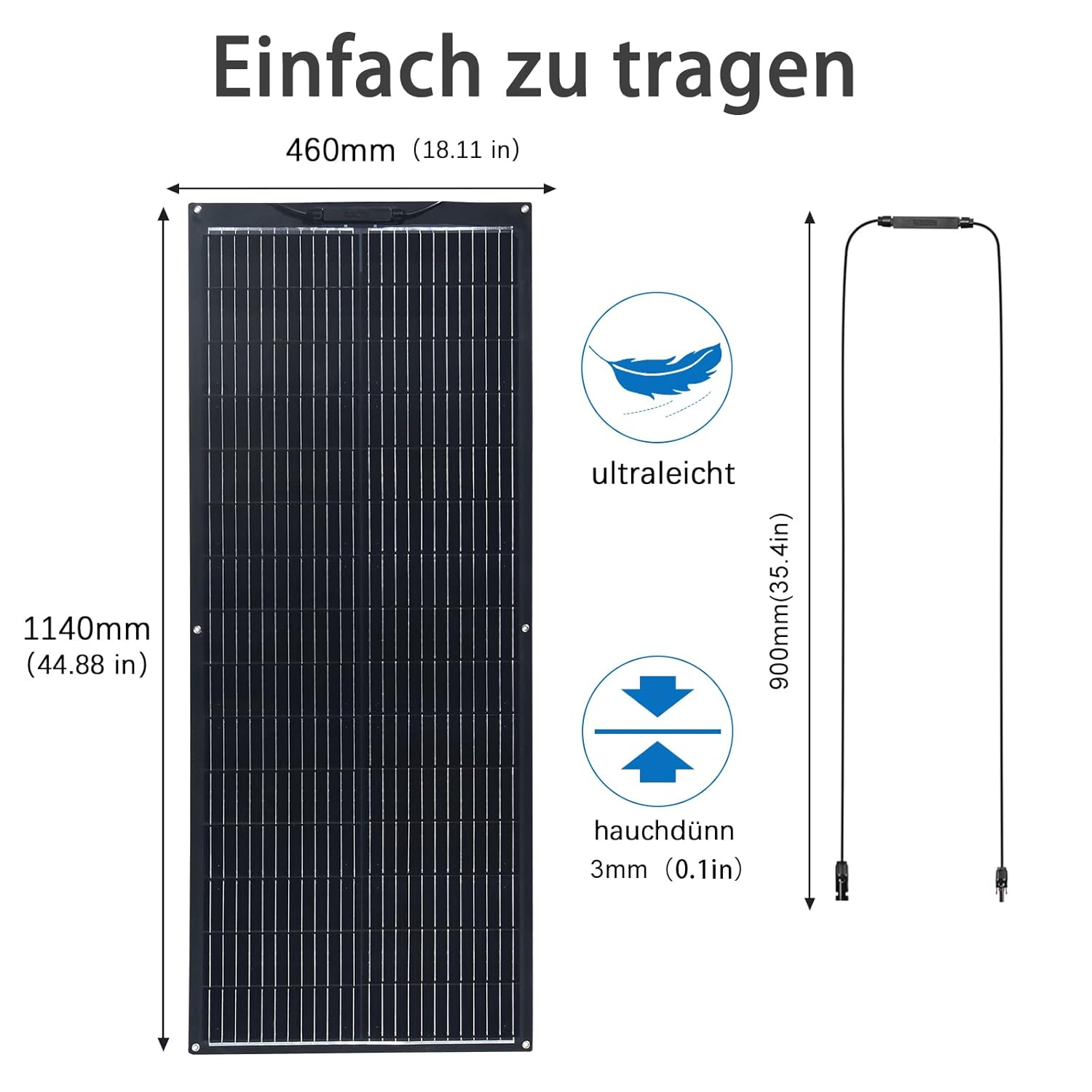

6 | Module Size[mm] | 460*1140*2mm |
7 | Max Power Voltage Vmp[V] | 20.2 |
8 | Max Power Current Imp[A] | 4.96 |
9 | Open Circuit Voltage Voc[V] | 23.6 |
10 | Short Circuit Current Isc[A] | 5.25 |
11 | Net.Weight[kg] | 1.6 |
12 | Power tolerance[%] | ±3% |
13 | NOCT[℃] | 45±2 |
14 | Certification | CE ROHS |
15 | Material | Monocrystalline Silicon |
Main feature of AHONY direct produce solar module
* High conversion rate: the 100 W flexible solar panel uses 20BB leading brand Topcon solar cells,of the latest monocrystalline silicon with a conversion rate of
up to 25.4%. In full sunlight, it takes about 7 hours to fully charge a 500Wh battery (depending on sunlight)

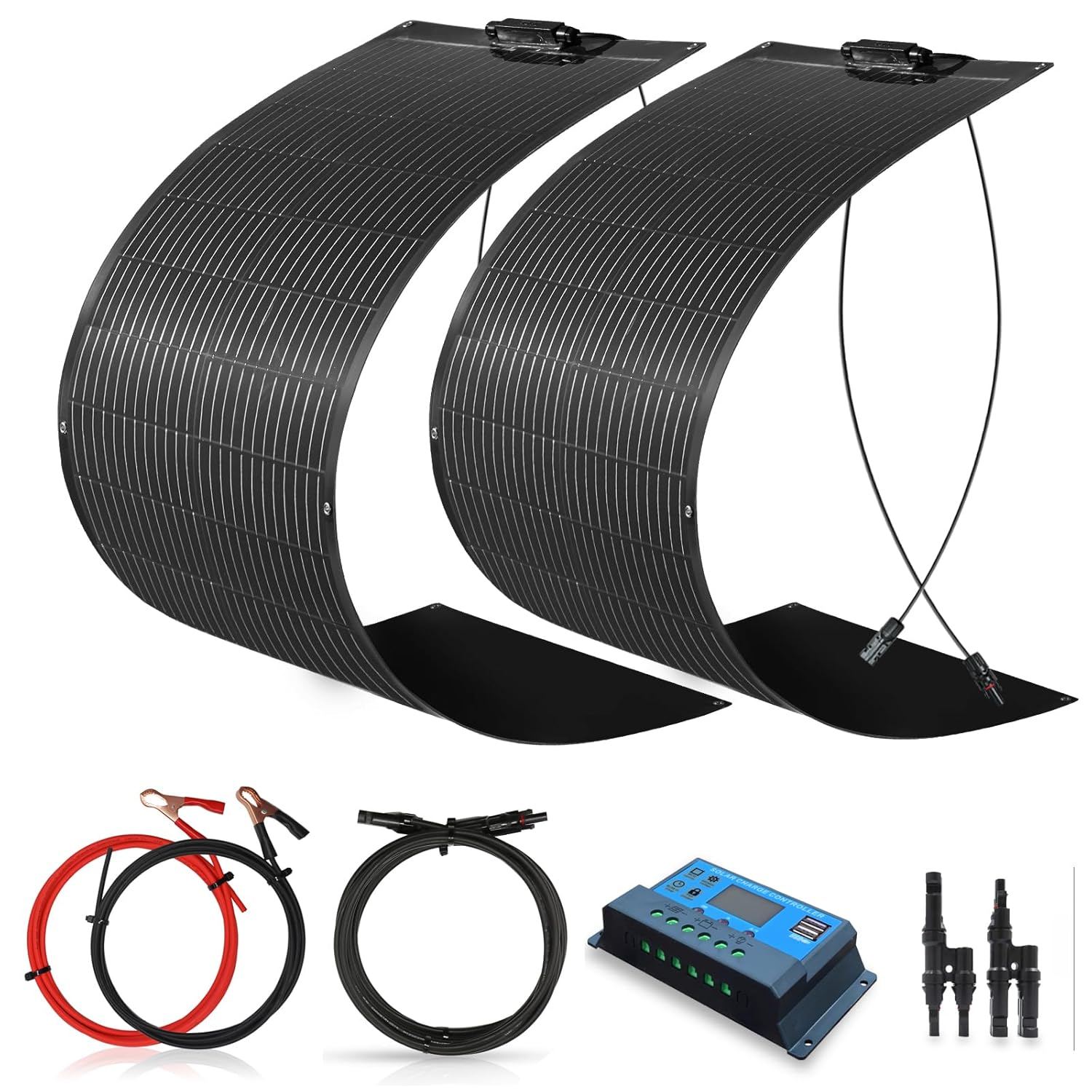

* Photovoltaic system accessories: solar panel with 1 x 12 V 10 A solar charge controller; with 2 x 3 metre solar cable
extension; 3 metre crocodile clip cable (solar charge controller battery connection cable), for charging lead-acid and lithium
batteries. The cables are all waterproof and have better quality and length than their counterparts

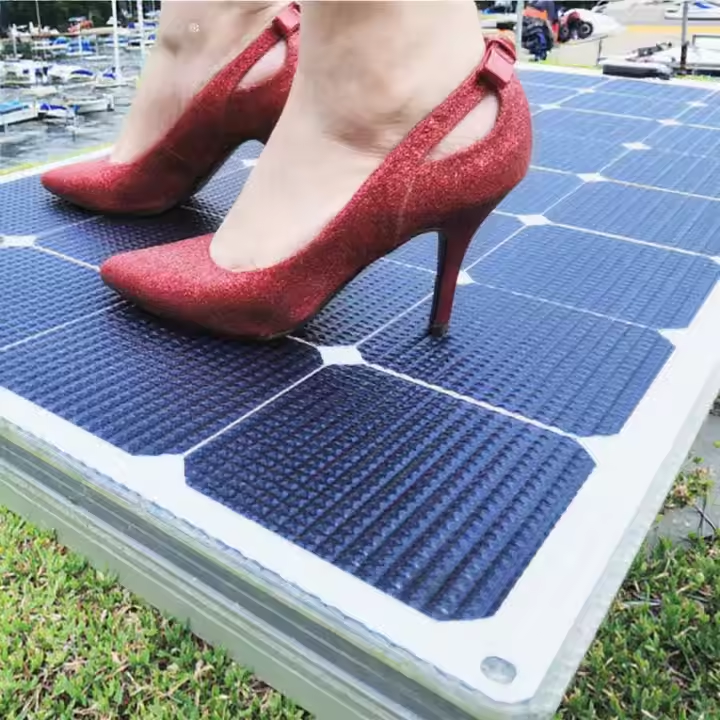

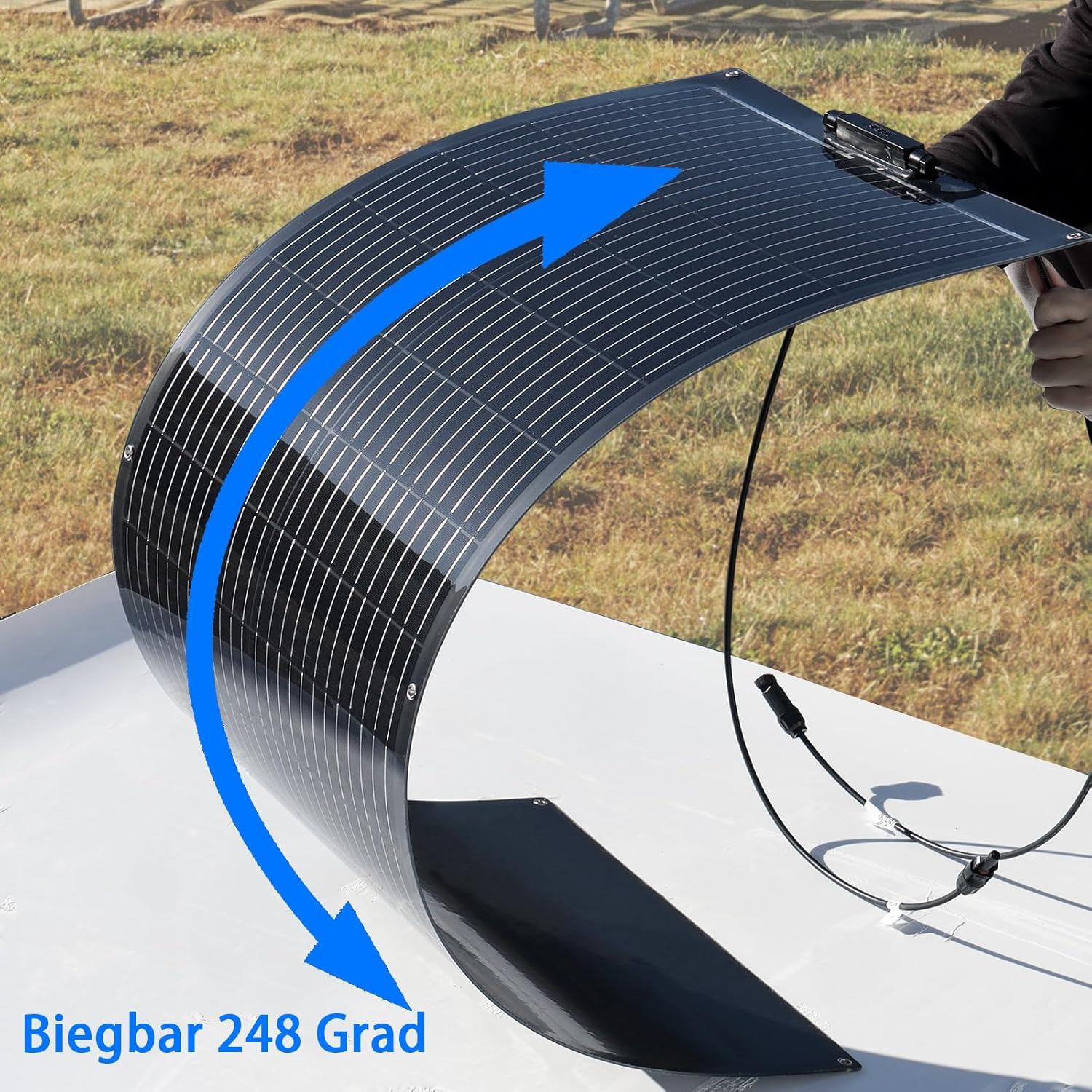

* Flexible and ultra-light: This flexible 100 W solar panel can be bent 248 degrees, making it ideal for boats, caravans,
trailers and other curved surfaces. With a thickness of only 3 mm and a weight of 1.8 kg, 1140 x 460 x 2.5 mm photovoltaic
panel, it is easy to transport, carry and install

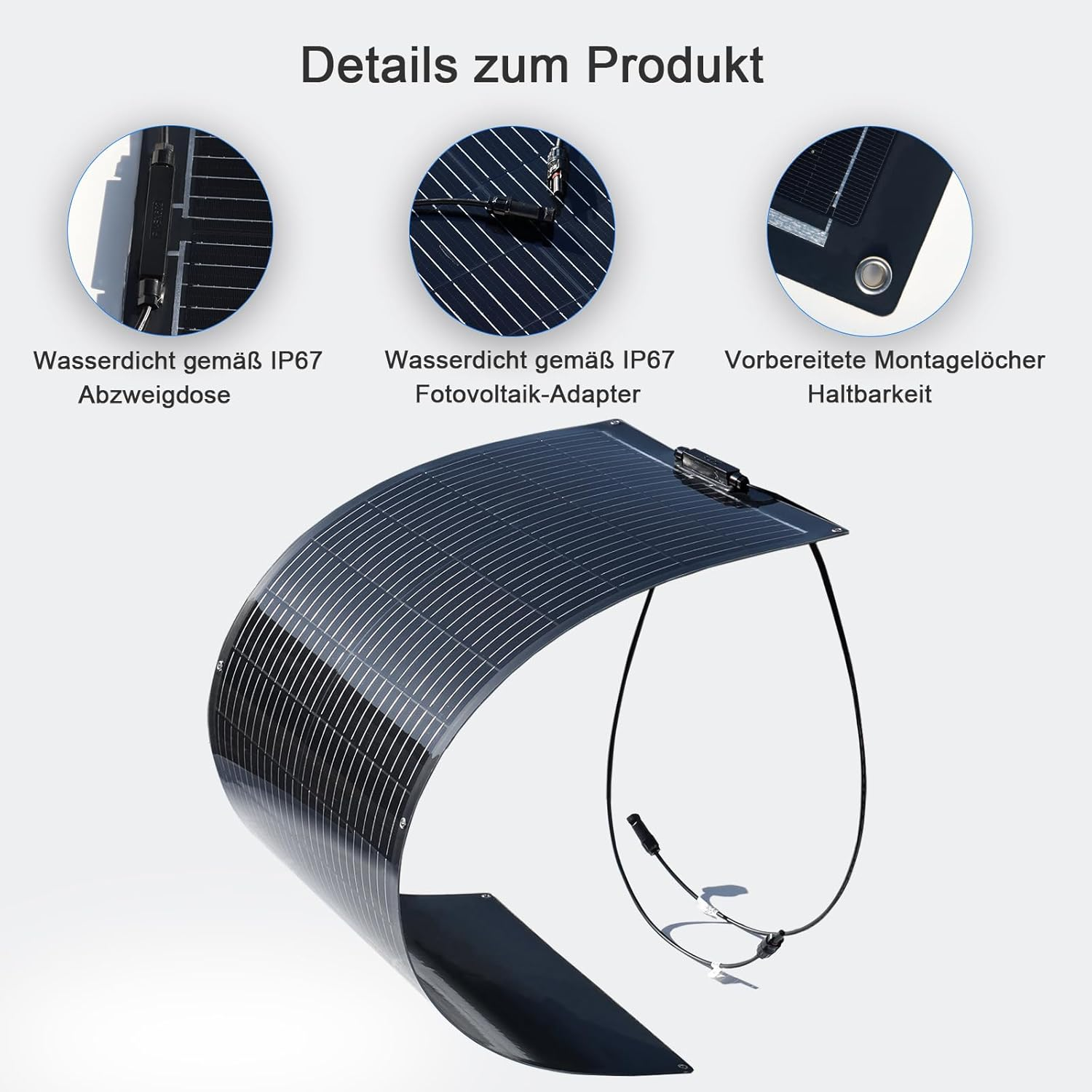

* Robust and durable: This flexible 100 W IP68 waterproof solar panel can withstand strong winds of up to 2400 Pa and snowfall of
up to 5400 Pa. Waterproof junction box. The built-in blocking diode prevents the battery from discharging at night. This
prevents the current from flowing back and damaging the circuit board in the cells
* Easy installation: the solar panels are pre-drilled with mounting holes, for metal reinforcement. They can also be attached
with silicone, double-sided tape, cable ties or Velcro and are very light and easy to install without screws and without
damaging the vehicle
* [Effective Applications] Solar panels can be used in any off-grid and grid-connected solar energy system by connecting multiple
modules in series or parallel. Delivers power to boats, RVs, trucks, trailers, cottages and homes
up to 25.4%. In full sunlight, it takes about 7 hours to fully charge a 500Wh battery (depending on sunlight)
* Photovoltaic system accessories: solar panel with 1 x 12 V 10 A solar charge controller; with 2 x 3 metre solar cable
extension; 3 metre crocodile clip cable (solar charge controller battery connection cable), for charging lead-acid and lithium
batteries. The cables are all waterproof and have better quality and length than their counterparts
* Flexible and ultra-light: This flexible 100 W solar panel can be bent 248 degrees, making it ideal for boats, caravans,
trailers and other curved surfaces. With a thickness of only 3 mm and a weight of 1.8 kg, 1140 x 460 x 2.5 mm photovoltaic
panel, it is easy to transport, carry and install
* Robust and durable: This flexible 100 W IP68 waterproof solar panel can withstand strong winds of up to 2400 Pa and snowfall of
up to 5400 Pa. Waterproof junction box. The built-in blocking diode prevents the battery from discharging at night. This
prevents the current from flowing back and damaging the circuit board in the cells
* Easy installation: the solar panels are pre-drilled with mounting holes, for metal reinforcement. They can also be attached
with silicone, double-sided tape, cable ties or Velcro and are very light and easy to install without screws and without
damaging the vehicle
* [Effective Applications] Solar panels can be used in any off-grid and grid-connected solar energy system by connecting multiple
modules in series or parallel. Delivers power to boats, RVs, trucks, trailers, cottages and homes
FEATURES AT A GLANCE
(1) It is lightweight, only 2kg including the cables, and thin, only 2.6mm thickness;
(2) Semi flexible, 30degree bending is no problem;
Advantage:
(1)High efficiency. It is Sunpower solar panel, with efficiency 22%-24%;
(2) Various applications such as:RV/Boat/Marine or Golf cart etc.
(3) High light transmittance 98%, and high temperature resistance range-40°C to+85°C;
(2) Semi flexible, 30degree bending is no problem;
Advantage:
(1)High efficiency. It is Sunpower solar panel, with efficiency 22%-24%;
(2) Various applications such as:RV/Boat/Marine or Golf cart etc.
(3) High light transmittance 98%, and high temperature resistance range-40°C to+85°C;
Packing&Shipping

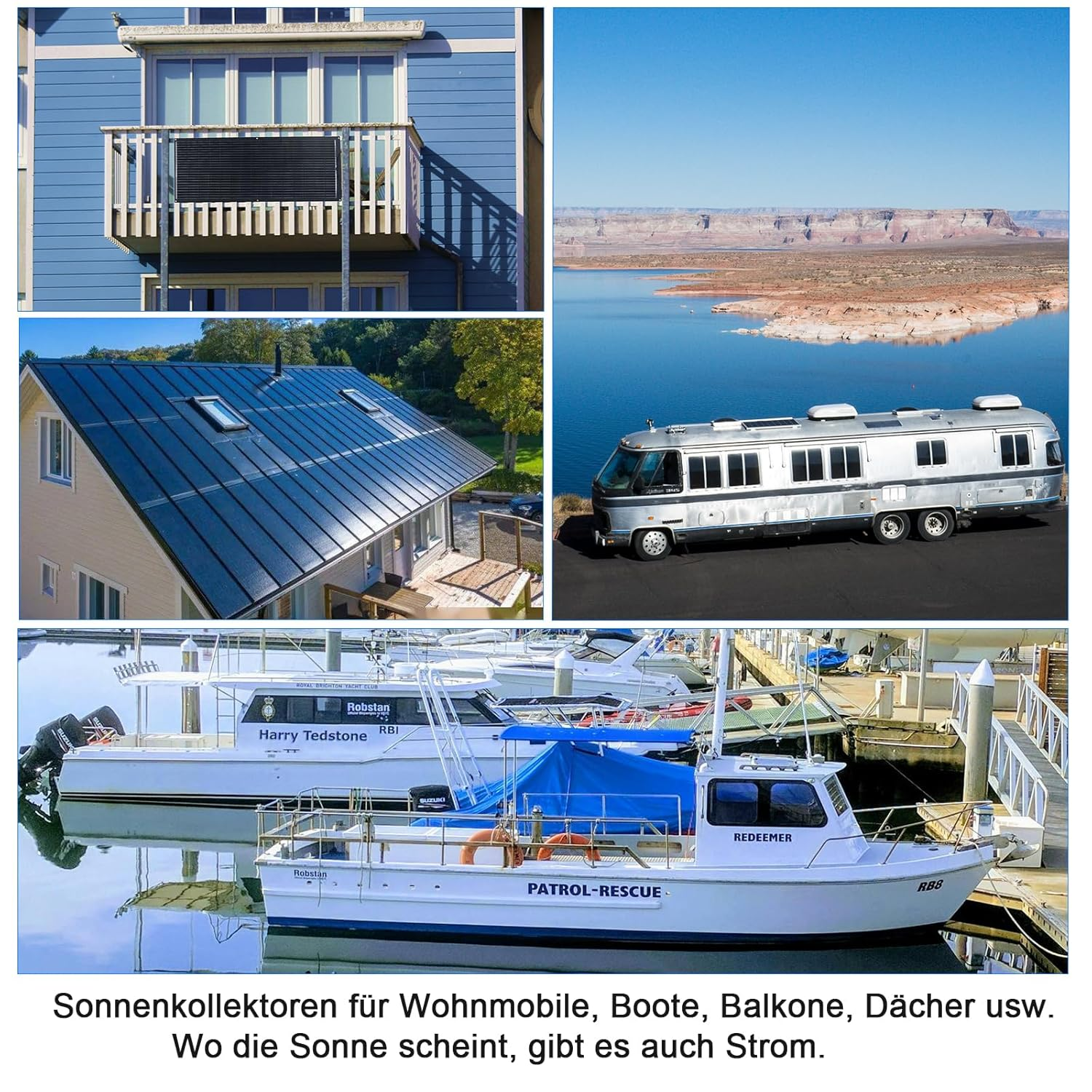

Application:

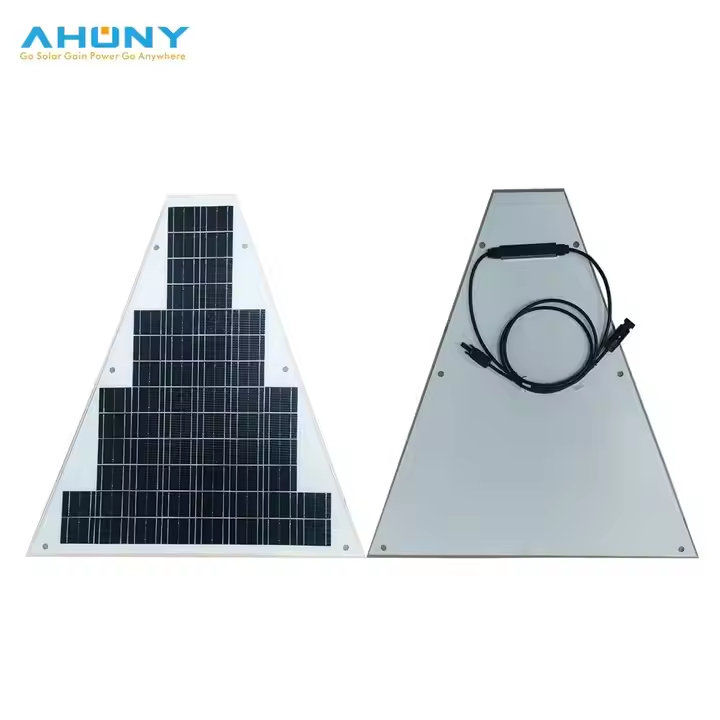

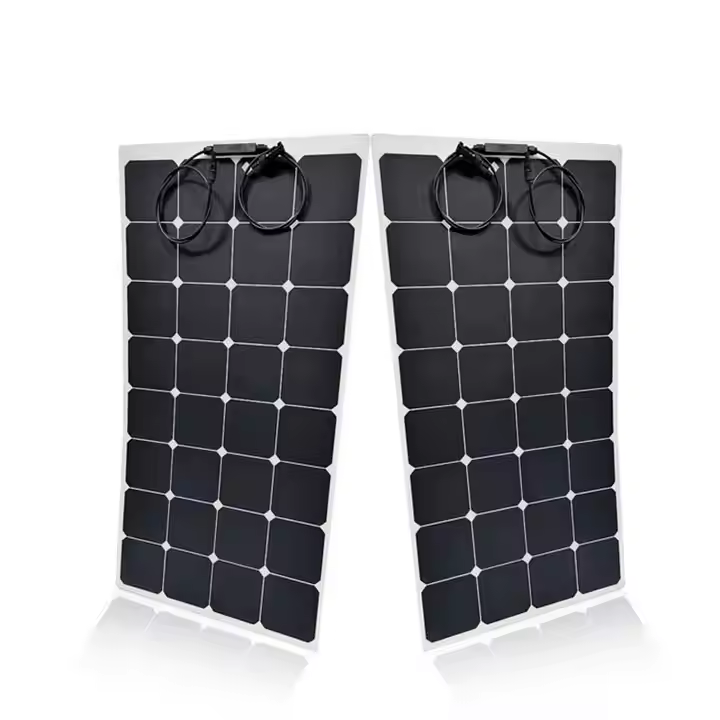

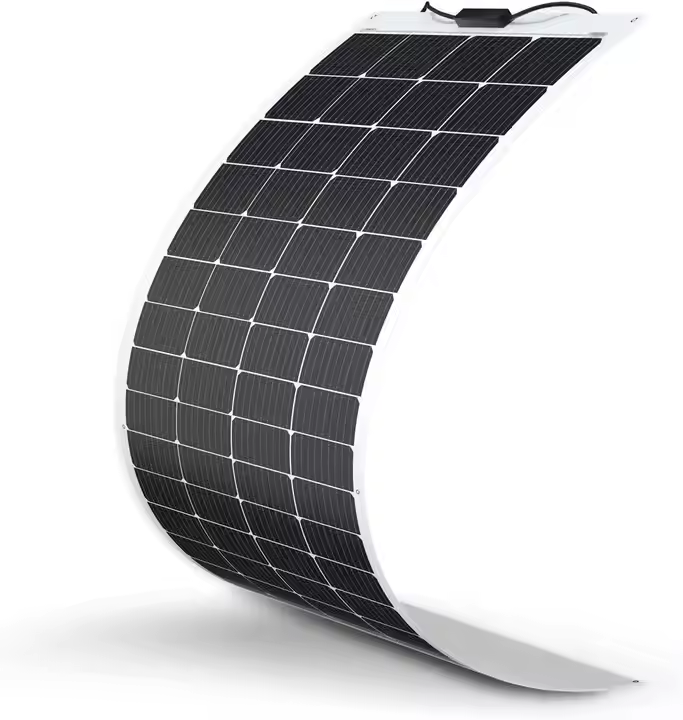

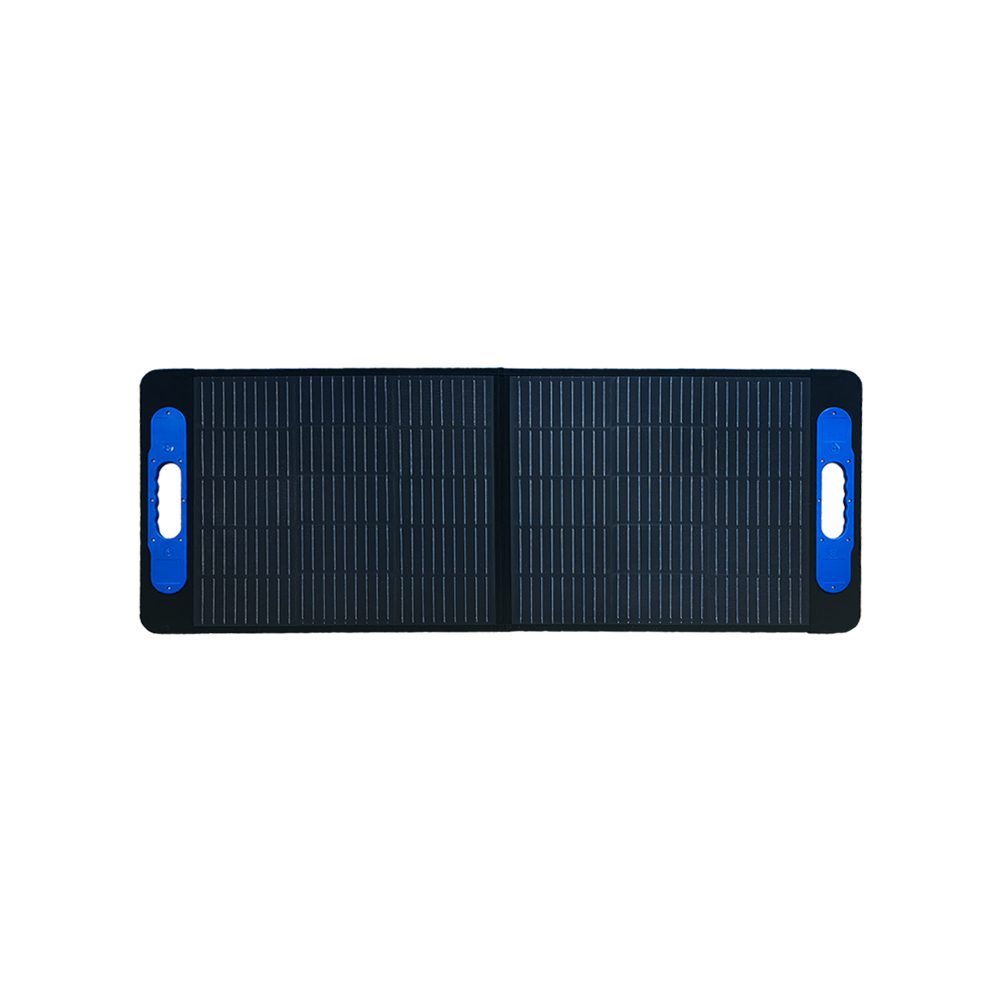

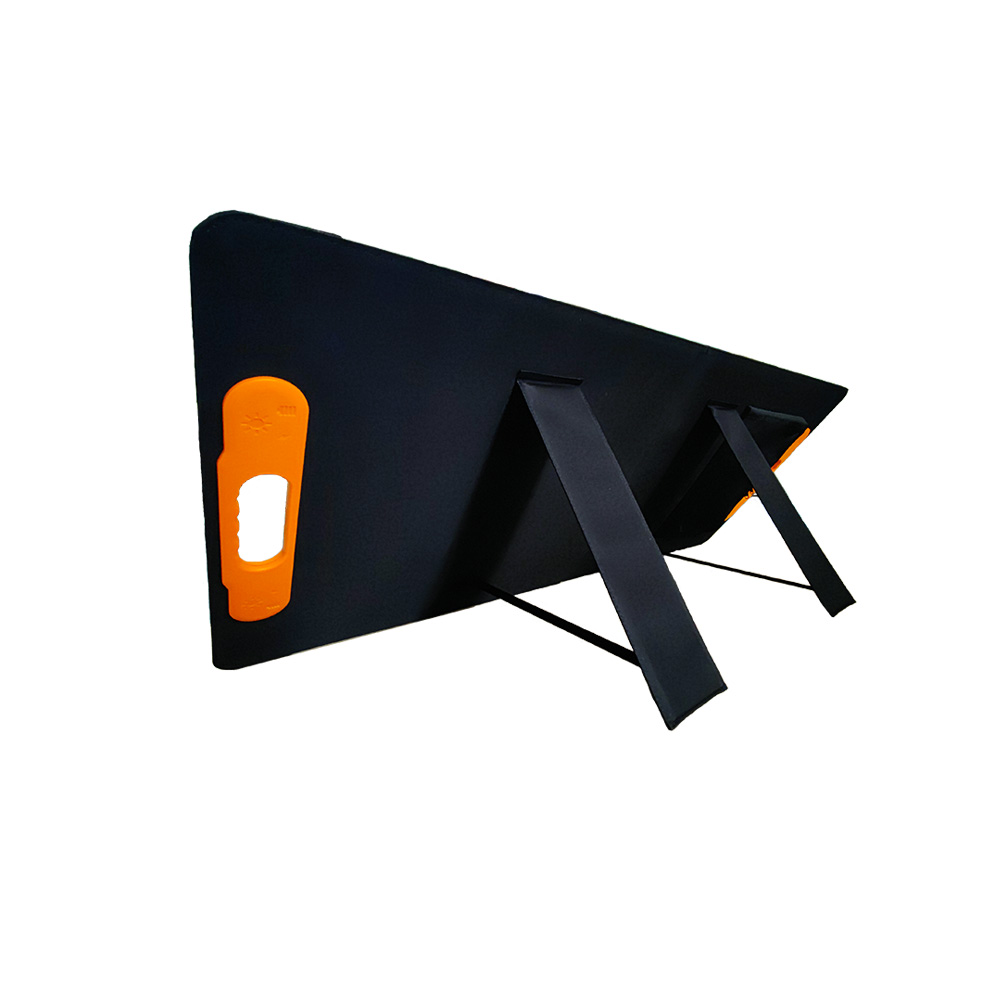

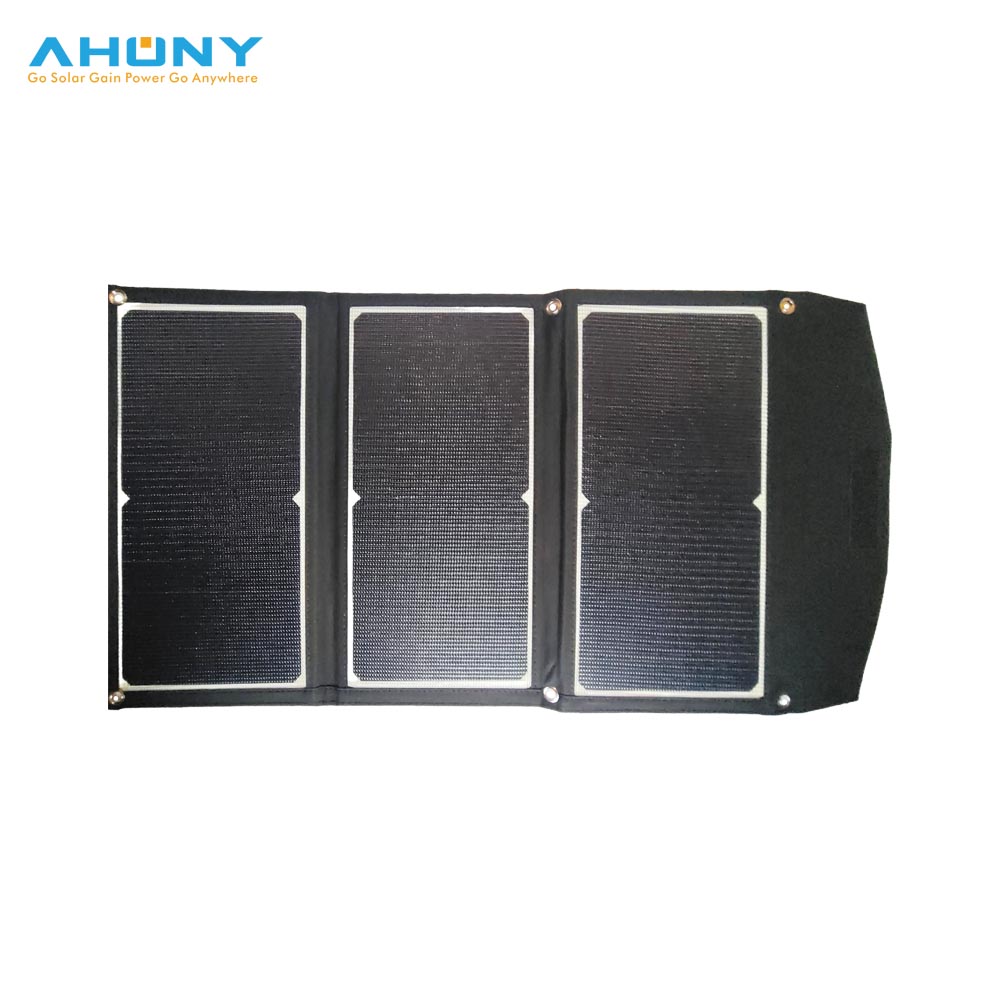

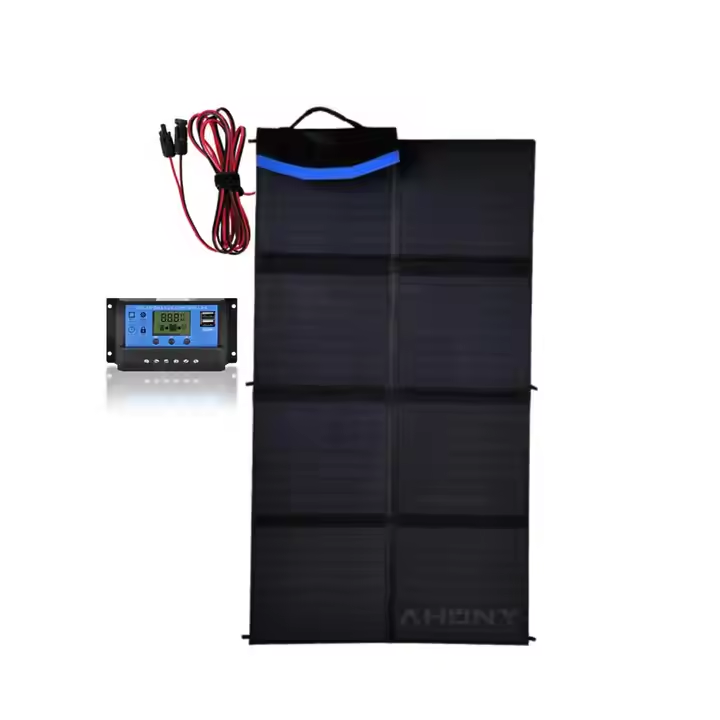

SIMILAR PRODUCTS
SALES AND SERVICE NETWORK
FAQ
Q1.Where is your factory located, and what is your annual production capacity?
A1: Our factory located in Dongguan city,Guangdong province.Our producing capacity is 50MW per year.
Q2. Do you have in-house R&D and quality testing labs?
A2: Yes,we did a lot of R&D projects for customers,and have inner testing lab,machine to proove the project,and proceed to trial production.
Q3. What solar cell technologies do you specialize in? (e.g., monocrystalline, polycrystalline, PERC, bifacial)
Q5. Do your products comply with EU’s RoHS and CE regulations?
A5:Yes.
Q7. Do you offer OEM/ODM services with custom logos and packaging?
A7:Yes,with extra logo costs USD100-200.
Q8. Can you produce panels with anti-reflective coating or anti-PID cells for high-humidity regions?
Q10. How do you handle defective products in bulk orders?
A10: For the defective solar panel we made inner factory,firstly our factory place them in un-qualified area,and monthly there will be collected by waste recycling company.
Q11. Can you share IV or EL test reports or third-party inspection certificates?
A1: Our factory located in Dongguan city,Guangdong province.Our producing capacity is 50MW per year.
Q2. Do you have in-house R&D and quality testing labs?
A2: Yes,we did a lot of R&D projects for customers,and have inner testing lab,machine to proove the project,and proceed to trial production.
Q3. What solar cell technologies do you specialize in? (e.g., monocrystalline, polycrystalline, PERC, bifacial)
A3: Our company AHONY specialized in Monocrystalline,PERC,HJT Topcon,Back contact cells module,nearly all solar cells are bifacial ones.
Q4. Which international certifications do your solar panels hold?
A4: We got CE ROHS ISO9001 and SGS salt spray test.
Q5. Do your products comply with EU’s RoHS and CE regulations?
A5:Yes.
Q6. Can you customize panel sizes, wattages (e.g., 1W-500W), or frame colors?
A6: Yes.
A6: Yes.
Q7. Do you offer OEM/ODM services with custom logos and packaging?
A7:Yes,with extra logo costs USD100-200.
Q8. Can you produce panels with anti-reflective coating or anti-PID cells for high-humidity regions?
A8: Yes.
Q9. What quality tests do you perform during production?
A9: We do EL testing,IV testing and regularly high temperature and humidity test.
A9: We do EL testing,IV testing and regularly high temperature and humidity test.
Q10. How do you handle defective products in bulk orders?
A10: For the defective solar panel we made inner factory,firstly our factory place them in un-qualified area,and monthly there will be collected by waste recycling company.
Q11. Can you share IV or EL test reports or third-party inspection certificates?
A11: Yes,for every solar panel,we made IV and EL test,and each panel have test report can offer to customers.Our factory accept 3rd party certifying with extra costs.
