Half-Cut type Perc Cell 182 cell 360W 450W 500Watt Mono facial Glass PV Module Solar Panel Roof system home solar system
eRigid 360w
EXW,FOB,CIF
10 pieces
3000pieces / Month
SHENZHEN
12-30Day
Quantity

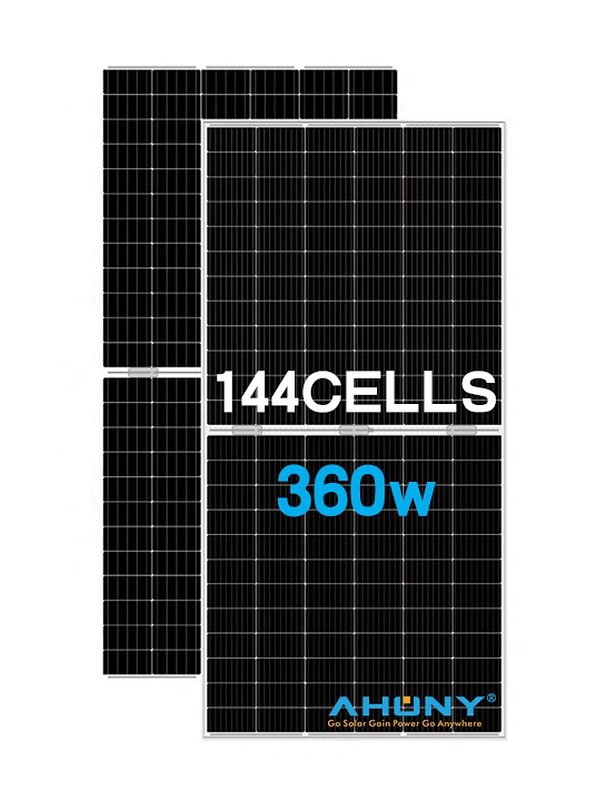

Our 182 glass PV module is a reliable and high-performance energy solution for your residential or commercial property. With advanced technology and durable glass construction, this solar panel is designed to provide efficient energy production for all your energy needs.
| Model No. | eRigid M360W |
| Maximum Power[WP] | 360 |
| Solar Cell | 182 PERC SOLAR CELL |
| Cell Array[pcs] | 6*24 |
| Solar Cell Size[mm] | 182*60.67 |
| Cell Efficiency | 22.7% |
| Size[mm] | 770*1570*40 |
| Max Power Voltage Vmp[V] | 41.76 |
| Max Power Current Imp[A] | 8.63 |
| Open Circuit Voltage Voc[V] | 48.44 |
| Short Circuit Current Isc[A] | 9.15 |
| Net.Weight[kg] | 16.00 |
| Power tolerance[%] | ±3% |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.41 |
| Temperature Coefficient Voc[[%/K] | -0.32 |
| Temperature Coefficient Isc[[%/K] | 0.04 |
| Maximum System Voltage[V] | 1000 V |
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) |
| Certification | CE ROHS |
