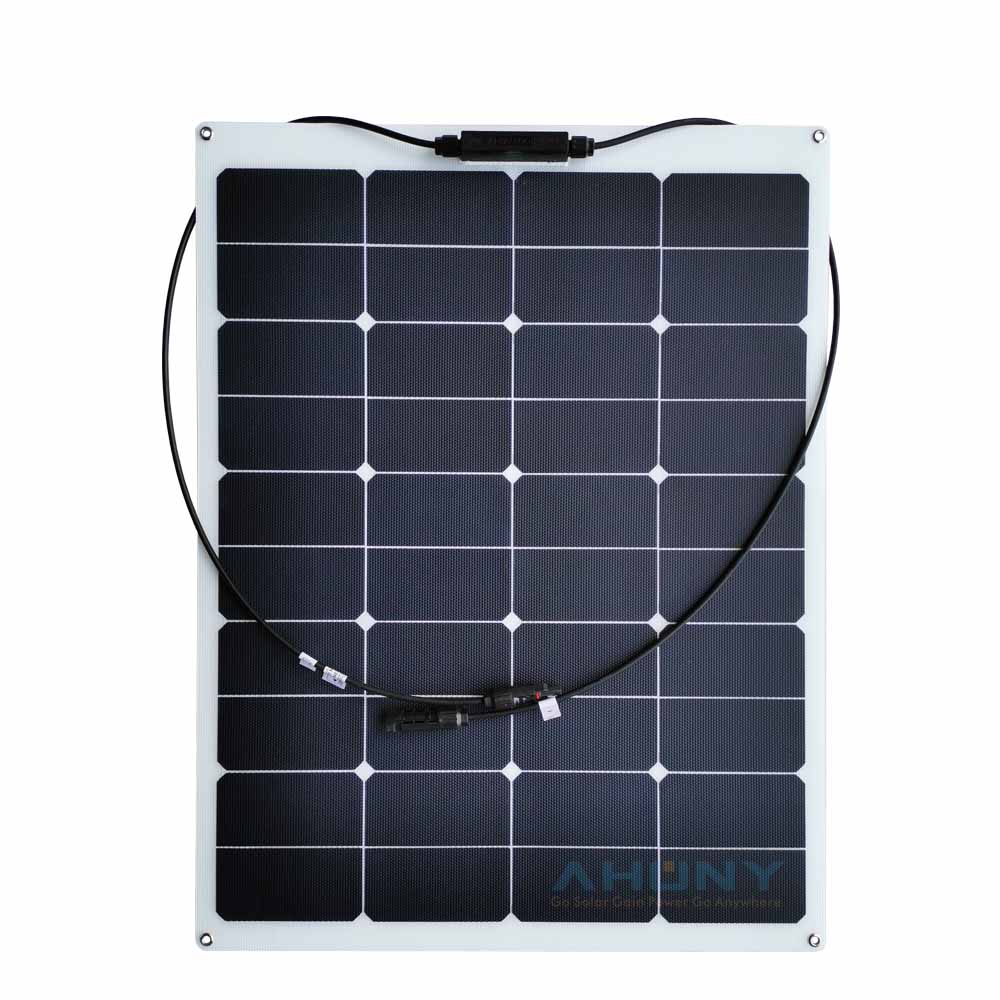

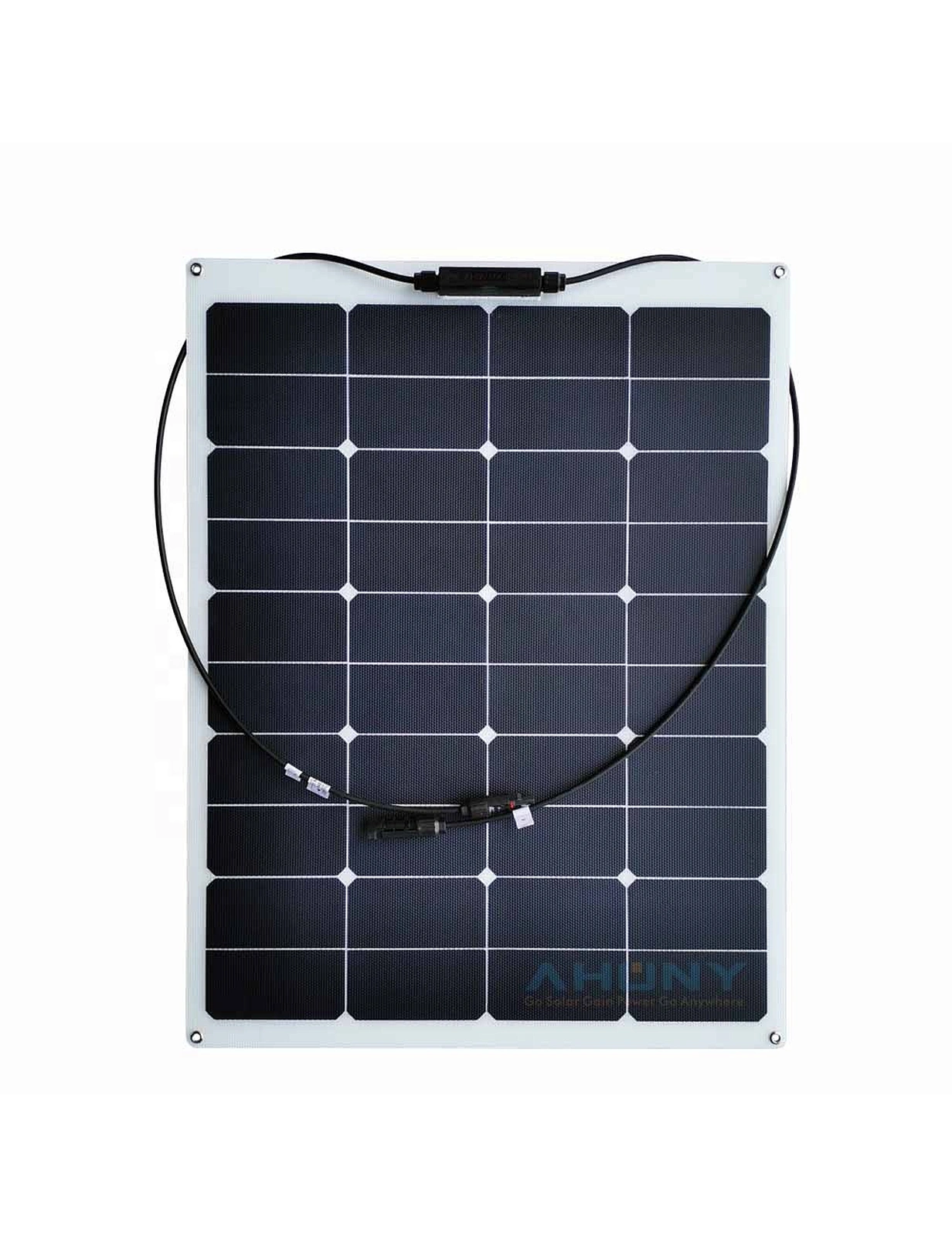

High quality ETFE 70w semi flexible solar panel a grade mono cell back contact 40cell per solar module for boat car cold chain
eGo S70w
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity

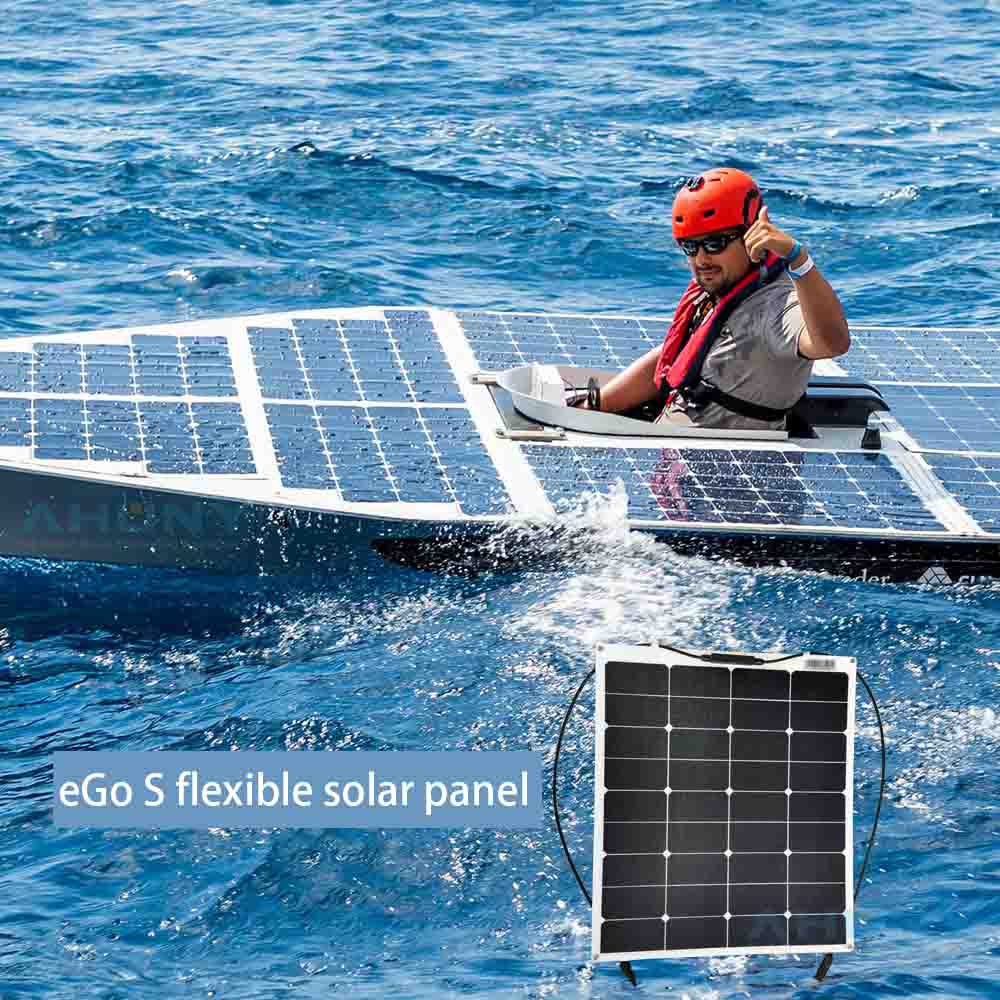

Our marine solar panels flexible are the perfect choice for powering up your boat or yacht with clean and renewable energy. With a flexible and lightweight design, these panels can easily be installed on curved surfaces and are highly resistant to salt water and harsh marine environments.
- Brand Name:OEM or AHONY
- Model Number:eGo S70w
- Place of Origin:Guangdong, China
- Cell size:125mmx125mm
- Type:IBC, Standard Solar Panel
- Panel Dimensions:540x705x3mm
- Panel Efficiency:23.7%
- Certificate:CE ROHS, CE ROHS ISO
- Warranty:Other
- Product name:70w semi flexible solar panel for golf cart yach
- style:thin film ETFE flexible
- colour:white
- Application:boat yacht attic fan deck rv roof freezing car roof
- use:balcony solar module

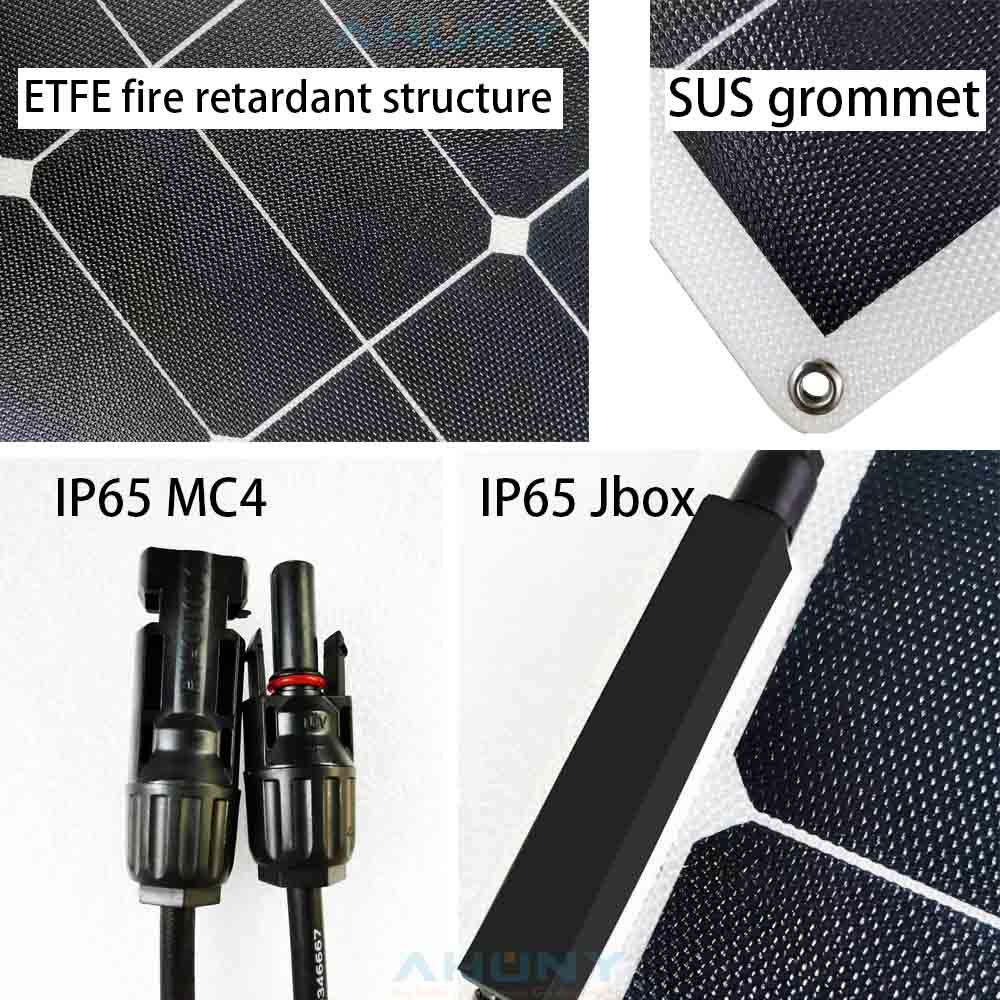

- ETFE MATERIAL:Different from PET solar panel,the transmitance of ETFE material as high as 95%,better at high temperature resistance,easier to clean
- HIGH EFFICIENCY: Sunpower solar cell,the conversion up to 23.5%,with excellent weak light sensitivity,the internal blocking diode which prevents reverse current drain at night
- GOOD BENDABILITY: The solar panel can be curved to a maximum 30 degree arc,allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface
- SUPERIOR DURABILITY: This solar panel is made of advanced water resistant material,the junction box is sealed and waterproof,the copper wire is protected by 3-layers plastic film

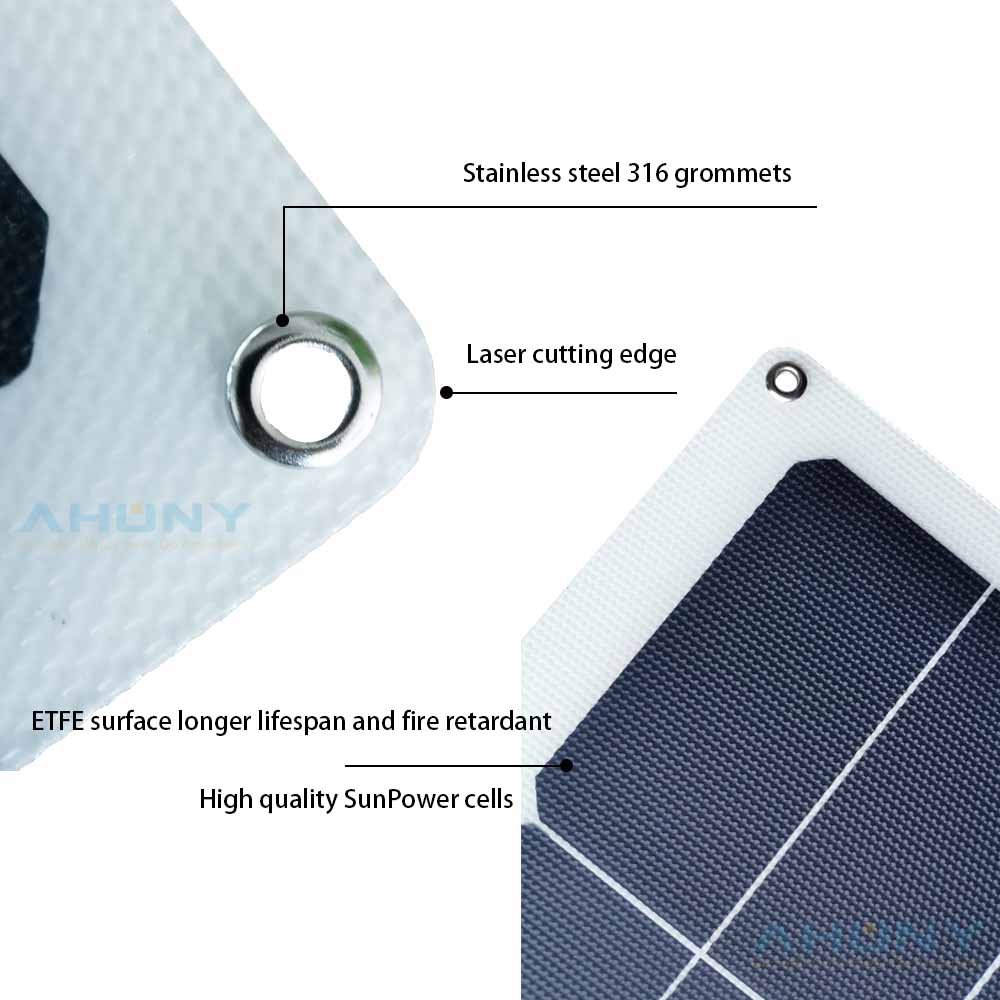

- EASY INSTALLATION:Only 0.1 in thick and weighs only4.0 lbs,this solar panel is easy to transport,hang,and remove,4 stainless eyelets at the edges for easy installation;can be easily affixed by adhesives,silicon glues,double sticky tape,zip ties or velcro
- the flexible solar panel 70w are use for solar boat yacht attic fan deck rv roof freezing car roof
| Model No. | eGo S70w |
| Description | High quality ETFE 70w semi flexible solar panel a grade mono cell back contact 40cell per solar module for boat car cold chain |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 70 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*10 |
| Cell Efficiency | 22.60% |

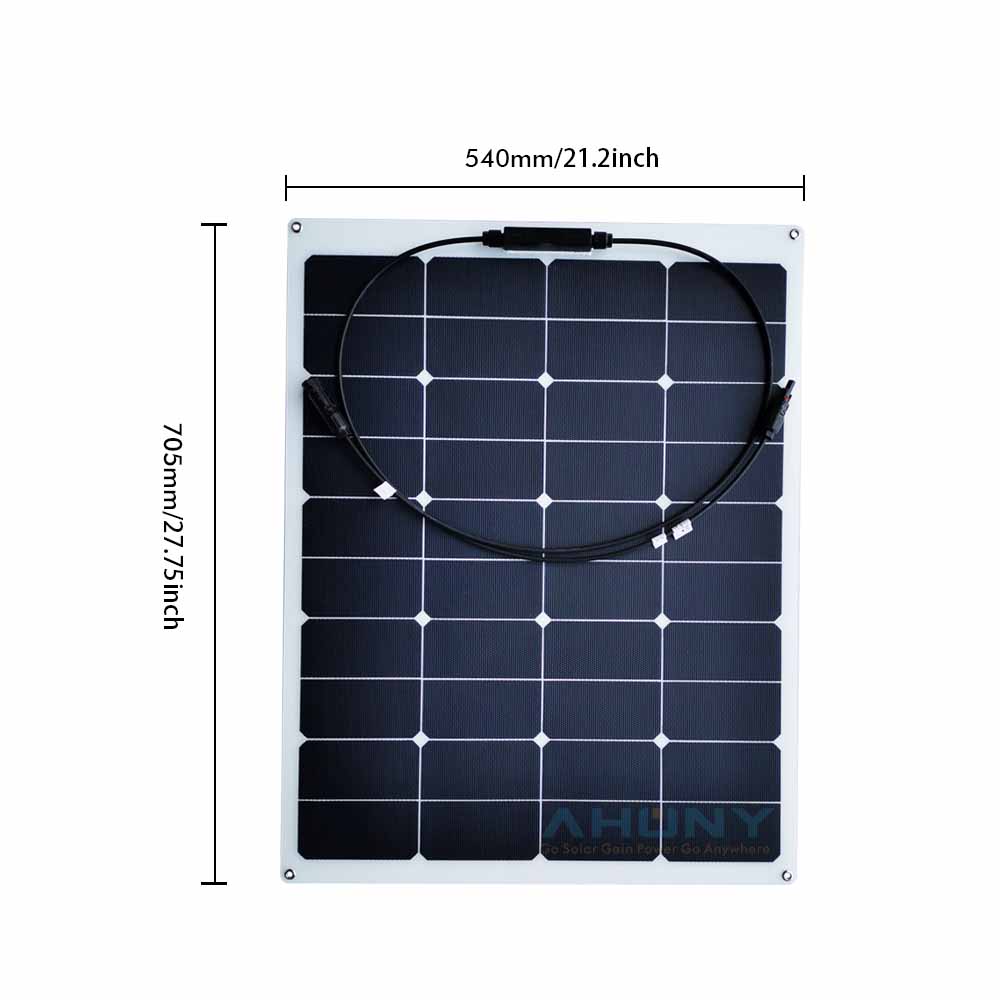

| Size[mm] | 540x705x3 |
| Max Power Voltage Vmp[V] | 23.20 |
| Max Power Current Imp[A] | 3.02 |
| Open Circuit Voltage Voc[V] | 27.38 |
| Short Circuit Current Isc[A] | 3.26 |
| Net.Weight[kg] | 1.1 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white plastic |
| Maximum bend radius(θ) | 30° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
