Maximize your trailer's energy efficiency with our high-quality solar panels. Perfect for off-the-grid excursions, these panels offer reliable and portable power generation. Enjoy the freedom of sustainable energy on the road.
- Place of Origin:Guangdong, China
- Brand Name:AHONY
- Model Number:eGo S105M
- Cell size:158.75mmx158.75mm
- Panel Dimensions:510*1035*2mm
- Panel Efficiency:18.94%
- cell quality:bendable solar cells
- Weight:1.6kg
- Cell Efficiency:24%

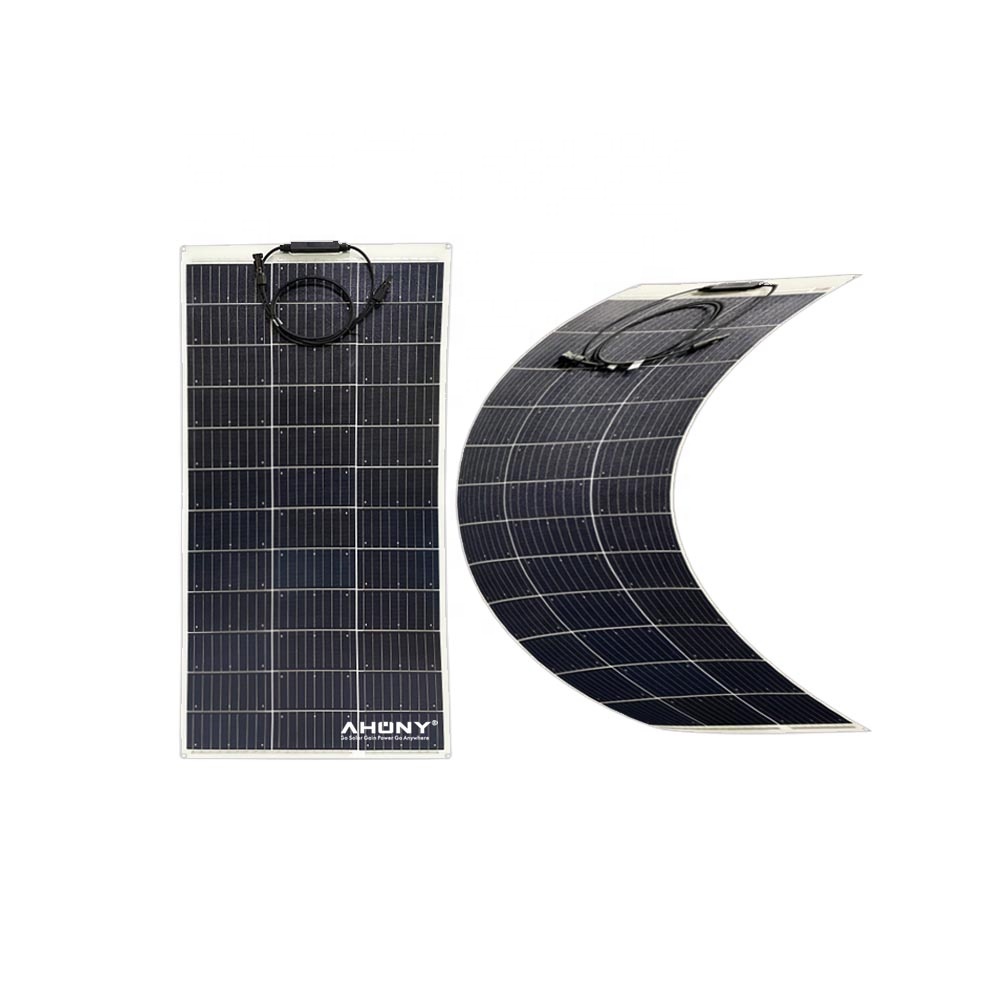

AHONY HCF cell flexible solar panel has HJT cell,multi bus bar technology and copper foundation solar cells.Cell efficiency
up to 24%.HJT is more advanced technology compared to PERC.Better weaklight and high temperature performance.
Advantage:
1.Mlti busbar cell technology reduced power loss by cell crack
2.Less cell distance shorten the current transit distance and reduced 15%
inner resistance.
3.Copper foundation flexible cells
The solar cell have copper foundation like SunPower.
The cell is bendable and copper ribbon on back still
gathering current when cell crack.

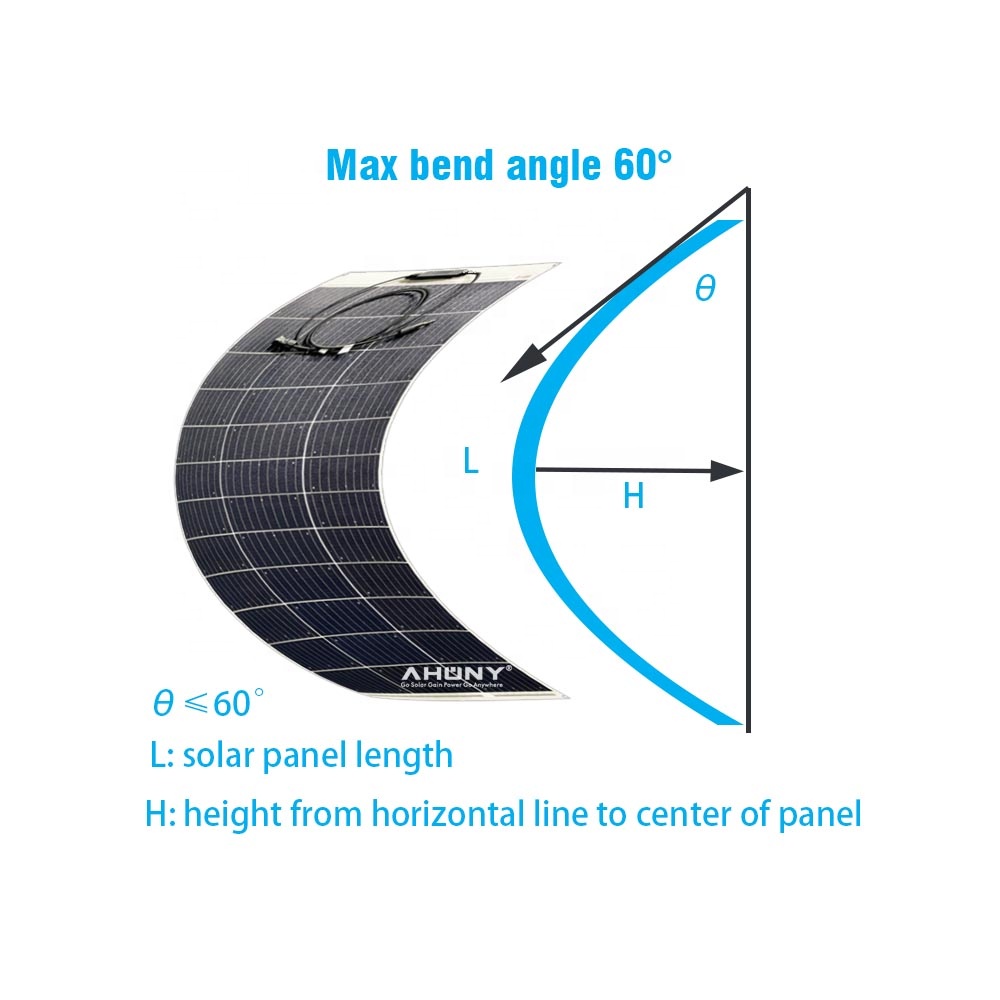

4.60°Max Arc and Aerodynamic
Bendable and the maxium angle is 60degree,
for arc 1000mm distance,the bend height is 345mm.

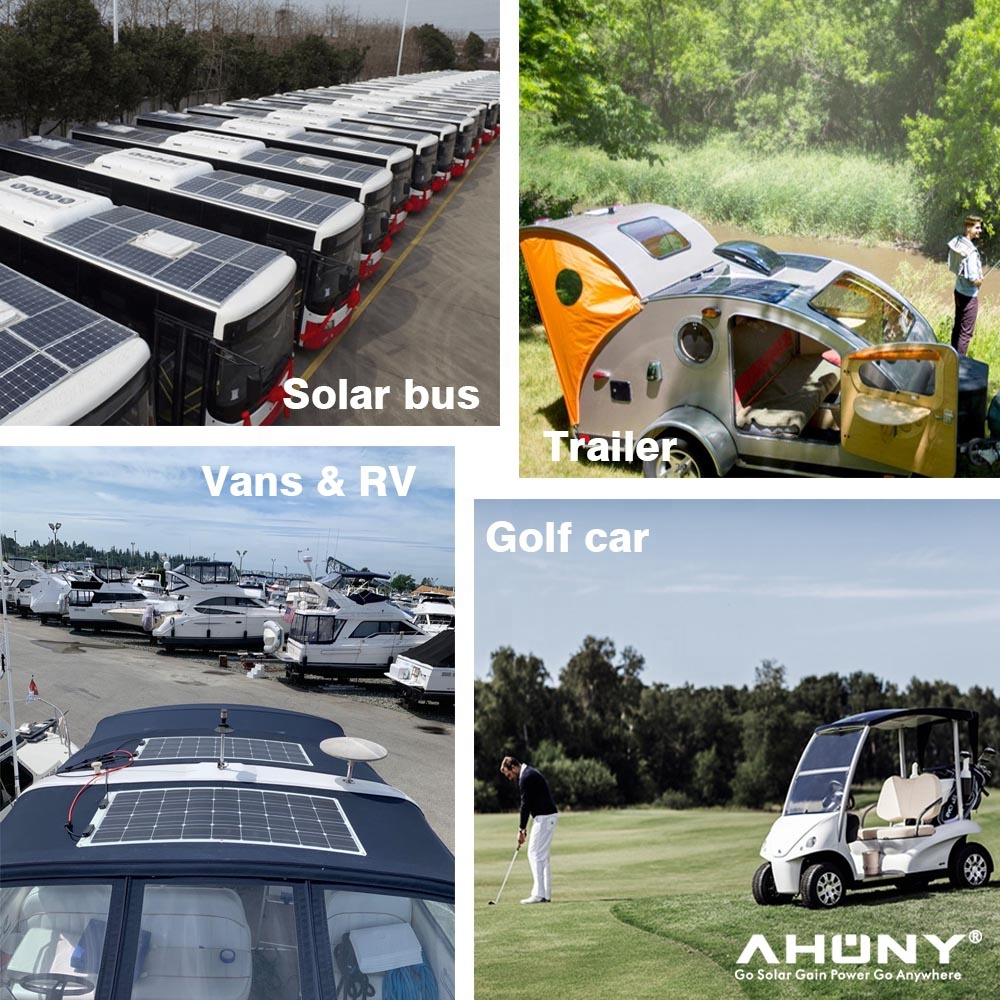

Aerodynamic design for all mobile use like caravan,
boat,marine,motor etc.
5.24% Solar Cell Efficiency
Premium quality bificial HJT solar cells,latest technology.
Bificial cell increase 10%-20% power using transparent
backsheet.
| Model No. | eGo S105M |
| Product Name | semi flexible solar panel |
| Maximum Power[Wp] | 105 |
| Solar Cell | HJT HCF solar cell |
| Cell Array[Pcs] | 3*12 |
| Cell Efficiency | 24% |
| Size[mm] | 510*1035*2 |
| Max Power Voltage Vmp[V] | 22.32 |
| Max Power Current Imp[A] | 4.71 |
| Open Circuit Voltage Voc[V] | 26.33 |
| Short Circuit Current Isc[A] | 4.99 |
| Net.Weight[kg] | 1.6 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.43 |
| Temperature Coefficient Voc[[%/℃] | -0.34 |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[A] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE+AP2 |
| Maximum bend radius(θ) | 60° |
| Cables and Connectors | Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
