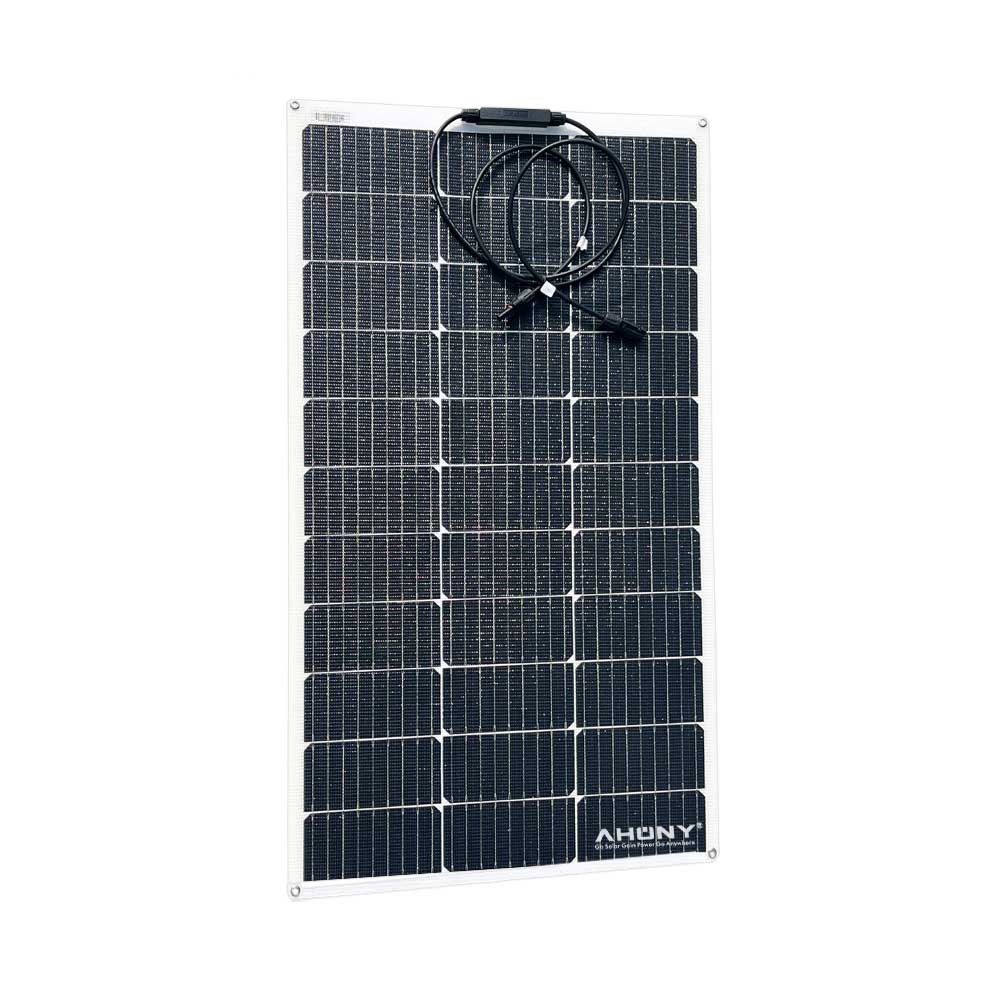

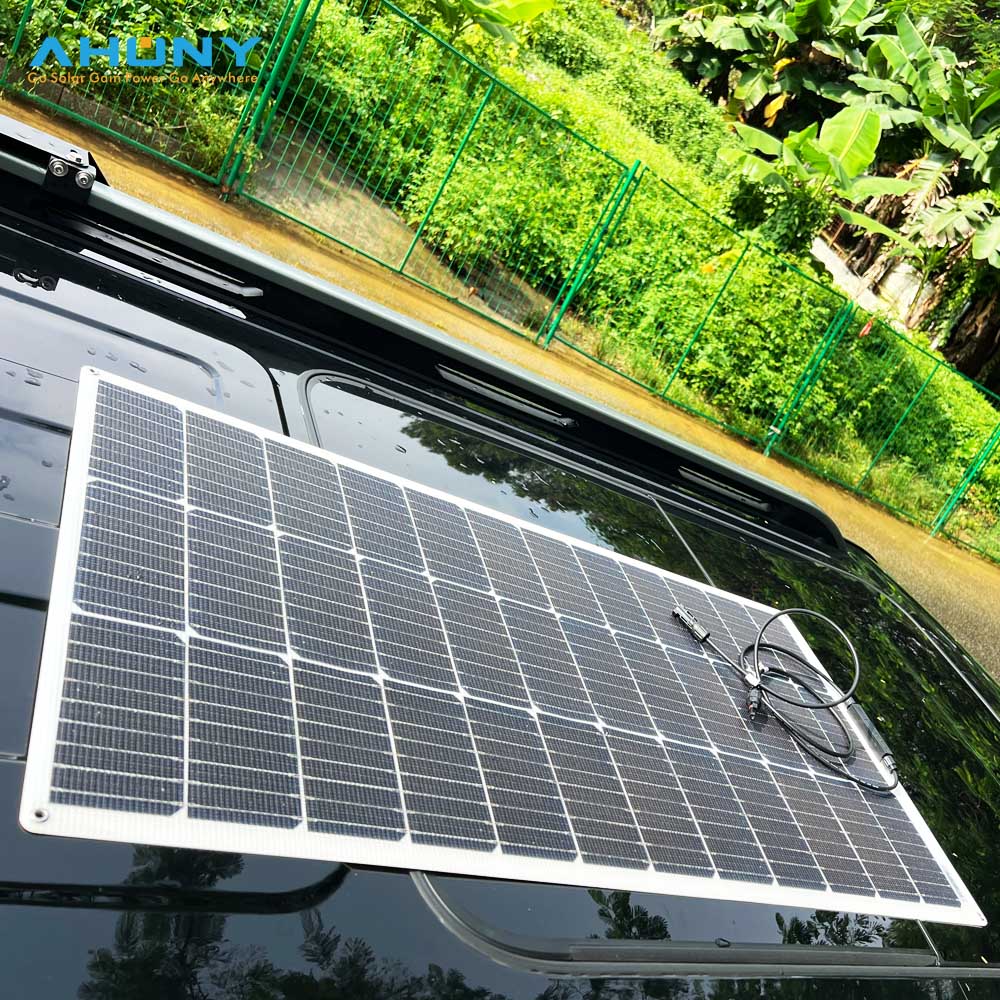

Custom Longi 100w Custom Flexible Solar Panel High Quality Solar Panel PV Module for Boat RV Energy Power System
price
$47.50 - $60.00 / piece
eGo S150m
1 piece
Quantity
- Brand Name:AHONY
- Model Number:eGo S150m
- Place of Origin:Guangdong, China
- Cell size:182mmx182mm
- Panel Dimensions:585*1140*3mm
- Panel Efficiency:25.8%
- Product name:semi flexible solar panel
- Solar cell:Longi solar cell
- Warranty:150
- Weight:7.37
- Cell Efficiency:25.8%
- Maximum Power:150 w

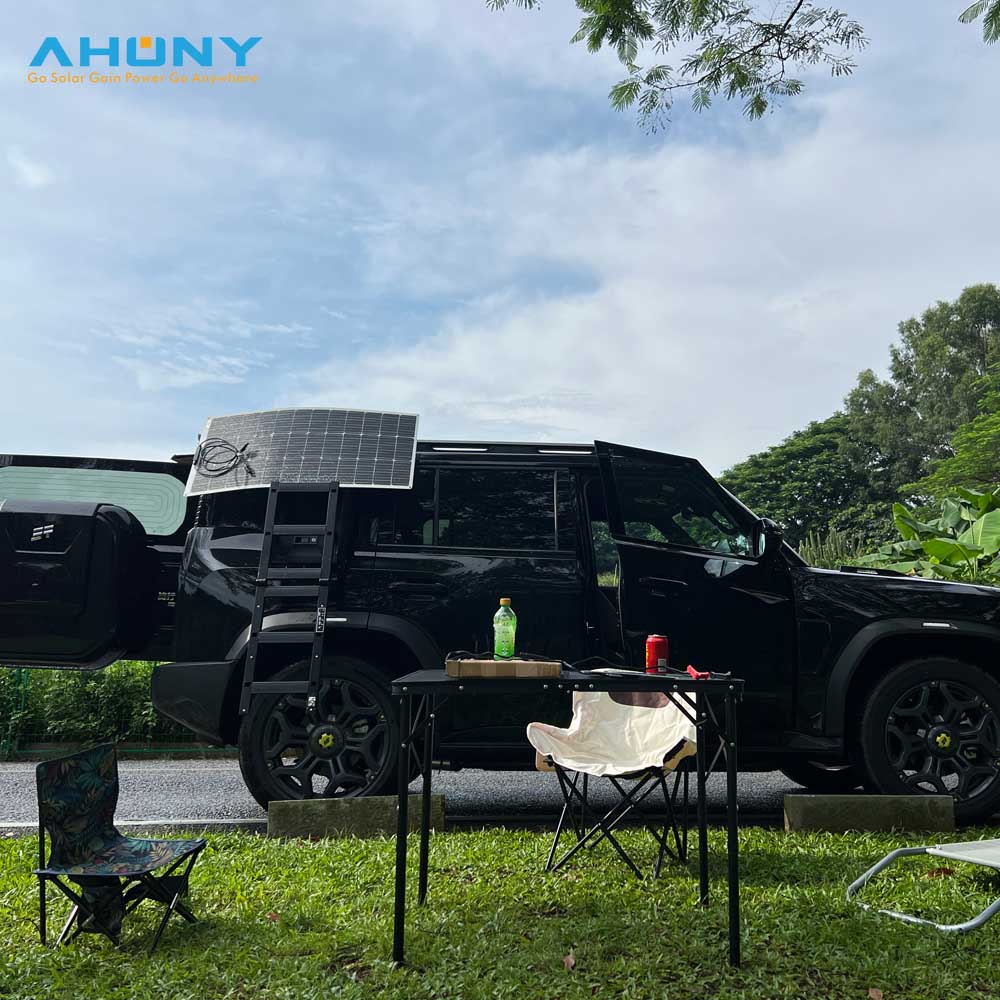

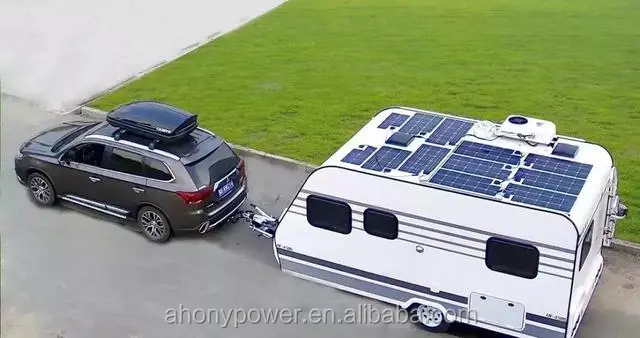

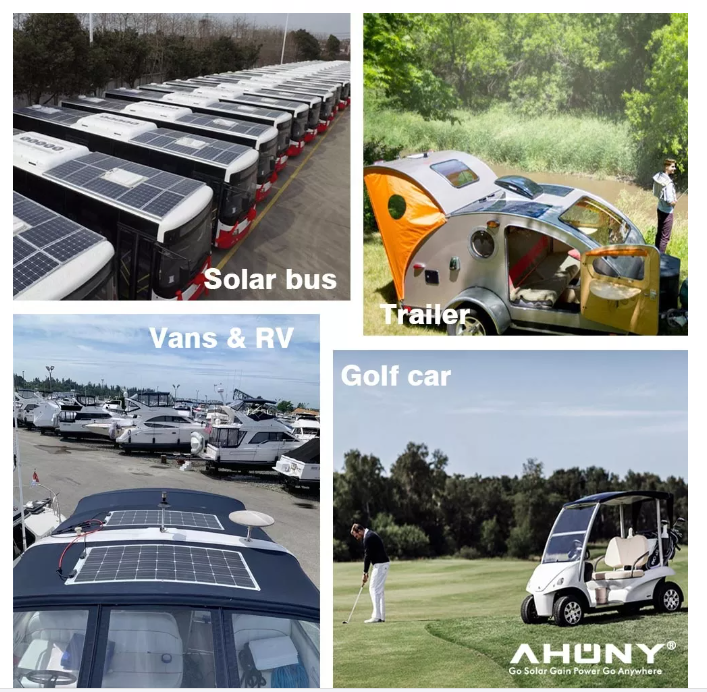

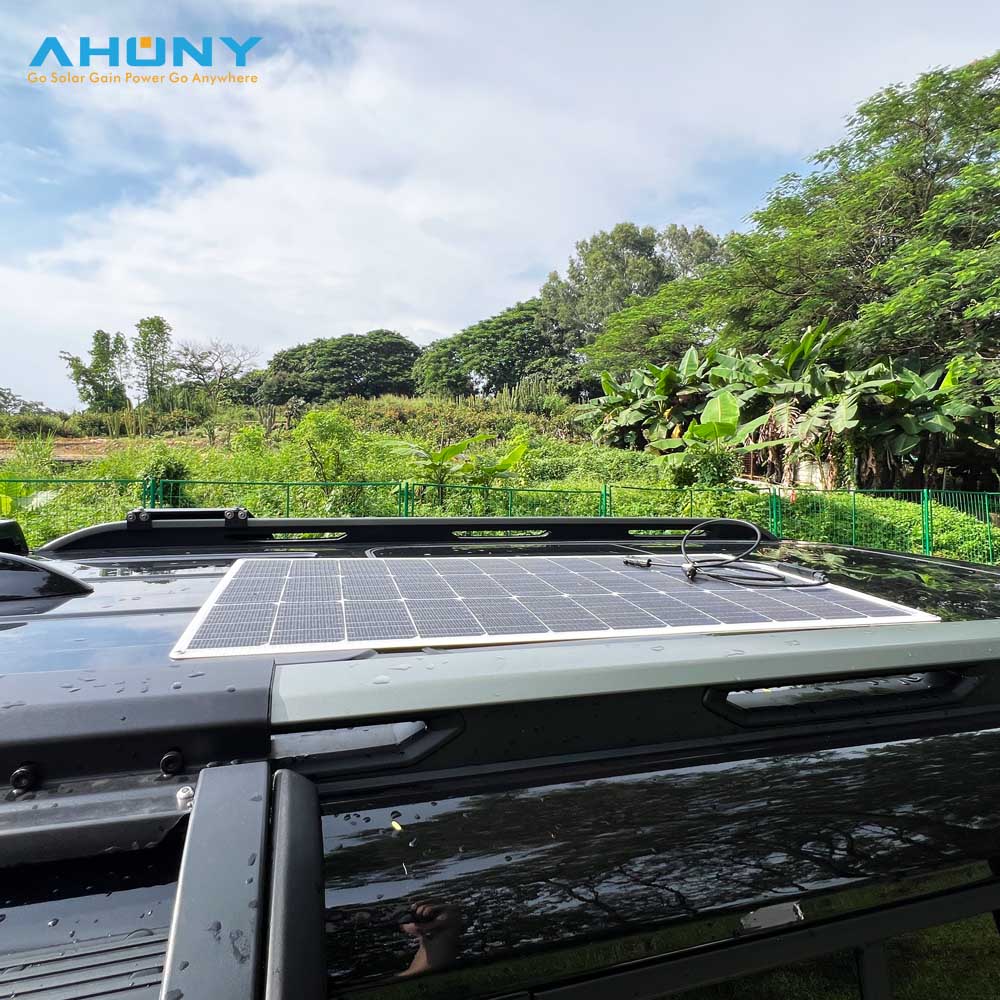

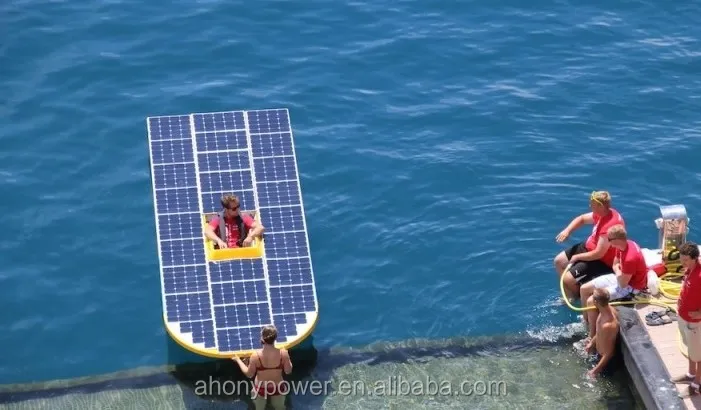

- Application:AHONY Flexible Solar Panels boat RV energy power System
- Surface material:etfe cpc eva
- Cable:2 pins pig tail 0.9m and MC 4
- Frame:frameless transparent
Product Description
| model number | eGo S150M |
| product name | semi flexible solar panel |
| Max power [wp] | 100 |
| solar cell | monocrystalline solar cell |
| cell array [pcs] | 3*12 |
| cell efficiency | 25.8% |
| Size [mm] | 585*1140*3mm |
| Maximum supply voltage vmp [v] | 22.5 |
| Maximum power current imp [a] | 6.95 |
| open circuit voltage voc [v] | 26.33 |
| Short-circuit current isc [a] | 7.37 |
| Net weight [kg] | 6.80 |
| Power tolerance [%] | ±3% |
| Noct [°C] | 45±2 |
| Operating temperature [℃] | -40/+85 |
| Temperature coefficient pmax [%/℃] | -0.43 |
| Temperature coefficient voc [[%/℃] | -0.34 |
| Temperature coefficient isc [[%/℃] | 0.05 |
| Maximum system voltage [v] | 1000V |
| maximum reverse current [v] | 10a |
| certification | Ce rohs |

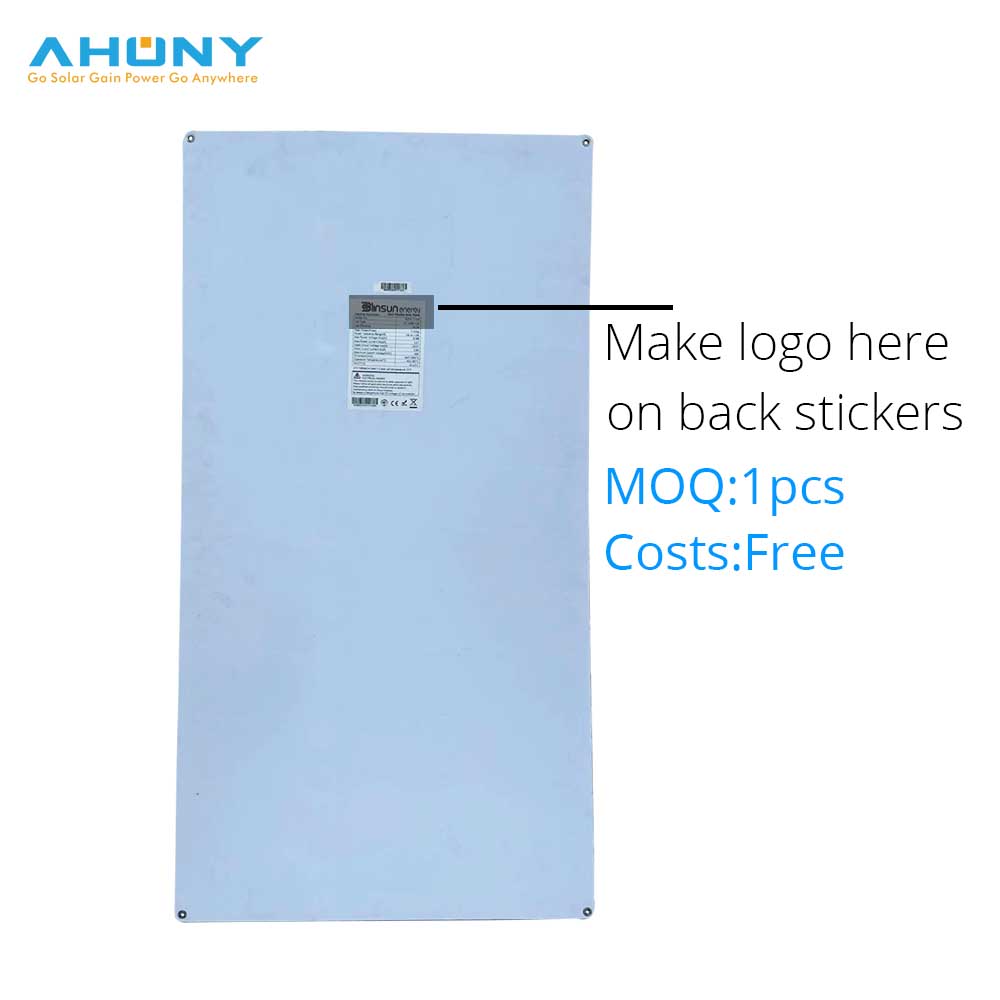

| front/backsheet | Etfe/white plastic |
| Maximum bend radius (& theta;) | 60° |
