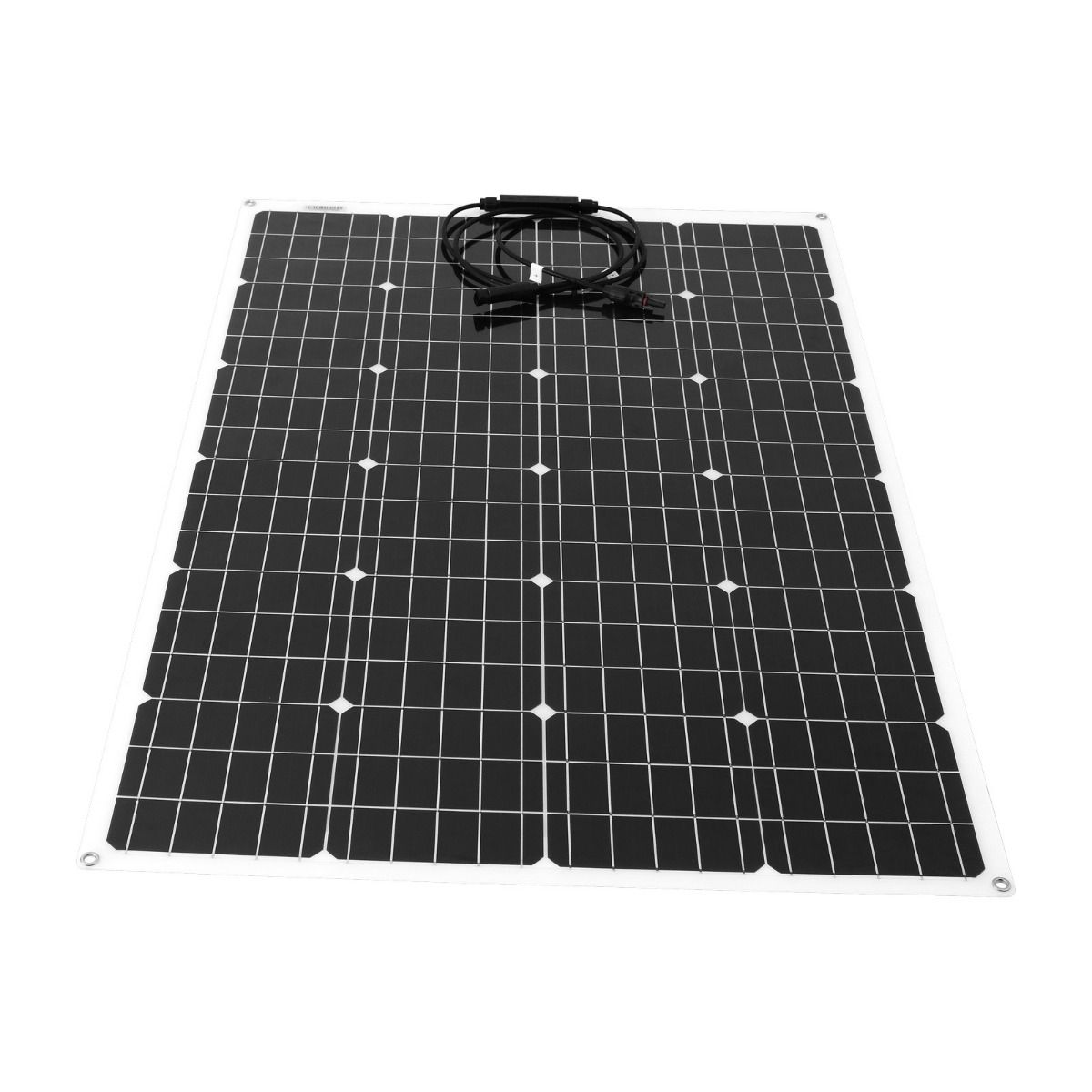

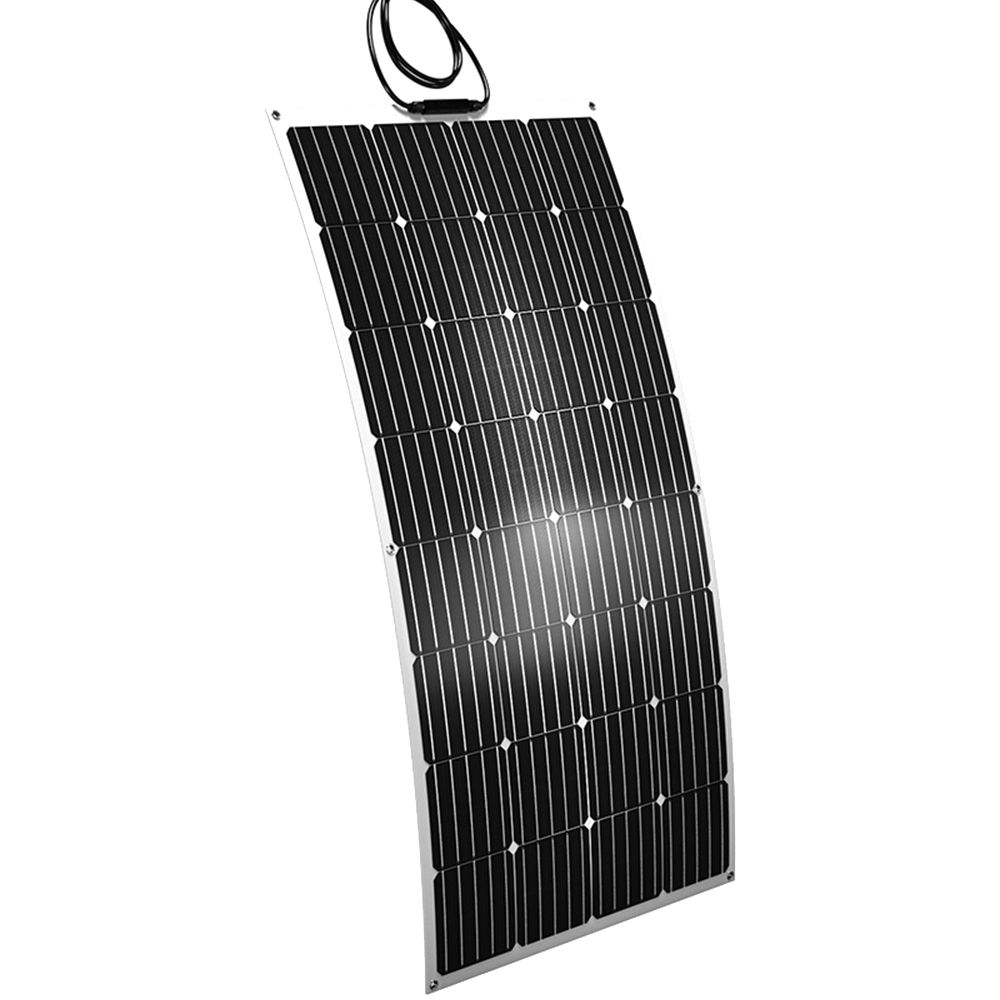

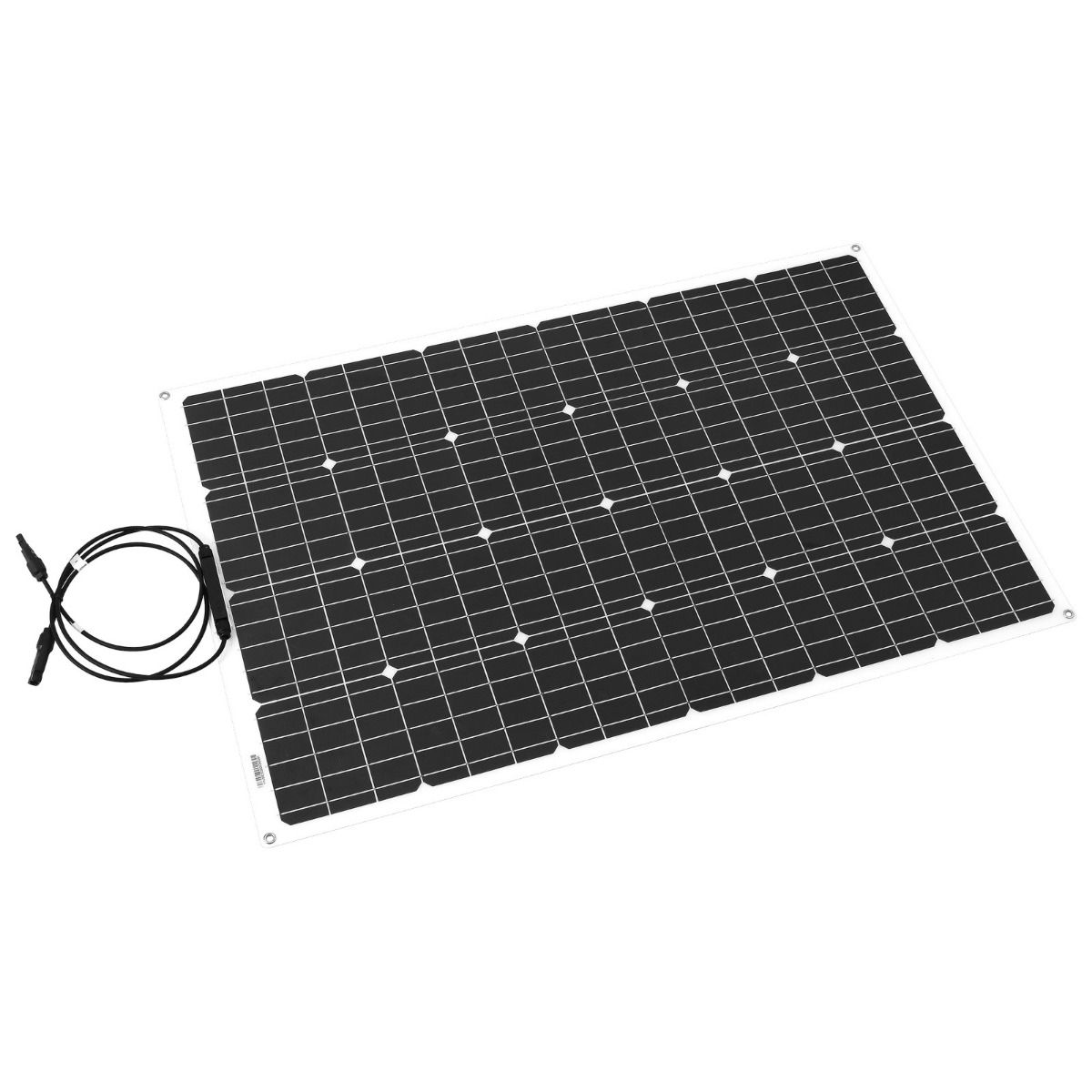

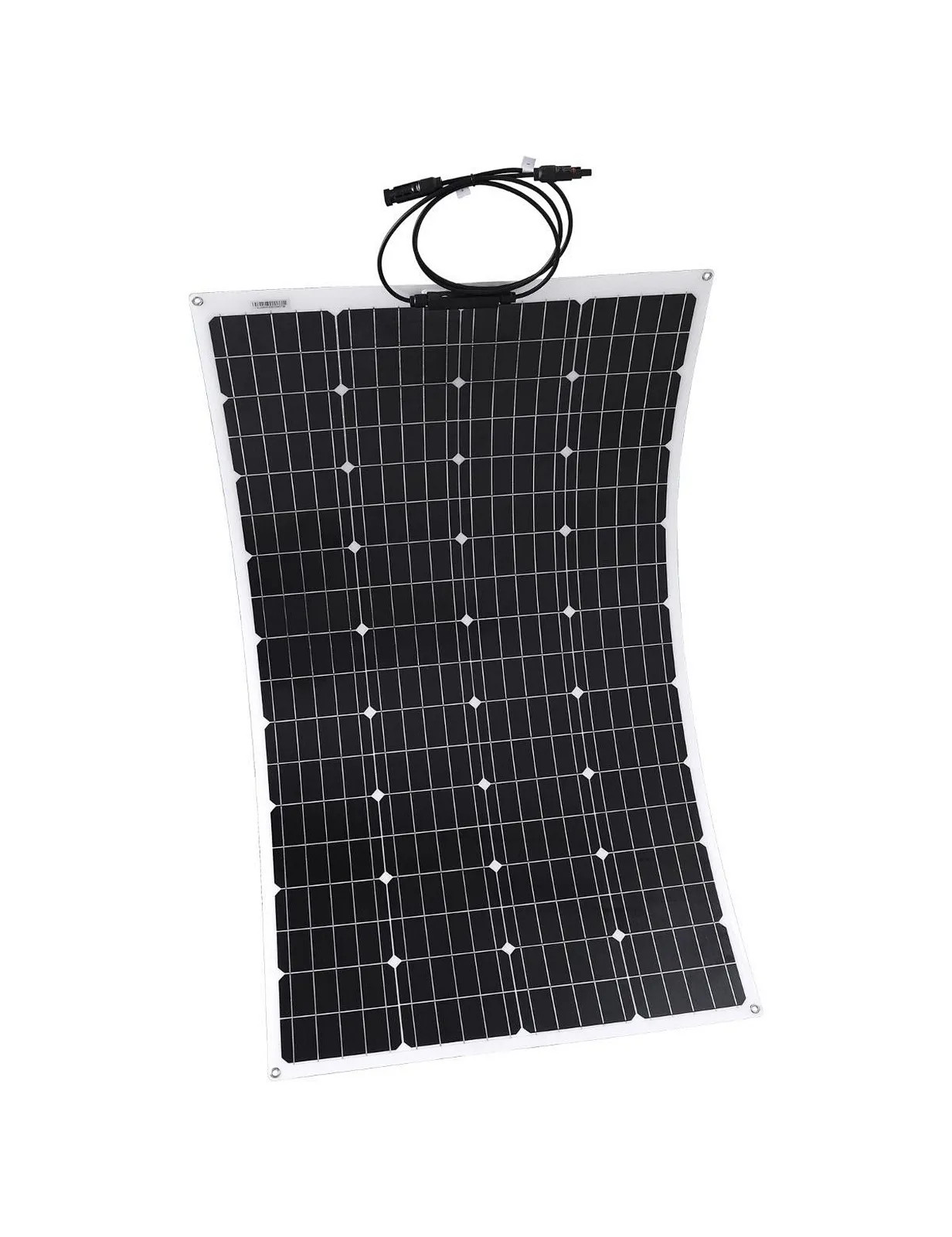

Our 190W flexible solar panels are perfect for powering up your boats or off-grid solar system with clean and renewable energy. They have a high-efficiency and lightweight design, making them easy to install and transport.
mono solar panel flexible 190W 20V 12V Solar Panel Monocrystalline perc Cell Flexible Bendable Lightweight Waterproof Off grid
eGo S 190M
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity

Our 190W flexible solar panels are perfect for powering up your boats or off-grid solar system with clean and renewable energy. They have a high-efficiency and lightweight design, making them easy to install and transport. With their durable and weather-resistant capabilities, they can withstand harsh marine and outdoor environments.

  • Brand Name:Ahony Power
  • Model Number:eGo S 190M
  • Place of Origin:Guangdong, China
  • Type:PERC
  • Panel Dimensions:670*1490*3mm
  • Panel Efficiency:22.5%
  • Certificate:CE RoHS, CE RoHS
  • Warranty:3months-1year, 1 Year
  • Brand:Ahony Power
  • Product name:mono semi flexible solar panel
  • Junction Box:PV-XC505
  • OEM Order:Yes
  • Solar cell:mono perc HJT bificial solar cell
  • Power:190W
Product Description
mono perc cell semi flexible solar panel eGo SM series use high efficiency over 22.5% cells,regular cell is PERC,can also be HJT,bificial if customer order in bulk QTY.
The cell is of top brand and leading bins cells,with good appearance and automatically welding.
All cable are of PV use high UV resistance.

Model No.eGo S190M
Product Namemono solar panel flexible 190W 20V 12V Solar Panel Monocrystalline perc Cell Flexible Bendable Lightweight Waterproof Off grid
Maximum Power[Wp]190
Solar CellMonocrystalline solar cell
Cell Array[Pcs]4*9
Cell Efficiency22.50%
Size[mm]670*1490*3
Max Power Voltage Vmp[V]20.88
Max Power Current Imp[A]9.10
Open Circuit Voltage Voc[V]24.43
Short Circuit Current Isc[A]9.83
Net.Weight[kg]2.4
Power tolerance[%]±5%
NOCT[℃]45±2
Operating Temperature[℃]-40/+85
Temperature Coefficient Pmax[%/℃]-0.41
Temperature Coefficient Voc[[%/℃]-0.32
Temperature Coefficient Isc[[%/℃]0.04
Maximum System Voltage[V]1000 V
Maximum Reverse Current[V]20A
CertificationCE ROHS


Our Services

AHONY offer a series of mono flexible solar panel 120W with fast delivery after sale service:
Install and debug products for customers;
According to the requirements of consumers, carry out technical guidance on the use and other aspects;
Process:
1.Report problem of exact mono solar panel bendable type to the salesman you contact or sales manager.
2.After-service Respond, We will check order information (sequence number, model),
record problem, instruct client to inspect the problem by video. Confirm the necessary info if repairing or replacing is needed.
3.Follow up, We will follow up clients whether the problem is solved or whether any further service need.
4.Our sales person,engineer will follow up with customers need,regular feedback on products,to make sure customers are always satisfy with
products and service.
