$72.00 - $82.50 / piece
- Brand Name:AHONY
- Model Number:eRigid M150W
- Place of Origin:Guangdong, China
- Cell size:158.75mmx158.75mm
- Type:PERC
- Panel Dimensions:680*1170*35
- Panel Efficiency:22.7%

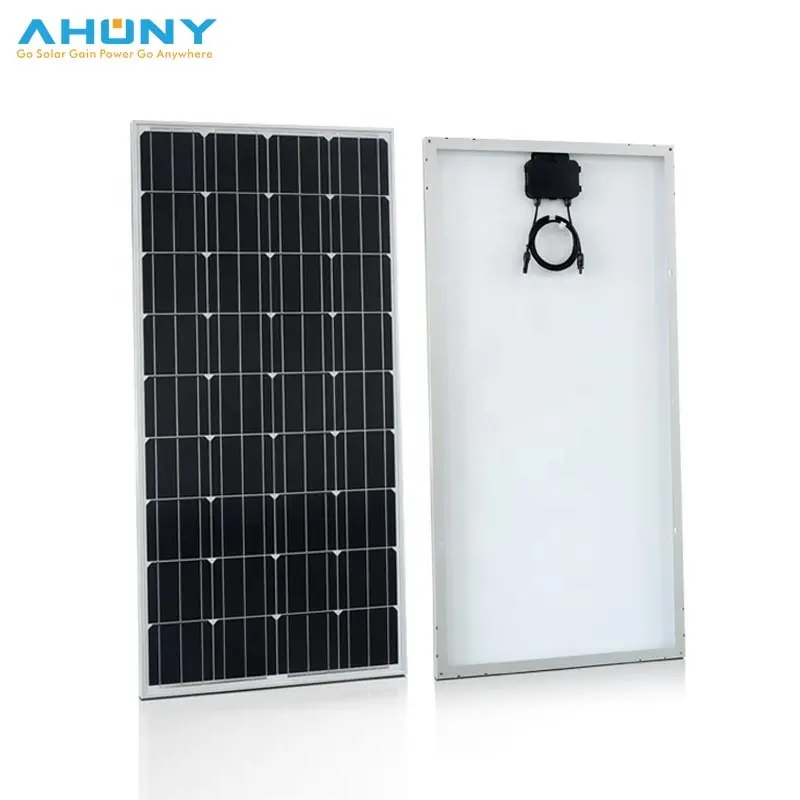

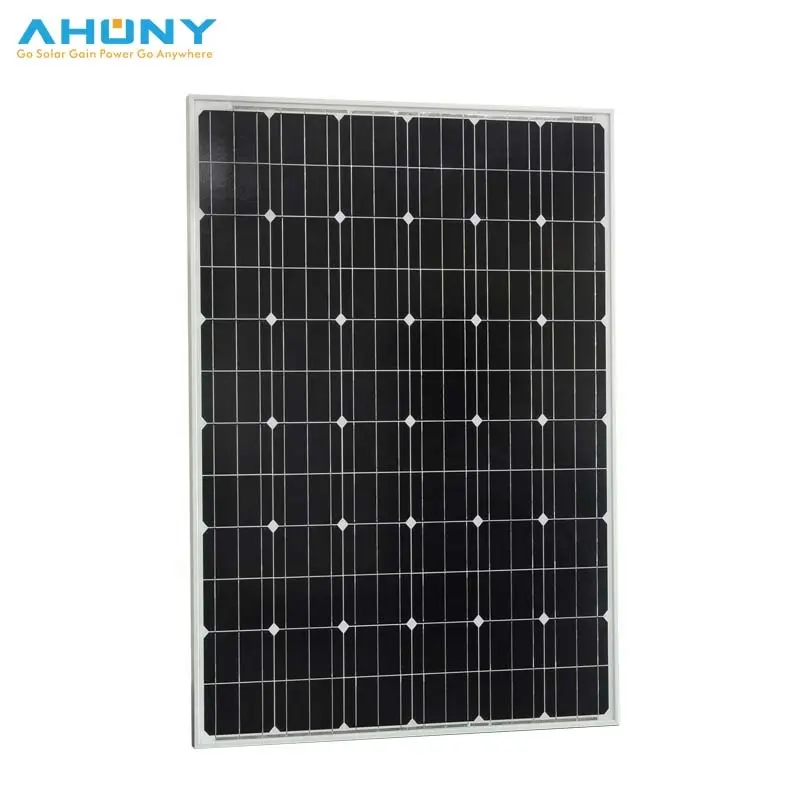

- Product name:Rigid Monocrystalline solar Panel
- Weight:9kg
- Power:150w
- Brand:AHONY
- Number of Cells:4x9cells
- Warranty:5years
- Certificate:CE ROHS
| Model No. | eRigid M150w |
| Product Name | solar module 150w monocrystalline a grade high efficiency bifacial mono solar cell |
| Maximum Power[Wp] | 150 |
| Solar Cell | A grade solar cell solar module |
| Cell Array[Pcs] | 4x9 |
| Cell Efficiency | 22.70% |
| Size[mm] | 680*1170*35 |
| Max Power Voltage Vmp[V] | 20.52 |
| Max Power Current Imp[A] | 7.31 |
| Open Circuit Voltage Voc[V] | 24.15 |
| Short Circuit Current Isc[A] | 7.71 |
| Net.Weight[kg] | 9 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
Thank you for viewing our solar module,we use A grade perc mono solar cell,now solar panel power ranges from 5w-360w.Please send your enquiry and our sales representative will contact you soon!
Our aluminium solar panel service
Before sale:
1.Our sales representative and engineer work together to answer your questions and offer solution for free;
2.Sales person choose the best solar product for you to make sure it worth its real value;
3.We design the best solution with good perfomance for you,manwhile save every cent of your money.
4.Strict quality control,strict test for all solar products produce,insure the best quality produced.
5.Fast delivery and communication with customer,to let customer know goods status at the earliest.
After sale:
We provide 5 years Warranty for this solar module 50w 100w 150w monocrystalline a grade high efficiency bifacial mono solar cell for 12v 24v solar system.
Gather feedback from customers,listen to customers and make new and better products.
