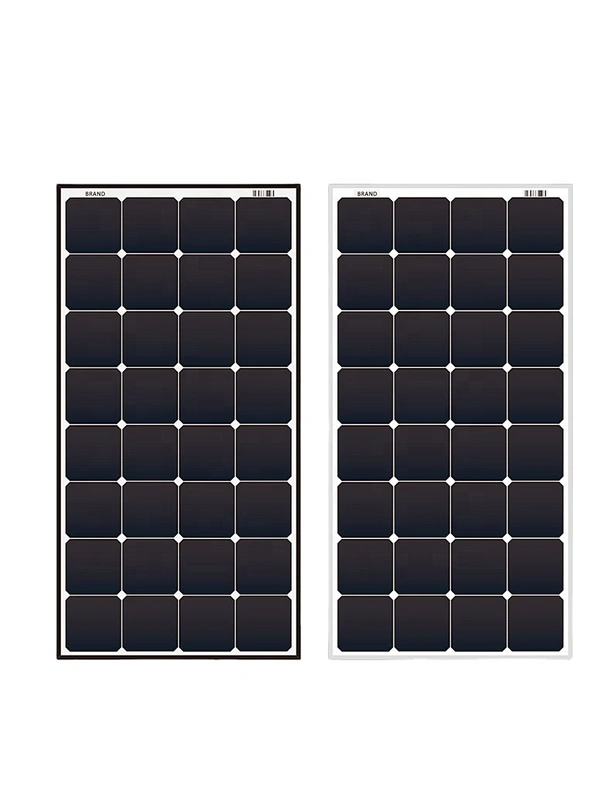

Top quality 24.4% efficiency 200w glass solar PV panel sunpower back contact cell for 24v battery home use RV camping motorhome
eRigid M200w SP
EXW,FOB,CIF
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity
Upgrade your RV's energy system with our 200 watt solar panel kit. Enjoy the freedom of sustainable energy while on the road. Easy to install and operate, these high-efficiency panels will keep your devices and appliances charged and ready for action.
- Place of Origin:Guangdong, China
- Brand Name:AHONY or OEM
- Model Number:eRigid M200w SP
- Cell size:125mmx125mm
- Type:IBC, Standard Solar Panel
- Panel Dimensions:680*1445*40mm
- Panel Efficiency:24.4%
- Certificate:CE ROHS ISO9001, CE ROHS SG S
- Warranty:1 years
- Product name:12v battery Top quality solar panel sunpower cell for home use
- Solar cell:SunPower IBC back contact
- Application:solar panel for home use rv camping motorhome trailers marine boat
- Connector:MC Compatible Connector
- Frame:Anodized Alluminium Alloy
- Frame Color:Color Silvery BLACK
- Cell Type:125 5inch solar cell
- Backing Color:white
Product Description
Thank you for interested in our top quality solar panel sunpower cell for home use rv camping motorhome trailers marine boat yacht off grid,we use high quailty SunPower solar cells,cell efficiency over 22.6%.
The soldering is solid and pass solar EL and IV test.
Model No. | eRigid M200w SP |
| Product Name | Top quality 200w solar pv panel sunpower cell ce rohs certified for 24v battery home use rv camping motorhome |
| Maximum Power[Wp] | 200 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 5*11 |
| Cell Efficiency | 24.4% |
| Size[mm] | 680*1445*40 |
| Size[inch] | 26.8*56.9 |
| Max Power Voltage Vmp[V] | 33.66 |
| Max Power Current Imp[A] | 5.95 |
| Open Circuit Voltage Voc[V] | 39.7 |
| Short Circuit Current Isc[A] | 6.30 |
| Net.Weight[kg] | 10.8 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 20A |
| Certification | CE ROHS |
| Surface/Backsheet | Glass/silver frame/white backsheet |
| Cables and Connectors | Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 1pcs/carton box and plywood pallet |
