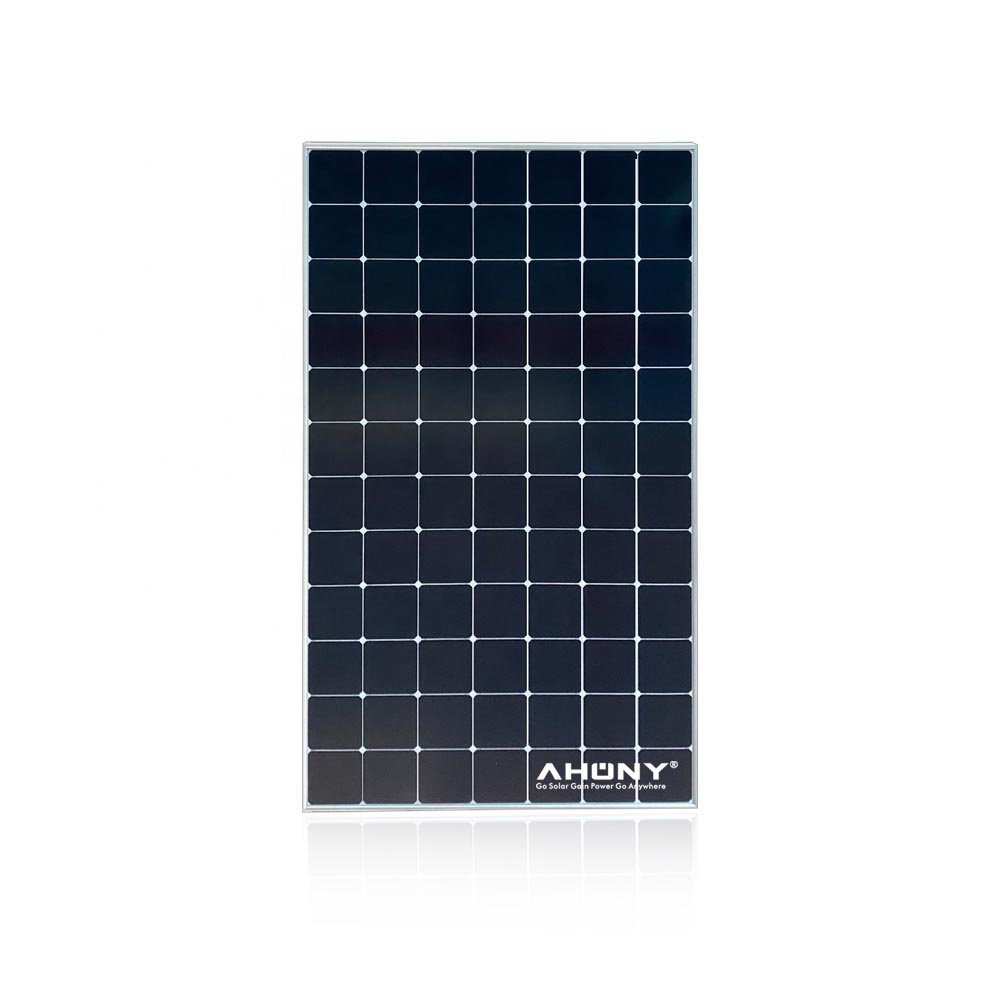

305w big power glass solar module rv roof mobile solar system home on grid installation 24.4% high efficiency solar pv
eRigid M305w
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity
Upgrade to maximum energy output with our Glass Solar Modules. The high-quality glass panels deliver reliable and efficient energy output for your home or business.With durable construction and exceptional performance
- Place of Origin:Guangdong, China
- Brand Name:AHONY or OEM
- Model Number:eRigid M305w
- Cell size:125mmx125mm
- Type:IBC, Standard Solar Panel
- Panel Dimensions:915*1575*40mm
- Panel Efficiency:21.26%
- Certificate:CE ROHS ISO9001, CE ROHS
- Warranty:5years, 5years
- Product name:Gen III high efficiency sunpower solar module 150w for rv roof
- Solar panel:Gen III high efficiency sunpower solar module 150w
- Frame Color:black or silver frame or customize other frame colour
- OEM Order:accepted
- Efficiency:24.4%
Product Description
| Model No. | eRigid M305w |
| Product Name | high efficiency sunpower solar module 305w for rv roof |
| Maximum Power[Wp] | 305 |
| Solar Cell | 125*125 |
| Cell Array[Pcs] | 7*12 |
| Cell Efficiency | 24.4% |
| Size[mm] | 915*1575*40 |
| Size[inch] | 36*62 |
| Max Power Voltage Vmp[V] | 51.4 |
| Max Power Current Imp[A] | 5.94 |
| Open Circuit Voltage Voc[V] | 60.66 |
| Short Circuit Current Isc[A] | 6.29 |
| Net.Weight[kg] | 13 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | 20A |
| Certification | CE ROHS |
| Surface/Backsheet | Glass/silver frame/white backsheet |
| Cables and Connectors | Jbox IP65,2bypass diode,0.9m*4mm2 cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Package | 1pcs/carton box and plywood pallet |
We offer a wide range of Gen III high efficiency sunpower solar module 305w for rv roof,with white or black colour frame,customize cables,connectors,package,welcome to ask our sales!
