high quality solar panel glass solar panel for sunpower solar cell 120W solar panel
Rigid SP 130W
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity

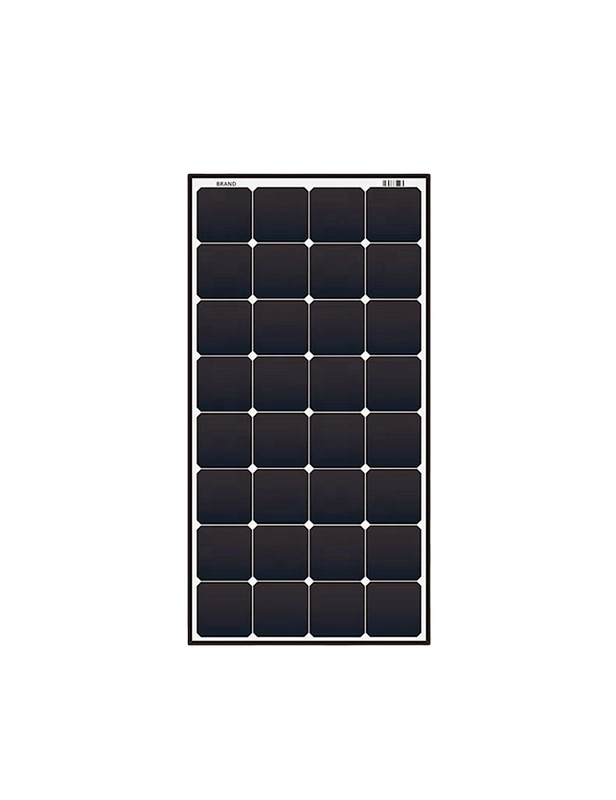

Efficient and reliable, our 130W solar PV module is the perfect marine solar charger for boats and RVs. With weather-resistant and durable design, it ensures cost-effective off-grid power supply. Trust in our solar power solution for all your needs.
- Brand Name:Ahonypower
- Model Number:Rigid SP 130W
- Place of Origin:Guangdong, China
- Type:IBC, Customized Solar Panel
- Panel Dimensions:540*1190*35MM
- Panel Efficiency:24.40%
- Certificate:CE ROHS
- Warranty:5 years
- Product name:130W solar panel
- Solar cell:sunpower
- Application:Solar Power System
- OEM Order:Support
- Junction Box:IP67 Rated
Product Description
| Model No. | SP rigid S120w |
| Product Name | Glass Solar Panel |
| Maximum Power[Wp] | 130 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 24.40% |
| Size[mm] | 540x1190x35 |
| Max Power Voltage Vmp[V] | 22.03 |
| Max Power Current Imp[A] | 5.90 |
| Open Circuit Voltage Voc[V] | 26.00 |
| Short Circuit Current Isc[A] | 6.37 |
| Net.Weight[kg] | 1.5 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 1000 V |
| Maximum Reverse Current[V] | IR<2-0A |
| Certification | CE ROHS |
| Backsheet | white plastic |
| Maximum bend radius(θ) | 0° |
| Cables and Connectors | PV-JB801 IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
| Lead time | within 12-15working days after payment confirmed. |
| Payment terms | 30% in advance as deposit balance before shipment. |
| Price Terms | FOB Shenzhen,China. |
| Warranty | Power output will be at least 95% after 5 years and more than 85% after 10 years,2 years repair/replacement. |
