Best shade perfomance semi flexible solar module 120w for sailboat parallel bypass higher power half cut flexible solar panel
eGo-S120w HF
Quantity
Upgrade your sailboat's energy system with our flexible solar panels. Designed to bend and conform to any surface, these panels are perfect for marine applications. Enjoy uninterrupted power supply on the waters with our reliable and lightweight solar panels. Order now!"
The half cut semi flexible solar panel series reduce the current of each panel.It has much more advantage over traditional semi flexible solar panel.
1.Less current more Power
The half cut reduce the current each cell and avoid heating problem,reduce the risk of hot dot ,heating etc,in this way,the panel power output is 2-3wattages over regular panels;
2.Inner parallel design,voltage drop less when shade,produce more power

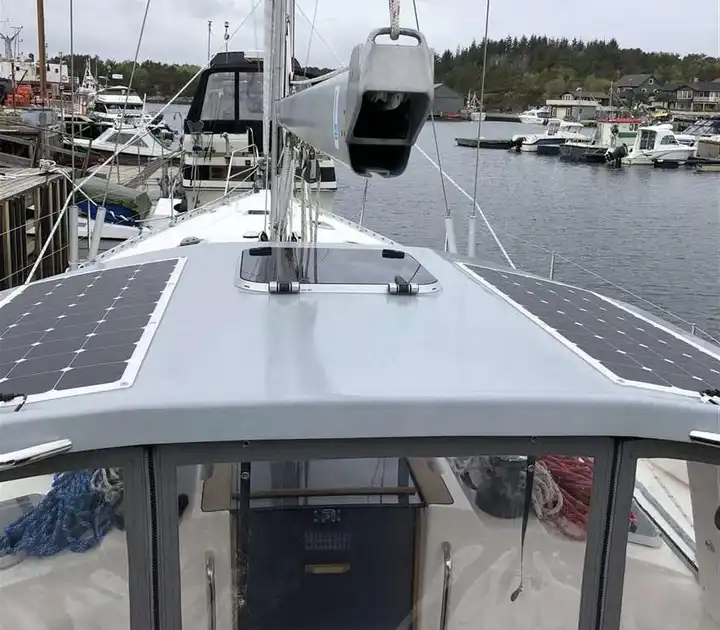

It has more obvious performance on sailboat,which has half shade most of time.
The inner parallel design.
| Model No. | eGo S120w |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 120 |
| Solar Cell | Back Contact Cell |
| Cell Array[Pcs] | 4*8 |
| Cell Efficiency | 24.40% |
| Size[mm] | 540x1085x3 |
| Max Power Voltage Vmp[V] | 20.1 |
| Max Power Current Imp[A] | 5.97 |
| Open Circuit Voltage Voc[V] | 23.12 |
| Short Circuit Current Isc[A] | 6.33 |
| Net.Weight[kg] | 4.7 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white PET |
| Maximum bend radius(θ) | 30° |
