20w walkable anti slippery rough rigid solar panel solution for leisure market like camper trailer marine boat owners
eMarvel-20w
Quantity

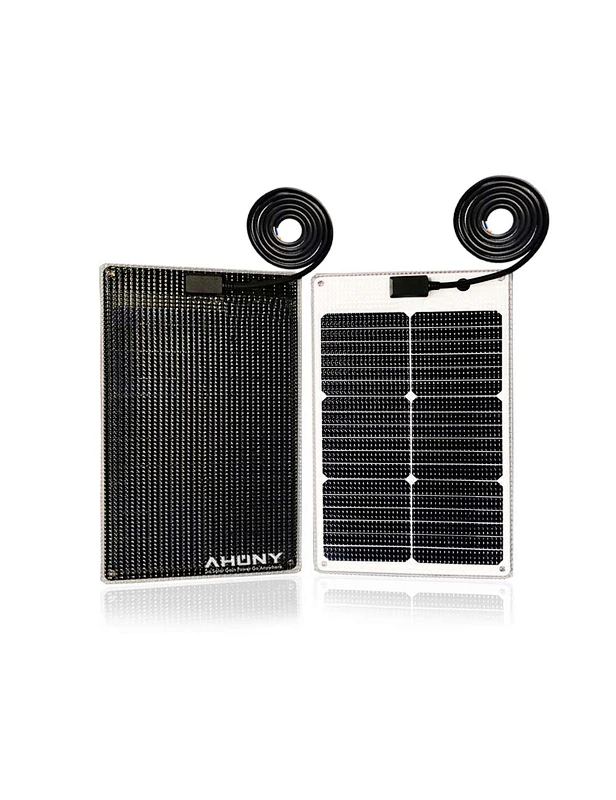

Ahony Power, a solar panel manufacturer, offers small and powerful solar modules for a range of applications. Reliable and efficient, their small solar panels provide sustainable energy for various settings, from camping trips to backup power for homes.
Model No. | eMarvel 20w |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 20 |
| Solar Cell | Back Contact Cell |
| Cell Array[Pcs] | 2*18 |
| Cell Efficiency | 23.70% |
| Size[mm] | 480*280*5 |
| Max Power Voltage Vmp[V] | 21.49 |
| Max Power Current Imp[A] | 0.93 |
| Open Circuit Voltage Voc[V] | 25.36 |
| Short Circuit Current Isc[A] | 0.98 |
| Net.Weight[kg] | 1.1 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | 10A |
| Flame retardancy | UL94 VTM-0 |
| Certification and test | CE,ROHS,SGS,IEC,85°C& 85% humidity test |
| Maximum bend radius(θ) | 5° |
| Cables and Connectors | APJB010,2m dual cores cable 2.5mm2 bare at end |
| Warranty[Years] | 3 |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
