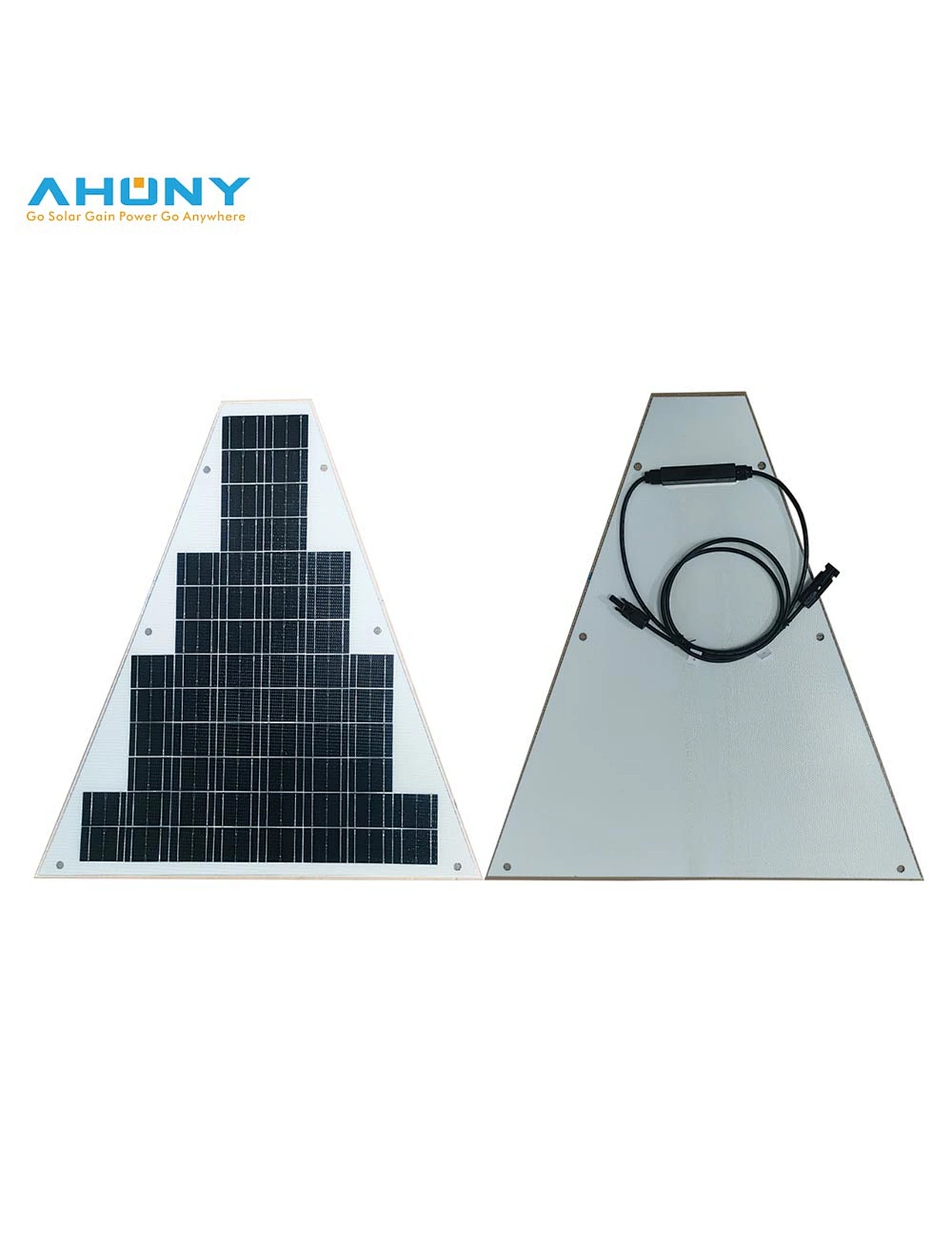

Custom 30W Trapezoidal Flexible Solar Panels Maritime Tree Street Light Bus Charge Station with Maritime Trapezoid Square Design
price
$39.00 - $42.00 / piece
eMarvel M30W
1 piece
Quantity
- Brand Name:AHONY
- Model Number:eMarvel M30W
- Place of Origin:Guangdong, China
- Cell size:158.75mmx158.75mm
- Panel Dimensions:592*560*2mm
- Panel Efficiency:24%
- Type:Custom Flexibe Solar Panel
- Shape:Trapezoide solar panel
- Certification:CE ROHS
- Application:custom marine floating deck
- Product name:Trapezoidal Solar Panel 30w
- Solar cell:PERC or back conact
- Frame:No
- OEM Order:Customized Solar Panel Aavilable
- Material:waterproof UV resistant
- Cell Type:Mono PERC 158.75*158.75mm
AHONY factory is located in Dongguan city.Currently we produces 5v 12v 24v solar panel kits,foldable solar panel,portable solar charger,semi flexible solar panel,portable solar charger,solar kits,solar table,mostly are thin,ultralight solar panels.The target market of our products are for camping,RV,marine,mobile generator,mobile battery storage,motor-off grid,outdoor and mobile use.with solar,it gives customer power and light.
Glass solar module
Semi flexible solar panel
Folding solar kit
USB solar charger
Marine semi rigid solar panel
USB solar charger
Marine semi rigid solar panel
Solar table
Customize shape power solar panels
This Trapezoid Shaped Semi rigid lighter Solar Panel is used fo
Model No. | eMarvel M30W |
| Product Name | Trapezoid Shaped Semi rigid lighter Solar Panel bouy maritime panels |
| Maximum Power[Wp] | 30 |
| Solar Cell | Mono solar cell |
| Cell Array[Pcs] | 1*60,55*36.5mm |
| Cell Efficiency | 24.00% |
| Size[mm] | 592*560*2 |
| Max Power Voltage Vmp[V] | 18.00 |
| Max Power Current Imp[A] | 1.67 |
| Open Circuit Voltage Voc[V] | 21.24 |
| Short Circuit Current Isc[A] | 1.77 |
| Net.Weight[kg] | 0.4 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE+ETFE |
| Maximum bend radius(θ) | 20° |
| Cables and Connectors | PV-XC502 Jbox IP67 on back,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | 6pcs grommets φ10mm,stainless steel 316 |
| Package | 15pcs/carton box,2carton box |
