bificial trasparent sunpower solar panel 175w black frame square solar module thick durable frame for boat rv yacht tempered glass black sunpower solar panels 110w 120w 300w 200w a grade cell aluminium anodized frame for camping rv marine boat rigid sunpo

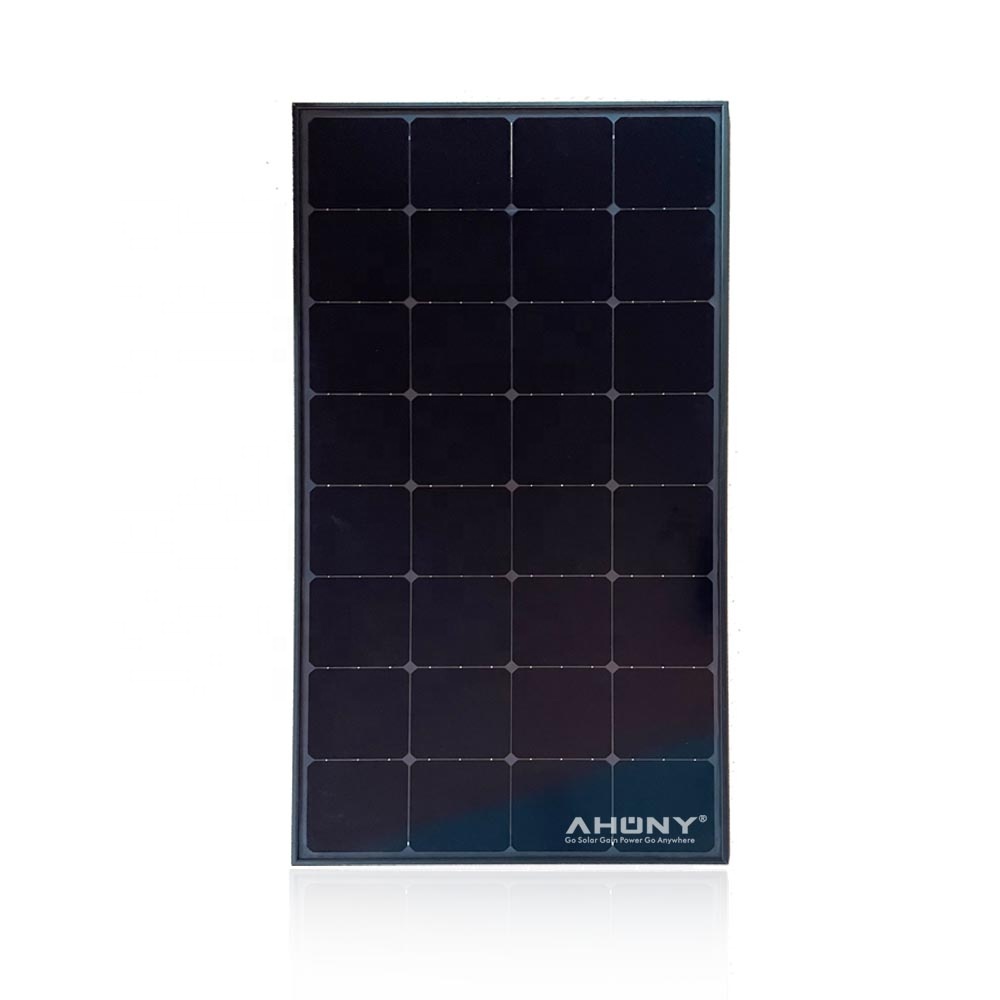

Transparent Rigid Sunpower Solar Panel 100w 120w 150w 160w 180w Ce Rohs Emc Lvd Solar Tree Smartflower Use Bificial Solar Module
price

$106.80 - $122.40 / piece

eRigid M120w SP
1 piece
Quantity
  • Brand Name:AHONY or OEM
  • Model Number:eRigid M120w SP
  • Place of Origin:Guangdong, China
  • Cell size:125mmx125mm
  • Type:IBC, Customized Solar Panel
  • Panel Dimensions:540*1055*30mm
  • Panel Efficiency:24.4%
  • Product name:rigid sunpower solar panel 120w 160w 200w
  • OEM Order:yes customize size from 110w to 400w
  • Backsheet:transparent
  • Cell efficiency:24.4%
  • weak light performance:superior
  • quality:high

MAIN FEATURES





More power output per square meter,ideal for RV,boat roof or home when space is limit.Smaller size save space.
-Premium Aesthetics

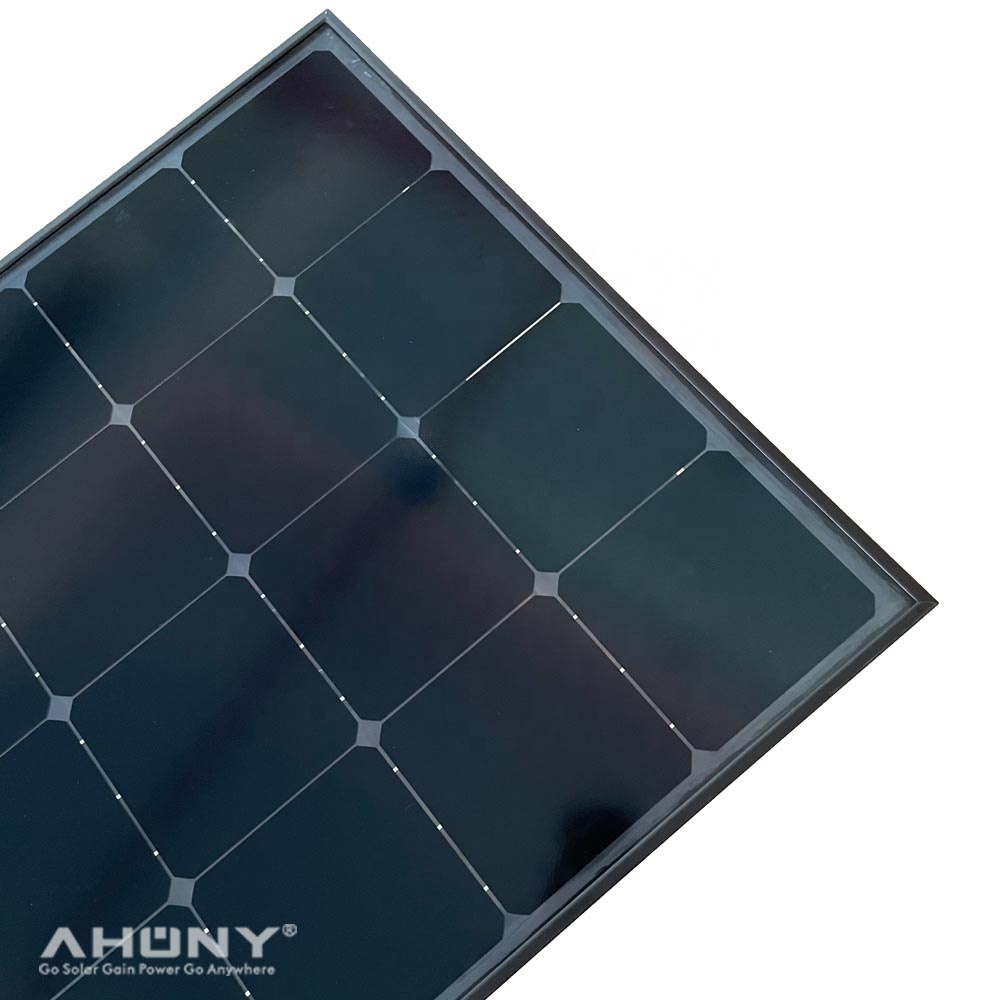

Without copper ribbon on front and using high aesthestics solar cells,either black or silver frame fits your
roof,boat,stand alone solar systems better.
-Excellent weak light performance and Maximum energy per watt
Deliver the most energy in demanding real world conditions,in partial shade,weak light,and hot temperatures.
-Durability-Leading quality raw material
SunPower back contact cell is the only cell built on a solid copper foundation.Virtually impervious to the corrosion
and cracking that degrade conventional panels.Low iron tempered glass,high density aluminium frame,top
brand EVA and backsheet,our panel produces 9% more power than others year by year.


-5 years quality insured,free replacement,maintenance
- 10 years power output more than 90%
-25 years power output more than 80%



Product Description




















































































Model No.eRigid M120w
Product Namebificial rigid sunpower solar panel 100w 115w 120w 150w 160w 180w customize all sizes ce rohs emc lvd for solar tree smartflower
Maximum Power[Wp]120
Solar CellBack Contact Cell
Cell Array[Pcs]4*8
Cell Efficiency24.4%
Size[mm]540*1050*30
Max Power Voltage Vmp[V]19.6
Max Power Current Imp[A]6.12
Open Circuit Voltage Voc[V]23.13
Short Circuit Current Isc[A]6.49
Net.Weight[kg]6.2
Power tolerance[%]±3%
NOCT[℃]45±2
Operating Temperature[℃]-40/+85
Temperature Coefficient Pmax[%/K]-0.44
Temperature Coefficient Voc[[%/K]-0.33
Temperature Coefficient Isc[[%/K]0.06
Maximum System Voltage[V]1000 V
