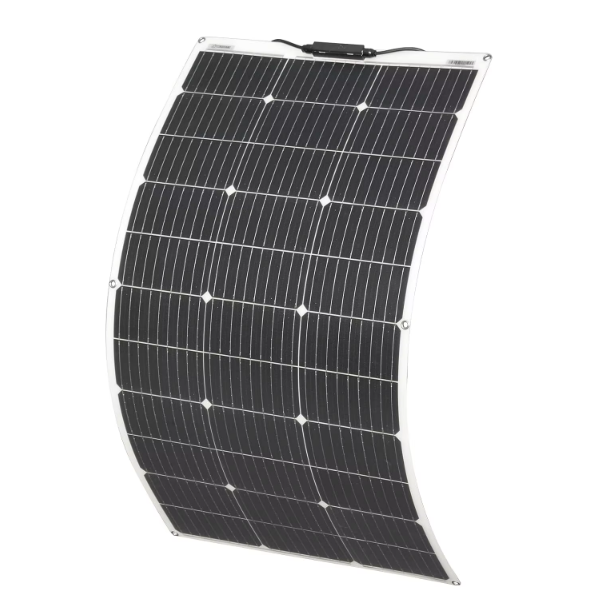

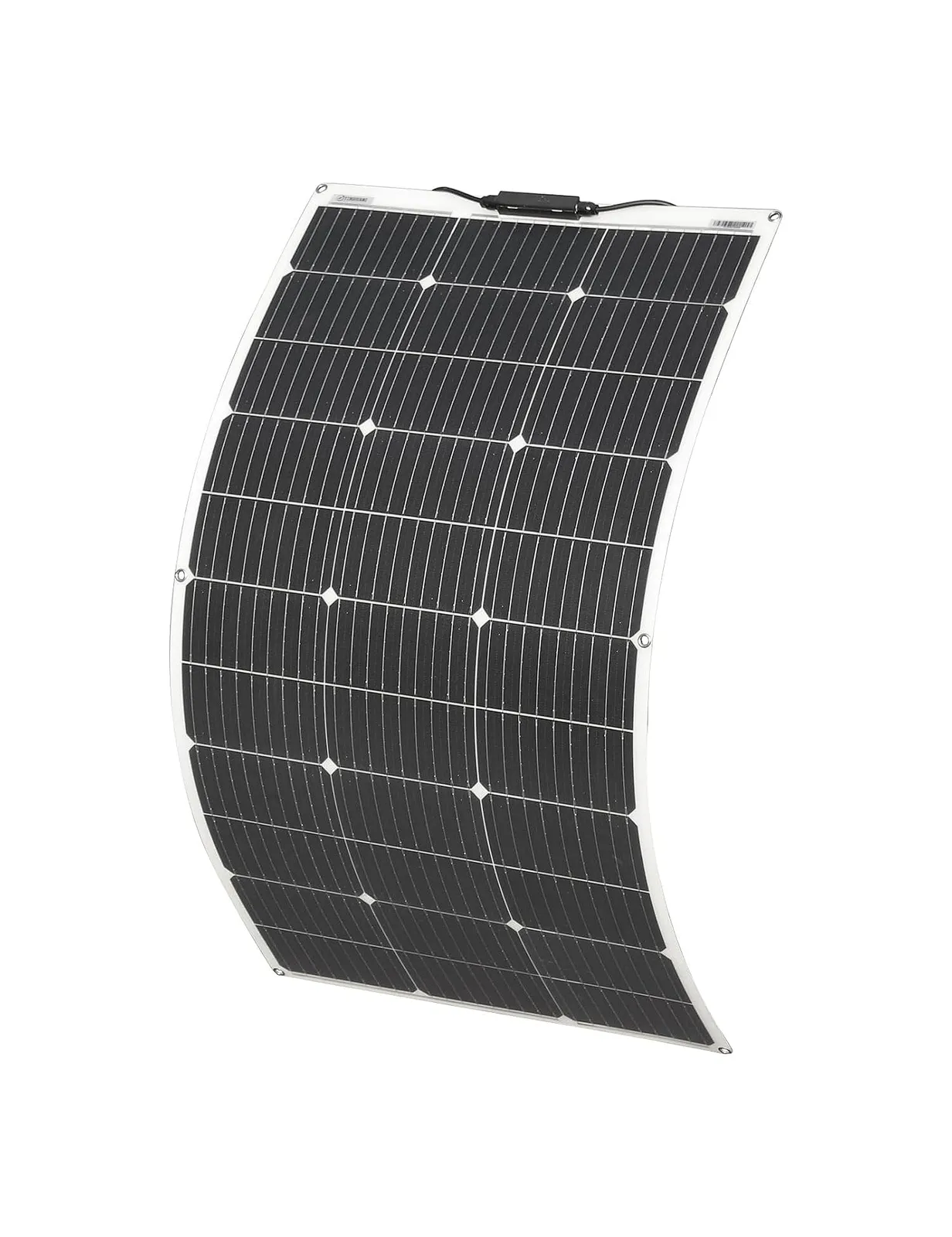

AHONY 100W-250W Flexible Black ETFE Solar Panel Power Monocrystalline Silicon for Home Solar System RV Boat Camping OEM
price
$176.40 - $181.91 / piece
eGo S160w
1 piece
Quantity
- Brand Name:Ahonypower
- Model Number:eGo S160w
- Place of Origin:Guangdong, China
- Cell size:125mmx125mm
- Type:IBC, Customized Solar Panel
- Panel Dimensions:540*1460*3mm
- Panel Efficiency:24.4%
- Product name:flexible solar panel
- Solar cell:Mono 125*125 Cell
- Application:Boat
- Warranty:1 Year
- Keyword:ETFE Monocrystalin Solar Panel
- Power:100W-250W
Product Description
| Model No. | eGo S150w |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 150 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*11 |
| Cell Efficiency | 22.60% |
| Size[mm] | 540x1460x3 |
| Max Power Voltage Vmp[V] | 25.52 |
| Max Power Current Imp[A] | 5.88 |
| Open Circuit Voltage Voc[V] | 30.11 |
| Short Circuit Current Isc[A] | 6.35 |
| Net.Weight[kg] | 2.8 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | 20A |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white plastic |
| Maximum bend radius(θ) | 30° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
| Lead time | within 12-15working days after payment confirmed. |
| Payment terms | 30% in advance as deposit balance before shipment. |
| Price Terms | FOB Shenzhen,China. |
| Warranty | Power output will be at least 95% after 5 years and more than 85% after 10 years,2 years repair/replacement. |
