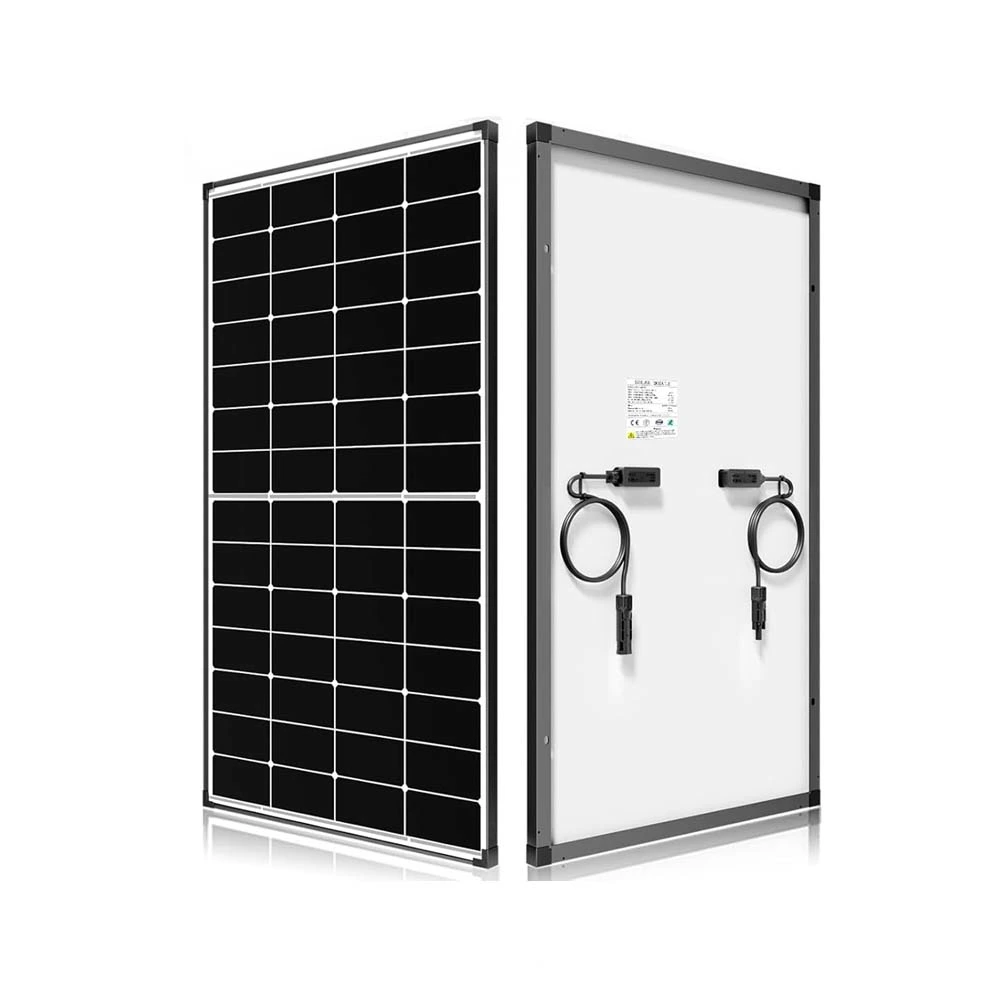

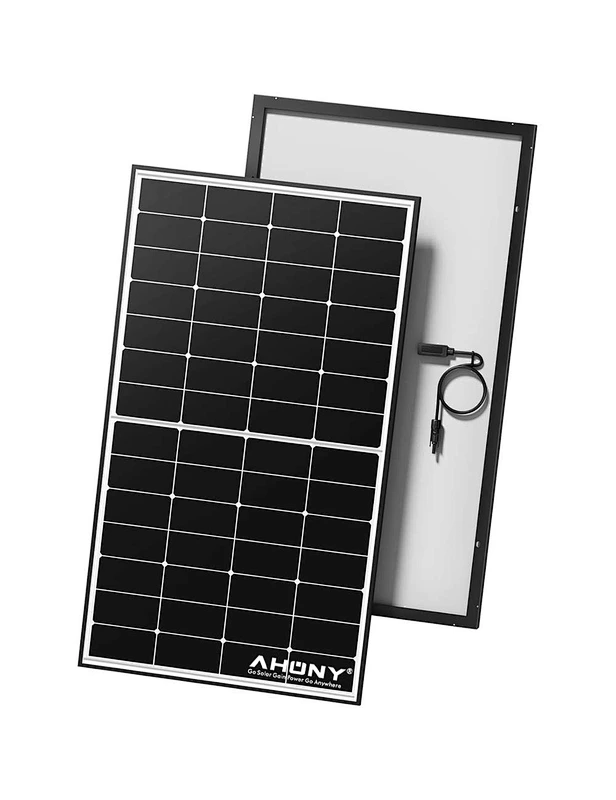

Black Solar Panel 235W 12V High Quality Efficiency Cell Mono Solar Modules for Motorhome caravan Camp off Grid Garden House Boat
price
$0.08 - $0.35 / watt
eRigid M235W
1 watt
Quantity
- Brand Name:AHONY or OEM
- Model Number:eRigid M235W
- Place of Origin:Guangdong, China
- Cell size:182mmx182mm
- Type:hbc
- Panel Dimensions:770*1355*30mm
- Panel Efficiency:25.8%
- Solar cell:LONGI HPBC solar cell
- Application:Solar Energy System
- Connector:MC 4 connector TUV certified
- Certification:IEC61215 61730 TUV certified
- Power:235w
Product Overview
AHONY eRigid series glass solar module 230W-240w
-Direct solar panel manufacturer,one of the most professional solar panel vendor Leading brand Longi A grade mono solar cell,plus power output paneles solares.

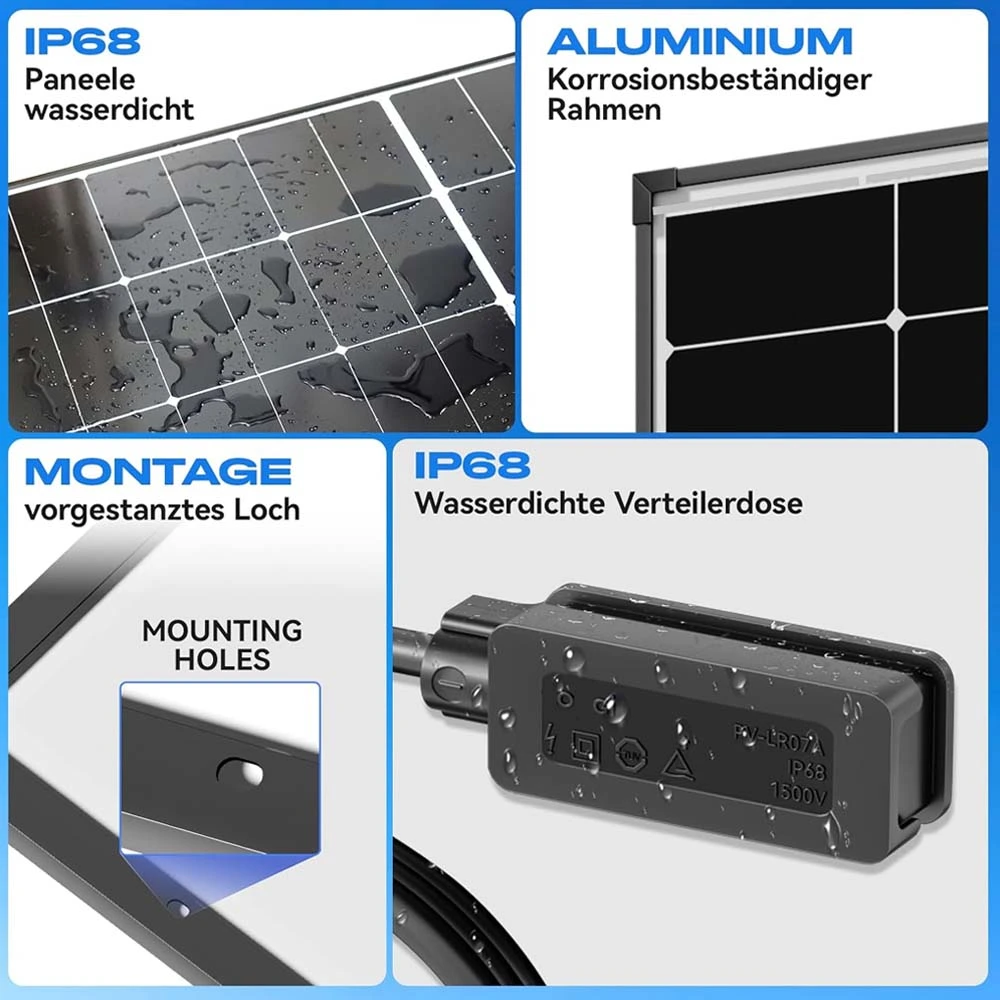

-Easy Installation :pre-drilled mounting holes on the frame allow for easy and quick install.
-Suitable for all Temperatures:This solar panel can work in a wide temperature range of -40℉~185℉. It can adapt to different climates and environments without affecting its performance.
-Sturdy:Unique technology makes the module beautiful and solid, wind and snow resistant, Corrosion-resistant aluminum frame for extended outdoor use.
-Application:can charge 12V batteries with the power of the
sun ,It's suitable for a range of scenarios including RVs, cars, boats, fences, security cameras, greenhouses, lawnmowers,
motorcycles, jet skis, trailers, homes, and more.
sun ,It's suitable for a range of scenarios including RVs, cars, boats, fences, security cameras, greenhouses, lawnmowers,
motorcycles, jet skis, trailers, homes, and more.
FEATURES AT A GLANCE
1.High efficiency A grade solar cell
AHONY uses leading brand Longi A grade HPBC solar cell solar panel produce more power at the same size.Better weak light performance and no PID.
2.CE ROHS LVD EMC certification
This 30w solar panel got CE ROHS certification and tested under LVD EMC Humidity and damp test,IEC61215 61730 according to European standard,insure you good quality and importing easily.Our factory can help with other certification,offer samples to test at 3rd lab.
3.Durable lifespan anodized aluminium frame
Totally new and durable,thick high density anodized aluminium frame,strong and oxidation free,protect the solar cells,module,glass well.
4.factory direct producing,accept cusomize logo,size,power wattage and design with AHONY engineers.
High efficiency good quality cell,Durable construction
Care for detailed parts,thicker frame,high quality TUV certified constrction

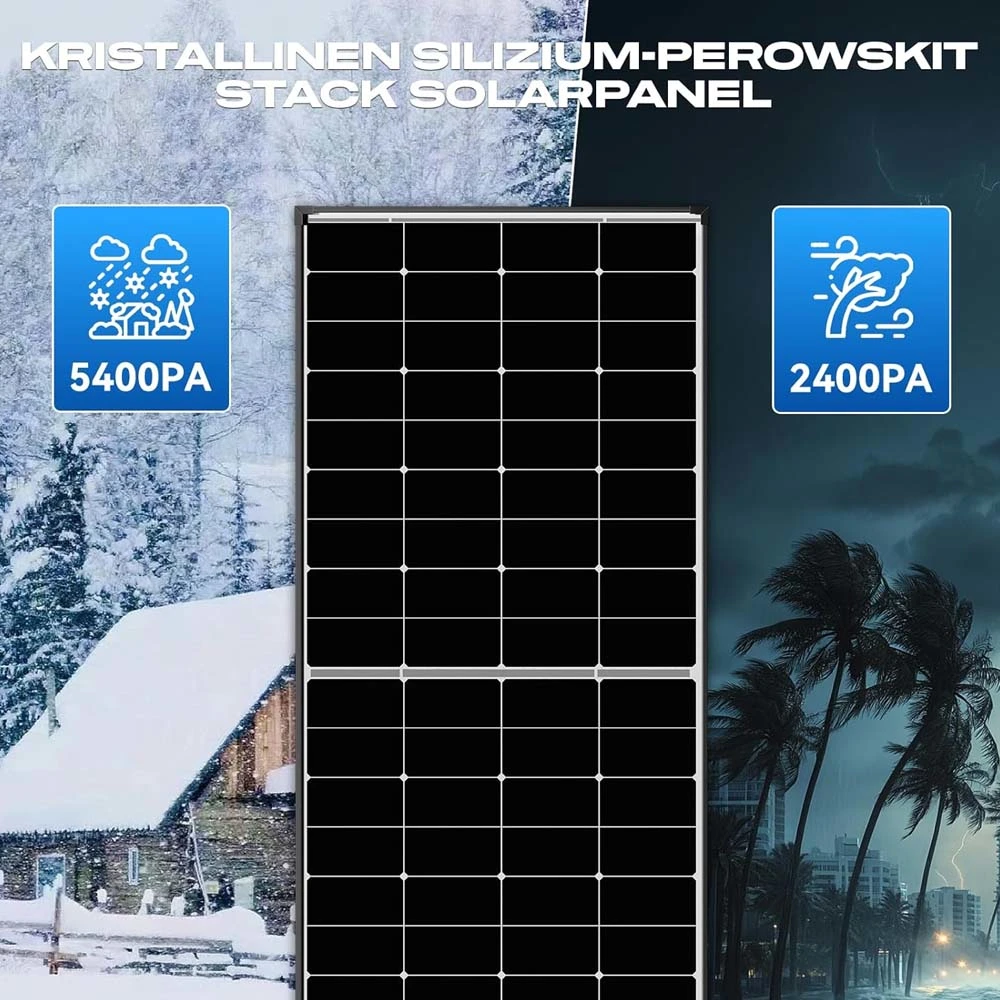

extreme climate test,bear high pressre 2400pa
PRODUCT SPECIFICATIONS
No | Model No. | eRigid M235W |
1 | Product Name | mono solar panel 235w 12v 18v panneau solaire photovoltaic pannel watt pv cable power off grid solar energy system buy for home |
2 | Maximum Power[Wp] | 235 |
3 | Solar Cell | A grade mono Longi back contact solar cell |
4 | Cell Efficiency | 25.8% |
5 | Cell array | 182*91.75,1/2 |
6 | Size[mm] | 770*1355*30 |
8 | Max Power Voltage Vmp[V] | 33.6 |
9 | Max Power Current Imp[A] | 7.0 |
10 | Open Circuit Voltage Voc[V] | 39.31 |
11 | Short Circuit Current Isc[A] | 7.42 |
12 | Net.Weight[kg] | 12.0 |
13 | Power tolerance[%] | 0 to +3% |
14 | NOCT[℃] | 45±2 |
15 | Certification | CE ROHS |
16 | Cable and connector | Standard 0.9m cable +MC4 |
17 | Standard package | 2pcs/carton,plywood pallet |

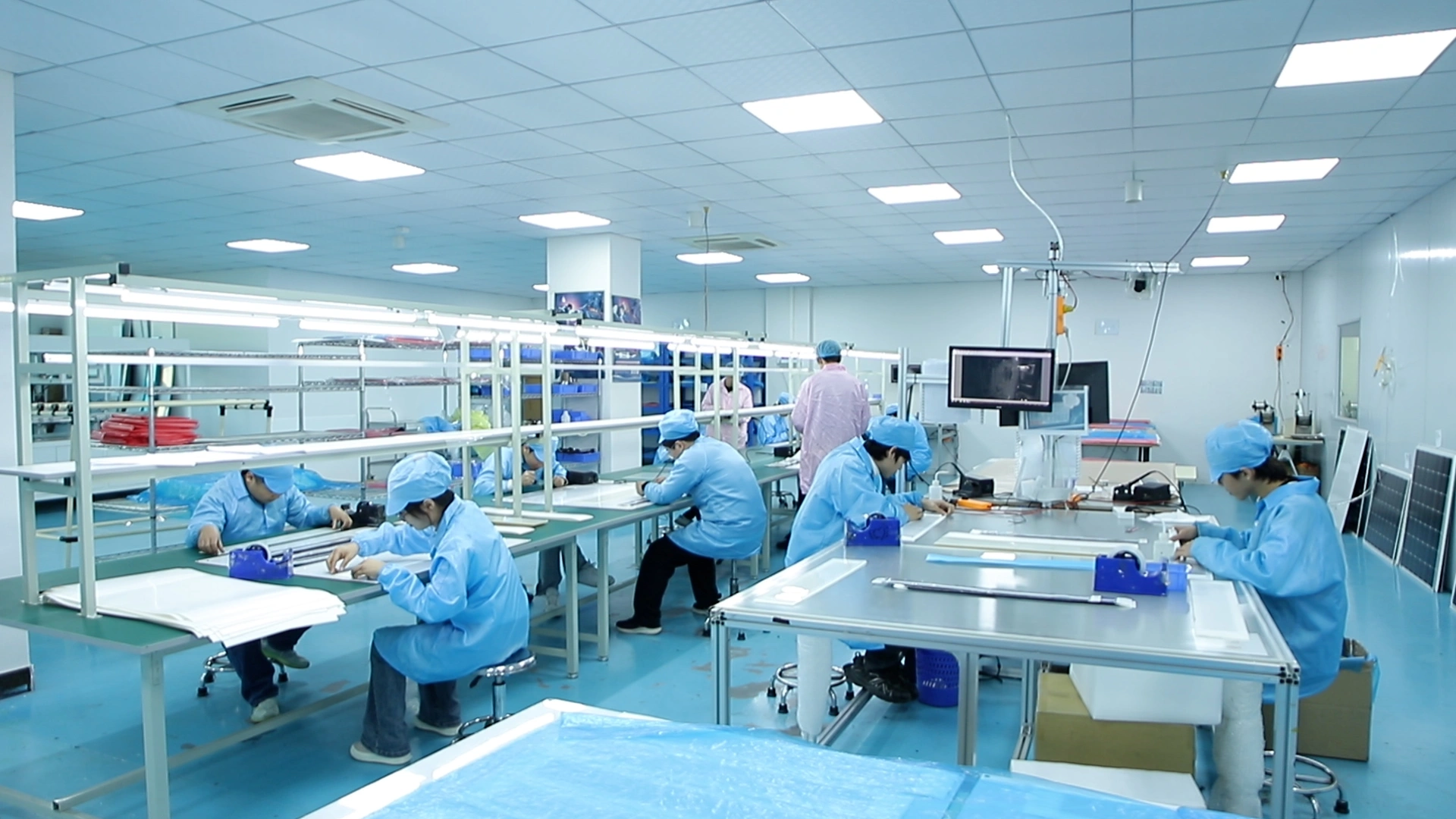

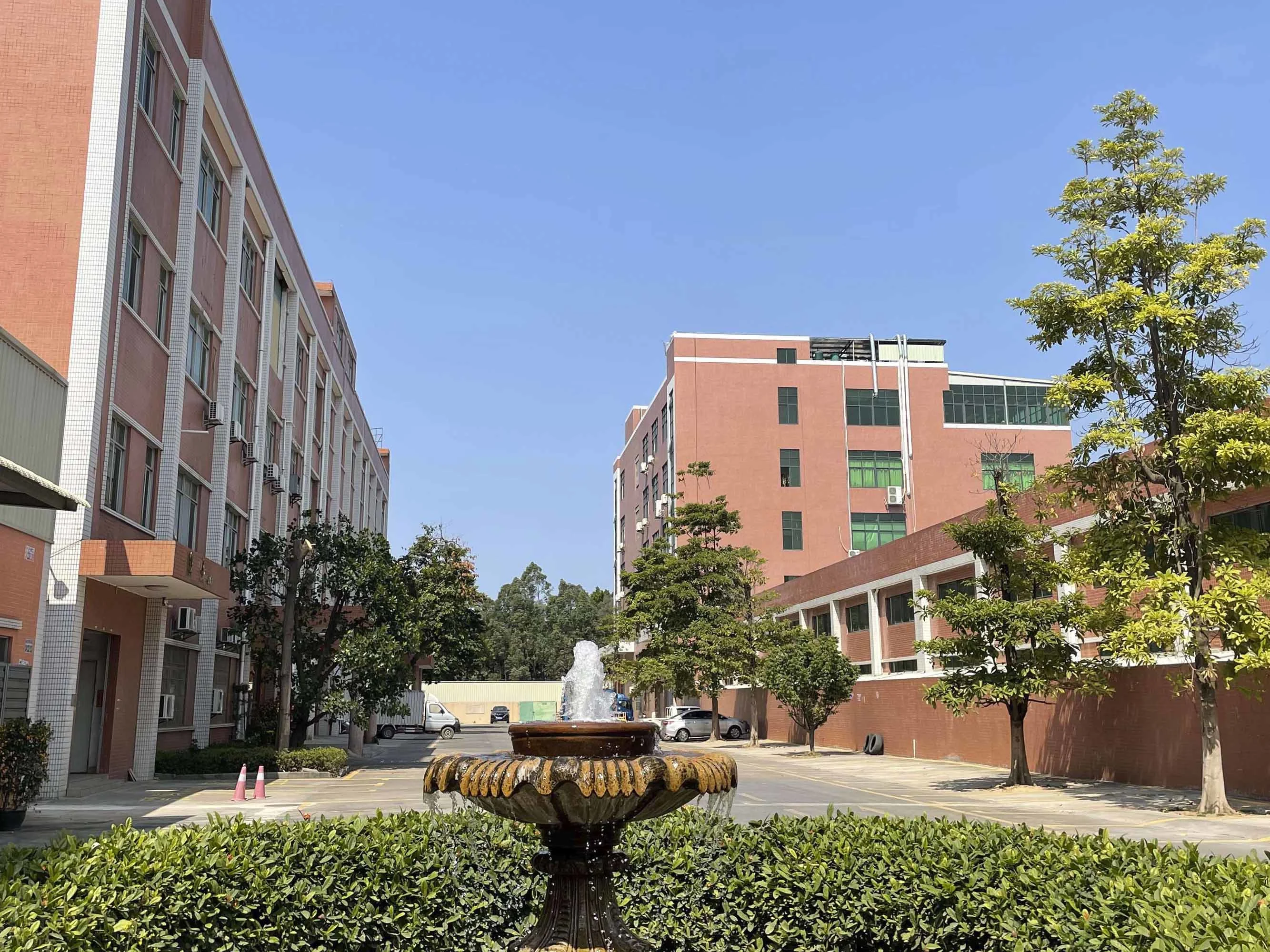

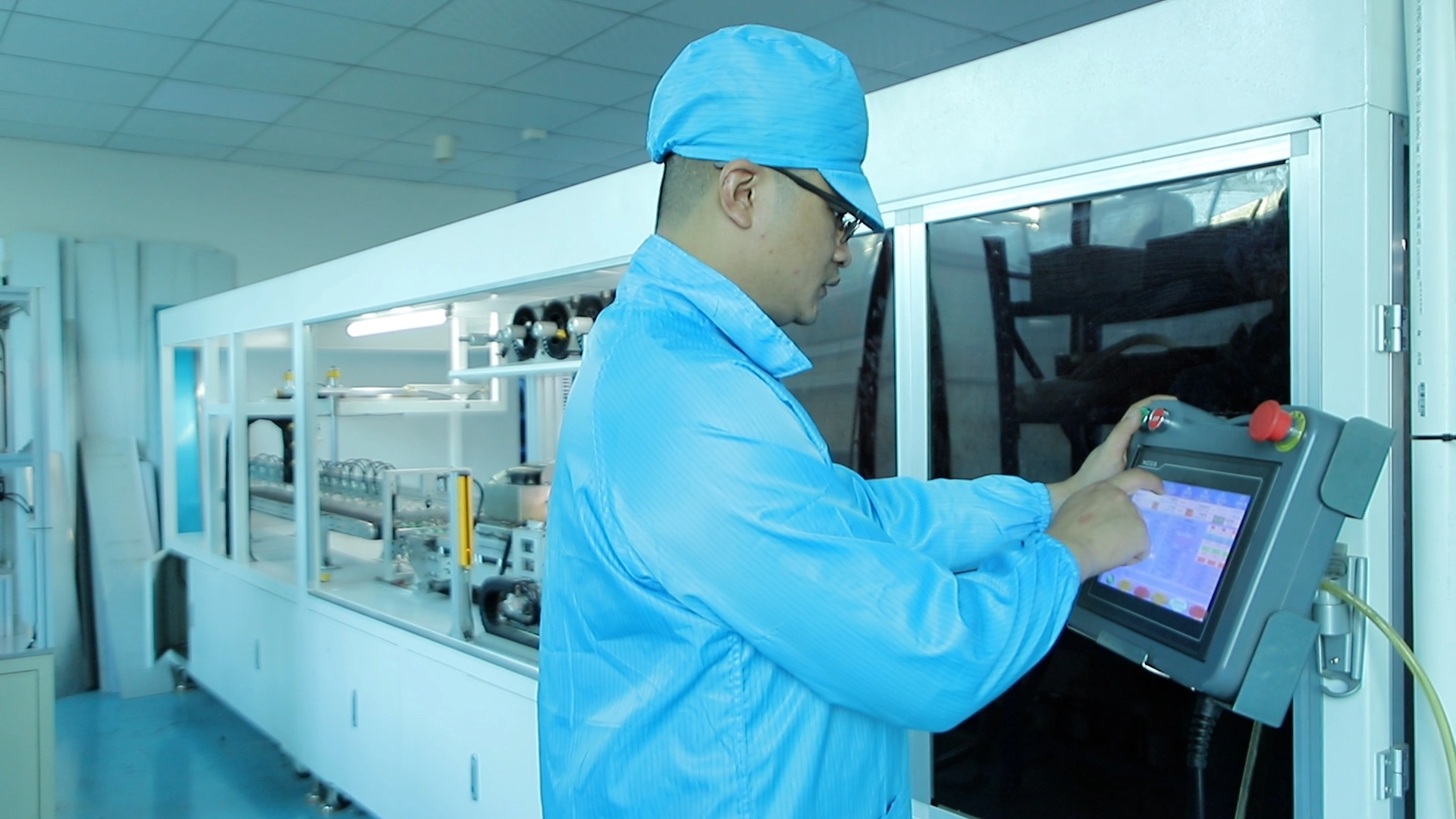

Company Profile
AHONY POWER was founded in Shenzhen, southest China nearby Hongkong, Dongguan,Huizhou. AHONY is short for"All Honors of Nature Yard".Our team have more than 11 years solar experience, including producing, marketing, R&D. AHONY owns 4 official issued solar patents,1 of which is invention patent. We've managed under ISO quality system,products are certified by CE, ROHS, SG S, IEC. Product range is: ETFE PET fibreglass flexible solar panel,semi rigid solar module,glass solar panel, foldable solar kit.Both regular cells and USA SunPower cells. For every product offered by AHONY, we have strict producing process,quality inspection process and testing process. AHONY is dedicated to clean energy-solar technology innovation, ultralight solar panel technology, environmental friendly solar products, lighting products, power products etc.

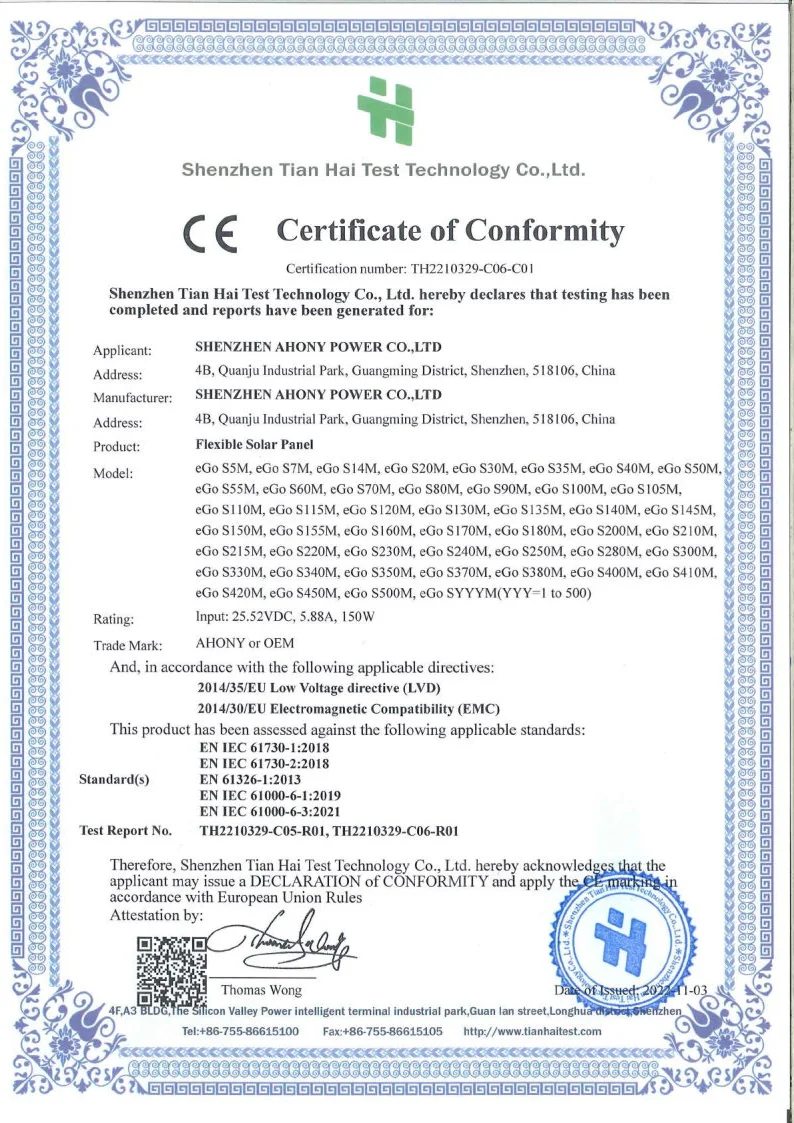

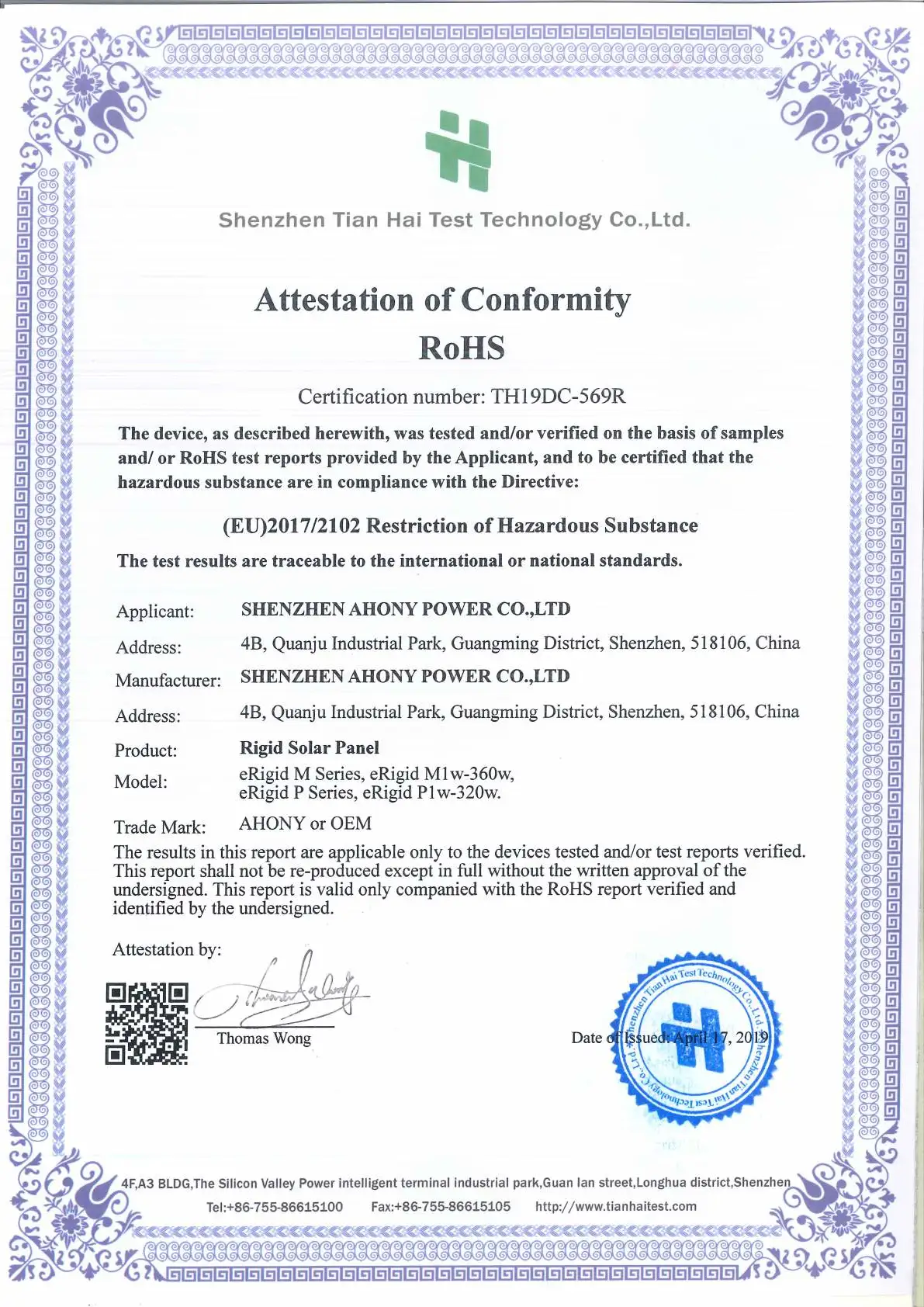

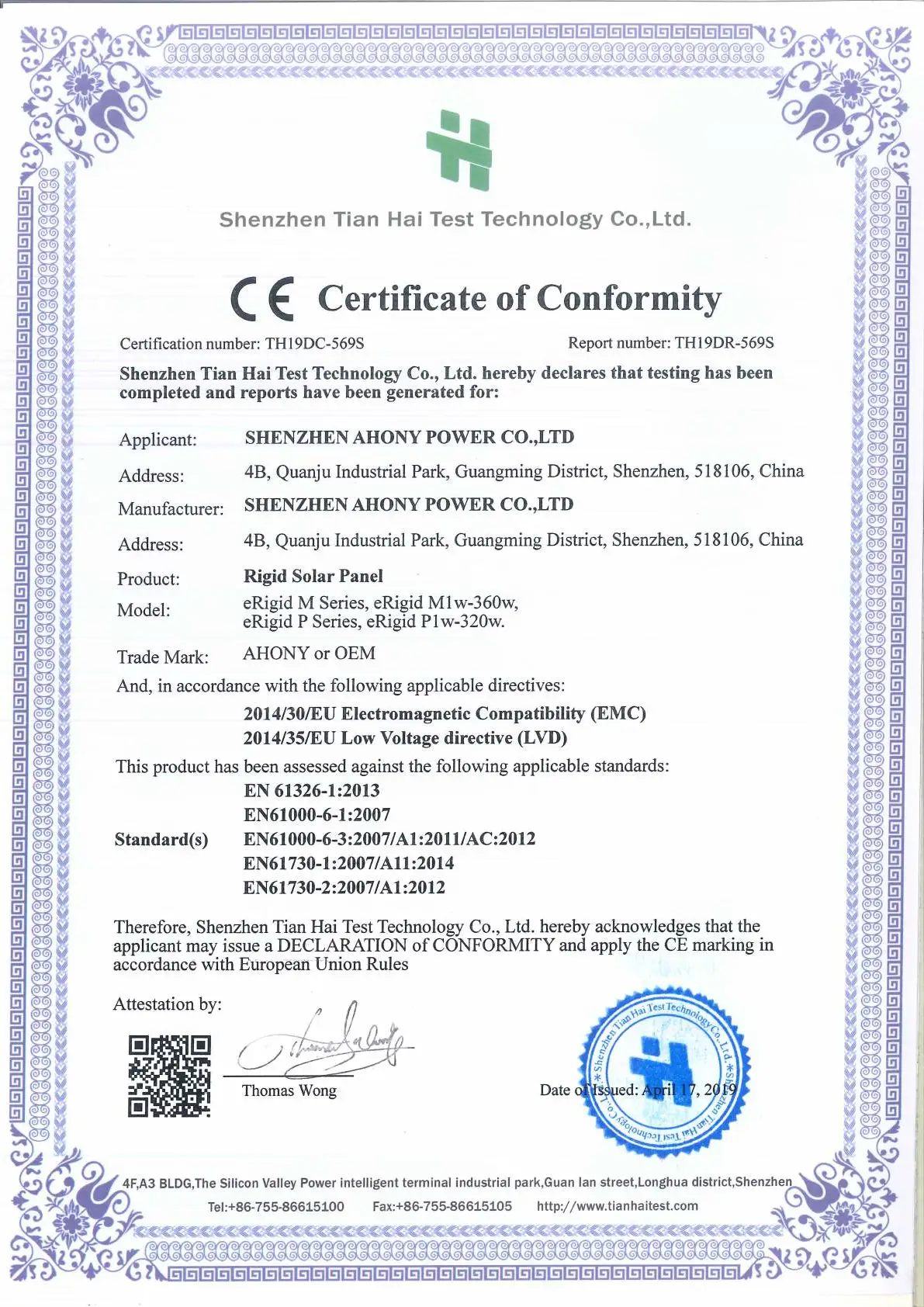

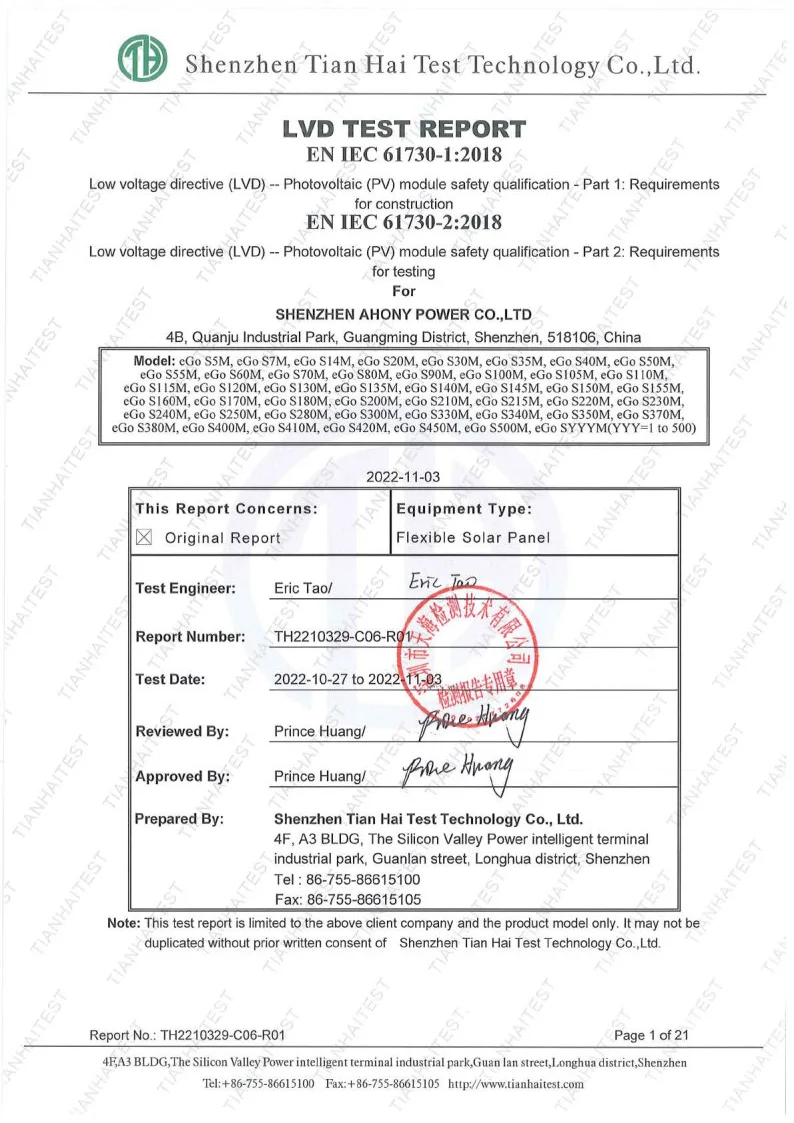

Our Certification
Packaging and Shipping

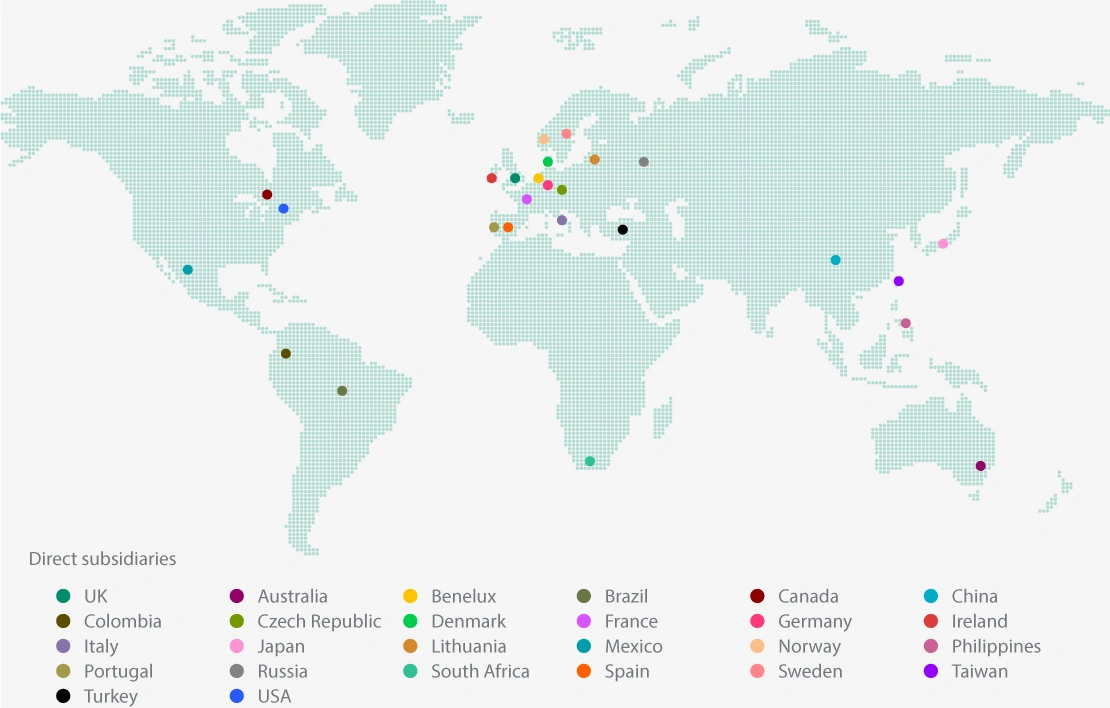

SALES AND SERVICE NETWORK
FAQ
Q1.Where is your factory located, and what is your annual production capacity?
A1: Our factory located in Dongguan city,Guangdong province.Our producing capacity is 500MW per year.
Q2. Do you have in-house R&D and quality testing labs?
A2: Yes,we did a lot of R&D projects for customers,and have inner testing lab,machine to proove the project,and proceed to trial production.
Q3. What solar cell technologies do you specialize in? (e.g., monocrystalline, polycrystalline, PERC, bifacial)
Q5. Do your products comply with EU’s RoHS and CE regulations?
A5:Yes.
Q7. Do you offer OEM/ODM services with custom logos and packaging?
A7:Yes,with extra logo costs USD100-200.
Q8. Can you produce panels with anti-reflective coating or anti-PID cells for high-humidity regions?
Q10. How do you handle defective products in bulk orders?
A10: For the defective solar panel we made inner factory,firstly our factory place them in un-qualified area,and monthly there will be collected by waste recycling company.
Q11. Can you share IV or EL test reports or third-party inspection certificates?
A1: Our factory located in Dongguan city,Guangdong province.Our producing capacity is 500MW per year.
Q2. Do you have in-house R&D and quality testing labs?
A2: Yes,we did a lot of R&D projects for customers,and have inner testing lab,machine to proove the project,and proceed to trial production.
Q3. What solar cell technologies do you specialize in? (e.g., monocrystalline, polycrystalline, PERC, bifacial)
A3: Our company AHONY specialized in Monocrystalline,PERC,HJT Topcon,Back contact cells module,nearly all solar cells are bifacial ones.
Q4. Which international certifications do your solar panels hold?
A4: We got TUV,IEC61215 61730,CE ROHS ISO9001 and SGS salt spray test.
Q5. Do your products comply with EU’s RoHS and CE regulations?
A5:Yes.
Q6. Can you customize panel sizes, wattages (e.g., 1W-500W), or frame colors?
A6: Yes.
A6: Yes.
Q7. Do you offer OEM/ODM services with custom logos and packaging?
A7:Yes,with extra logo costs USD100-200.
Q8. Can you produce panels with anti-reflective coating or anti-PID cells for high-humidity regions?
A8: Yes.
Q9. What quality tests do you perform during production?
A9: We do EL testing,IV testing and regularly high temperature and humidity test.
A9: We do EL testing,IV testing and regularly high temperature and humidity test.
Q10. How do you handle defective products in bulk orders?
A10: For the defective solar panel we made inner factory,firstly our factory place them in un-qualified area,and monthly there will be collected by waste recycling company.
Q11. Can you share IV or EL test reports or third-party inspection certificates?
A11: Yes,for every solar panel,we made IV and EL test,and each panel have test report can offer to customers.Our factory accept 3rd party certifying with extra costs.
