Our Sunpower flexible solar panels offer a high-quality and efficient energy solution for your off-grid needs. With advanced technology and a sturdy design, they provide reliable energy production for all your applications.
Semi flexible pv module high efficiency thin film bendable back contact mono PERC Sunpower flexible solar panels for golf cart yach
eGo S series
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
Quantity

Our Sunpower flexible solar panels offer a high-quality and efficient energy solution for your off-grid needs. With advanced technology and a sturdy design, they provide reliable energy production for all your applications.

  • Brand Name:OEM or AHONY
  • Model Number:eGo S series
  • Place of Origin:Guangdong, China
  • Cell size:158.75mmx158.75mm
  • Type:PERC, Bifacial, SunPower, Standard Solar Panel
  • Panel Dimensions:540x1460x3mm
  • Panel Efficiency:23.7%
  • Certificate:CE ROHS ISO SGSIEC
  • Warranty:1year, 1 Year
  • Product name:semi flexible solar panel for golf cart yach
  • style:thin film ETFE flexible
  • colour:white
  • surface:etfe

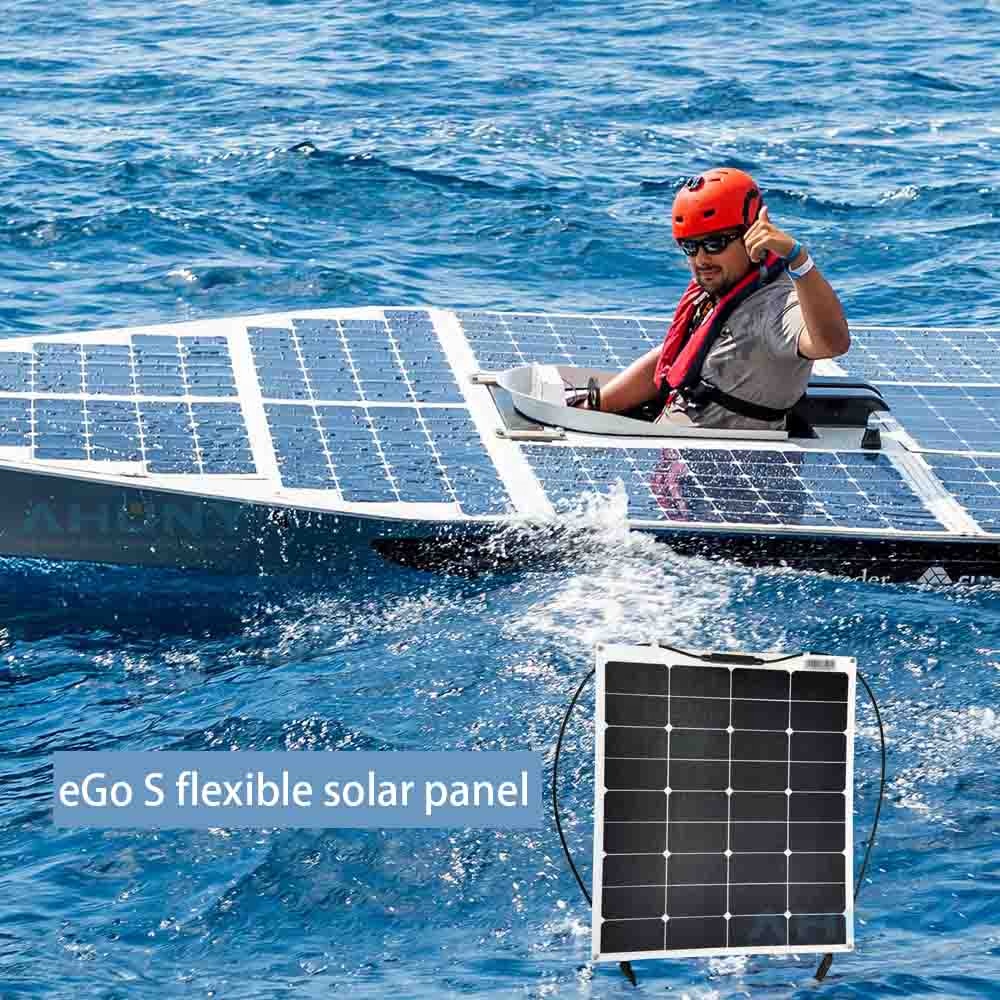

  • application:camping rv marine boat yacht balcony
  • Solar cell:PERC, SunPower
  • Cell Efficiency:23.7%
  • Certification:CE, ROHS
Flexible solar panel
Model No.eGo S series
Description

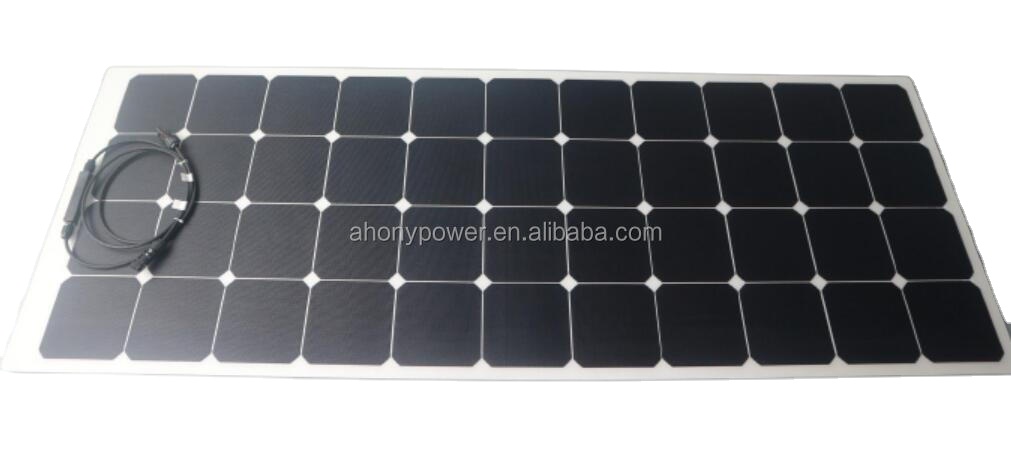

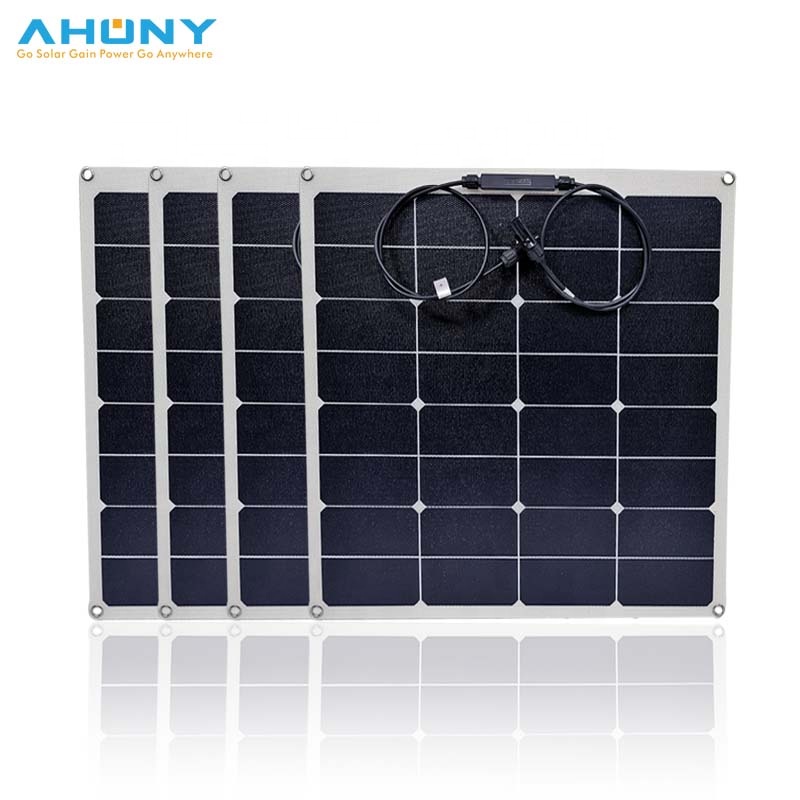

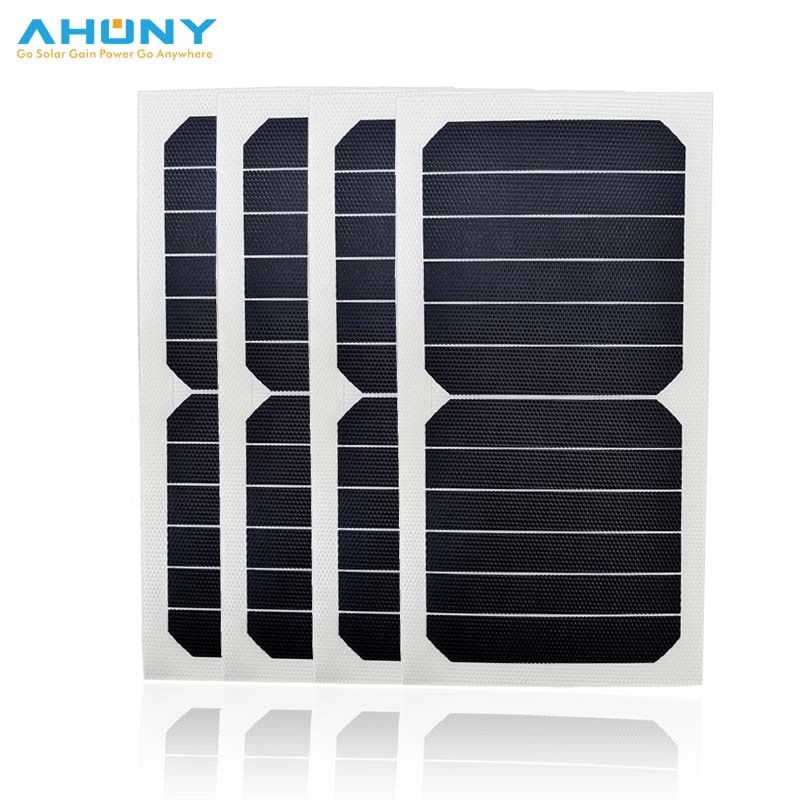

eGo S is regular and most popular flexible solar panel with no inner inserted material, using back contact cell, max bend angle 30 degree, the highest efficiency panels for rv boat marine

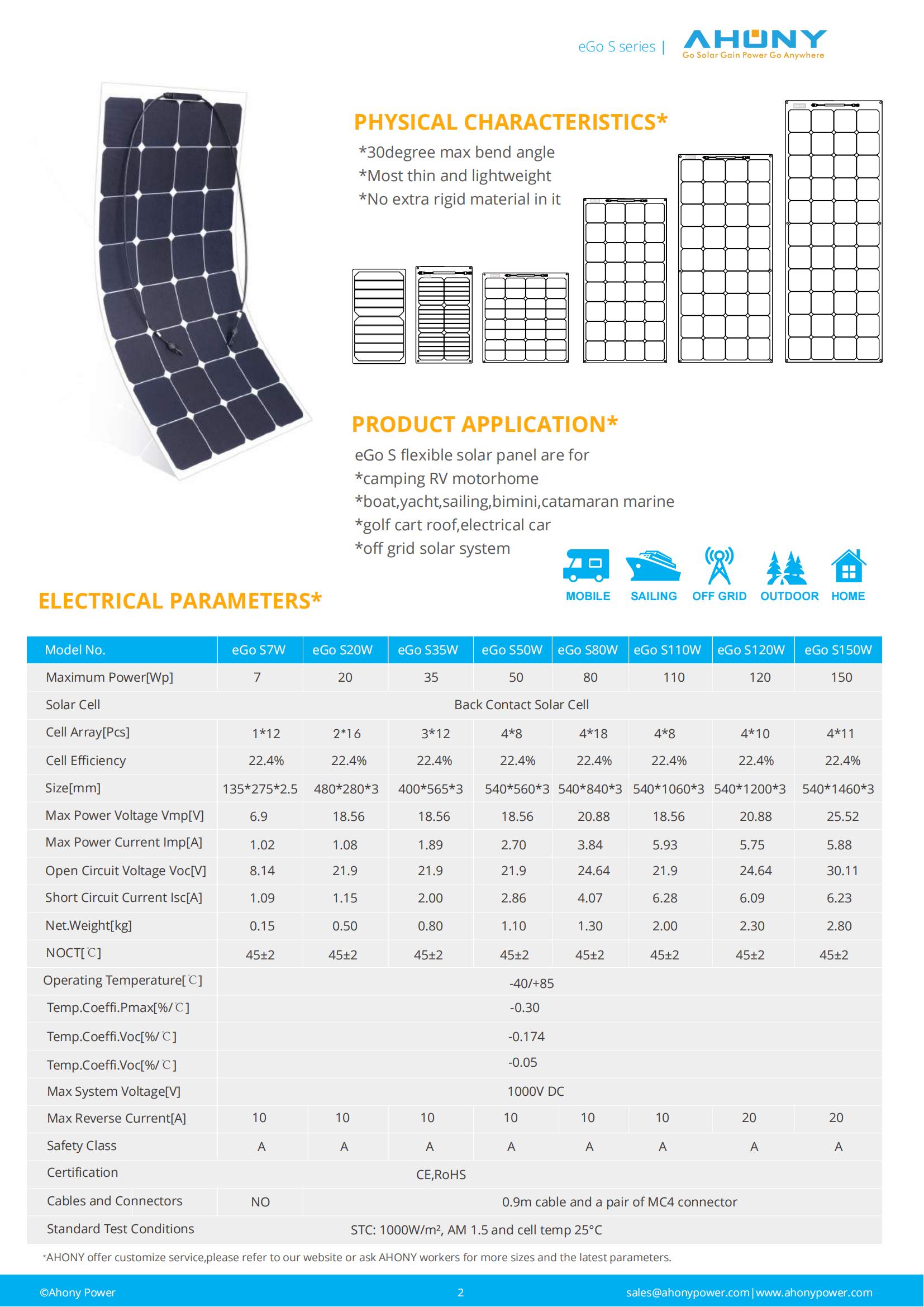

Product NameSemi-Flexible Solar Panel
Maximum Power[Wp]7W, 20W, 35W, 50W, 80W, 110W, 120W, 150W
Solar CellSunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs]1*12, 2*16, 3*12, 4*8, 4*18, 4*10, 4*11
Cell Efficiency23.7%
Size[mm]range 135*275*2.5mm to 540*1460*3mm
Max Power Voltage Vmp[V]6.9V~25.52V
Max Power Current Imp[A]1.02A ~ 5.88A
Open Circuit Voltage Voc[V]8.14V~30.11V
Short Circuit Current Isc[A]1.09A~6.23A
Net.Weight[kg]0.15kg~2.80kg
Power tolerance[%]±5%
NOCT[℃]45±2
Operating Temperature[℃]-40/+85
Temperature Coefficient Pmax[%/K]-0.3
Temperature Coefficient Voc[[%/K]-1.74mV
Temperature Coefficient Isc[[%/K]0.05
Maximum System Voltage[V]100 V
Maximum Reverse Current[V]10A
CertificationCE ROHS
Surface/BacksheetJapan ETFE/white plastic
Maximum bend radius(θ)30°

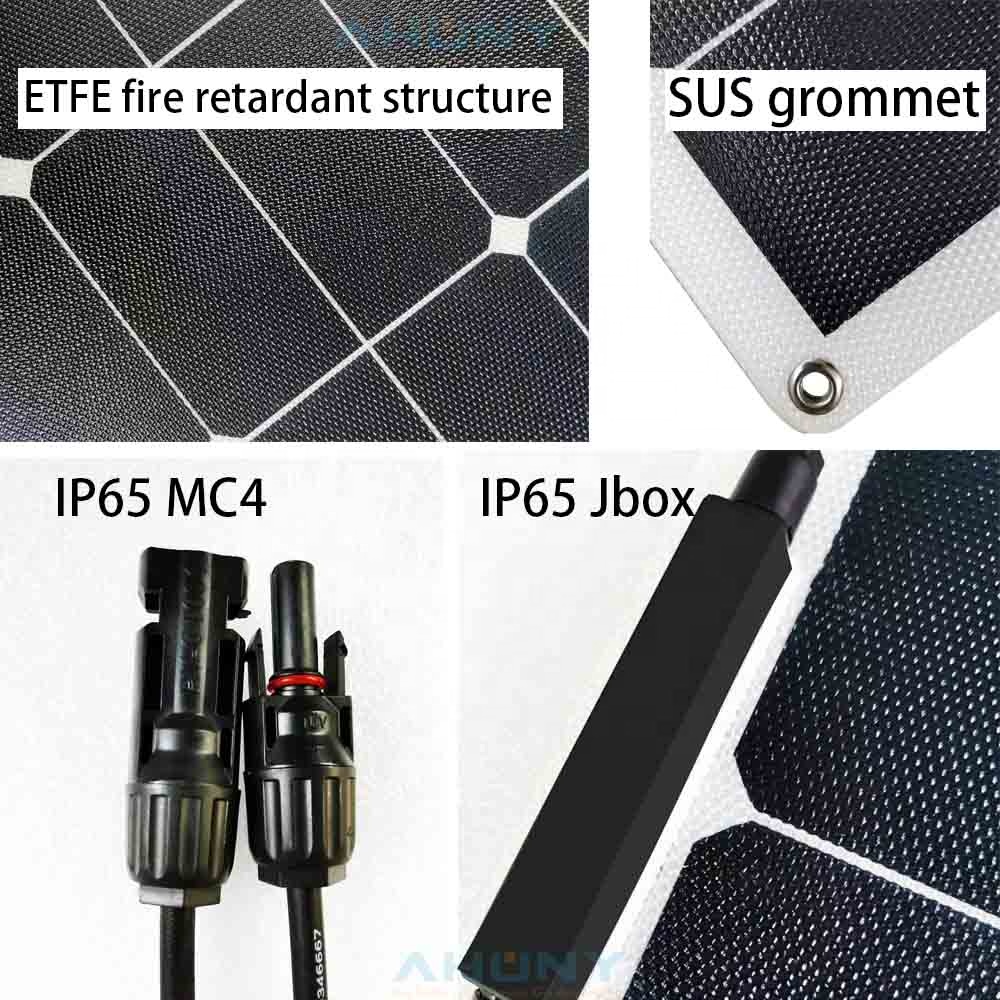

Cables and ConnectorsJbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test ConditionsSTC: 1000W/m², AM 1.5 and cell temp 25°C
Other notesround corner R10,with eyelets

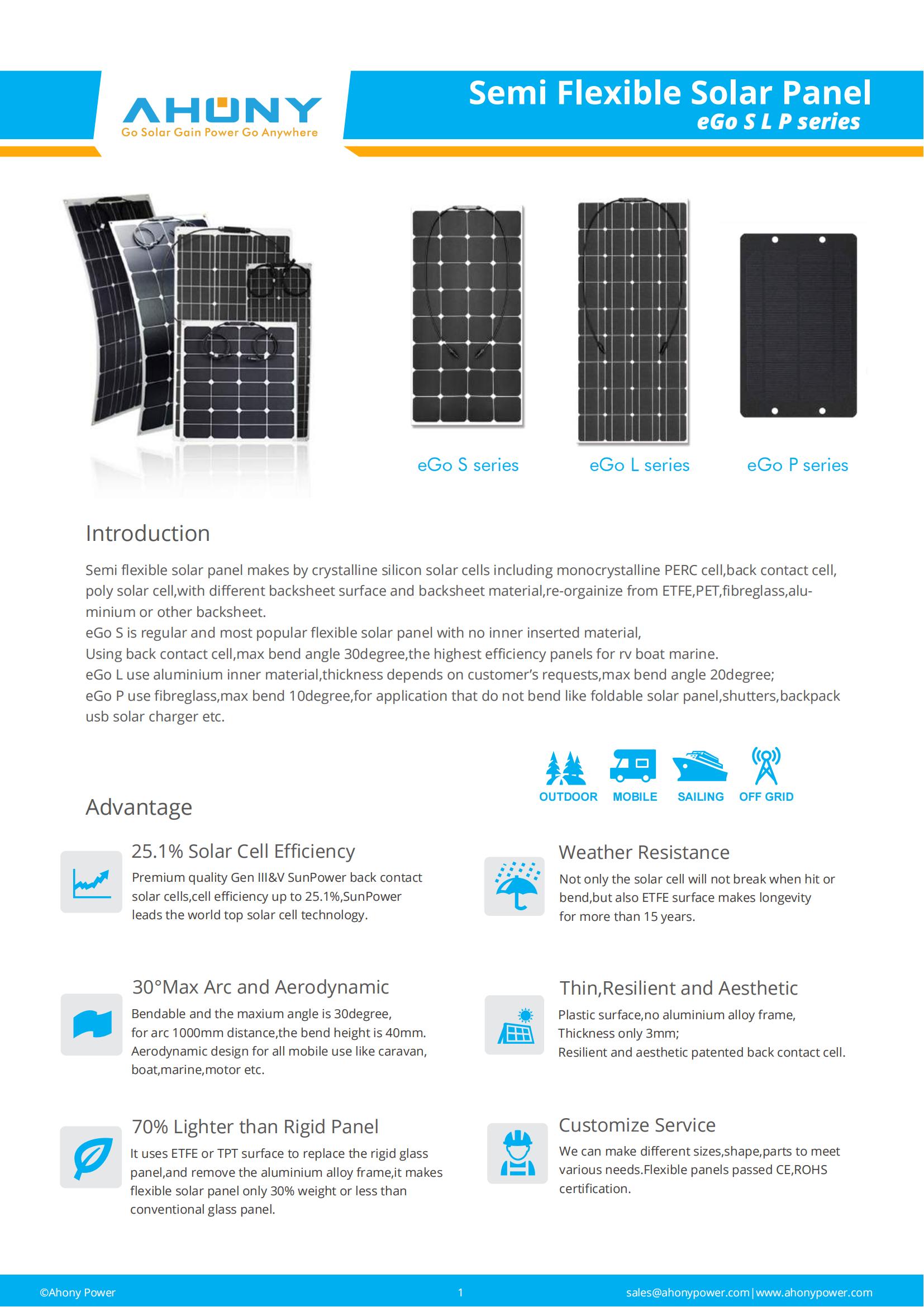

  • Semi fleible solar panel makes by crystalline silicon solar cells including monocrystalline PERC cell, back contact cell, poly solar cell, with different backsheet surface and backsheet material, re-orgainize from ETFE, PET, fibreglass, aluminium or other backsheet
  • eGo S is regular and most popular flexible solar panel with no inner inserted material, using back contact cell, max bend angle 30 degree, the highest efficiency panels for rv boat marine

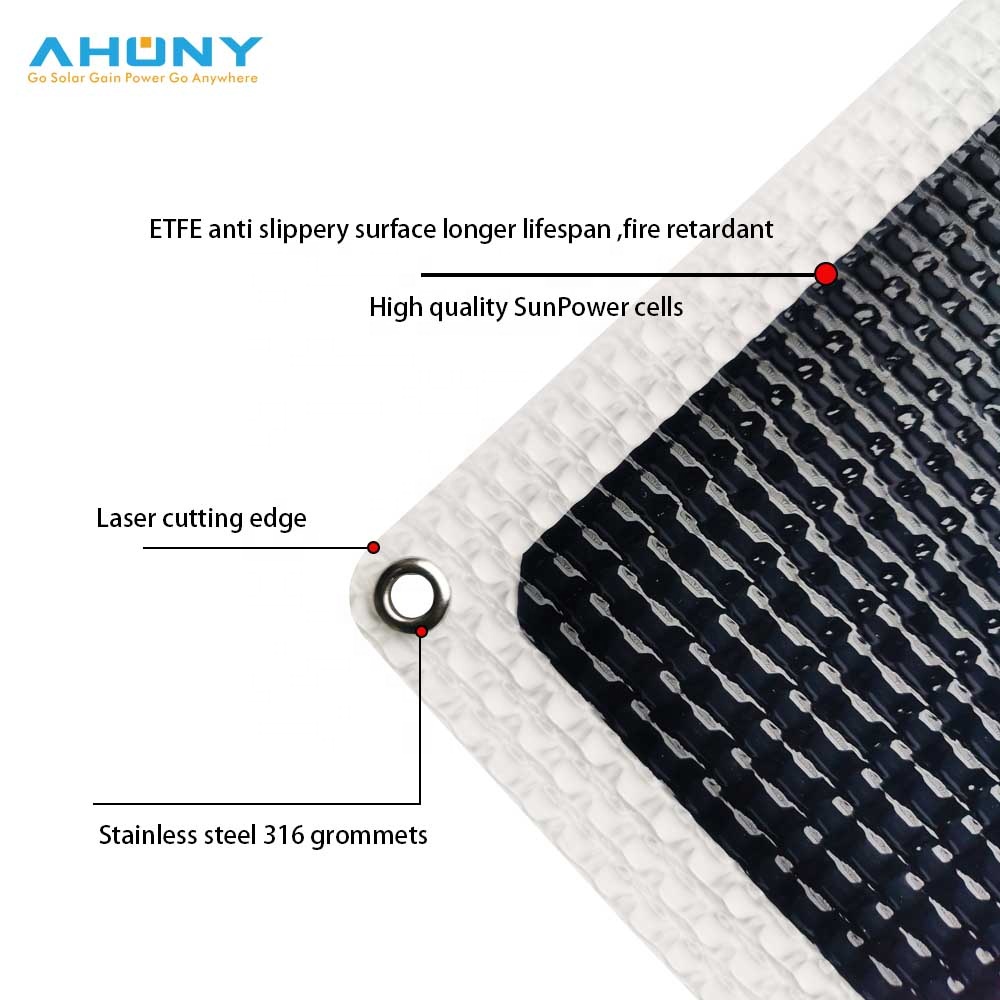

  • ETFE MATERIAL:Different from PET solar panel,the transmitance of ETFE material as high as 95%,better at high temperature resistance,easier to clean
  • HIGH EFFICIENCY: Sunpower solar cell,the conversion up to 23.5%,with excellent weak light sensitivity,the internal blocking diode which prevents reverse current drain at night

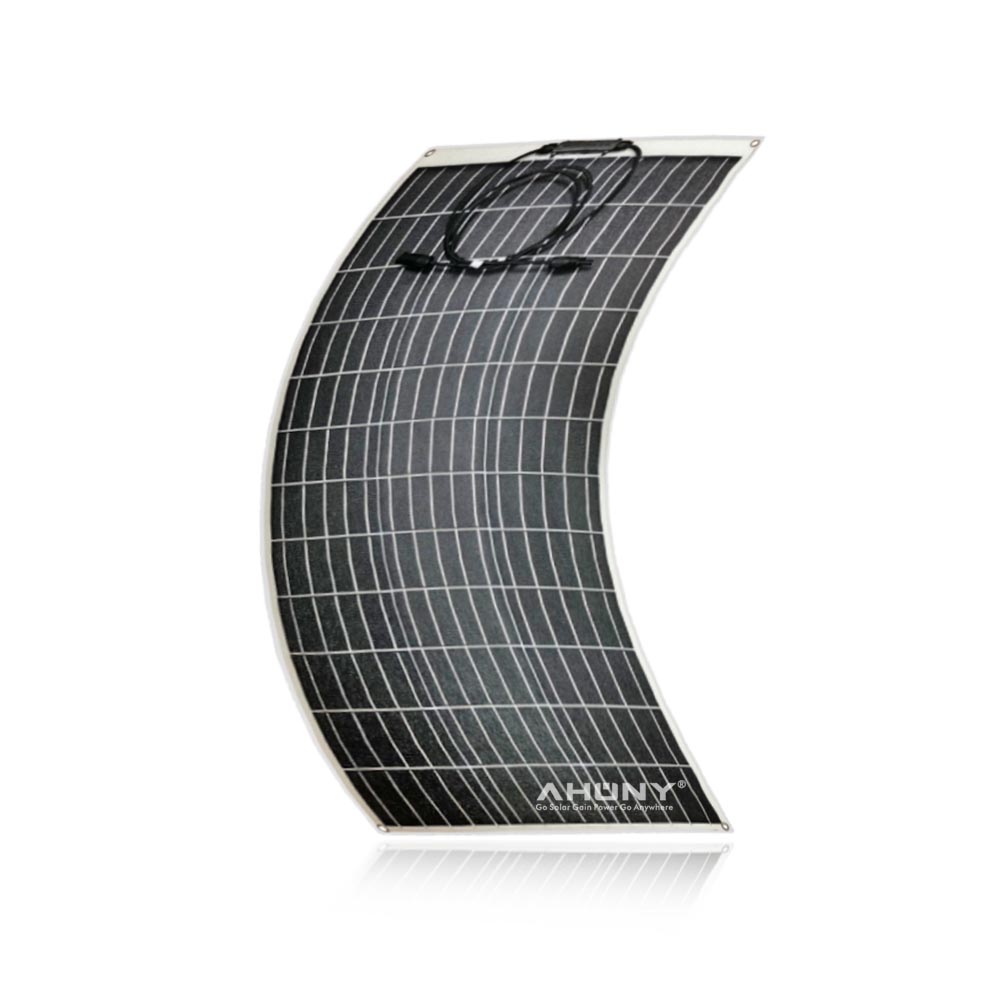

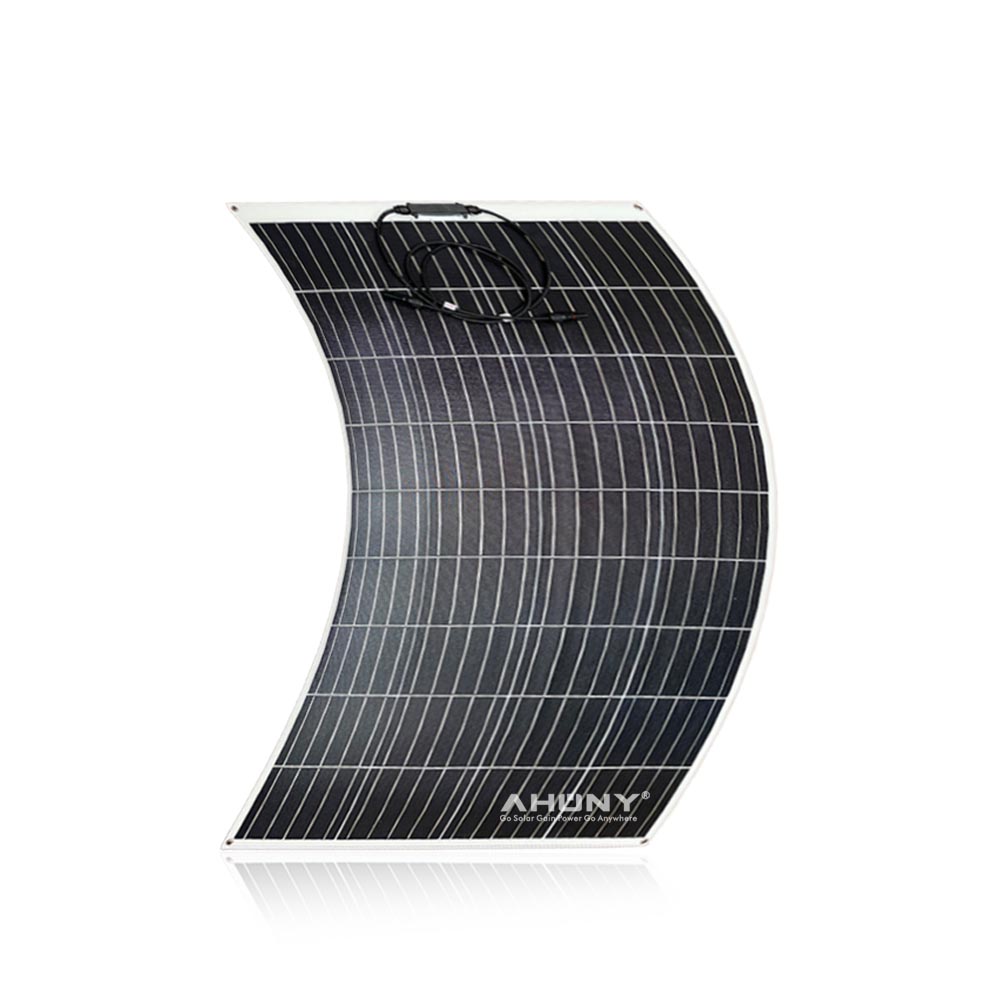

  • GOOD BENDABILITY: The solar panel can be curved to a maximum 30 degree arc,allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface
  • SUPERIOR DURABILITY: This solar panel is made of advanced water resistant material,the junction box is sealed and waterproof,the copper wire is protected by 3-layers plastic film
  • EASY INSTALLATION:Only 0.1 in thick and weighs only3.8 lbs,this solar panel is easy to transport,hang,and remove,8 stainless eyelets at the edges for easy installation;can be easily affixed by adhesives,silicon glues,double sticky tape,zip ties or velcro
