Semi flexible solar panel for Roof RV Marine Car panel power solar 50W 100W 150W 200W 250W
eGo m50W
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
1,latest generation 24% Solar Cell Efficiency
Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.
2.MBB technology less power loss
9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.
3.3.22kg/m ultralight material
Ultralight,1.6kg only for 100w and 3.22kg per square meter.
Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.
2.MBB technology less power loss
9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.
3.3.22kg/m ultralight material
Ultralight,1.6kg only for 100w and 3.22kg per square meter.
Quantity

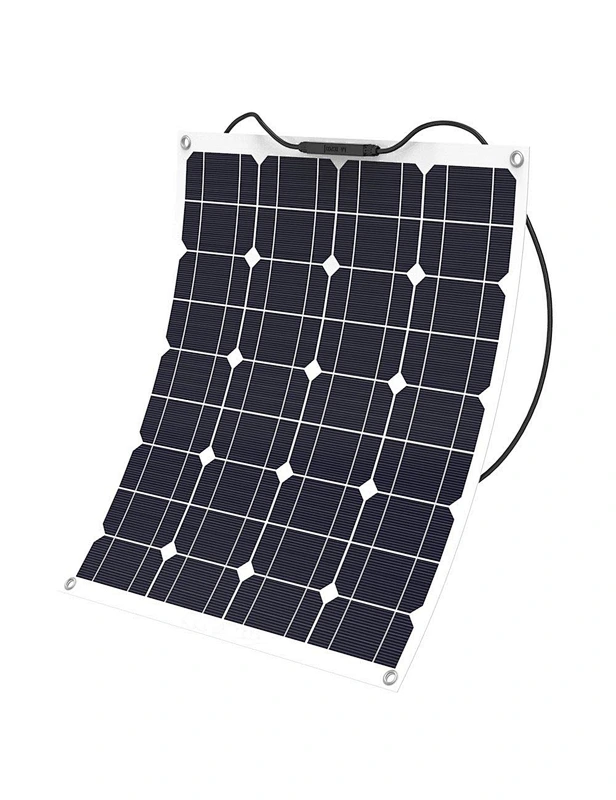

Our 100 watt semi-flexible solar panel is the ideal solution for powering up your RV or marine boat with renewable energy. With a flexible and low-profile design, it is highly efficient and durable, making it perfect for use in all types of environments. Trust in our reliable semi-flexible solar panel for your energy needs.
- Brand Name:ahony
- Model Number:eGo m100W
- Place of Origin:Guangdong, China
- Panel Dimensions:350*950*3
- Panel Efficiency:21%
- Certificate:CE ROHS
- Warranty:1Year
- Type:Customized Solar Panel
- Product name:Flexible Solar Panel
- Solar cell:Mono
- Junction Box:IP67
- Application:Marine,Boat,Yacht,RV,Roof,Golf car etc.
Product Description
| Product Name | Light weight solar panel |
| Maximum Power[Wp] | 50W |
| Solar Cell | Monocrystalline solar cell |
| Cell size[mm] | 156*48.3 |
| Cell Array[Pcs] | 2*18 |
| Cell Efficiency | 22.70% |
| Size[mm] | 350*820*3 |
| Max Power Voltage Vmp[V] | 20.52 |
| Max Power Current Imp[A] | 2.44 |
| Open Circuit Voltage Voc[V] | 24.01 |
| Short Circuit Current Isc[A] | 2.57 |
| Net.Weight[kg] | 1.2 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.43 |
| Temperature Coefficient Voc[[%/℃] | -0.34 |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
| Maximum System Voltage[V] | 200 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Surface/Backsheet | PET/white plastic |
| Maximum bend radius(θ) | 10°-20° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
