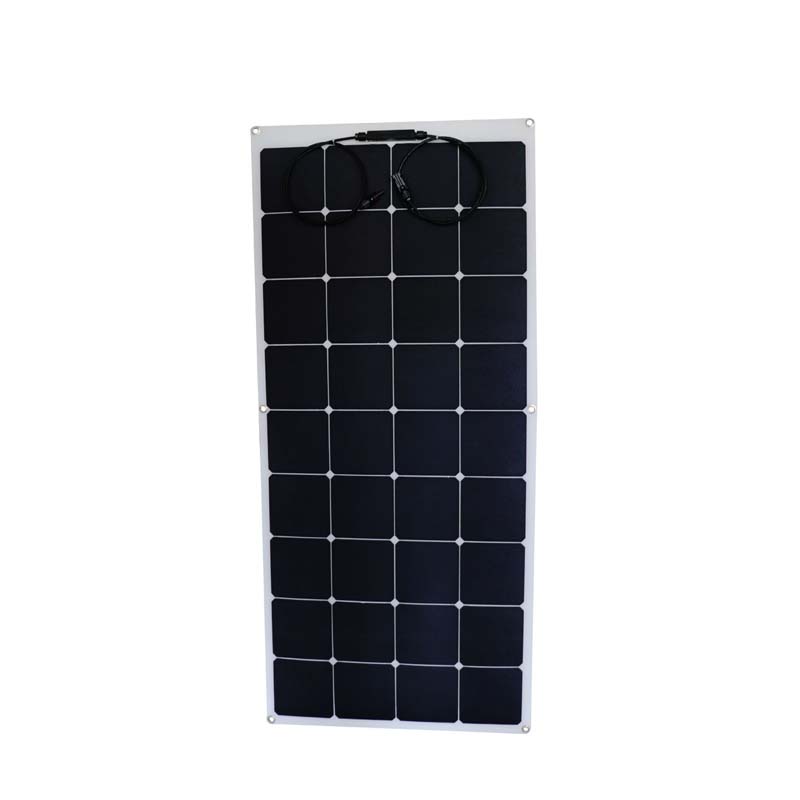

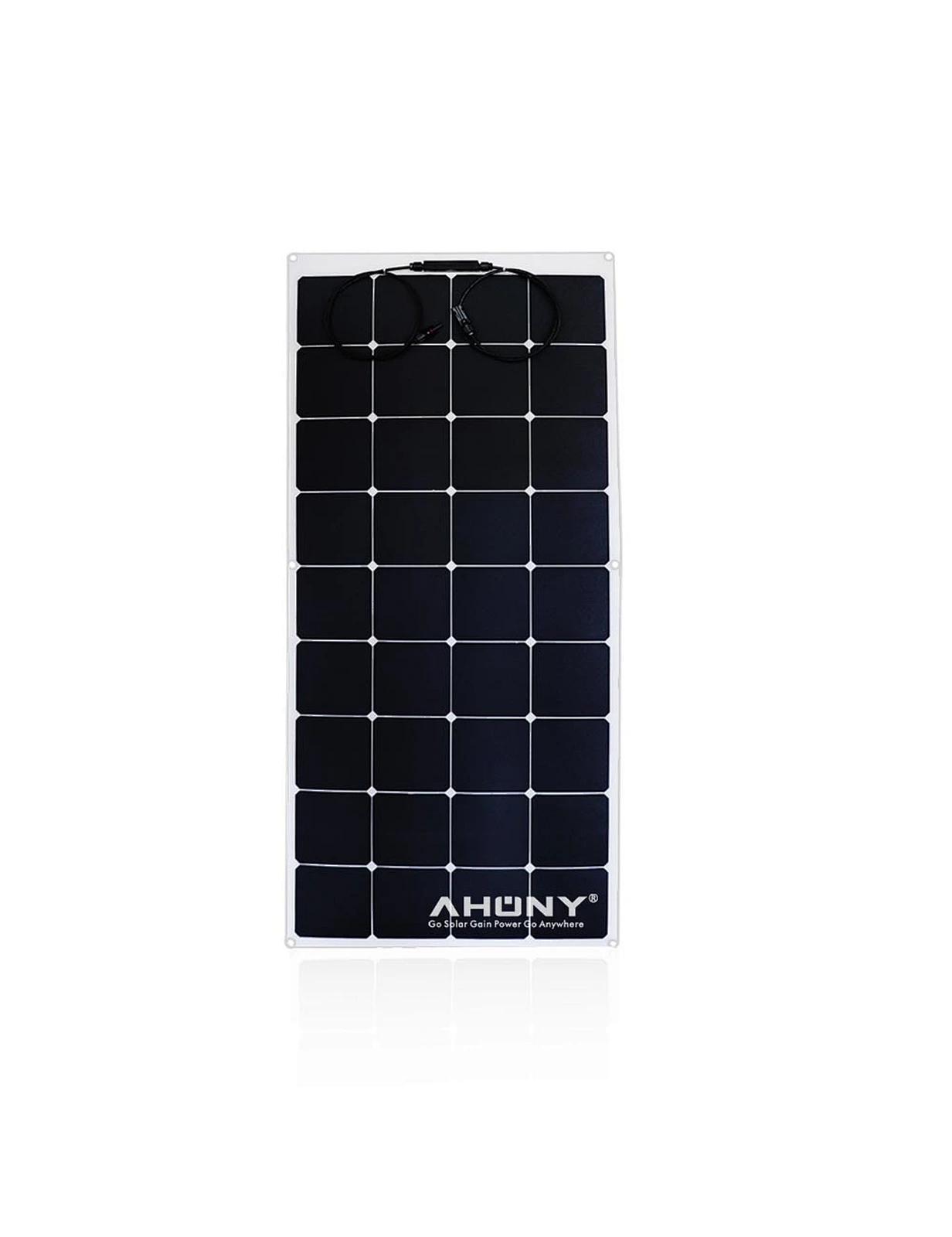

Semi Flexible Solar Panel for rv marine boat yacht home rooftop
eGo S 135w
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day

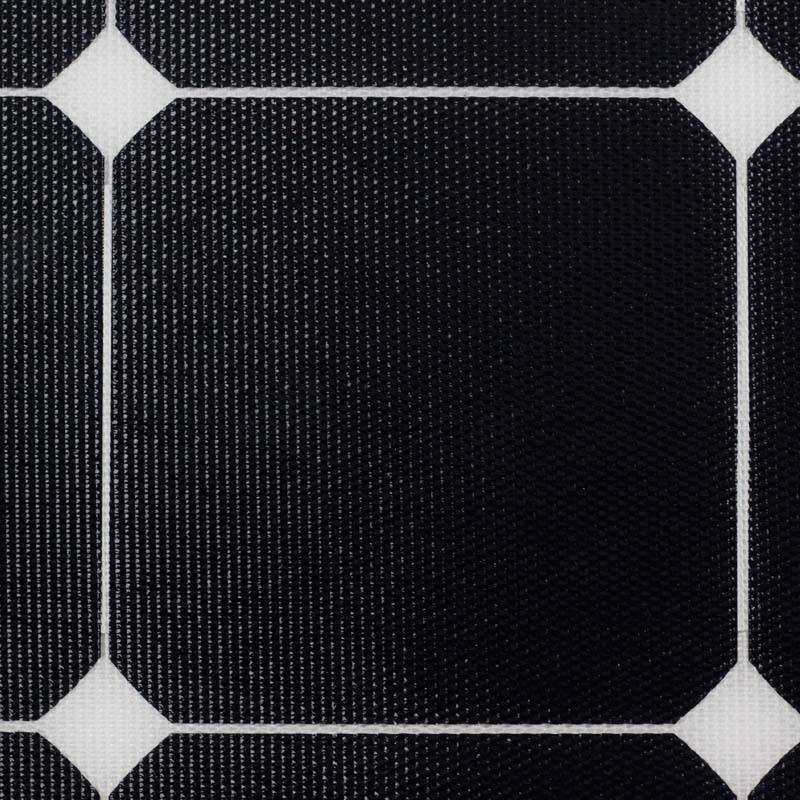

-Back contact solar cells,efficienty is up to 24.4%;

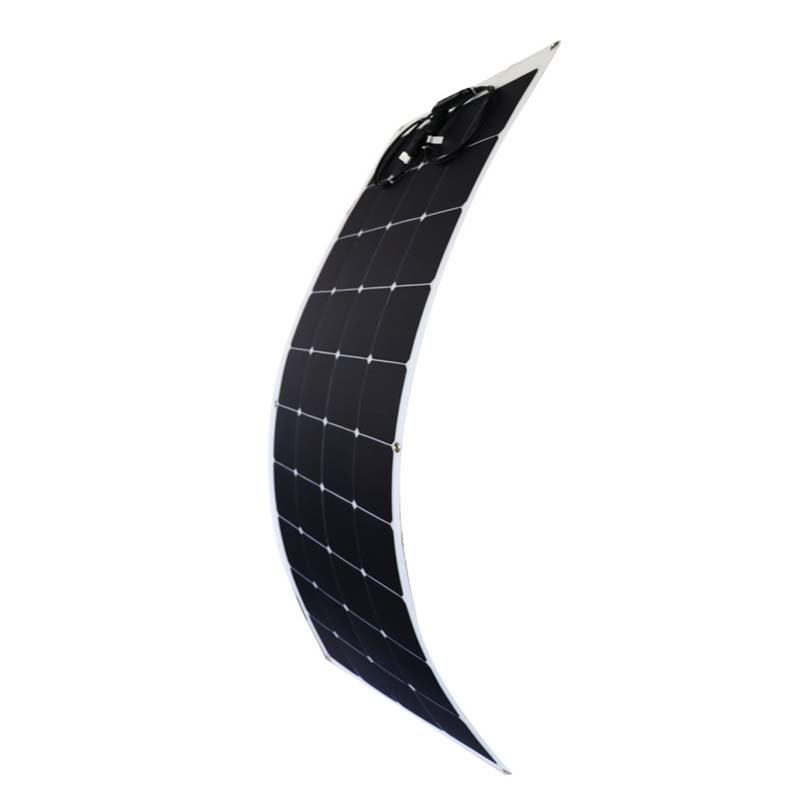

-resilient,thin,light and aerodynamic design;
-ETFE surface,more weather resistance;
-Waterproof Jbox that is full of silicon gel;
-Customize is acceptable.
-Factory direct,best price at the same quality.
-resilient,thin,light and aerodynamic design;
-ETFE surface,more weather resistance;
-Waterproof Jbox that is full of silicon gel;
-Customize is acceptable.
-Factory direct,best price at the same quality.
Quantity
Hit the road with confidence with our Flexible Solar Panels for Campers. Our panels are designed to be lightweight, durable and efficient, while providing you with sustainable power for all your camping needs. Perfect for RVs, campers, and trailers
- Place of Origin:Guangdong, China
- Brand Name:AHONY
- Model Number:eGo S 135w
- Material:Japan ETFE/white PET
- Cell size:4*9
- Panel Dimensions:540x1200x3
- Panel Efficiency:24.4%
- Type:Japan ETFE/white PET
- style:Super UV resistant, thin
Product Description
| Model No. | eGo S135w |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 135 |
| Solar Cell | Sunpower Back Contact Cell |
| Cell Array[Pcs] | 4*9 |
| Cell Efficiency | 24.40% |
| Size[mm] | 540x1200x3 |
| Max Power Voltage Vmp[V] | 22.6 |
| Max Power Current Imp[A] | 5.98 |
| Open Circuit Voltage Voc[V] | 23.11 |
| Short Circuit Current Isc[A] | 6.34 |
| Net.Weight[kg] | 2.6 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.27 |
| Temperature Coefficient Voc[[%/K] | -0.236 |
| Temperature Coefficient Isc[[%/K] | 0.058 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white PET |
| Maximum bend radius(θ) | 30° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
