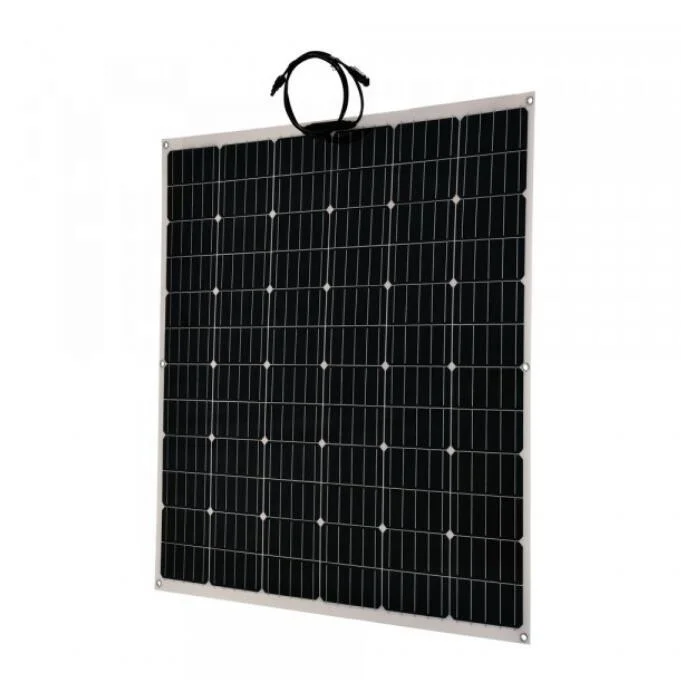

Sunpower 240w semi flexible solar panel hight efficiency solar cell for sailboat rv yacht electric car
eGo-S240w
Quantity
Experience cost-effective and reliable energy solutions with our 240W solar power system for homes. Enjoy eco-friendly living while reducing your carbon footprint.
Product Description
The half cut semi flexible solar panel series reduce the current of each panel.It has much more advantage over traditional semi flexible solar panel.
1.Less current more Power
The half cut reduce the current each cell and avoid heating problem,reduce the risk of hot dot ,heating etc,in this way,the panel power output is 2-3wattages over regular panels;
2.Inner parallel design,voltage drop less when shade,produce more power
It has more obvious performance on sailboat,which has half shade most of time.
The inner parallel design.
| Model No. | eGo S240w |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 240 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 6*11 |
| Cell Efficiency | 24.40% |
| Size[mm] | 805*1460*3 |
| Max Power Voltage Vmp[V] | 40.4 |
| Max Power Current Imp[A] | 5.94 |
| Open Circuit Voltage Voc[V] | 47.67 |
| Short Circuit Current Isc[A] | 6.30 |
| Net.Weight[kg] | 10.2 |
| Power tolerance[%] | ±3% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | IR<2A-0 |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white PET |
| Maximum bend radius(θ) | 30° |
