90W IBC Solar Panel for Electric Car Travel for RV Boat Mobile Power Needs
price
$78.30 - $86.40 / piece
eGo S90w
1 piece
Quantity
- Brand Name:Ahobypower
- Model Number:eGo S90w
- Place of Origin:Guangdong, China
- Cell size:125mmx125mm
- Type:IBC, Customized Solar Panel
- Panel Dimensions:540x940x3mm
- Panel Efficiency:23.7%
- Product name:solar panel for the travel of RV boat coming mobile power
- Solar cell:Mono 156*156 Cell
- Certificate:IEC
- Solar panel:flexible solar panel ultralight for rv boat
- Frame Color:no frame
- Efficiency:23.7%
- cable:0.9m
Product Description
Model No. | eGo S90w of solar panel for the travel of RV boat coming mobile power from the sun yes you need |
| Product Name | Semi-Flexible Solar Panel |
| Maximum Power[Wp] | 90 |
| Solar Cell | SunPower Maxeon Gen III Back Contact Cell |
| Cell Array[Pcs] | 4*7 |
| Cell Efficiency | 22.60% |
| Size[mm] | 540x940x3 |
| Max Power Voltage Vmp[V] | 18.56 |
| Max Power Current Imp[A] | 4.85 |
| Open Circuit Voltage Voc[V] | 21.90 |
| Short Circuit Current Isc[A] | 5.24 |
| Net.Weight[kg] | 1.5 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.3 |
| Temperature Coefficient Voc[[%/K] | -1.74mV |
| Temperature Coefficient Isc[[%/K] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Surface/Backsheet | Japan ETFE/white plastic |
| Maximum bend radius(θ) | 30° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |

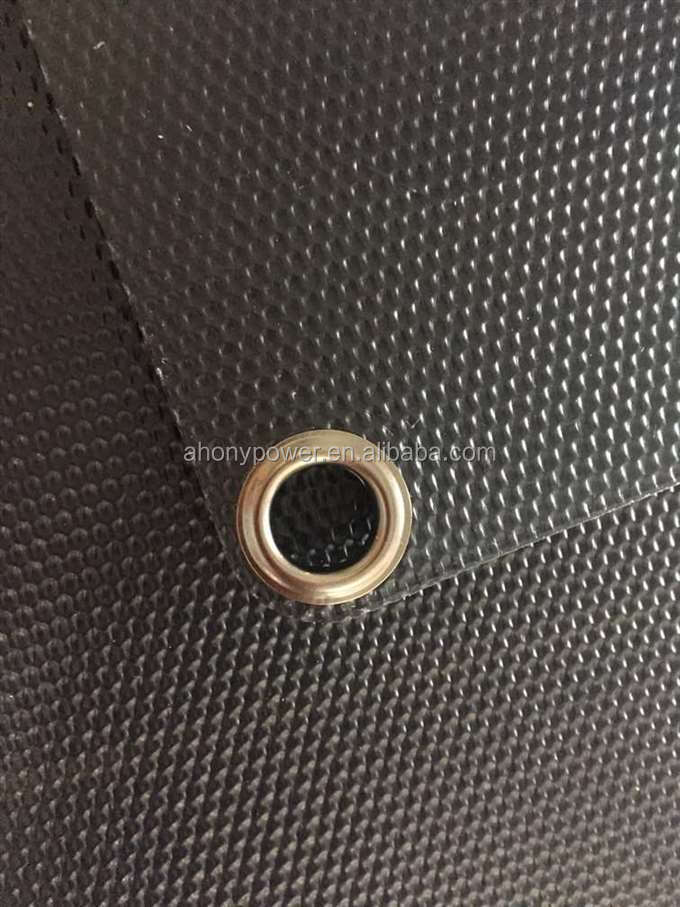

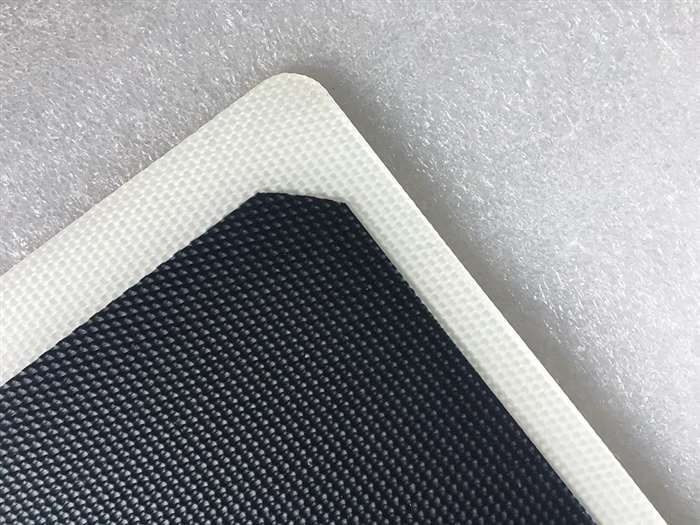

| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
| Lead time | within 12-15working days after payment confirmed. |
| Payment terms | 30% in advance as deposit balance before shipment. |
| Price Terms | FOB Shenzhen,China. |
| Warranty | Power output will be at least 95% after 5 years and more than 85% after 10 years,2 years repair/replacement. |

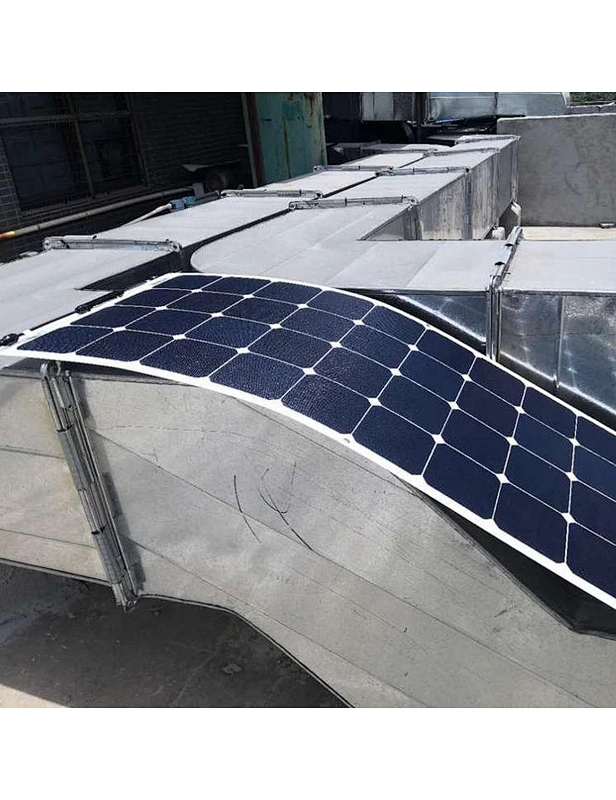

Flexible solar panel
Solar application
Foldable solar kit
Market and service
