Our thin film solar modules are a flexible, lightweight, and eco-friendly solution for generating renewable energy. They are highly efficient and can be easily integrated into a variety of applications, ranging from roofs to building facades.
- Brand Name:AHONY or OEM
- Model Number:eGo S 45w
- Place of Origin:Guangdong, China
- Type:IBC, Standard Solar Panel
- Panel Dimensions:280*1460*3mm
- Panel Efficiency:23.7%
- Certificate:CE ROHS, CE,ROHS,S GS,IEC
- Warranty:Other, 1 year
- Solar cell:back contact
- Application:camping yacht boat marine
- Product name:thin film solar cell 12v solar panel
- Junction Box:IP65 Waterproof
- Material:Japan ETFE surface

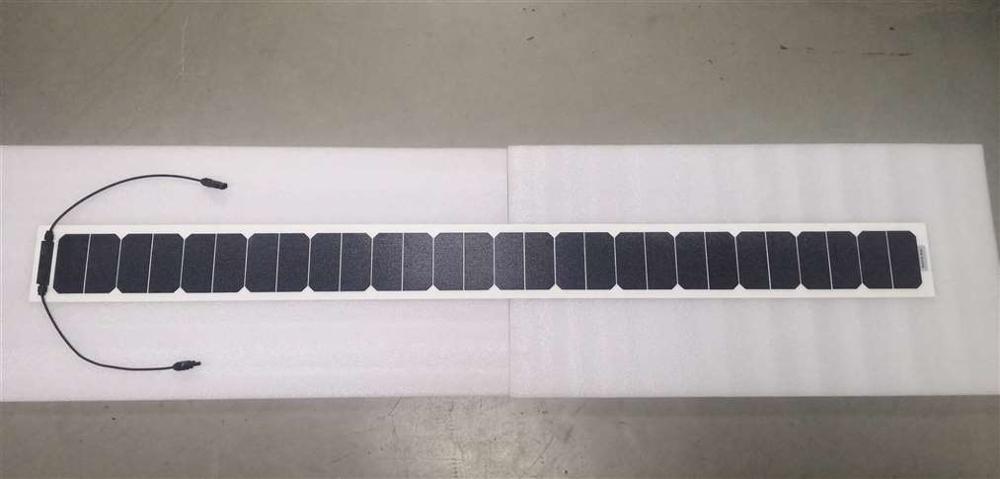

thin film solar cell12v solar panel slim customize flexible solar module 45w 50w 90w 160w for building fan
It's one of the best seller flexible solar module eGo S150w.
High voltage big power;
Back contact solar cells,efficienty is up to 23.7%;
resilient,thin,light and aerodynamic design;
ETFE surface,more weather resistance;

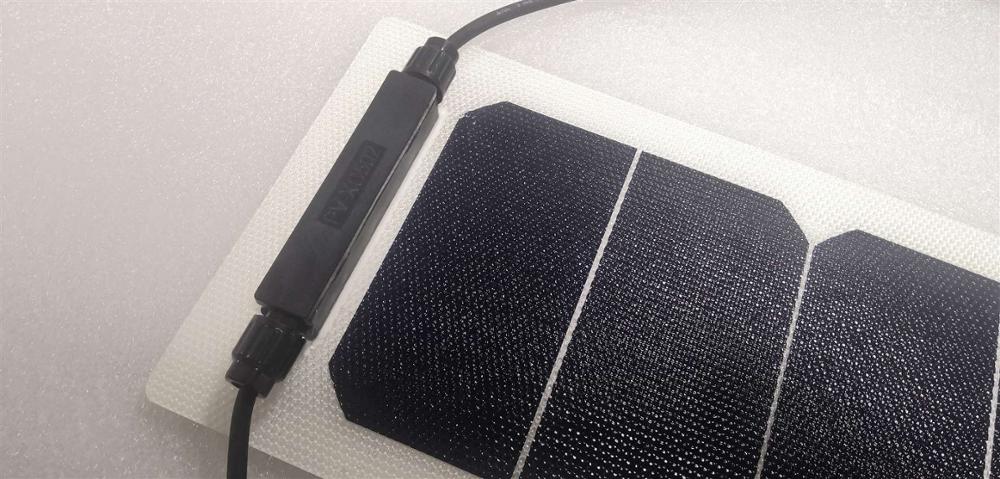

Waterproof Jbox that is full of silicon gel;
Customize is acceptable;
More flexible solar panels sizes and workmanship are avaliable.
It's one of the best seller eGo S150w flexible solar panel has high voltage for RV,the voltage is 18V which is better for 12v battery.
Back contact thin film solar cells,efficienty is up to 23.7%;
resilient,thin,light and aerodynamic design;
ETFE surface,more weather resistance;
Waterproof Jbox that is full of silicon gel;
Customize 150w flexible solar modules are acceptable.
| Product Name | thin film solar cell 12v solar panel slim customize flexible solar module 45w 50w 90w 160w for building fan |
| Maximum Power[Wp] | 45 |
| Solar Cell | Back Contact Cell |
| Cell Array[Pcs] | 2*14 |
| Cell Efficiency | 22.60% |
| Size[mm] | 280x1460x3 |
| Max Power Voltage Vmp[V] | 17.4 |
| Max Power Current Imp[A] | 2.59 |
| Open Circuit Voltage Voc[V] | 20.53 |
| Short Circuit Current Isc[A] | 2.8 |
| Net.Weight[kg] | 0.8 |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.3 |
| Temperature Coefficient Voc[[%/℃] | -1.74mV |
| Temperature Coefficient Isc[[%/℃] | 0.05 |
| Maximum System Voltage[V] | 100 V |
| Maximum Reverse Current[V] | 12A |
| Certification | CE ROHS |
| Surface/Backsheet | rough shiny ETFE/white or black backsheet |
| Cables and Connectors | Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5g and cell temp 25°C |
