Ultra light ETFE flexible solar panel 100w 120w 200w 240w
eGo S100M-18v
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day
1,latest generation 24% Solar Cell Efficiency
Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.
2.MBB technology less power loss
9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.
Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.
2.MBB technology less power loss
9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.
Quantity

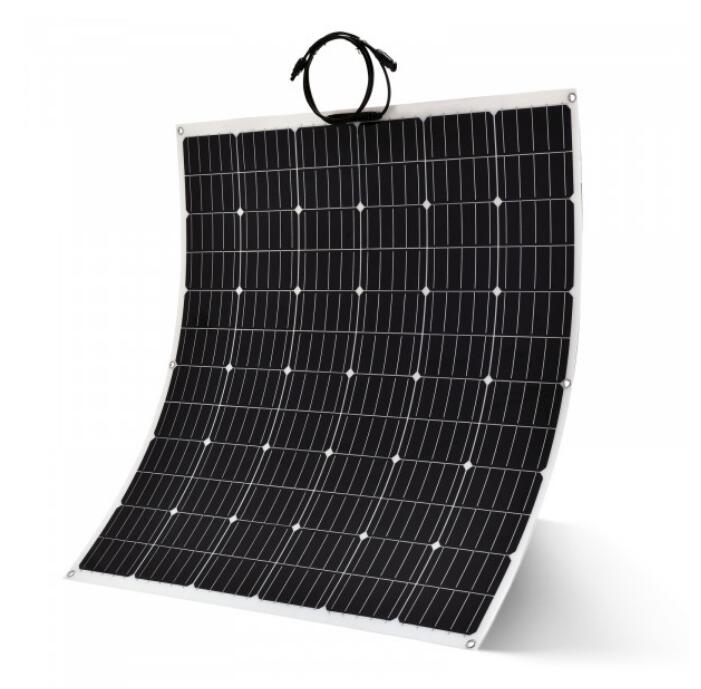

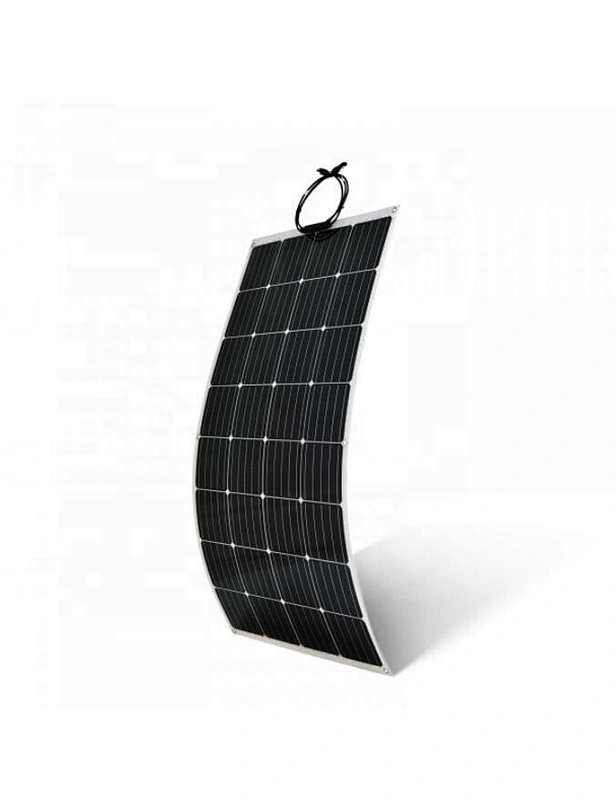

Power up your adventures with our Flexible 100W Solar Panel Kit. The flexible panels are built to withstand harsh outdoor conditions and can be easily installed on RVs, boats, or camping trailers.
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Model Number:eGo S100M-18v
- Cell size:156.75mmx156.75mm
- Type:PERC, Standard Solar Panel
- Panel Dimensions:510*1035*3mm
- Panel Efficiency:22.7%
- Certificate:CE ROHS ISO9001
- Warranty:1 year
- Product name:Lightweight ETFE flexible solar module200w for offroad
- OEM Order:yes OEM flexible solar panel 100w
- Voltage:18V/36V/54V panel solar china direct
- Description:100w flexible solar panel ETFE for offroad
- Connector:MC 4 Compatible Connector
- Backsheet:0.3mm Thickness TPT
- Application:200w solar module flexible for offroad
Product Description
- This solar module is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.
- ETFE material has higher light transmittance, longer service life than PET material. ETFE material also has antifouling and self-cleaning abilities, ensure best performance day after day.
- Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze. The lightweight design also contributes to lower mpg on vehicles.
- Sleek and barely noticeable,100W flexible solar panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.
- Rigorously tested, the 200w solar module was designed to withstand extreme wind of up to 4800 Pa and snow loads of up to 5400 Pa.200W flexible solar module is the best companion for RV, boat, cabin and other applications
| Model No. | eGo S100M-18v | eGo S120M-18v | eGo S150M-18v | eGo S180M-20v |
| Product Name | Ultra Lightweight ETFE surface flexible solar panel 100w 120w 24v 200w 240w panels solar china direct for offroad camping | |||
| Maximum Power[Wp] | 100 | 120 | 150 | 180 |
| Solar Cell | Monocrystalline solar cell | |||
| Cell size[mm] | 156*97.4 | 156*116.7 | 156*130 | 156*116.7 |
| Cell Array[Pcs] | 3*12 | 3*12 | 4*9 | 4*9 |
| Cell Efficiency | 22.7% | 21.00% | 21.00% | 21.00% |
| Size[mm] | 510*1035*3 | 510*1250*3 | 670*1190*3 | 1380*670*3 |
| Max Power Voltage Vmp[V] | 19.80 | 19.80 | 19.80 | 19.80 |
| Max Power Current Imp[A] | 5.05 | 6.06 | 7.58 | 9.09 |
| Open Circuit Voltage Voc[V] | 23.36 | 23.36 | 23.36 | 23.36 |
| Short Circuit Current Isc[A] | 5.45 | 6.55 | 8.18 | 9.82 |
| Net.Weight[kg] | 3.8 | 4.2 | 4.2 | 6.2 |
| Power tolerance[%] | ±5% | ±5% | ±5% | ±5% |
| NOCT[℃] | 45±2 | 45±2 | 45±2 | 45±2 |
| Operating Temperature[℃] | -40/+85 | -40/+85 | -40/+85 | -40/+85 |
| Temperature Coefficient Pmax[%/℃] | -0.43 | -0.43 | -0.43 | -0.41 |
| Temperature Coefficient Voc[[%/℃] | -0.34 | -0.34 | -0.34 | -0.32 |
| Temperature Coefficient Isc[[%/℃] | 0.05 | 0.05 | 0.05 | 0.04 |
| Maximum System Voltage[V] | 200 V | 200 V | 200 V | 200 V |
| Maximum Reverse Current[V] | 10A | 20A | 20A | 20A |
| Certification | CE ROHS | CE ROHS | CE ROHS | CE ROHS |
