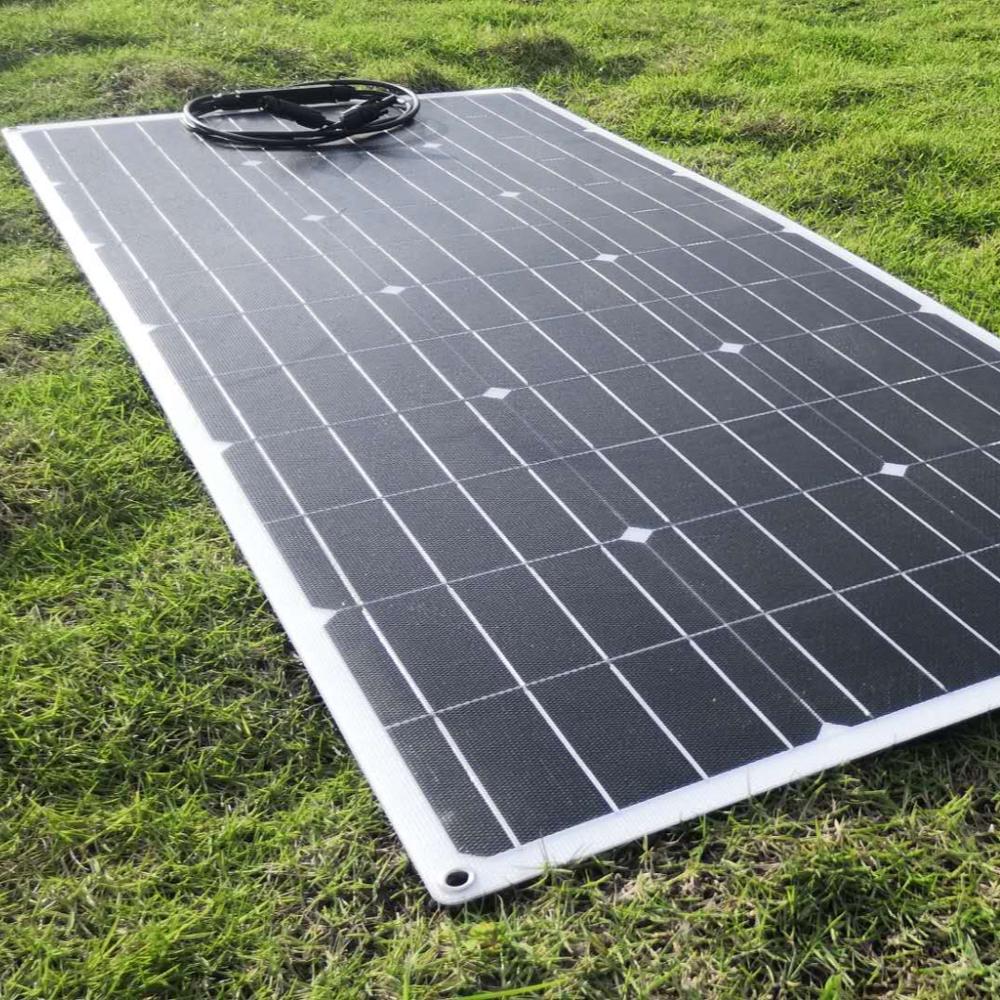

Waterproof 90w Light weight flexible 18V solar panel for rv boat marine roof
eGo L90p
EXW,CIF,FOB
10 pieces
2000pieces / Month
SHENZHEN
12-30Day

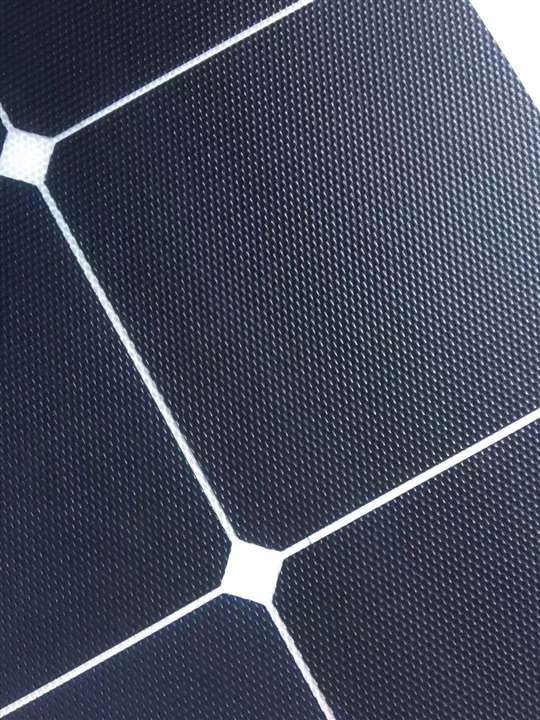

1,latest generation 24% Solar Cell Efficiency
Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.
2.MBB technology less power loss
9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.
3.3.22kg/m ultralight material
Ultralight,1.6kg only for 100w and 3.22kg per square meter.
Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.
2.MBB technology less power loss
9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.
3.3.22kg/m ultralight material
Ultralight,1.6kg only for 100w and 3.22kg per square meter.
Quantity
The 18V solar panel is a versatile and high-performance energy solution for a wide range of applications. With its efficient cells and durable construction, it can generate power in various settings, from home and commercial systems to portable and mobile solar systems. Harness the power of the sun with the 18V solar panel.
- Brand Name:Ahony
- Model Number:eGo L90p
- Place of Origin:Guangdong, China
- Type:Poly, Customized Solar Panel
- Panel Dimensions:1200*500*4mm
- Panel Efficiency:18.24%
- Certificate:CE ROHS ISO
- Warranty:1 year, 1 Year
- Product name:Light weight solar panel
- Solar cell:Polycrystalline solar cell
Packaging & Shipping
| Model No. | eGo L90P-18v |
| Product Name | Light weight solar panel |
| Maximum Power[Wp] | 90 |
| Solar Cell | Polycrystalline solar cell |
| Cell size[mm] | 156x93.6 |
| Cell Array[Pcs] | 3*12 |
| Cell Efficiency | 18.24% |
| Size[mm] | 1200*500*4 |
| Max Power Voltage Vmp[V] | 18.56 |
| Max Power Current Imp[A] | 4.85 |
| Open Circuit Voltage Voc[V] | 21.90 |
| Short Circuit Current Isc[A] | 5.24 |
| Net.Weight[kg] | 1.5 |
| Power tolerance[%] | ±5% |
| NOCT[℃] | 45±2 |
| Operating Temperature[℃] | -40/+85 |
| Temperature Coefficient Pmax[%/K] | -0.42 |
| Temperature Coefficient Voc[[%/K] | -0.333 |
| Temperature Coefficient Isc[[%/K] | 0.049 |
| Maximum System Voltage[V] | 200 V |
| Maximum Reverse Current[V] | 10A |
| Certification | CE ROHS |
| Surface/Backsheet | ETFE/white plastic |
| Maximum bend radius(θ) | 10°-20° |
| Cables and Connectors | PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector |
| Standard Test Conditions | STC: 1000W/m², AM 1.5 and cell temp 25°C |
| Other notes | round corner R10,with eyelets |
| Package | 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box |
