Wholesale high quality mono half cut cell 220w 270w 360w 450w 500w Waterproof 182 Glass solar panel module for Home Solar System
eRigid 65-450w
EXW,FOB,CIF
10 pieces
3000pieces / Month
SHENZHEN
12-30Day
Quantity
Glass solar panel modules are a durable and high-performance solution for solar power. With advanced technology and sleek design, they provide maximum energy production and longevity for residential and commercial applications. Harness solar power with Glass solar panel modules.

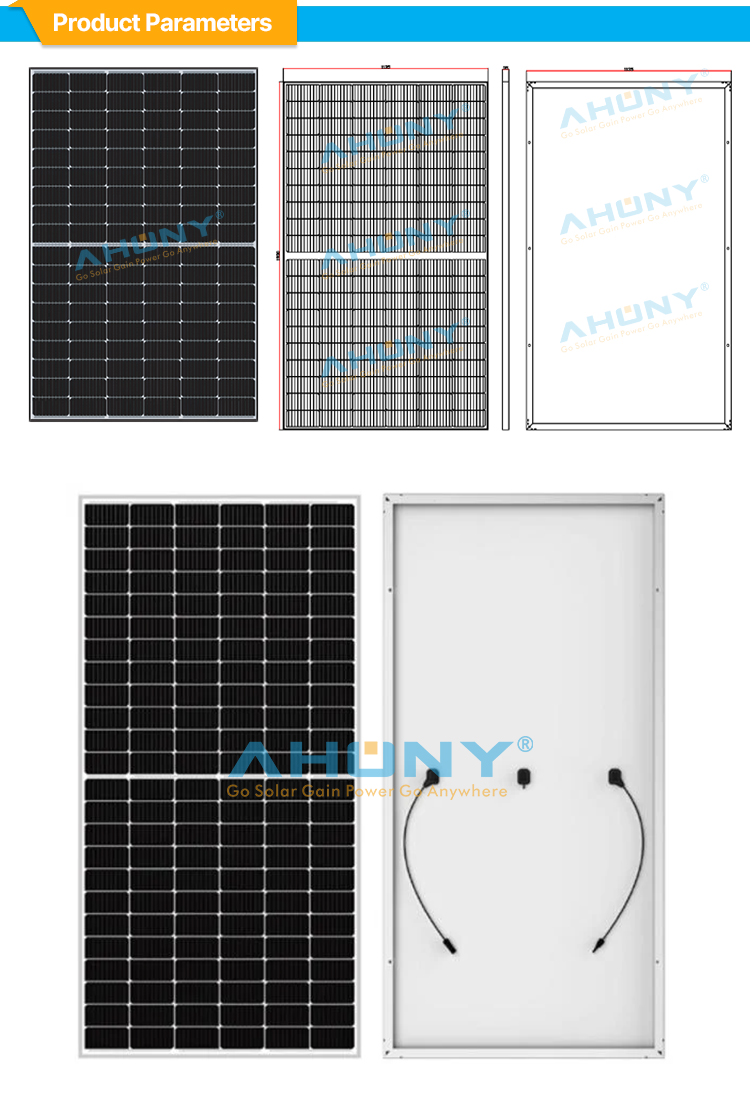

| Model No. | eRigid M65W | eRigid M90W | eRigid M100W | eRigid M120W | eRigid M135W | eRigid M150W |
| Maximum Power[WP] | 65 | 90 | 100 | 120 | 135 | 150 |
| Solar Cell | 182 PERC SOLAR CELL | |||||
| Cell Array[pcs] | 3*12 | 3*12 | 3*14 | 3*11 | 3*12 | 4*10 |
| Solar Cell Size[mm] | 182*45.5 | 182*60.67 | 182*60.67 | 182*91 | 182*91 | 182*91 |
| Cell Efficiency | 22.7% | 22.7% | 22.7% | 22.7% | 22.7% | 22.7% |
| Size[mm] | 590*610*25 | 590*800*30 | 590*925*30 | 590*1070*35 | 590*1165*35 | 590*980*35 |
| Max Power Voltage Vmp[V] | 20.88 | 20.88 | 24.36 | 19.14 | 20.88 | 23.20 |
| Max Power Current Imp[A] | 3.12 | 4.32 | 4.11 | 6.27 | 6.47 | 6.47 |
| Open Circuit Voltage Voc[V] | 24.22 | 24.22 | 28.26 | 22.20 | 24.22 | 26.91 |
| Short Circuit Current Isc[A] | 3.31 | 4.58 | 4.36 | 6.65 | 6.85 | 6.85 |
| Net.Weight[kg] | 4.9 | 5.90 | 6.70 | 6.90 | 7.70 | 8.20 |
| Power tolerance[%] | ±3% | |||||
| Operating Temperature[℃] | -40/85 | |||||
| Temperature Coefficient Pmax[%/K] | -0.41 | |||||
| Temperature Coefficient Voc[[%/K] | -0.32 | |||||
| Temperature Coefficient Isc[[%/K] | 0.04 | |||||
| Maximum System Voltage[V] | 1000V | |||||

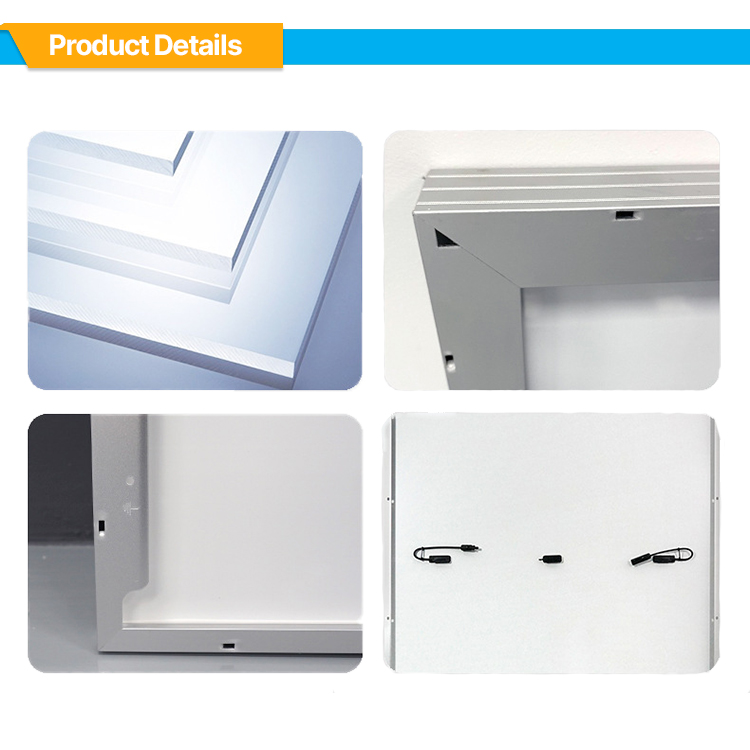

| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) | |||||
| Certification | CE ROHS | |||||
| Model No. | eRigid M180W | eRigid M220W | eRigid M270W | eeRigid M360W | eRigid M450W |
| Maximum Power[WP] | 180 | 220 | 270 | 360 | 450 |
| Solar Cell | 182 PERC Solar Cell | ||||
| Cell Array[pcs] | 4*18 | 4*15 | 4*18 | 6*24 | 6*20 |
| Solar Cell Size[mm] | 182*60.67 | 182*91 | 182*91 | 182*60.67 | 182*91 |
| Cell Efficiency | 22.7% | 22.7% | 22.7% | 22.7% | 22.7% |
| Size[mm] | 770*1180*35 | 770*1445*35 | 770*1740*35 | 770*1570*40 | 770*1930*40 |
| Max Power Voltage Vmp[V] | 20.88 | 34.80 | 41.76 | 41.76 | 34.80 |
| Max Power Current Imp[A] | 8.63 | 6.33 | 6.47 | 8.63 | 12.94 |
| Open Circuit Voltage Voc[V] | 24.22 | 40.37 | 48.44 | 48.44 | 40.37 |
| Short Circuit Current Isc[A] | 9.15 | 6.71 | 6.85 | 9.15 | 13.72 |
| Net.Weight[kg] | 10.20 | 11.30 | 12.30 | 16.00 | 18.60 |
| Power tolerance[%] | ±3% | ||||
| Operating Temperature[℃] | -40/+85 | ||||
| Temperature Coefficient Pmax[%/K] | -0.41 | ||||
| Temperature Coefficient Voc[[%/K] | -0.32 | ||||
| Temperature Coefficient Isc[[%/K] | 0.04 | ||||
| Maximum System Voltage[V] | 1000 V | ||||
| Frame/Backsheet | silver frame/white blacksheet(can also make black frame) | ||||
| Certification | CE ROHS | ||||
